900MM 1000MM Linear Motor Fast Speed
Feature:
100% brand new and high quality;
High performance and long life motor;
High quality aluminum alloy material;
High performance motor;
Reliable performance;
Stable running;
The same properties of pushing and pulling;
Good adaptability to the environment;
High performance motor;
Built-in high quality limit switch;
The low noise design, noise level below 50dB;
General purpose linear actuator;
Often used in the automotive, medical, and engineering industries.
The linear actuator is widely used in a number of industries such as: B. Electricity, mechanical engineering, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, etc. the same properties of push and pull and good adaptability to the environment, etc.

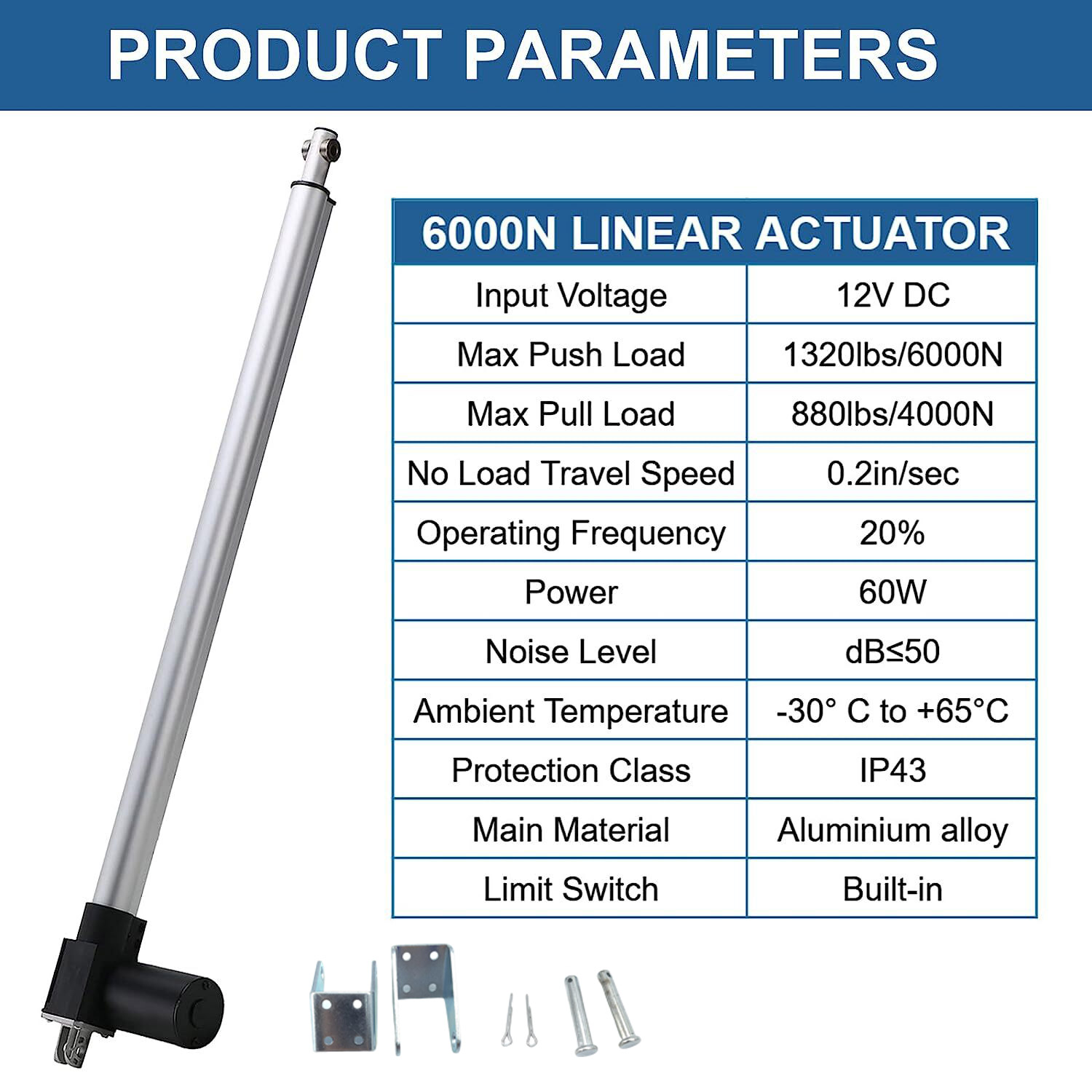

Specifications:
- No-load current: 1.3A;
- Maximum current draw = 9.5 Amps;
- Input Voltage: DC 12V ;
- Stroke Length:100mm/4", 150mm/6", 200mm/8",250mm/10", 300mm/12", 350mm/14", 400mm/16 ", 450mm/18", 500mm/20 ", 550mm/22", 600mm/24 ", 650mm/26", 700mm/28 ", 750mm/30", 800mm/32 ", 850mm/34 ", 900mm/36", 950mm/38 ", 1000mm/40" (optional);
- Max Push Load: 500N/50kg(25mm/s), 1500N/150kg(16mm/s), 3000N/300kg(7mm/s), 6000N/600kg(3.5mm/s);
- Low noise: The low noise design, noise level below 50 dB;
- Usage frequency :10%；
- Material: Aluminum alloy housing；
- Degree of protection: IP43, protection against dust, water and corrosion, suitable for outdoor use. Internal limit switch, switch off automatically when it reaches in the case of motoridling.
Package Included:

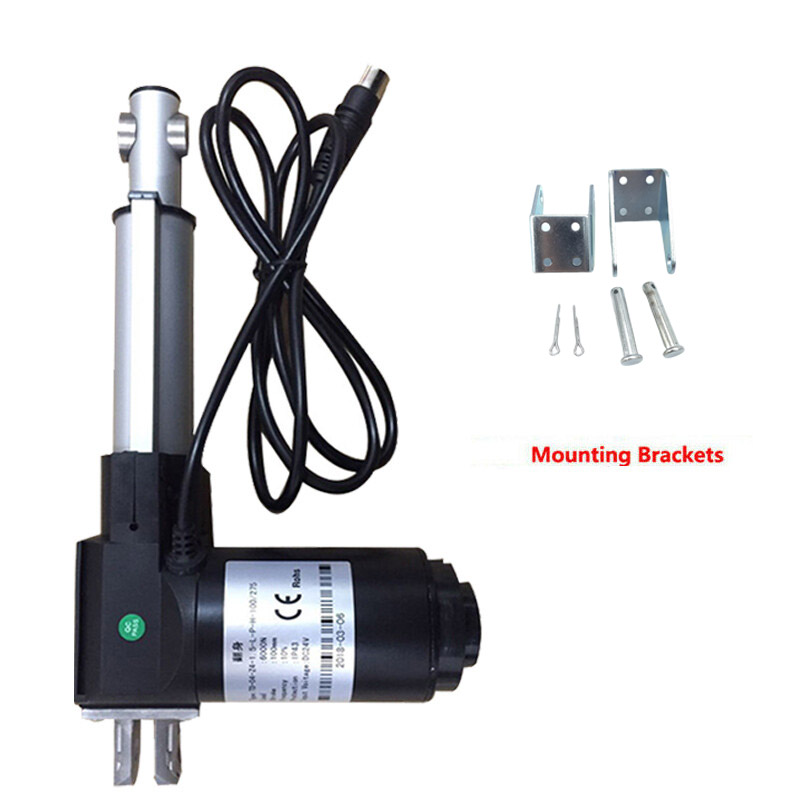

- 1×Linear Actuator Motor;
- 2×Mounting Bracket

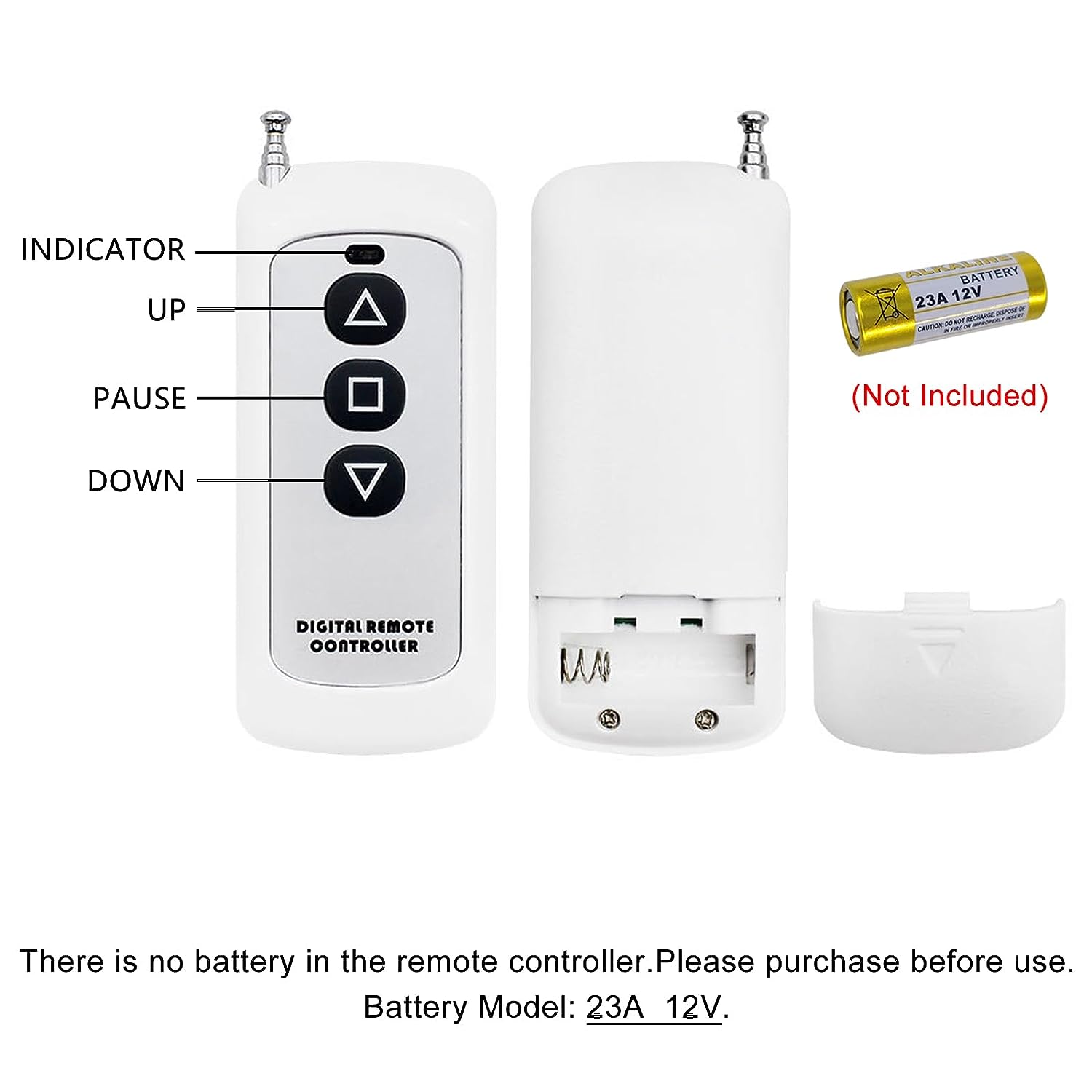

- 1X Remote controller (Optional)
Easy to Set Up:
- The linear actuators are controlled by applying a 12V DC voltage, basically, connect the two wires to a 12 volt battery.
- Reversing the polarity will make the actuator reverse.
- Red wire to the positive terminal and black wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.
- The actuator has pre-installed limit switche inside, it cannot be adjustable.
