Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 2 YEAR MANUFACTURER

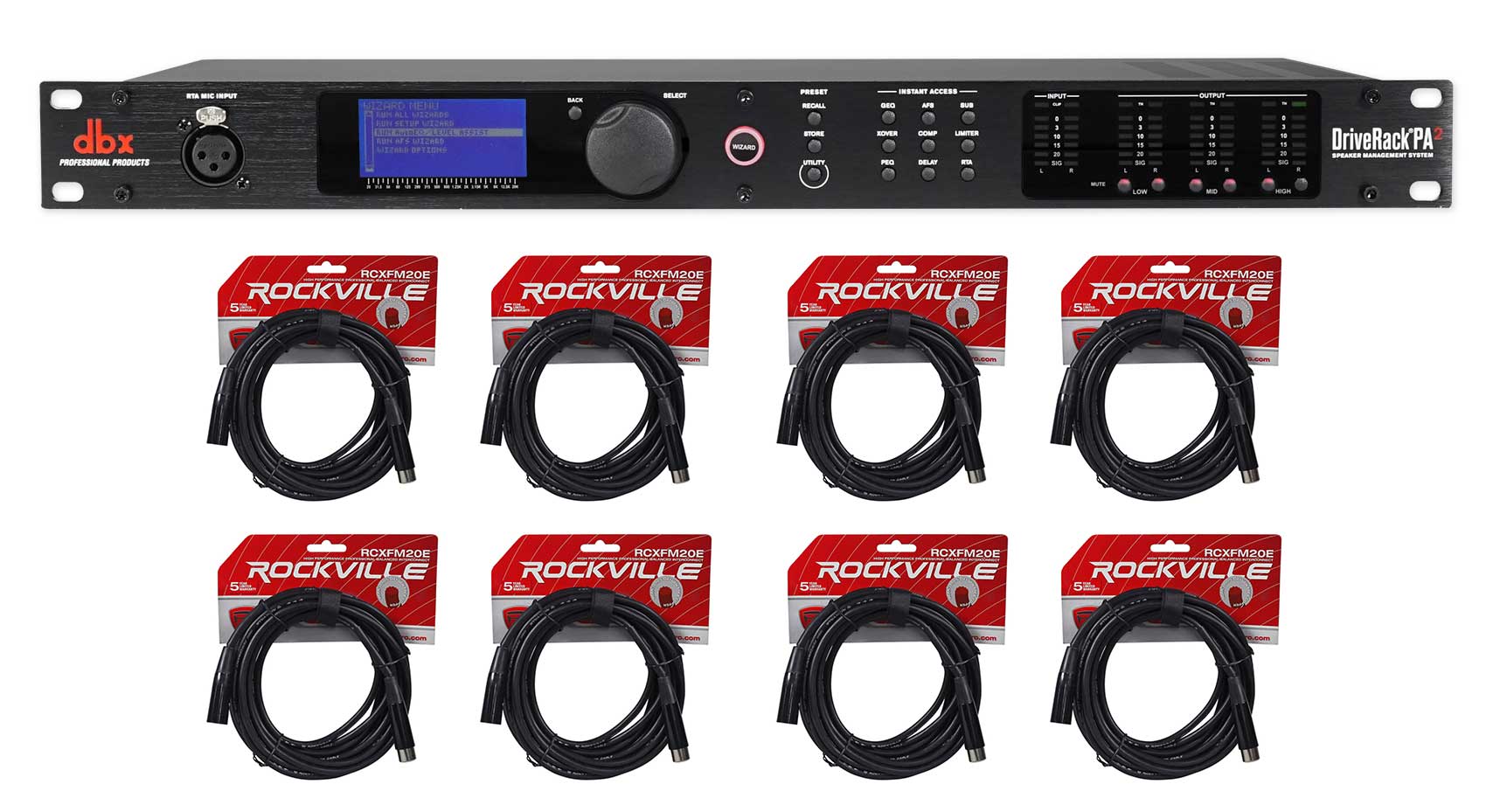

• (1) DBX DriveRack PA2 Complete Sound Signal Processor Speaker Management System PA 2
• (8) Rockville RCXFM20E-B 20 Foot Female to Male XLR Mic Cable Black 100% Copper

Authorized dbx Dealer!

Description of PA2 NEW:

All You Need to Get the Most From Your PA. Now With Complete Control From Your Mobile Device.
The DriveRack PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ and AFS algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the DriveRack PA2 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

AutoEQ
New, improved AutoEQ algorithm ensures an extremely accurate, fast, and non-intrusive automatic EQ experience.With the RTA Mic “listening” to your room, the new, updated DriveRack PA2 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise.

Enhanced AFS Feedback Elimination
Enhanced AFS algorithm for faster, more precise feedback elimination, without adversely affecting your system’s tone. Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before it even has a chance, while never altering your sound.

Updated Wizard Setup Functions
Updated Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date. Wizard functions on the DriveRack PA2 guide you through easy, step-by-step processes to help you get the most from your loudspeaker system. Helps you easily configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers.

Features:

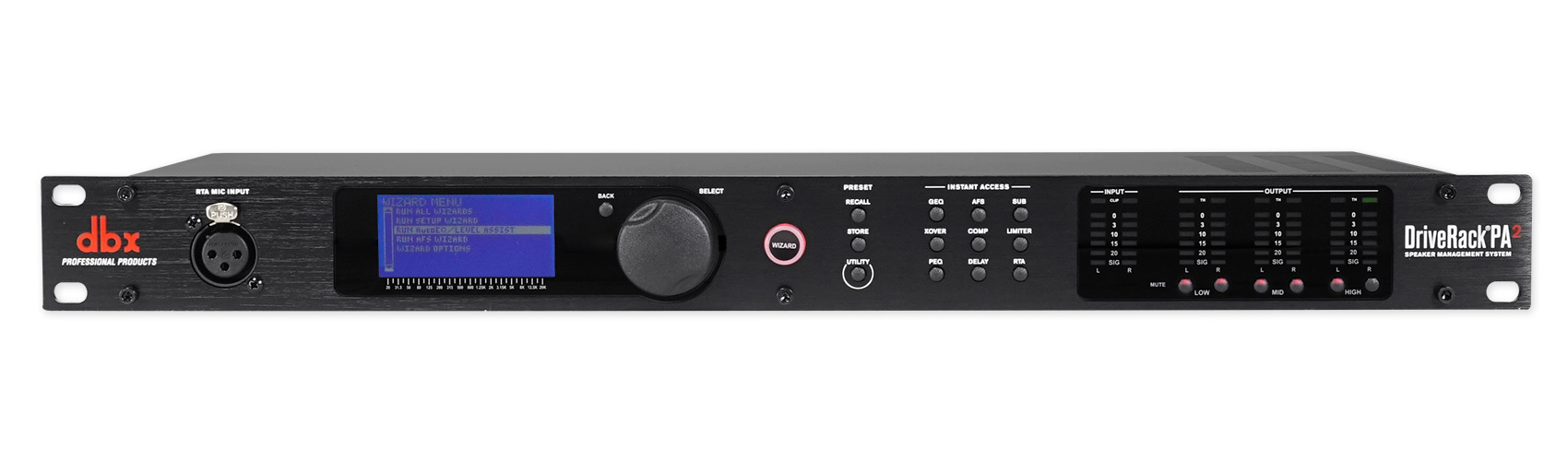

• DBX DriveRack PA2 Complete Sound Signal Processor Speaker Management System
• All New Setup Wizard
• Streamlined AutoEQ™
• All New AFS™ (Advanced Feedback Suppression)
• Mobile Control (Android®, iOS®, Mac®, Windows®)
• dbx Compression
• dbx Limiting
• Graphic EQ
• 8-Band Parametric EQ (adjusted when using the AutoEQ) Input
• 8-Band Parametric EQs (used for speaker tunings) Output
• Sub-Harmonic Synthesis
• Crossover (supports full range, 2-way, and 3-way systems)
• Driver Alignment Delays

Specifications:

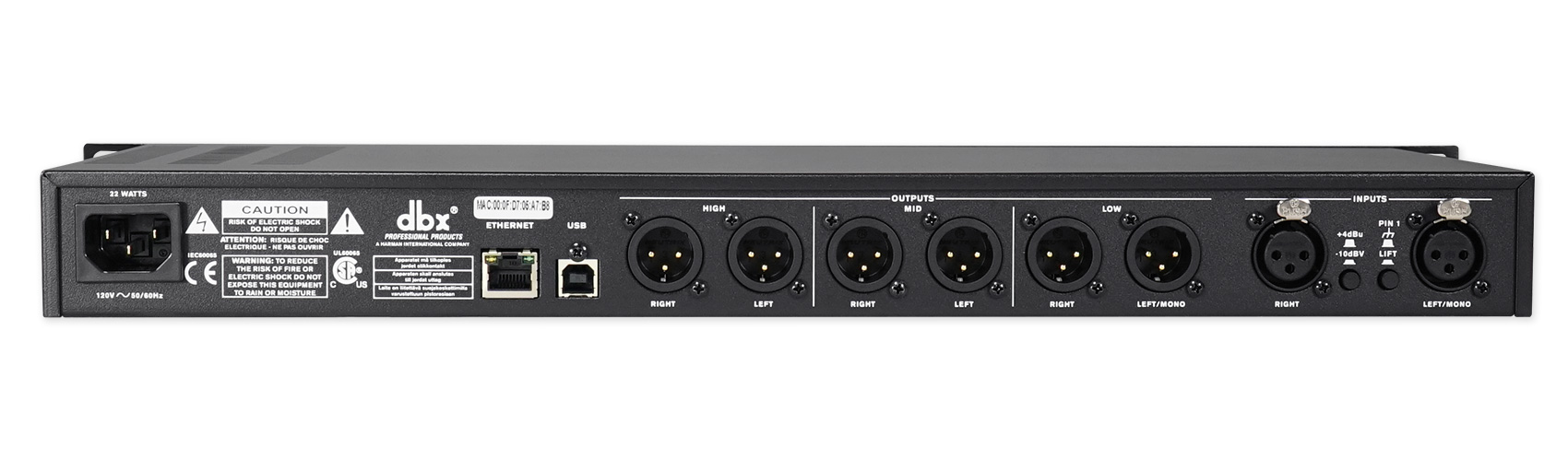

• Input: (2) Line Inputs, (1) RTA Mic Input
  • Input Connectors: (2) Female XLR Line Inputs, (1) Female XLR RTA Mic Input
  • Input Type: Electronically Balanced, RF Filtered
  • Input Impedance: > 50 kOhm
  • A/D Converter: dbx Type IV Conversion System
  • CMRR: > 45 dB
  • Mic Preamp Phantom Power:: +15VDC (RTA)
  • Mic Preamp Equivalent Input Noise (EIN): < -117dB, 22Hz-22kHz, 150 ohm (RTA)
• Output: (6) Line Outputs
  • Output Connectors: Male XLR
  • Output Type: Electronically Balanced, RF Filtered
  • Output Impedance: 120 Ohms
  • Max Output: 20 dBu
  • A/D Dynamic Range: 112 dB A-Weighted, 110 dB Un-Weighted
  • Type IV Dynamic Range: 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, un-weighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW
• Input Delay Length: 100ms
• Alignment Delay: 10ms Per Channel (60ms Total)
• Sample Rate: 48 kHz
• Dynamic Range: >110 dB A-Weighted, >107dB Un-Weighted
• THD + Noise: 0.003% Typical at 4dBu, 1 kHz 0dB Input Gain
• Frequency Response: 20Hz - 20 kHz
• Inter-Channel Crosstalk: < -110 dB, -120dB Typical
• Operating Voltage: 100-120VAC
• Power Consumption: 22W
• D/A Dynamic Range: 112dB A-Weighted, 110dB Un-Weighted
• Product Dimensions (H x D x W): 1.75" x 5.75" x 19" inches
• Product Weight: 5.25 Lbs.

Video of RCXFM20E-B:

Description:

All Rockville pro audio cables are made with 100% copper which boosts the efficiency of the cable. There is nothing better than 100% copper. Most of the cheaper cables on the market do not use 100% copper, instead they make their cables with CCA (Copper Clad Aluminum). CCA cables do not perform on the level that 100% copper cables perform at. CCA will not conduct signals efficiently. A 12 gauge CCA cable will not even perform as well as a 14 gauge 100% pure copper cable, which will in turn, affect the performance and longevity of your equipment. If you find cables on the market that do not mention the copper content, there is a good chance that they are selling you a cheaper cable that is CCA and not 100% copper. Rockville pays an inspection company to oversee the manufacturing of the product to ensure that we provide a 100% Oxygen Free Copper Cable (OFC). Our OFC cables are less prone to oxidation, and will provide maximum signal transfer.

 The other important factor of a cable is the shielding. Most of the good brands on the market have about 85% shielding coverage, so we decided to take our shielding a step further. Rockville cables are shielded with a tight copper mesh, covering 90% of the cable! The high percentage of coverage increases the ability to absorb the Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) that suppresses signal and degrades the performance of equipment. Rockville Cable’s copper shielding provides great flexibility, maintains a durable structural integrity, while decreasing signal interference ensuring enhanced signal clarity with every use.

Features:

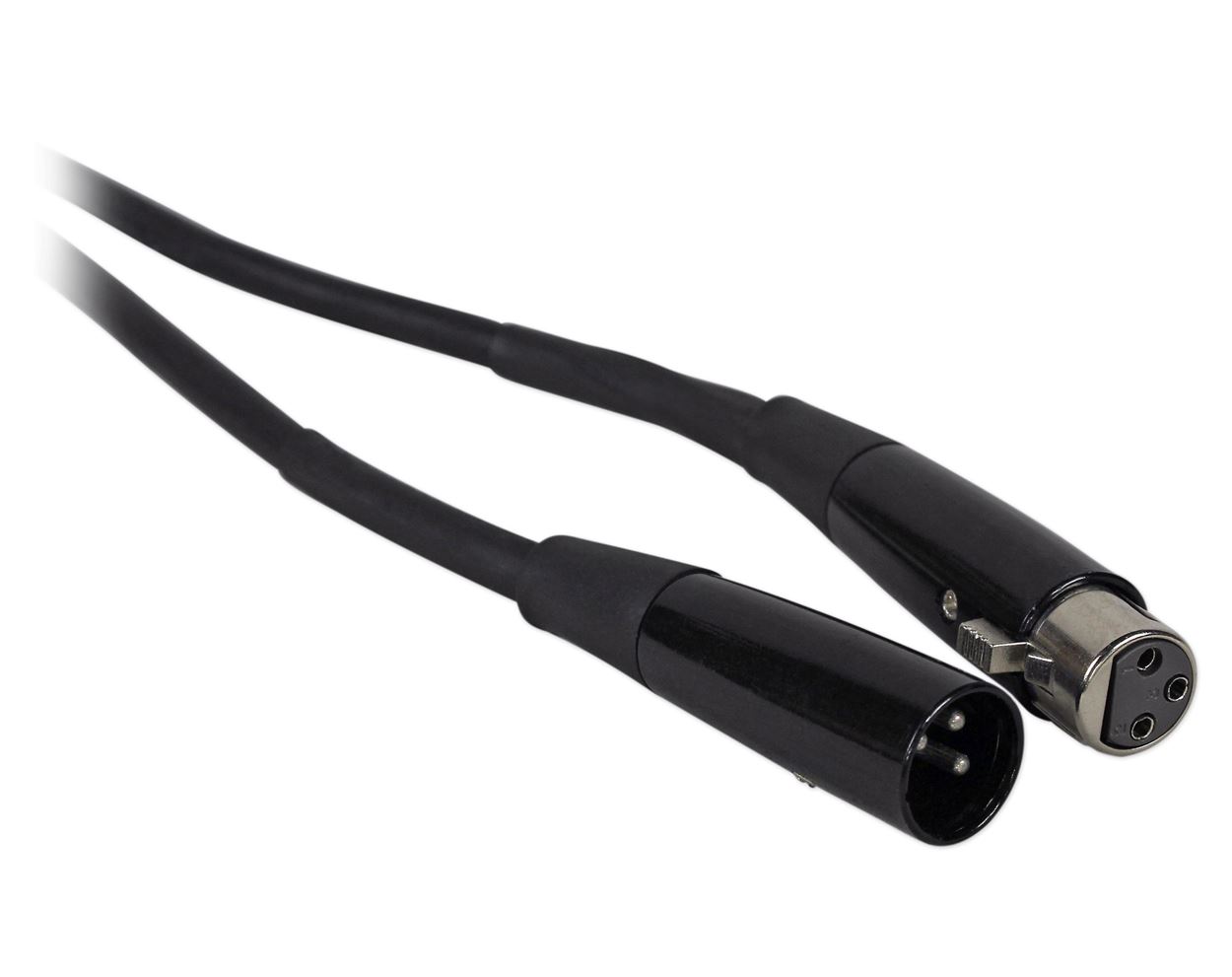

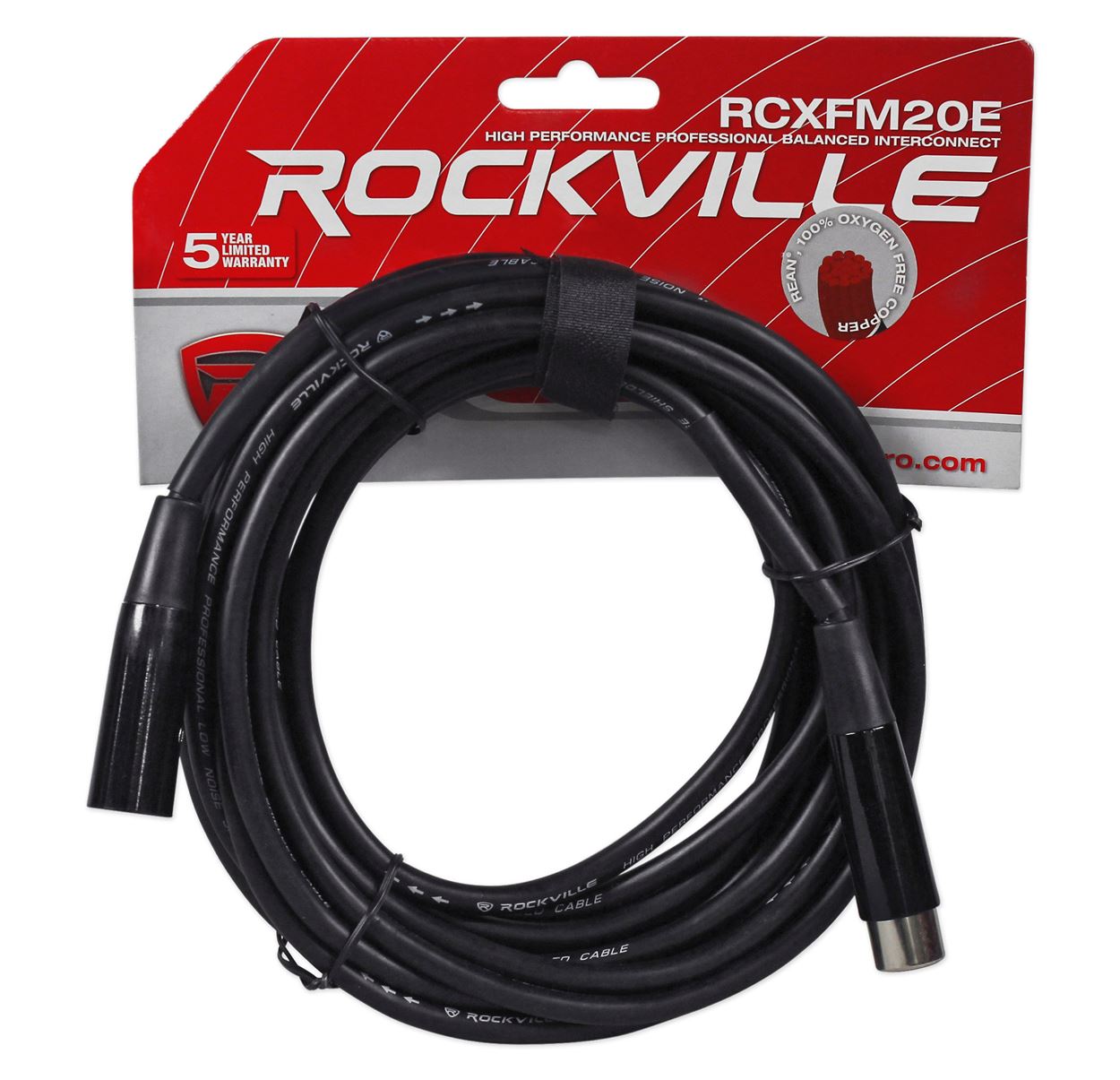

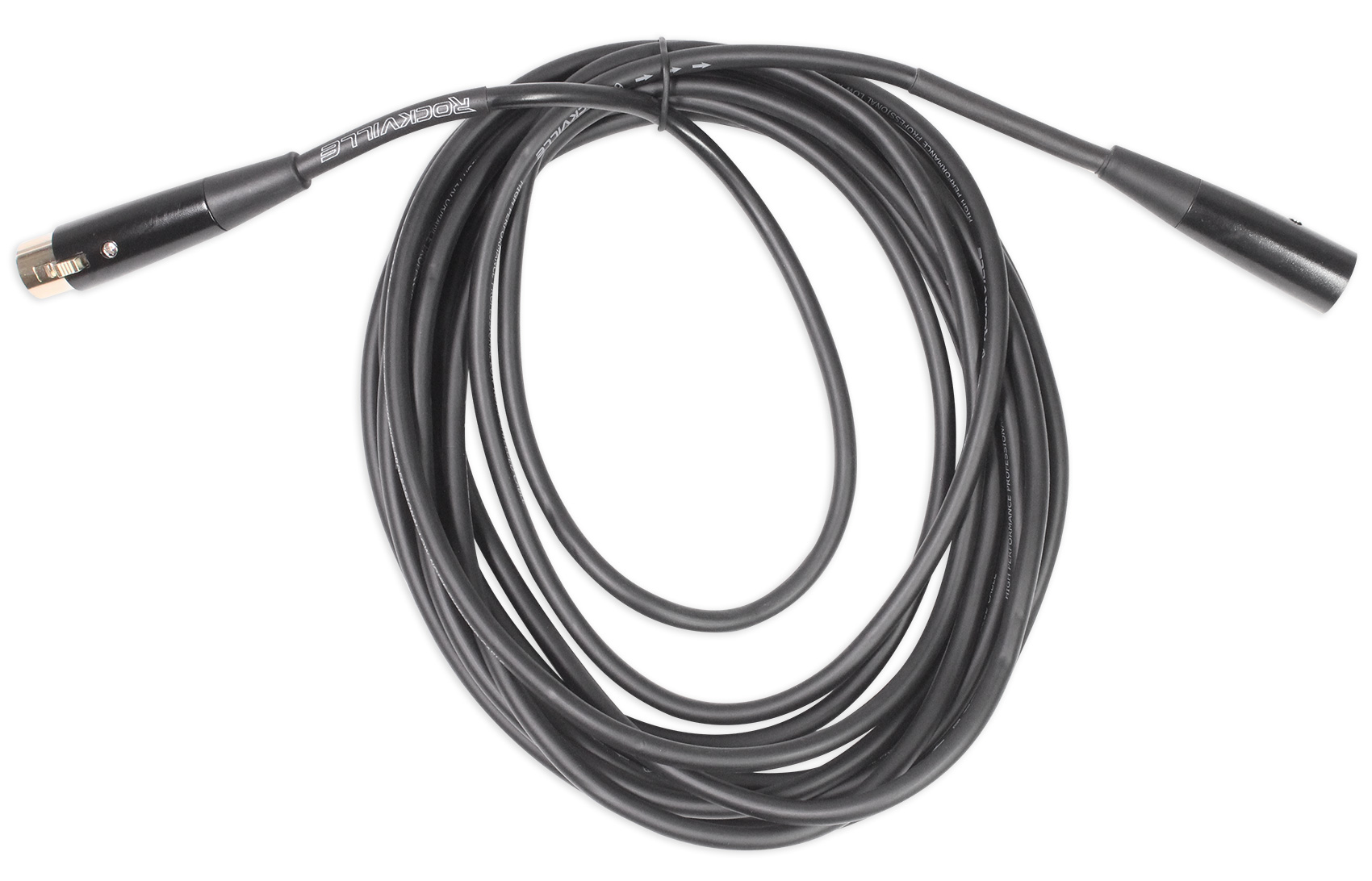

• Rockville RCXFM20E-B Black 20 Foot Nickel Plated Female to Male XLR Microphone Cable

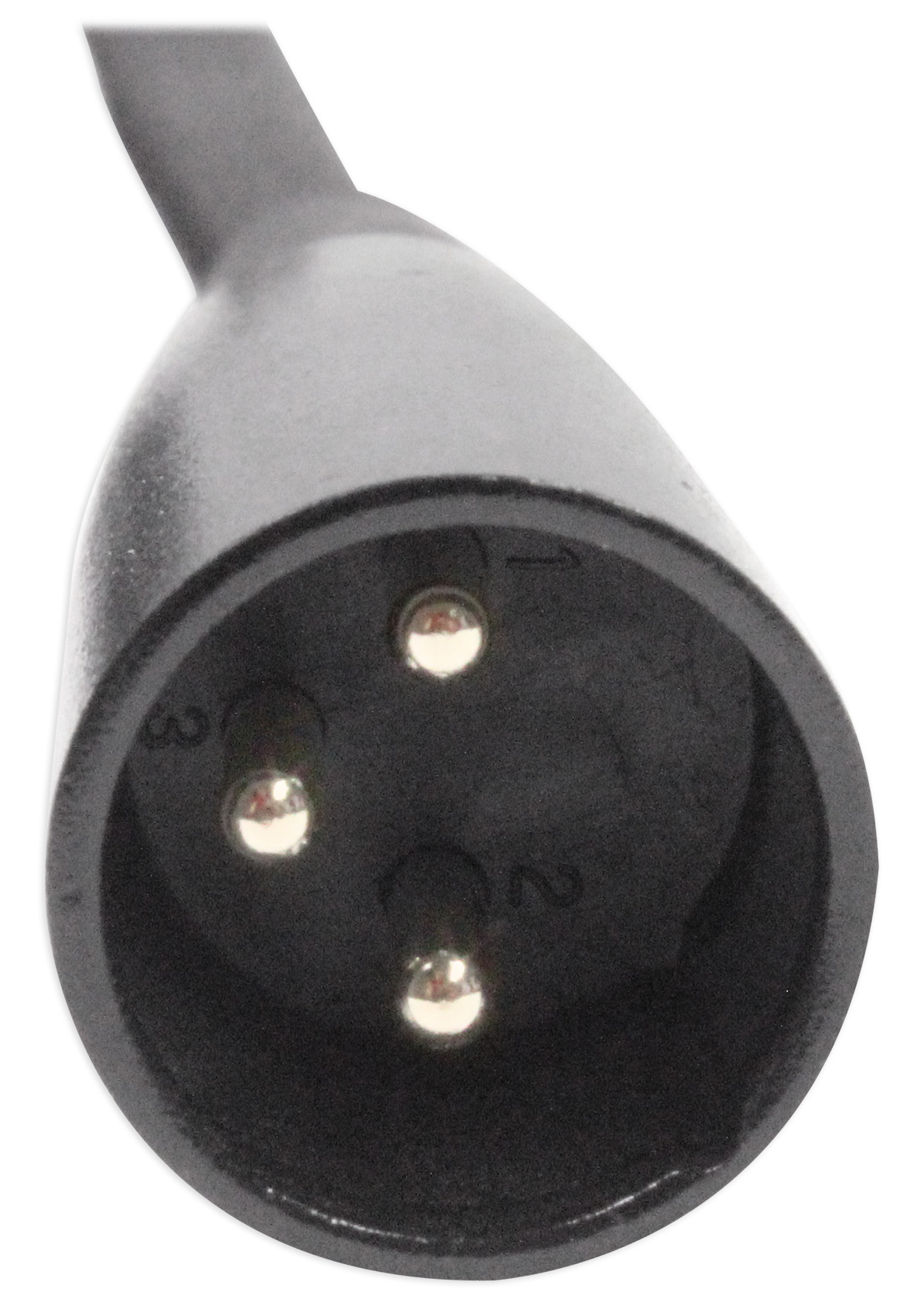

• XLR Connectors with Internal Strain Relief for Rugged Reliability
• 100% Copper Conductors for Enhanced Signal Clarity
• 90% OFC Spiral Shield for Effective EMI and RFI Rejection and Flexibility
• Length: 20 Ft
• Color: Black
