Features:

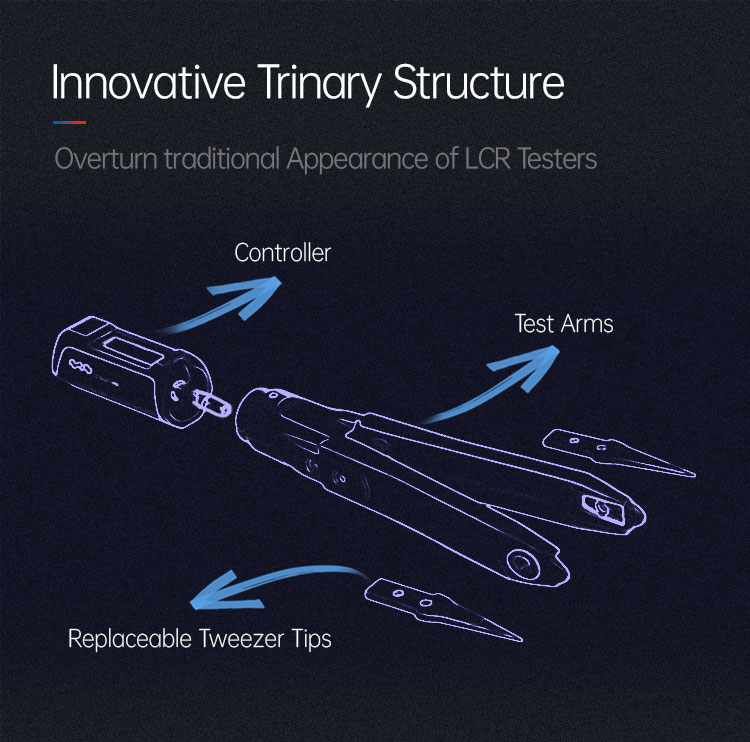

1) Innovative detachable mechanical design combines a pair of gold-plated tweezers and a digital adaptive LED tester in a compact, lightweight, battery powered instrument

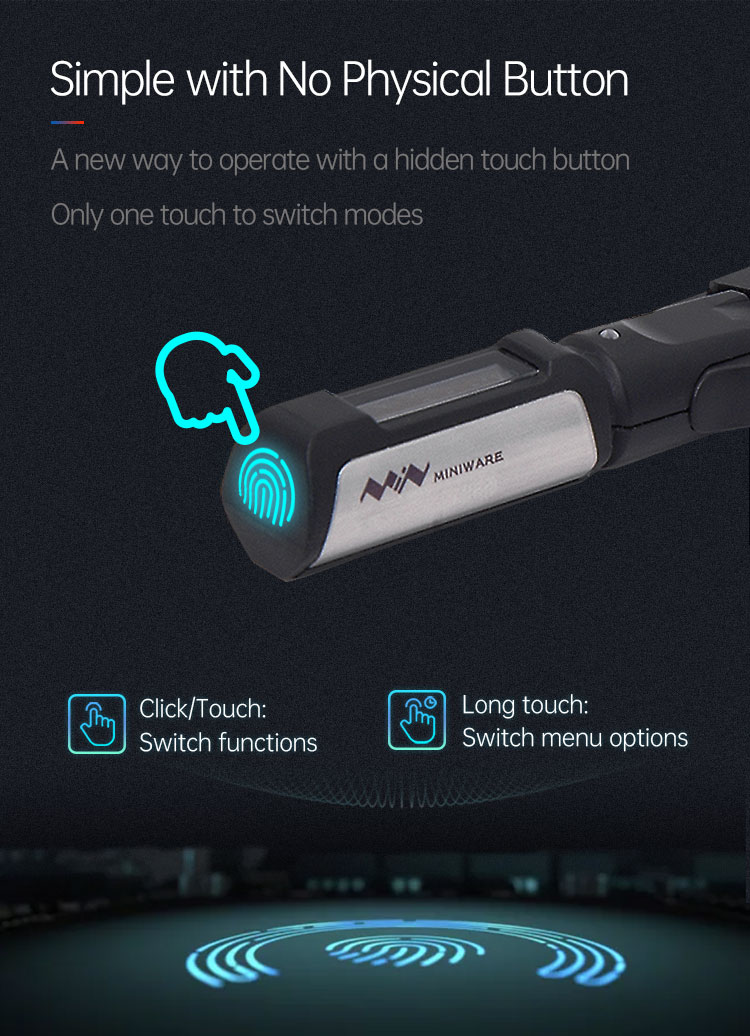

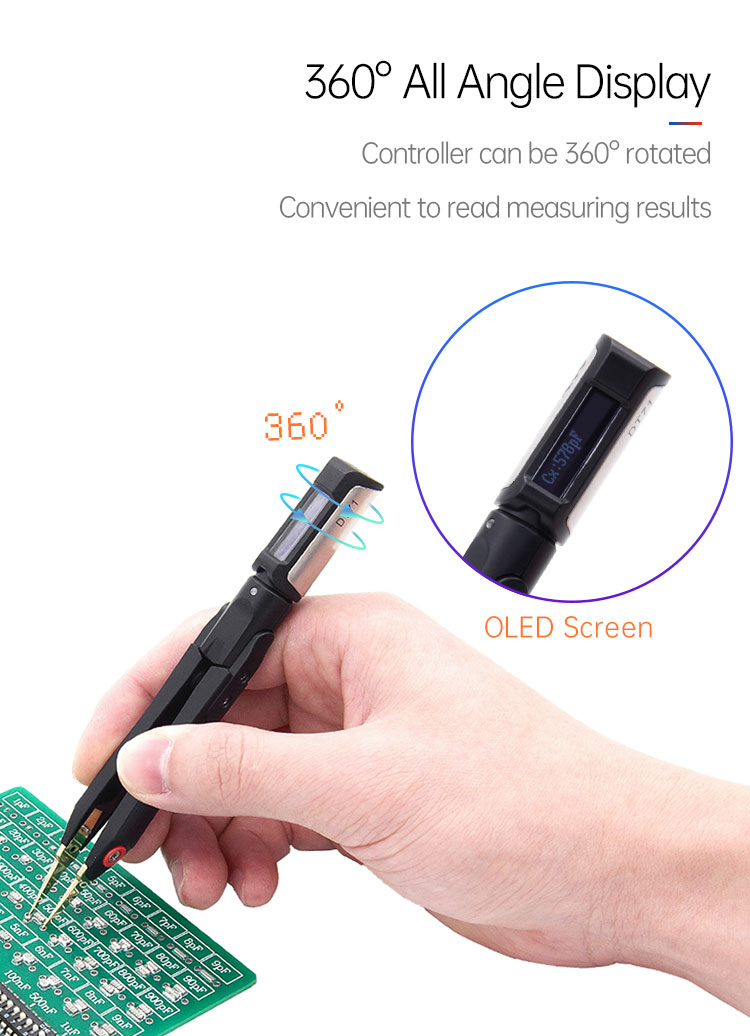

2) User-friendly design: 360° rotatable tester with OLED screen enable user view parameters easily and touch switch to operate the tester

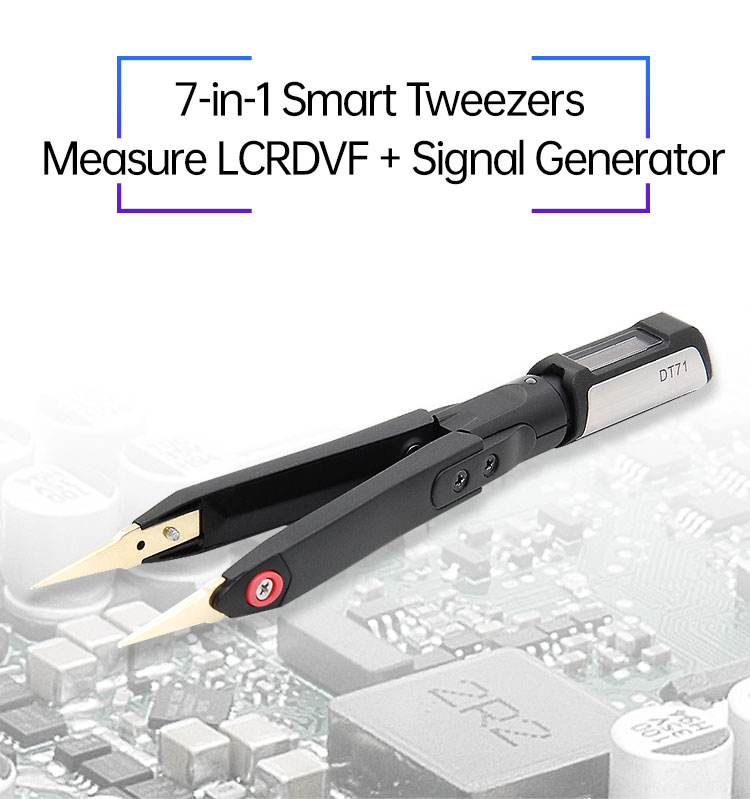

3) Set LCR meter and signal generator all in one supporting Resistance,Capacitance,Inductance,Voltage,Frequency,Diode measurement and sine/noise/pulse user frequency signal output

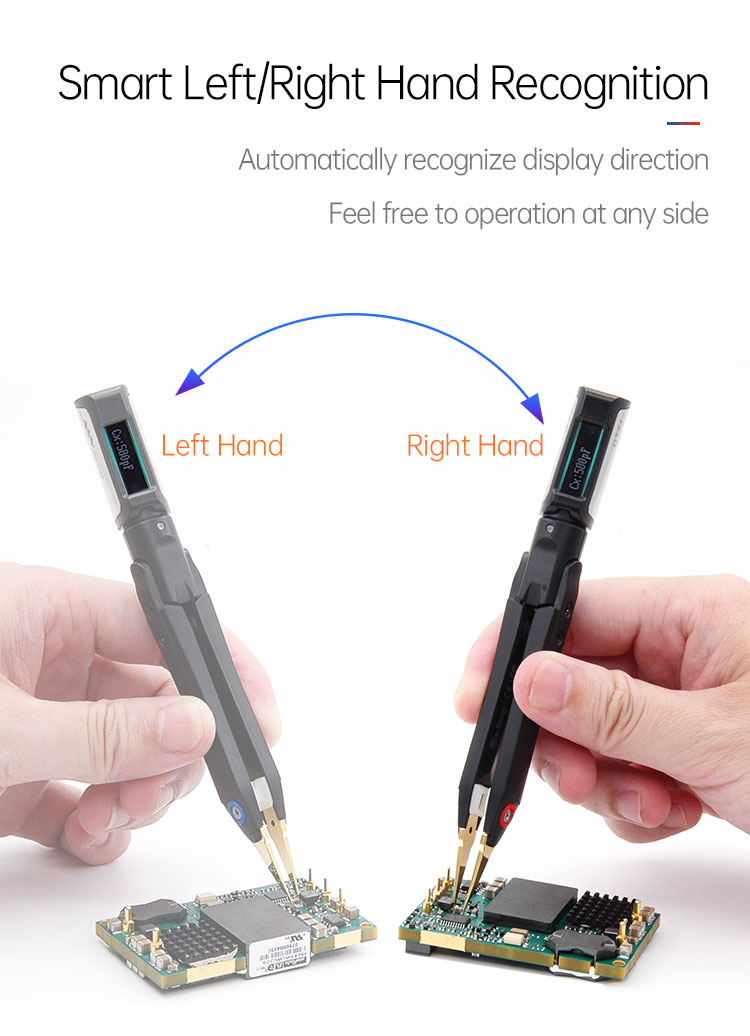

4) Built-in angular velocity sensor to automatically recognize the working hand then change the screen display direction enable you read the parameters easily

5) Magnet embed tweezer arms provide excellent clipping performance after long time use,interchangeable straight and bent type gold plated test leads to apply for various circuit ensure precision measuring result

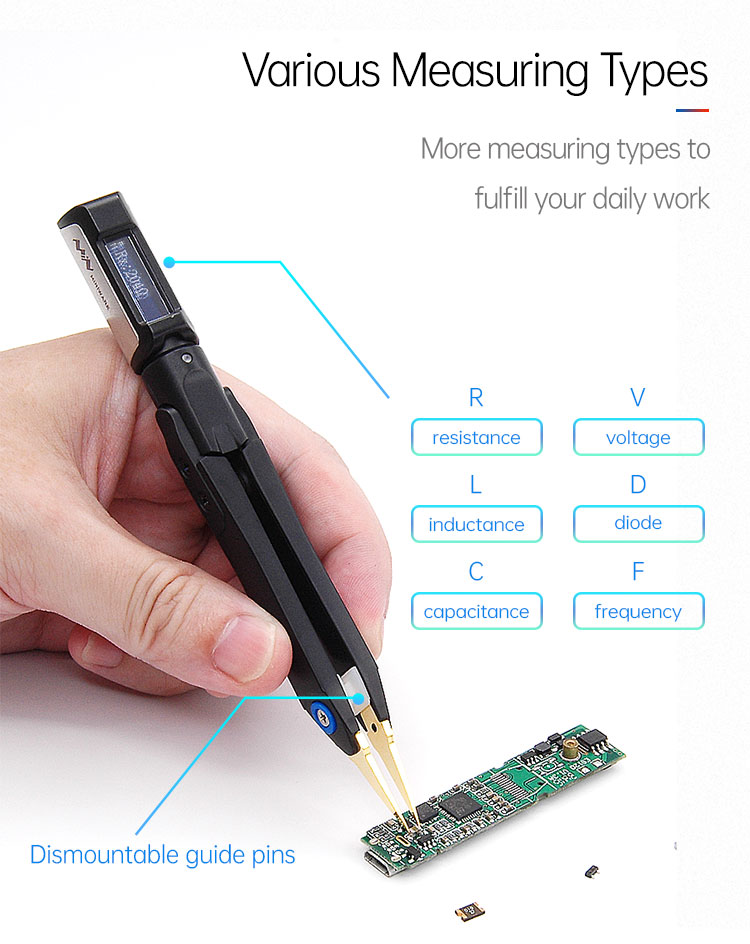

6) Support automated component identification measurement and manual R, D, C, L, F, V measurement

7) Built-in Li-Ion battery provide long working time up to 10 hours

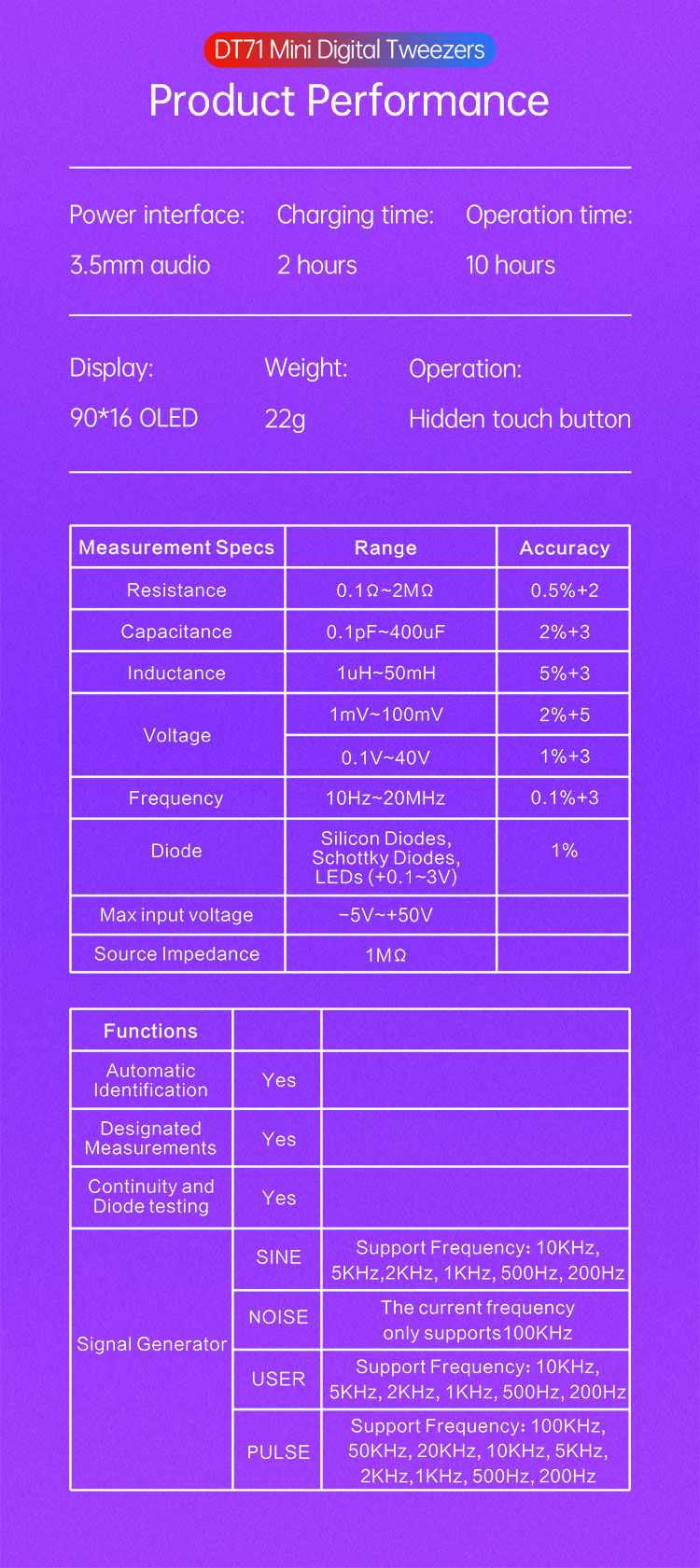

-Measurement Parameter:

1)Resistance:0.1Ω~1KΩ(0.1Ω resolution,0.5%+2 accuracy);1KΩ~2000KΩ(1KΩ resolution,0.5%+2 accuracy)

2)Capacitance:0.1pF~1000pF(0.1pF resolution,2%+3 accuracy); 0.001uF~400uF(0.001uF resolution,2%+3 accuracy)

3)Inductance:1uH~1000uH(1uH resolution,5%+3 accuracy);1mH~50mH(1mH resolution,5%+3 accuracy)

4)Voltage:1mV~100mV(1mV resolution,2%+5 accuracy); 0.1V~40V(0.1V resolution,1%+3 accuracy)

5)Frequency:10Hz~1KHz(10Hz resolution,0.1%+3 accuracy); 1KHz~20000KHz(1KHz resolution,0.1%+3 accuracy)

6)Diode:silicone diodes, Schottky diodes, LEDs (+0.1~3V)(0.1V resolution,1% accuracy)

-Signal generator:

1)SINE: 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

2)NOISE: 100KHz

3)USER: 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

4)PULSE: 100KHz, 0KHz, 20Khz, 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

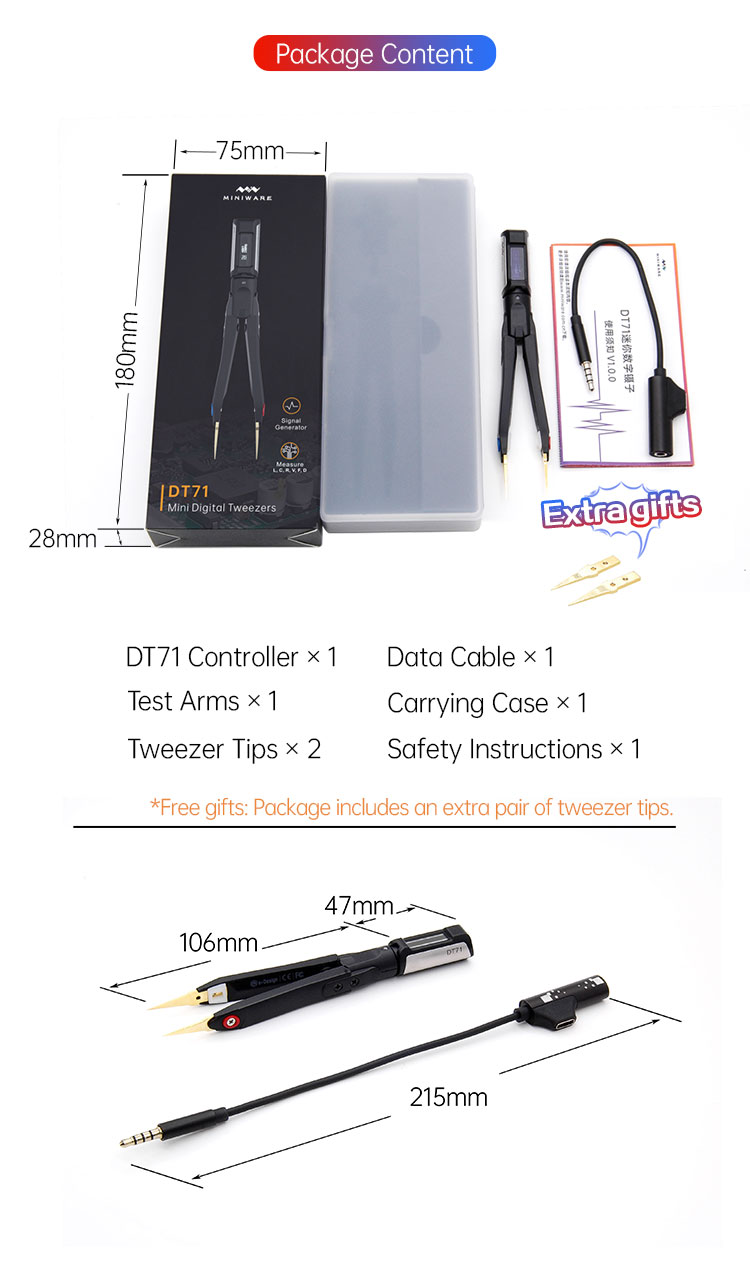

Package Included:

1X DT71 Smart Twzeer Kit(Controller and Test Arm)

1X Data Cable

1X USB Charging Cable(gift)

1X Storage Box

1X English Manual

2X Test Leads Set
