Condition:

Warranty: 1 YEAR AUDIOSAVINGS

How to install an amplifier in your UTV:

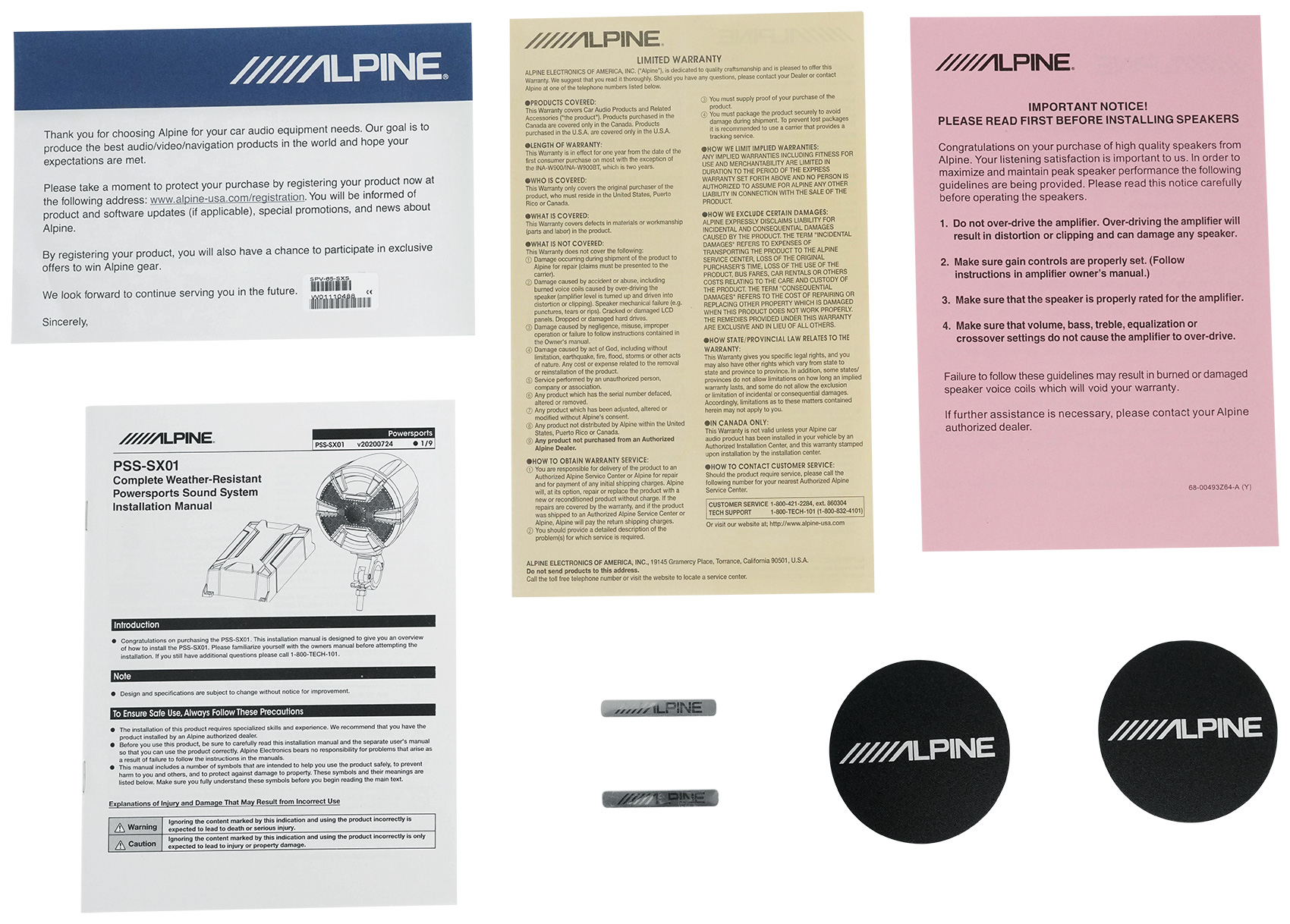

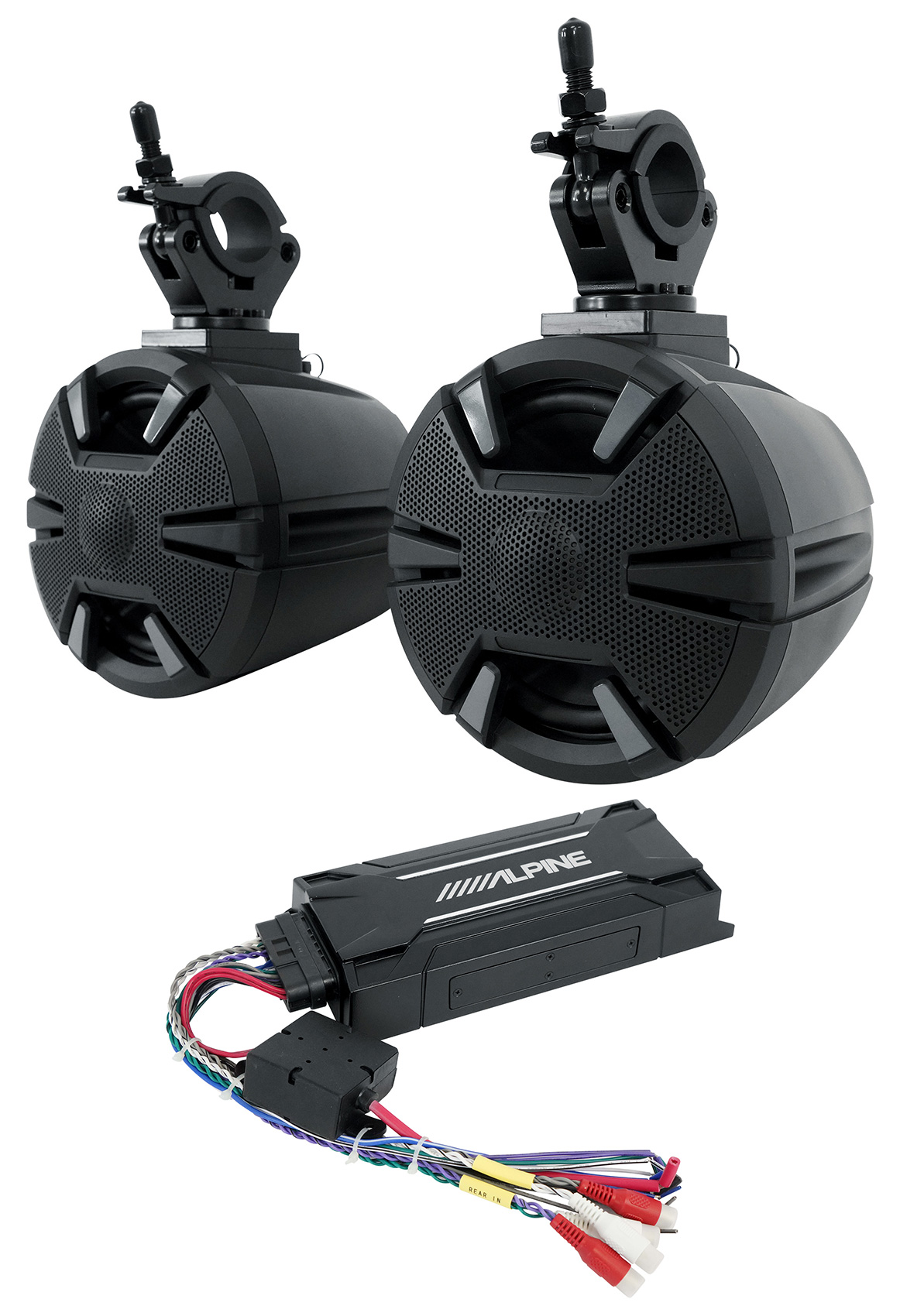

What’s in the Box:

• 6.5” 2-Way Mid Bass Drivers
• KTA-30FW 4-Channel Weather-Resistant Tough Power Pack Amplifier
• KCX-BT01 Weather-Resistant Bluetooth Adaptor
• ASA 978 B+ Fiberglass Speaker Pod with Folding Style Clamp

Description:

This complete sound system combines the premium sound you’ve come to expect from Alpine as well as a unique design that will complement the look of your Side-by-Side. As an easy add-on for any existing Side-by-Side with 1.5”-2” rails, the PSS-SX01 includes everything you need for an exciting music experience, including two enclosed 6.5-inch speakers, a grille-mounted, 1-inch teteron dome tweeter, and one 4-channel amplifier all weather-resistant against the elements.

Features:

Music on Your Adventures

• Stream music directly from your smartphone without a radio or head unit source with the included Bluetooth adaptor.

Flexible Installation

• With universal folding-style clamps that fit 1.5-2” rails,the PSS-SX01 can be installed in just about any Side-by-Side or UTV.

Built for the Elements

• The weather-resistant speakers and amplifier can withstand all of the elements for an uniterrupted music experience.

Speaker Specifications:

• Material: Santoprene
• Frequency Response: 50Hz - 22kHz
• Power Handling: 90W RMS / 225W Peak
• Nominal Impedence: 4O
• Voice Coil Diameter: 25 mm

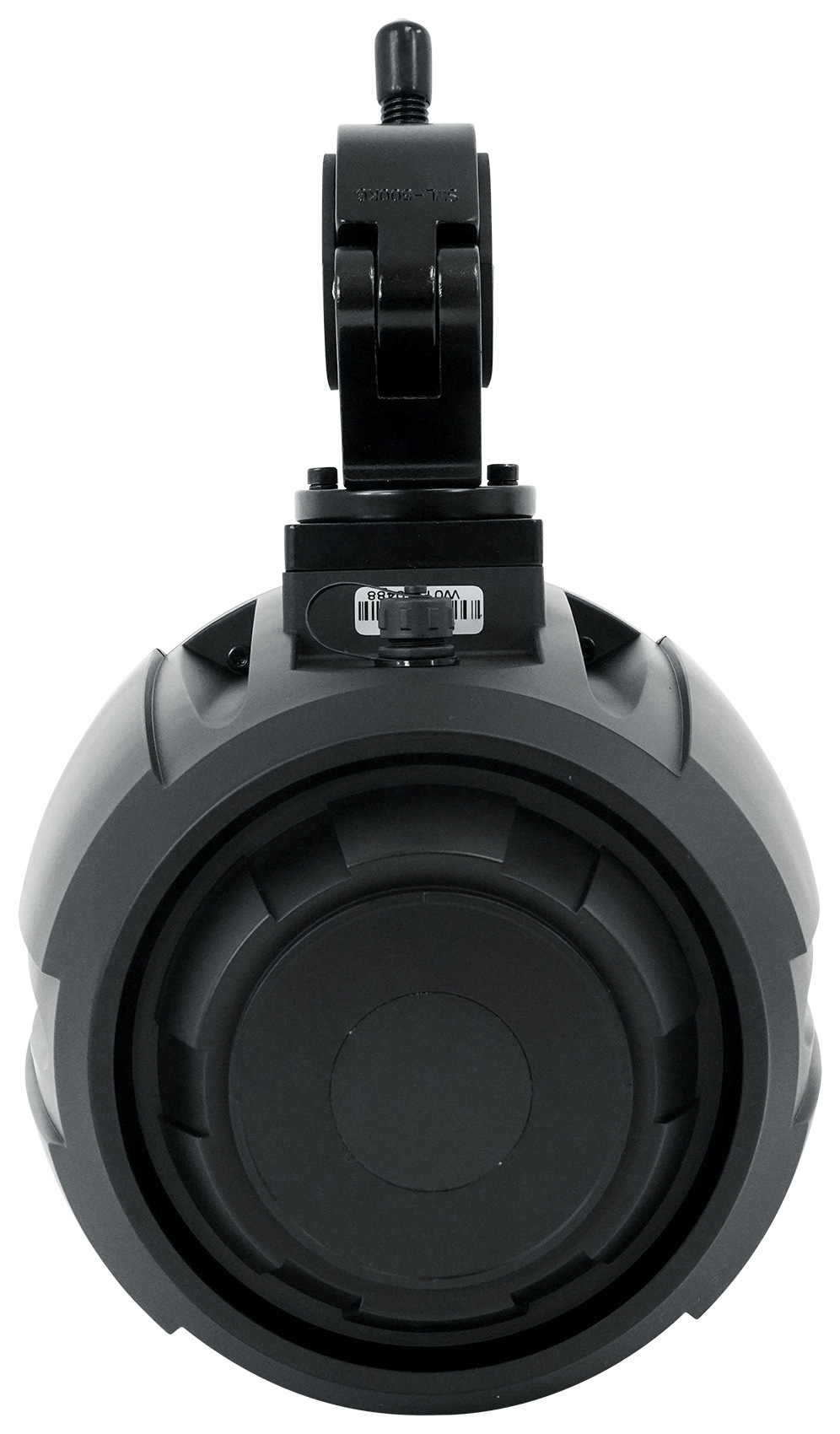

Speakers:

• Enclosed 6.5” 2-Way Speakers
• 1” Teteron Dome Tweeter
• Rated IP55 Weather-Resistant
• Steel Frame

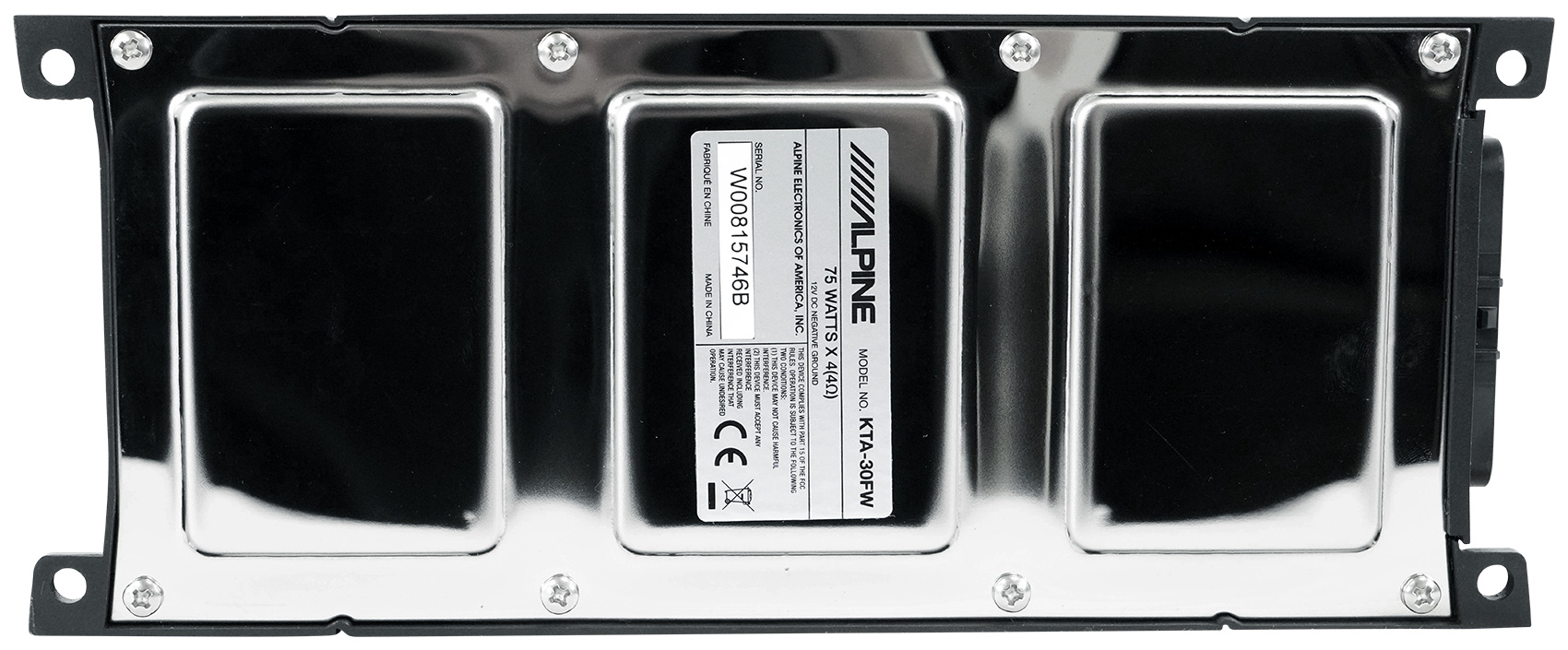

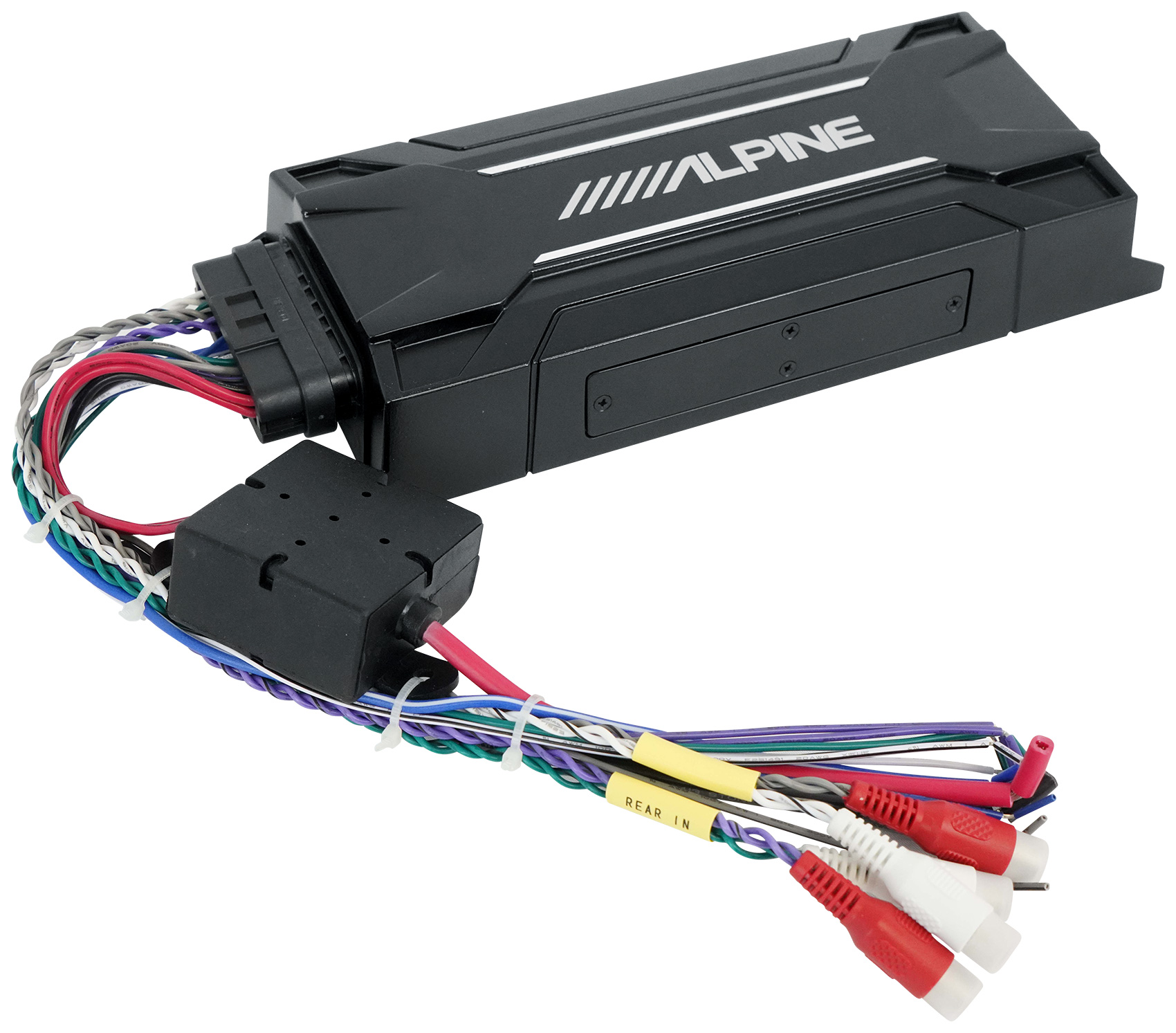

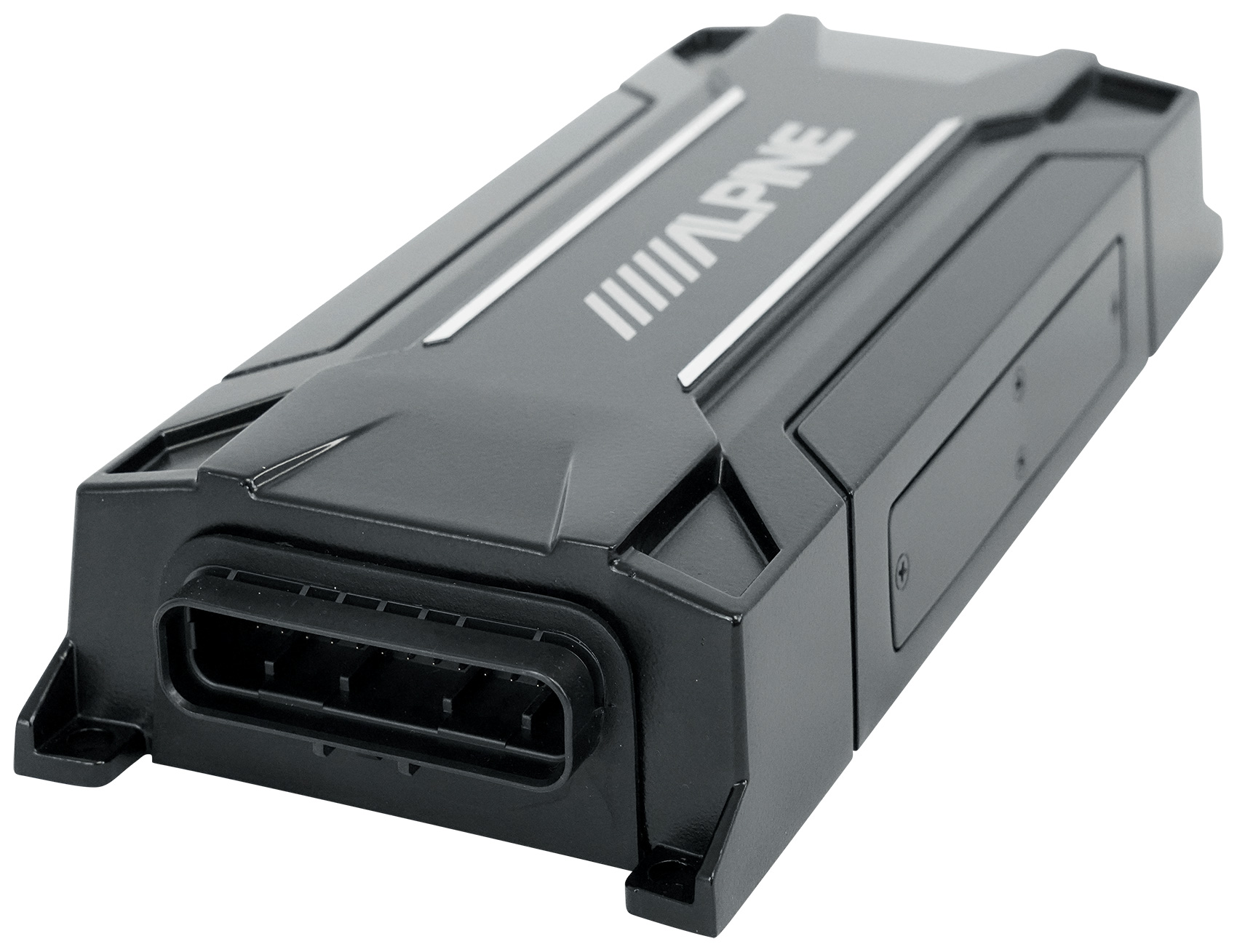

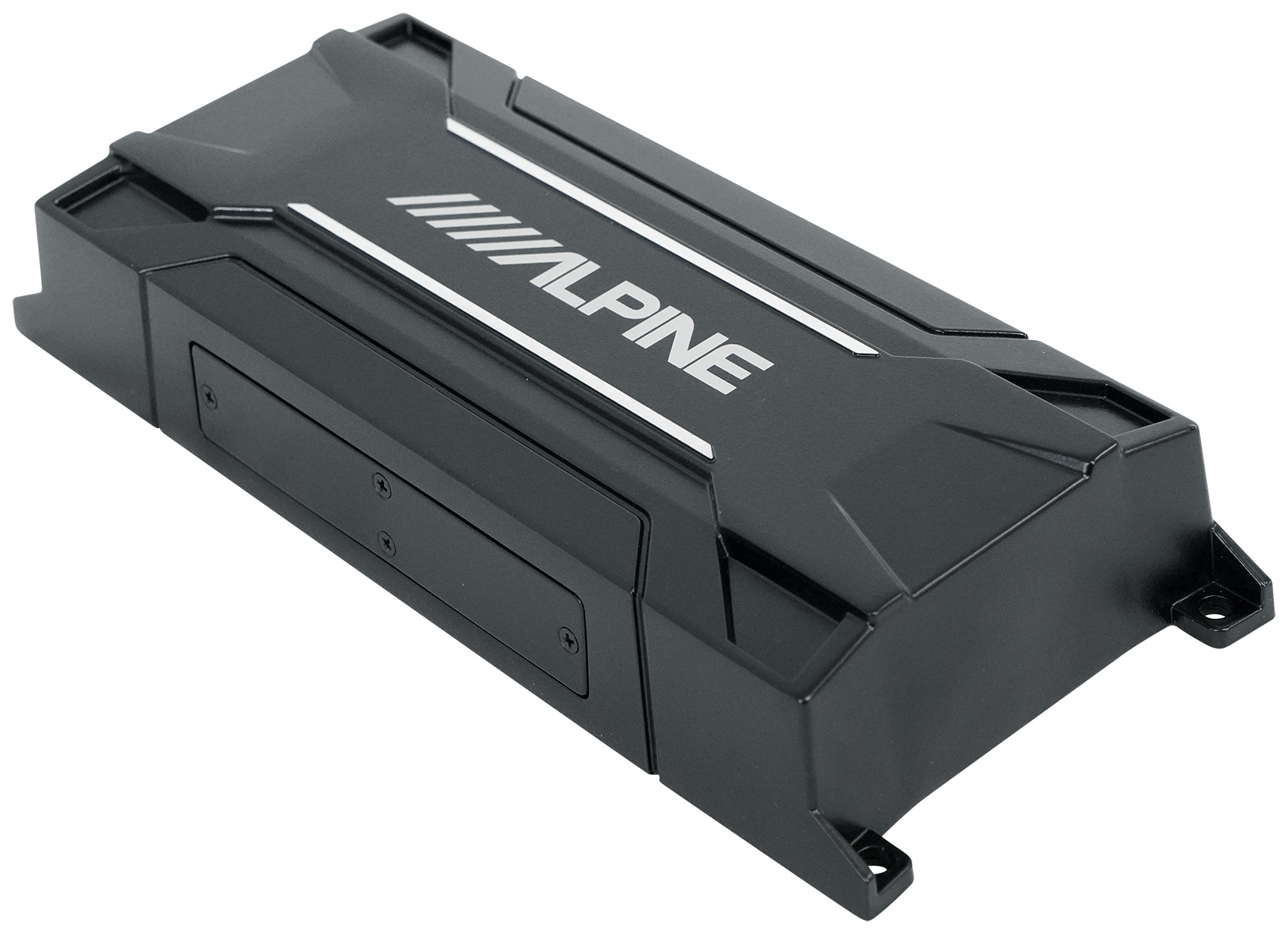

Amplifier:

• Alpine’s Class D Amplifier with Dynamic Peak Power(DPP)
• 4-Channel Power Pack Amplifier
• Rated IP66 Weather-Resistant

Bluetooth Adapter:

• 12V Weather-Resistant Bluetooth® Adaptor
• Complete Wireless Connections Bluetooth® 4.0
• Built-In Line Driver for 3x Voltage Output
• Music Signal Remote Trigger Output

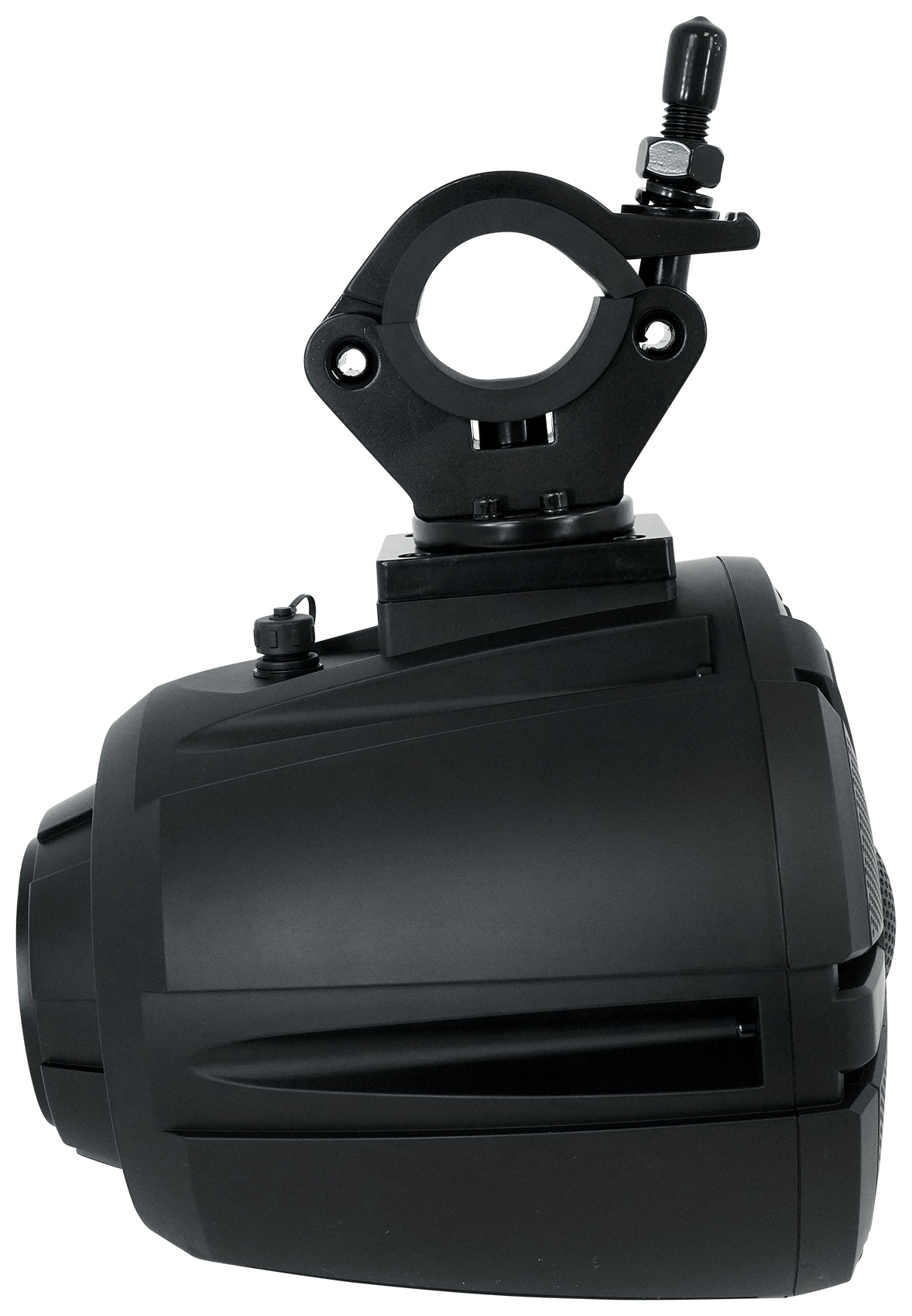

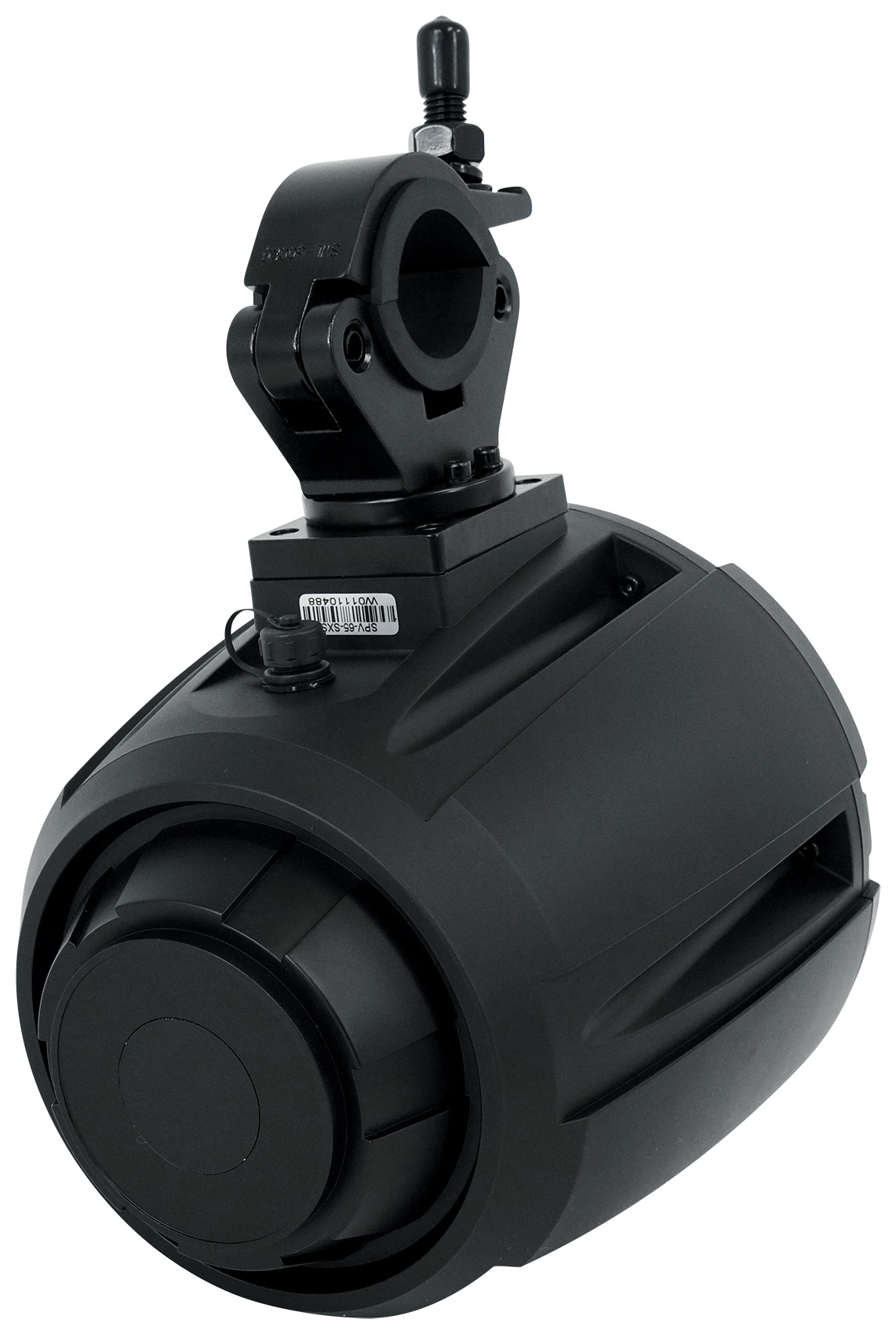

Speaker Pods:

• ASA 978 B+ Fiberglass

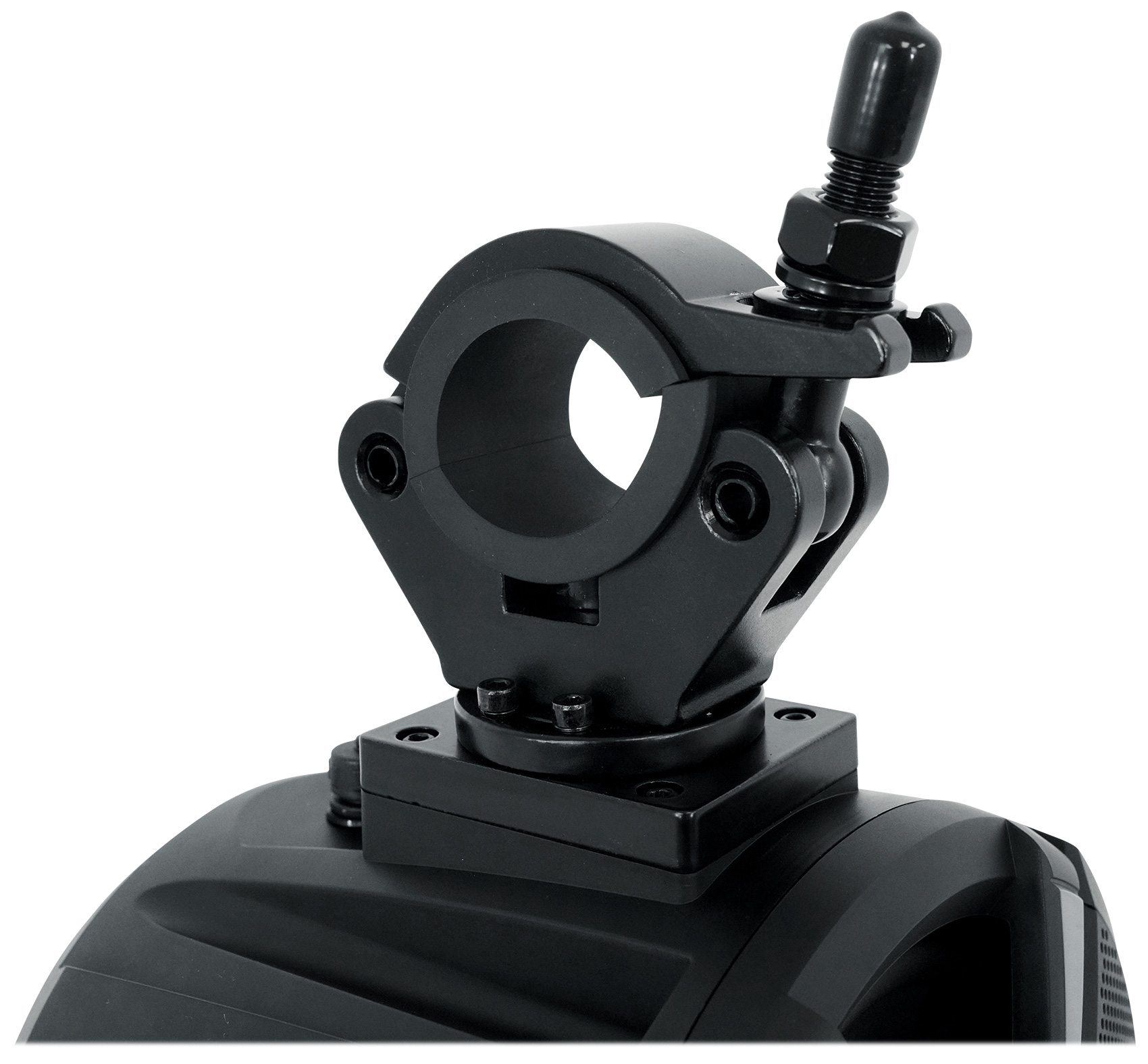

• Pro-Style Folding Style Clamp that will fit 1.5”-2” Rails.
• Rotating Coated Aluminum Base
• 90-Degree Plug with 20AWG Pigtail
• Rated IP65 Weather-Resistant

Amplifier Specifications:

• CTA-2006-B Compliant
• 75W RMS x 4 (2O/4O, 14.4V, 1% THD+N)
• 150W DPP x 4 (2O/4O, 14.4V, 1% THD+N)
• Amplifier 2ch/4ch input (selectable)
• 85dB S/N (ref. 1W into 4O)
• >0.01% THD (ref. 1W into 4O)
• 20-20kHz Frequency response (+/- 1dB)
• Speaker/RCA inputs (Selectable, High range=0.5-10V,Low range=0.2-4V)
• Sound Control: Crossovers: Off/Hp/Lp, Fc=50-400Hz @ -12dB/Oct. (variable) Input gain settings (variable); 2ch/4ch input (selectable)
