Product Information

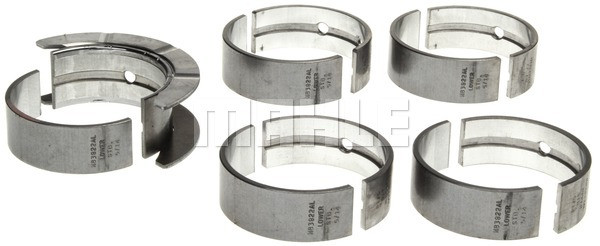

Clevite STD Main bearing set fits Mazda L3-VE Duratec 23 3 BK 6 GG GY Mpv LW LY Tribute 5Z CU

Item Specifics
SKU: 5MS2245A-STD
Price: $204.48
Returns: 30 Days
Ships From: Melbourne

Description

Clevite Main bearing set fits Mazda 2.3L L3-VE Duratec 23 4 Cyl DOHC 3 BK 6 GG GY Mpv LW LY Tribute 5Z CU Petrol

Clevite Main bearing set
Over Size: STD

Notes

Material A Series (Aluminum)
*
Poistion 1, 2, 4, 5
Std Shaft Diam 2.0464"/2.0472"
Oil Clearance 0.0004"/0.0024"
Maximum Wall 0.0986"
Housing Bore 2.2448"/2.2455"
Max Length 0.7520"
*
Position 3
Std Shaft Diam 2.0464"/2.0472"
Oil Clearance 0.0004"/0.0024"
Maximum Wall 0.0985"
Housing Bore 2.2448"/2.4455"
Max Length 1.0140" (Flanged)

Variations for this Engine

These are the different Variations for the Ford L3-VE Duratec 23 DOHC 2.3L 4 Cyl ULP Engine. Please check carefully you have selected the right part for your vehicle.

Suitable For

Ford
Escape ZB L3-VE Duratec 23 2.3L DOHC 4 Cyl
Escape ZC L3-VE Duratec 23 2.3L DOHC 4 Cyl
Escape ZD L3-VE Duratec 23 2.3L DOHC 4 Cyl
Fiesta WQ LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
Focus LS LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
Focus LT LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
Focus LV LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
Focus LW LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
Mondeo MA 2.3 GZFA GZFB SEBA 2.3L DOHC 4 Cyl
Mondeo MB 2.3 GZFA GZFB SEBA 2.3L DOHC 4 Cyl
Mondeo MC 2.3 GZFA GZFB SEBA 2.3L DOHC 4 Cyl
Transit VM 2.3 GZFA GZFB SEBA 2.3L DOHC 4 Cyl
Mazda
3 BK L3-VDT 2.3L DOHC 4 Cyl
3 BK L3-VE Duratec 23 2.3L DOHC 4 Cyl
3 BK LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
3 BL L3-VDT 2.3L DOHC 4 Cyl
3 BL L5-VE 2.5L DOHC 4 Cyl
3 BL LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
6 GG L3-VDT 2.3L DOHC 4 Cyl
6 GG L3-VE Duratec 23 2.3L DOHC 4 Cyl
6 GH L5-VE 2.5L DOHC 4 Cyl
6 GY L3-VE Duratec 23 2.3L DOHC 4 Cyl
Cx7 ER L3-VDT 2.3L DOHC 4 Cyl
Cx7 ER L5-VE 2.5L DOHC 4 Cyl
Mpv LW L3-VE Duratec 23 2.3L DOHC 4 Cyl
Mpv LY L3-VE Duratec 23 2.3L DOHC 4 Cyl
Mx-5 NC LF LFDE 5U Duratec20 2.0L DOHC 4 Cyl
Tribute 5Z L3-VE Duratec 23 2.3L DOHC 4 Cyl
Tribute CU L3-VE Duratec 23 2.3L DOHC 4 Cyl

Other Parts for this Engine

These are the different parts available for the Ford L3-VE Duratec 23 DOHC 2.3L 4 Cyl ULP Engine

Camshafts
Nason Exhaust CAM1039 Camshaft Suits Engines With Out VCT- Exhaust - Ductile Iron AU $150.63
Nason Exhaust CAM1041 Camshaft Suits Engines With VCT - Exhaust - Ductile Iron AU $150.63
Nason Inlet CAM1040 Camshaft Suits Engines With Out VCT- Inlet - Ductile Iron AU $150.63
Nason Inlet CAM1042 Camshaft Suits Engines With VCT & 6 Lugs For Sensor - Inlet - Ductile Iron AU $150.63
Chassis and Driveline

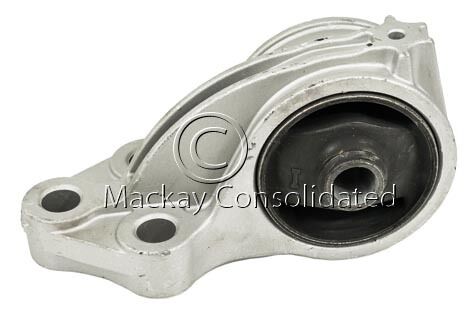

Mackay A6689 Engine Mount Bush Engine mount rear of engine
Suits Escape ZB models
AU $64.84
Conrod Bearings
King Engine Bearings (CR4507SI +010) Conrod Bearings STD 010 020 030 Suits engines with 50.00mm journals
Shaft 1.9677/1.9685¨ 49.980/50.000mm
Tunnel 2.0876/2.0884¨ 53.025/53.045mm
AU $110.26
King Engine Bearings (CR4507SI +020) Conrod Bearings STD 010 020 030 Suits engines with 50.00mm journals
Shaft 1.9677/1.9685¨ 49.980/50.000mm
Tunnel 2.0876/2.0884¨ 53.025/53.045mm
AU $110.26
King Engine Bearings (CR4507SI +030) Conrod Bearings STD 010 020 030 Suits engines with 50.00mm journals
Shaft 1.9677/1.9685¨ 49.980/50.000mm
Tunnel 2.0876/2.0884¨ 53.025/53.045mm
AU $110.26
King Engine Bearings (CR4507SI STD) Conrod Bearings STD 010 020 030 Suits engines with 50.00mm journals
Shaft 1.9677/1.9685¨ 49.980/50.000mm
Tunnel 2.0876/2.0884¨ 53.025/53.045mm
AU $110.26
King Engine Bearings (CR4515SI +010) Conrod Bearings STD 010 020 030 Suits engines with 47.00mm journals
Shaft 47.000 / 46.980mm
Tunnel 50.025 / 50.046mm
AU $110.37
King Engine Bearings (CR4515SI +020) Conrod Bearings STD 010 020 030 Suits engines with 47.00mm journals
Shaft 47.000 / 46.980mm
Tunnel 50.025 / 50.046mm
AU $54.36
King Engine Bearings (CR4515SI +030) Conrod Bearings STD 010 020 030 Suits engines with 47.00mm journals
Shaft 47.000 / 46.980mm
Tunnel 50.025 / 50.046mm
AU $110.37
King Engine Bearings (CR4515SI STD) Conrod Bearings STD 010 020 030 Suits engines with 47.00mm journals
Shaft 47.000 / 46.980mm
Tunnel 50.025 / 50.046mm
AU $110.37
Nason .50 4B8170AN-.50 Conrod bearing set SUits Non Turbo AU $49.41
NDC .25 4B8170A-.25 Conrod bearing set Suits Non Turbo AU $64.45
NDC .50 4B8170A-.50 Conrod bearing set Suits Non Turbo AU $64.45
NDC STD 4B8170A-STD Conrod bearing set Suits Non Turbo AU $59.89
Conversion Gasket Sets
Durapro (GSC2365KD) Conversion Gasket Set Does not contain rear main seal AU $209.57
Permaseal C2365K Conversion gasket set C2365K Does Not Contain Rear Oil Seal & Housing AU $231.85
Cylinder Heads
Nason 909067 Cylinder head bare Bare Head - Suits Non VCT engines only AU $1,001.40

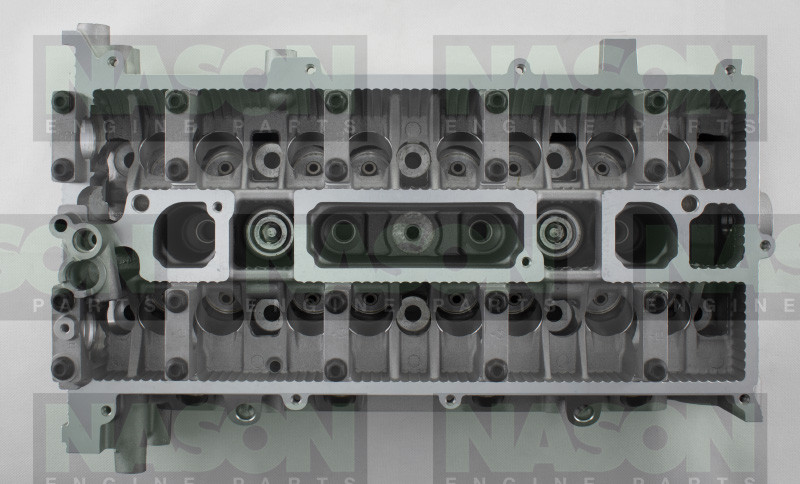

Nason 909068 Cylinder head bare Bare Head - Suits With VCT & Dipstick In Rocker Cover up to 6/2005 AU $786.78

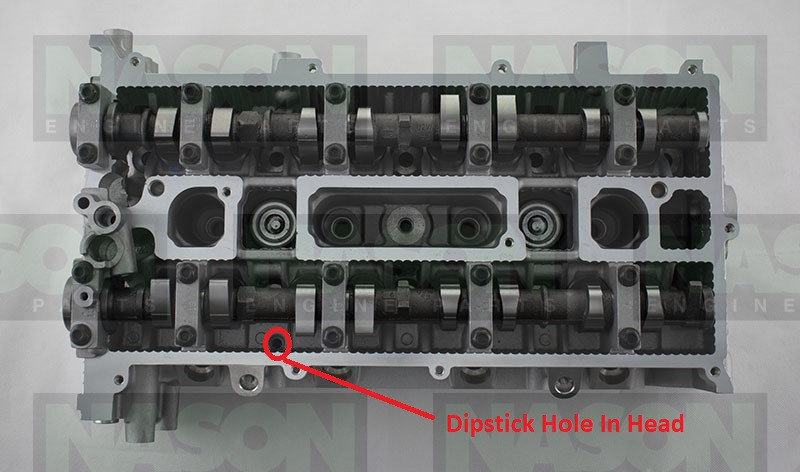

Nason 909068-B Cylinder head - assembled Assembled Head - Suits With VCT & Dipstick In Rocker Cover up to 06/05 AU $1,957.11
Drive Belt Ancillaries

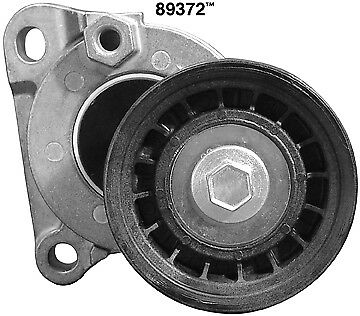

Dayco 89372 Automatic Belt Tensioner Drive belt tensioner AU $82.41
Nuline (EP026) Idler/Tensioner Pulley Tensioner pulley (steel) AU $37.73
Nuline (EP101) Idler/Tensioner Pulley Idler pulley (steel) AU $35.54
Exhaust Gaskets
Filters

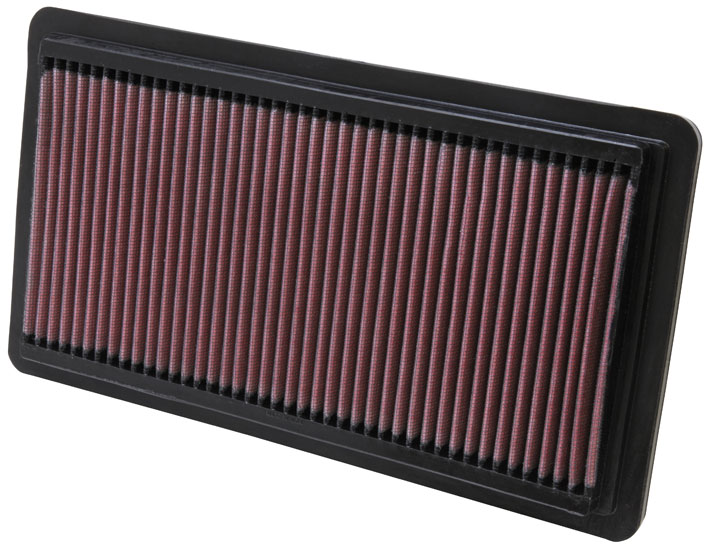

K&N 33-2278 Air Filter Air filter (reusable) AU $121.74
K&N 99-0606 Air Filter Cleaner - 12oz Pump Spray Air filter cleaner (12oz pump sprayer) AU $22.51
K&N 99-0621 Power Kleen; Filter Cleaner - 32 oz Trigger Sprayer Power Kleen filter cleaner (32oz trigger sprayer) AU $29.06
K&N 99-5050 Filter Care Service Kit - Squeeze Red Filter care service kit AU $31.48
K&N 99-6000 Cabin Filter Cleaning Care Kit Cabin filter cleaning kit AU $34.02

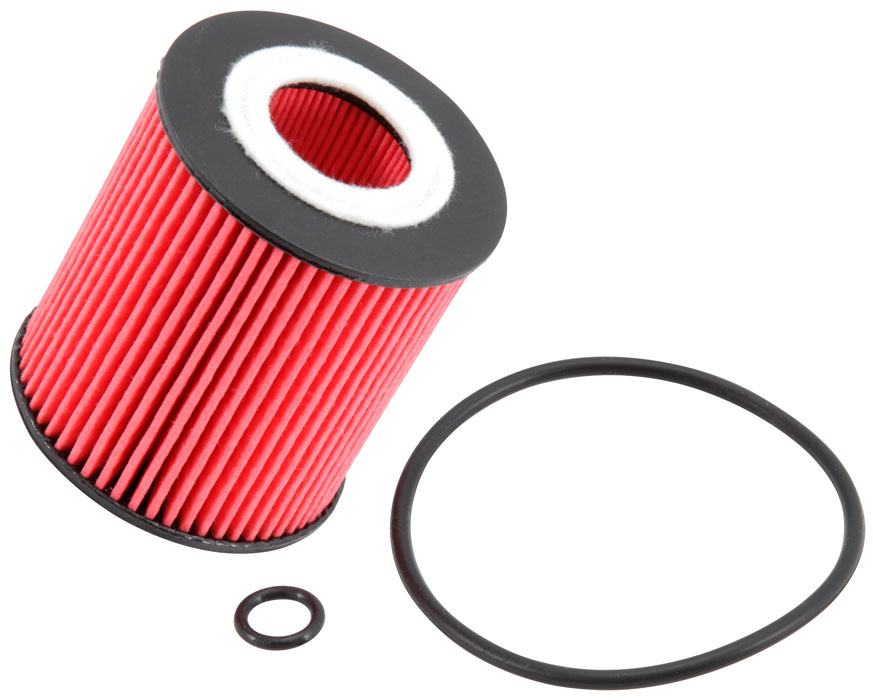

K&N PS-7013 Oil Filter Oil filter cartridge AU $22.08
Full Gasket Sets
Durapro (GSF2365SSYD) Stainless Steel Full Gasket Set Suits Escape ZB models only
Does not include rear main seal
AU $514.02
Durapro (GSF3125SSD) Stainless Steel Full Gasket Set Suits Escape ZC-ZD models with alloy water control outlet
(does not include oil feed hole to VCT)
Does not include rear main seal
AU $447.05
Permaseal F2365SSX Full gasket set See Notes AU $697.60
Harmonic Balancers
Powerbond (HB1386N) Harmonic Balancer Suits Escape ZB and ZC models AU $248.18
Head Bolts and Studs
Durapro (HBK3569D) Head Bolts Head bolt kit (hex head 10mm x 145mm UHL) AU $61.23

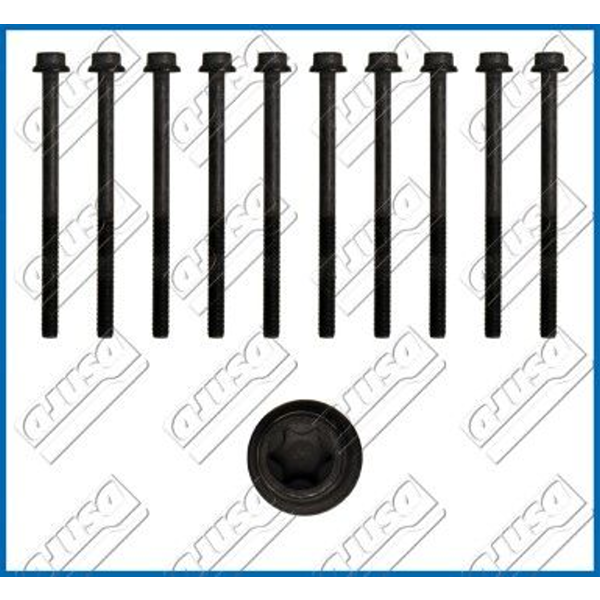

Elring 028.230 Head Bolts Head bolt kit (hex head 10mm x 145mm UHL) AU $82.81
Head Gaskets
Durapro (GSS2365SSD) Head Gasket Suits Escape ZB models only AU $172.88

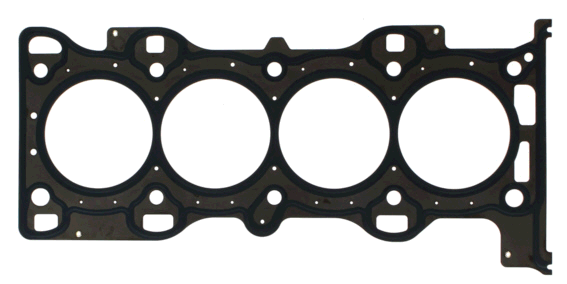

Durapro (GSS3125SSD) Head Gasket Suits Escape ZC-ZD models only
Includes oil feed hole in head gasket to VCT models
AU $191.15

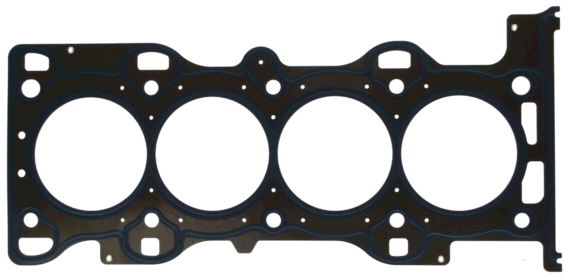

Endurotec (GSS2365SSE) Head Gasket Suits Escape ZB models only AU $134.79

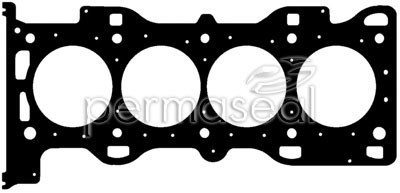

Permaseal S3125SS Head gasket See Notes AU $215.40
Hose and Fittings
Mackay CH4984 Radiator Hose (Top) Top hose
Suits Escape ZC models
AU $35.90
Mackay CH5226 Radiator Hose (Bottom) Bottom hose
Suits Escape ZC models
AU $35.37
Inlet Manifold Gasket
Lifters
16 x Nason VL31-3.000 Lifter 31.00mm OD, 3.000mm Thickness AU $553.58
16 x Nason VL31-3.025 Lifter 31.00mm OD, 3.025mm Thickness AU $553.58
16 x Nason VL31-3.050 Lifter 31.00mm OD, 3.050mm Thickness AU $553.58
16 x Nason VL31-3.075 Lifter 31.00mm OD, 3.075mm Thickness AU $553.58
16 x Nason VL31-3.100 Lifter 31.00mm OD, 3.100mm Thickness AU $553.58
16 x Nason VL31-3.122 Lifter 31.00mm OD, 3.122mm Thickness AU $553.58
16 x Nason VL31-3.142 Lifter 31.00mm OD, 3.142mm Thickness AU $553.58
16 x Nason VL31-3.162 Lifter 31.00mm OD, 3.162mm Thickness AU $553.58
16 x Nason VL31-3.182 Lifter 31.00mm OD, 3.182mm Thickness AU $553.58
16 x Nason VL31-3.202 Lifter 31.00mm OD, 3.202mm Thickness AU $553.58
16 x Nason VL31-3.222 Lifter 31.00mm OD, 3.222mm Thickness AU $553.58
16 x Nason VL31-3.242 Lifter 31.00mm OD, 3.242mm Thickness AU $553.58
16 x Nason VL31-3.262 Lifter 31.00mm OD, 3.262mm Thickness AU $553.58
16 x Nason VL31-3.282 Lifter 31.00mm OD, 3.282mm Thickness AU $553.58
16 x Nason VL31-3.302 Lifter 31.00mm OD, 3.302mm Thickness AU $553.58
16 x Nason VL31-3.322 Lifter 31.00mm OD, 3.322mm Thickness AU $553.58
16 x Nason VL31-3.342 Lifter 31.00mm OD, 3.342mm Thickness AU $553.58
16 x Nason VL31-3.362 Lifter 31.00mm OD, 3.362mm Thickness AU $553.58
16 x Nason VL31-3.382 Lifter 31.00mm OD, 3.382mm Thickness AU $553.58
16 x Nason VL31-3.402 Lifter 31.00mm OD, 3.402mm Thickness AU $553.58
16 x Nason VL31-3.422 Lifter 31.00mm OD, 3.422mm Thickness AU $553.58
16 x Nason VL31-3.442 Lifter 31.00mm OD, 3.442mm Thickness AU $553.58
16 x Nason VL31-3.462 Lifter 31.00mm OD, 3.462mm Thickness AU $553.58
16 x Nason VL31-3.482 Lifter 31.00mm OD, 3.482mm Thickness AU $553.58
16 x Nason VL31-3.502 Lifter 31.00mm OD, 3.502mm Thickness AU $553.58
16 x Nason VL31-3.522 Lifter 31.00mm OD, 3.522mm Thickness AU $553.58
16 x Nason VL31-3.542 Lifter 31.00mm OD, 3.542mm Thickness AU $553.58
16 x Nason VL31-3.562 Lifter 31.00mm OD, 3.562mm Thickness AU $553.58
16 x Nason VL31-3.582 Lifter 31.00mm OD, 3.582mm Thickness AU $553.58
16 x Nason VL31-3.602 Lifter 31.00mm OD, 3.602mm Thickness AU $553.58
16 x Nason VL31-3.625 Lifter 31.00mm OD, 3.625mm Thickness AU $553.58
16 x Nason VL31-3.650 Lifter 31.00mm OD, 3.650mm Thickness AU $553.58
16 x Nason VL31-3.675 Lifter 31.00mm OD, 3.675mm Thickness AU $553.58
16 x Nason VL31-3.700 Lifter 31.00mm OD, 3.700mm Thickness AU $553.58
16 x Nason VL31-3.725 Lifter 31.00mm OD, 3.725mm Thickness AU $553.58
Nason VL31-3.000 Lifter 31.00mm OD, 3.000mm Thickness AU $45.38
Nason VL31-3.000 Lifter 31.00mm OD, 3.000mm Thickness AU $45.38
Nason VL31-3.025 Lifter 31.00mm OD, 3.025mm Thickness AU $45.38
Nason VL31-3.025 Lifter 31.00mm OD, 3.025mm Thickness AU $45.38
Nason VL31-3.050 Lifter 31.00mm OD, 3.050mm Thickness AU $45.38
Nason VL31-3.050 Lifter 31.00mm OD, 3.050mm Thickness AU $45.38
Nason VL31-3.075 Lifter 31.00mm OD, 3.075mm Thickness AU $45.38
Nason VL31-3.075 Lifter 31.00mm OD, 3.075mm Thickness AU $45.38
Nason VL31-3.100 Lifter 31.00mm OD, 3.100mm Thickness AU $45.38
Nason VL31-3.100 Lifter 31.00mm OD, 3.100mm Thickness AU $45.38
Nason VL31-3.122 Lifter 31.00mm OD, 3.122mm Thickness AU $45.38
Nason VL31-3.122 Lifter 31.00mm OD, 3.122mm Thickness AU $45.38
Nason VL31-3.142 Lifter 31.00mm OD, 3.142mm Thickness AU $45.38
Nason VL31-3.142 Lifter 31.00mm OD, 3.142mm Thickness AU $45.38
Nason VL31-3.162 Lifter 31.00mm OD, 3.162mm Thickness AU $45.38
Nason VL31-3.162 Lifter 31.00mm OD, 3.162mm Thickness AU $45.38
Nason VL31-3.182 Lifter 31.00mm OD, 3.182mm Thickness AU $45.38
Nason VL31-3.182 Lifter 31.00mm OD, 3.182mm Thickness AU $45.38
Nason VL31-3.202 Lifter 31.00mm OD, 3.202mm Thickness AU $45.38
Nason VL31-3.202 Lifter 31.00mm OD, 3.202mm Thickness AU $45.38
Nason VL31-3.222 Lifter 31.00mm OD, 3.222mm Thickness AU $45.38
Nason VL31-3.222 Lifter 31.00mm OD, 3.222mm Thickness AU $45.38
Nason VL31-3.242 Lifter 31.00mm OD, 3.242mm Thickness AU $45.38
Nason VL31-3.262 Lifter 31.00mm OD, 3.262mm Thickness AU $45.38
Nason VL31-3.262 Lifter 31.00mm OD, 3.262mm Thickness AU $45.38
Nason VL31-3.282 Lifter 31.00mm OD, 3.282mm Thickness AU $45.38
Nason VL31-3.282 Lifter 31.00mm OD, 3.282mm Thickness AU $45.38
Nason VL31-3.302 Lifter 31.00mm OD, 3.302mm Thickness AU $45.38
Nason VL31-3.302 Lifter 31.00mm OD, 3.302mm Thickness AU $45.38
Nason VL31-3.322 Lifter 31.00mm OD, 3.322mm Thickness AU $45.38
Nason VL31-3.322 Lifter 31.00mm OD, 3.322mm Thickness AU $45.38
Nason VL31-3.342 Lifter 31.00mm OD, 3.342mm Thickness AU $45.38
Nason VL31-3.342 Lifter 31.00mm OD, 3.342mm Thickness AU $45.38
Nason VL31-3.362 Lifter 31.00mm OD, 3.362mm Thickness AU $45.38
Nason VL31-3.362 Lifter 31.00mm OD, 3.362mm Thickness AU $45.38
Nason VL31-3.382 Lifter 31.00mm OD, 3.382mm Thickness AU $45.38
Nason VL31-3.382 Lifter 31.00mm OD, 3.382mm Thickness AU $45.38
Nason VL31-3.402 Lifter 31.00mm OD, 3.402mm Thickness AU $45.38
Nason VL31-3.402 Lifter 31.00mm OD, 3.402mm Thickness AU $45.38
Nason VL31-3.422 Lifter 31.00mm OD, 3.422mm Thickness AU $45.38
Nason VL31-3.422 Lifter 31.00mm OD, 3.422mm Thickness AU $45.38
Nason VL31-3.442 Lifter 31.00mm OD, 3.442mm Thickness AU $45.38
Nason VL31-3.442 Lifter 31.00mm OD, 3.442mm Thickness AU $45.38
Nason VL31-3.462 Lifter 31.00mm OD, 3.462mm Thickness AU $45.38
Nason VL31-3.462 Lifter 31.00mm OD, 3.462mm Thickness AU $45.38
Nason VL31-3.482 Lifter 31.00mm OD, 3.482mm Thickness AU $45.38
Nason VL31-3.482 Lifter 31.00mm OD, 3.482mm Thickness AU $45.38
Nason VL31-3.502 Lifter 31.00mm OD, 3.502mm Thickness AU $45.38
Nason VL31-3.502 Lifter 31.00mm OD, 3.502mm Thickness AU $45.38
Nason VL31-3.522 Lifter 31.00mm OD, 3.522mm Thickness AU $45.38
Nason VL31-3.522 Lifter 31.00mm OD, 3.522mm Thickness AU $45.38
Nason VL31-3.542 Lifter 31.00mm OD, 3.542mm Thickness AU $45.38
Nason VL31-3.542 Lifter 31.00mm OD, 3.542mm Thickness AU $45.38
Nason VL31-3.562 Lifter 31.00mm OD, 3.562mm Thickness AU $45.38
Nason VL31-3.562 Lifter 31.00mm OD, 3.562mm Thickness AU $45.38
Nason VL31-3.582 Lifter 31.00mm OD, 3.582mm Thickness AU $45.38
Nason VL31-3.582 Lifter 31.00mm OD, 3.582mm Thickness AU $45.38
Nason VL31-3.602 Lifter 31.00mm OD, 3.602mm Thickness AU $45.38
Nason VL31-3.602 Lifter 31.00mm OD, 3.602mm Thickness AU $45.38
Nason VL31-3.625 Lifter 31.00mm OD, 3.625mm Thickness AU $45.38
Nason VL31-3.625 Lifter 31.00mm OD, 3.625mm Thickness AU $45.38
Nason VL31-3.650 Lifter 31.00mm OD, 3.650mm Thickness AU $45.38
Nason VL31-3.650 Lifter 31.00mm OD, 3.650mm Thickness AU $45.38
Nason VL31-3.675 Lifter 31.00mm OD, 3.675mm Thickness AU $45.38
Nason VL31-3.675 Lifter 31.00mm OD, 3.675mm Thickness AU $45.38
Nason VL31-3.700 Lifter 31.00mm OD, 3.700mm Thickness AU $45.38
Nason VL31-3.700 Lifter 31.00mm OD, 3.700mm Thickness AU $45.38
Nason VL31-3.725 Lifter 31.00mm OD, 3.725mm Thickness AU $45.38
Nason VL31-3.725 Lifter 31.00mm OD, 3.725mm Thickness AU $45.38
Main Bearings
King Engine Bearings (MB5442SI +010) Main Bearings STD 010 020 030 040
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $201.89
King Engine Bearings (MB5442SI +020) Main Bearings STD 010 020 030 040
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $201.89
King Engine Bearings (MB5442SI +030) Main Bearings STD 010 020 030 040
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $94.04
King Engine Bearings (MB5442SI +040) Main Bearings STD 010 020 030 040
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $94.04
King Engine Bearings (MB5442SI STD) Main Bearings STD 010 020 030 040
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $201.89
King Racing (MB5442XP 0.25) +010 Set of 5 Main Bearings STD STDX 010 020
XP Xtreme Performance Tri-metal
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $283.31
King Racing (MB5442XP 0.5) +020 Set of 5 Main Bearings STD STDX 010 020
XP Xtreme Performance Tri-metal
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $283.38
King Racing (MB5442XP STDX) STDX Set of 5 Main Bearings STD STDX 010 020
XP Xtreme Performance Tri-metal
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $283.31
King Racing (MB5442XP) STD Set of 5 Main Bearings STD STDX 010 020
XP Xtreme Performance Tri-metal
Shaft 2.0464/2.0472¨ 51.979/51.999mm
Tunnel 2.2448/2.2455¨ 57.018/57.036mm
AU $283.31
Misc Gaskets
Miscellaneous
16 x SBI 121-1104 Valve collet Suits 5.5mm Stem, 1 Round Bead AU $61.48
SBI 121-1104 Valve collet Suits 5.5mm Stem, 1 Round Bead AU $61.48
Multi-Ribbed Belts
Endurotec (5PK2300) Multi accessory Multi Ribbed Belt Multi accessory
Use EMB6PK2305 until no stock
AU $60.91
Endurotec (6PK2305) Multi accessory Multi Ribbed Belt Multi accessory
2305mm length
AU $69.54

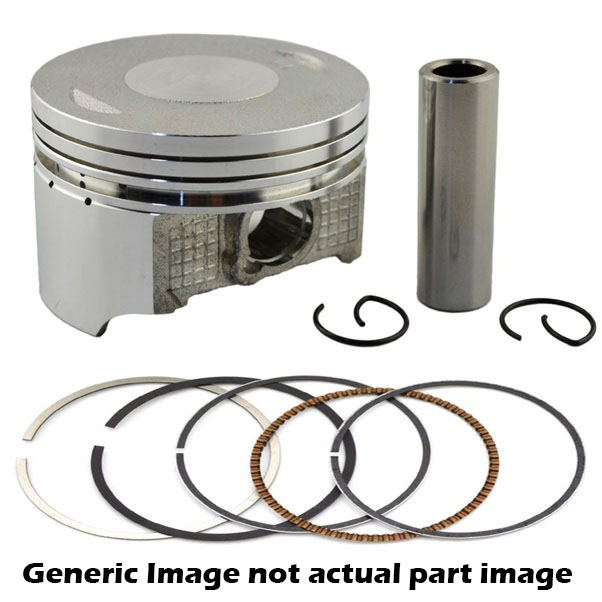

Piston and Rings
Nason 0.50 4MKRY8112-0.50 Pistons set 2 Valve Reliefs With Bowl Depth = 4.0mm AU $391.18
Nason STD 4MKRY8112-STD Pistons set 2 Valve Reliefs With Bowl Depth = 4.0mm AU $359.22
Piston Rings Cast
Piston Rings Chrome
Hastings (2C5158040) +040 Piston Rings Chrome STD 020 040
1.2mm/1.2mm/2.5mm
AU $114.92
NPR (SWT20090-0) STD Piston Rings Chrome STD 020 040
1.2mm/1.2mm/2.5mm
AU $102.77
NPR (SWT20090-2) +020 Piston Rings Chrome STD 020 040
1.2mm/1.2mm/2.5mm
AU $92.90
Pistons
Endurotec (PMAL340002E) STD Pistons Set Of 4 STD 020 040 Dish top (set of 4) Rings not included
Use RS5876 piston rings
Compression height 28.5mm -4mm
AU $384.55
Endurotec (PMAL340202E) +020 Pistons Set Of 4 STD 020 040 Dish top (set of 4) Rings not included
Use RS5876 piston rings
Compression height 28.5mm -4mm
AU $384.55
Endurotec (PMAL340402E) +040 Pistons Set Of 4 STD 020 040 Dish top (set of 4) Rings not included
Use RS5876 piston rings
Compression height 28.5mm -4mm
AU $384.55
Nason 0.50 4P1190-0.50 Pistons set With 4.00mm Bowl Depth AU $291.25

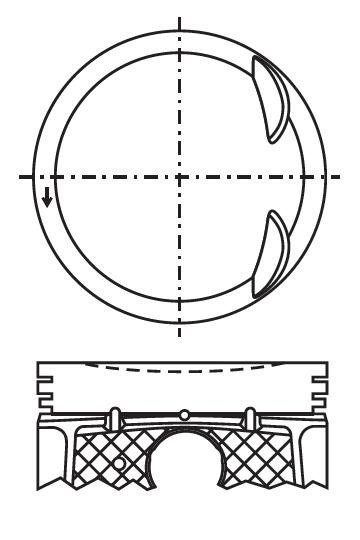

Nason 0.50 4P1281-0.50 Pistons set With 3.30mm Bowl Depth AU $250.27

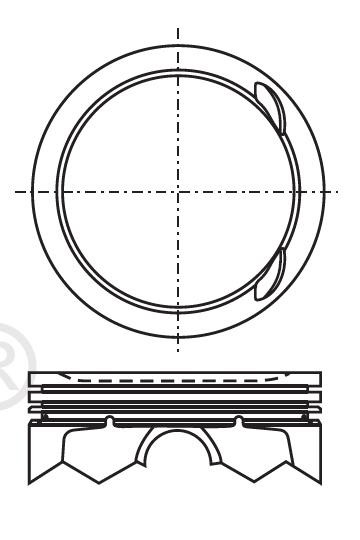

Nason 1.00 4P1190-1.00 Pistons set With 4.00mm BowL Depth AU $291.25
Nason 1.00 4P1281-1.00 Pistons set With 3.30mm Bowl Depth AU $250.27
Nason STD 4P1281-STD Pistons set With 3.30mm Bowl Depth AU $250.27
Rear Main Seals

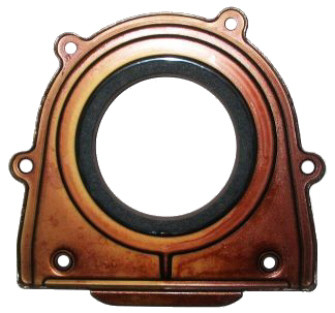

Durapro (GSRMS034D) Crankshaft Seal Rear Includes housing AU $277.97
Permaseal OSS0021 Crankshaft seal front Crankshaft Seal Front AU $53.67
Timing Chains

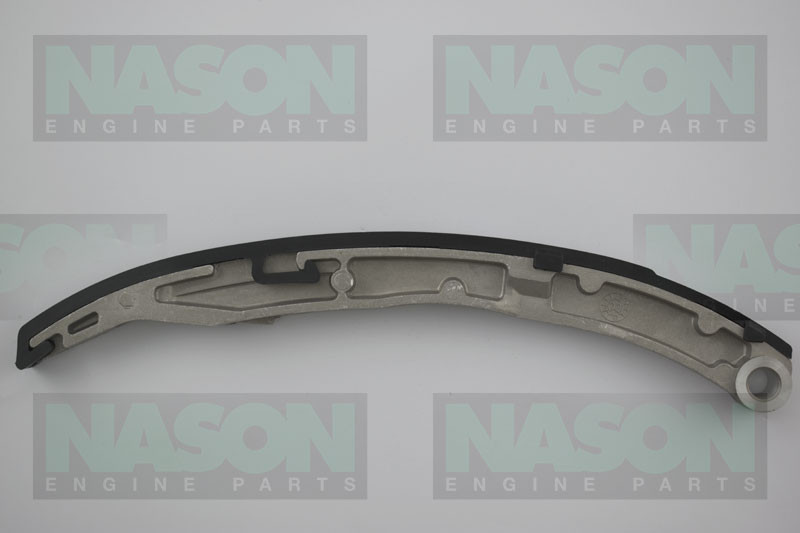

Nason MCD13 Timing chain guide Primary Timing Guide With VVT AU $59.59

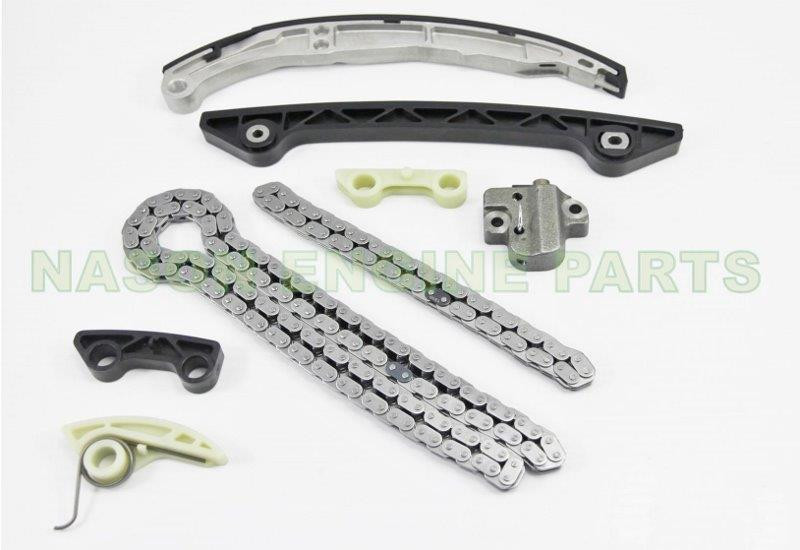

Nason MZTK34 Timing chain kit Suits Non VCT Engines With 138L & 54L Morse Chains AU $286.90

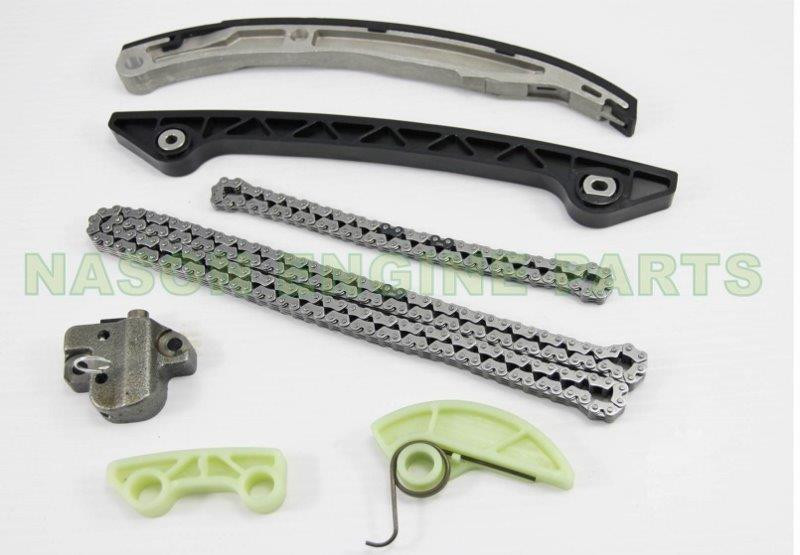

Nason MZTK37 Timing chain kit Suits VCT Engines With 174L & 66L Morse Chains AU $354.70
Nason TC137 Timing chain Primary- Morse Type 174 Link x 10.95mm Wide AU $139.85
Nason TC138 Timing chain Primary- Morse Type 138 Link x 10.00mm Wide AU $84.85
Nason TC54 Timing chain- oil pump Morse Type 54 Link x 8.70mm Wide AU $37.11
Timing Cover Seals
Durapro (GSOSS0021D) Crankshaft Seal Front ID 37mm x OD 50mm x depth 6.3mm (front) AU $56.56

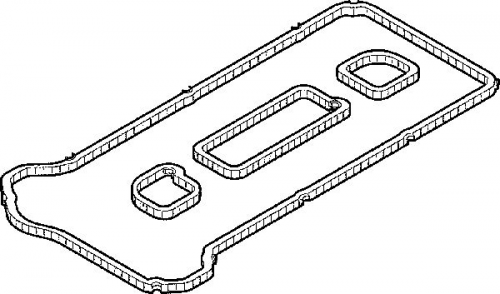

Valve Cover Gaskets
Valve Guides
JCMC (VGFD-69-Z) Valve Guide Tin/phosphorus alloy
OD 11.05mm x ID 5.53mm x length 39mm
AU $19.78
Valve Regrind Gasket Set (VRS)
Crossfire XV2365LS VRS Gasket set See Notes AU $393.64
Durapro (GSV2365SSYD) VRS Gasket Set Suits Escape ZB models only AU $392.25
Durapro (GSV3125SSD) VRS Gasket Set Suits Escape ZC-ZD models only
Includes oil feed hole in head gasket to VCT models
AU $385.92
Endurotec (GSV2365SSYE) VRS Gasket Set Suits Escape ZB models only AU $343.48
Endurotec (GSV3125SSE) VRS Gasket Set Suits Escape ZC-ZD models only
Includes oil feed hole in head gasket to VCT models
AU $346.12
Permaseal V2365SSX VRS Gasket set See Notes AU $455.43
Valve Spring Retainers
Valve Springs
Valve Stem Seals
Valves-Exhaust
Valves-Inlet

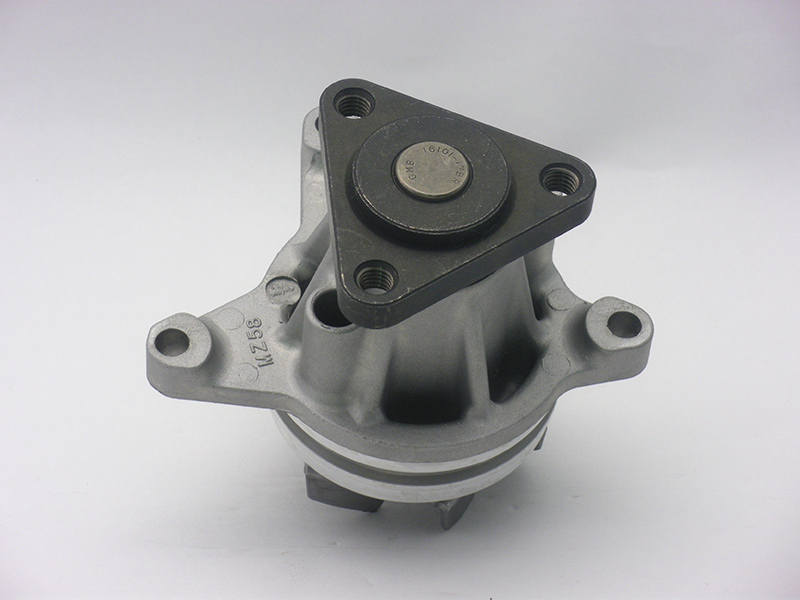

Water Pumps

Web Store Pty Ltd is a Melbourne based warehouse with thousands of the latest products at great prices. We hand select our range of Australian designed products from only the best local suppliers. We pride ourselves on our customer service and our friendly team are available to assist you through the buying process. When comparing prices know we only sell great quality items and our manufacturing passes strict quality checks before posting.

To ensure a smooth transaction, please follow the payment instructions laid out in the eBay system. If you are new to eBay and unsure how to purchase, please don't hesitate to get in contact with us as our Customer Service team will be happy to assist.

The simplest way to facilitate payment is via Mastercard, Visa, or Paypal via the Checkout process.

Please contact us if yous wish to pay via direct deposit and then we can supply our Account and BSB details.

If paying by bank deposit, please ensure you have your reference of your payment with your eBay user ID so we can identify the payment as yours. Failure to correctly reference your payment will cause a delay in our system which will ultimately delay the shipment of your order.
We check our bank accounts daily so as soon as your payment has cleared, we will start processing your order.

Our stock levels can change at any time. An order is only complete once payment has cleared. To prevent missing out, it's best to pay as soon as possible. Once a payment has cleared, 90% of products are dispatched within 1 business day, however please see our shipping page for estimated shipping times by state. Wedding Wish is not liable for any unidentified payments or delays of delivery due to failure to follow instructions during checkout.

For all payments outside of eBay, please ensure you send us the reference you used, the day and time you paid, and the amount deposited.

As always, if you have any questions, please get in contact with our Customer Service team who are more than happy to help.

We are happy to combine shipping on any orders. Individual listings with combined shipping will automatically calculate on checkout. When buying from multiple listings, please message us prior to purchase to confirm postage rates, be sure to include your postcode for accurate quoting and the items you are after. Express post is available on request for most orders, please note handing times will usually still apply.

Pre-arranged pickup is available from our warehouse in Dingley Village, Victoria. Please note that a handling time will still apply. Please call ahead or email us to ensure item is available for pickup.

POSTAGE & DISPATCH

After payment is cleared 90% of all items are dispatched within two business days, however please see below for estimated delivery times by state. Your item will be sent via courier or Australia Post depending on its size and weight.

Where goods are sent through Australia Post, the buyer may receive a knock on the door or a card in their letterbox indicating their item is available for pickup from their local post office.

A re-delivery fee will be charged to buyers for items that are undeliverable and/or returned due to incorrect delivery address or unsuccessful delivery.

Buyers have the full responsibility to provide us with the correct delivery address and mobile phone number on the checkout page before payment. Any changes to address after checkout will not be considered as valid.

Our staff work tirelessly to ensure customer satisfaction however we understand that on occasion issues do arise. If you have a problem with your purchase please contact us PRIOR to leaving feedback and we will do our best to rectify the situation.

Claims entered directly via this method will be given priority.

The fastest and best way to contact us is through the eBay messaging system. If you contact us out of eBay we may not see your message and our support team will be much slower in dealing with your issue. Thank you for your business!

Copyright (C) 2018 Web Store Pty Ltd. All Rights Reserved
