Product Information

NDC STD Main bearing set fits Honda EW2 Civic AH AK AN PC Crx AF

Item Specifics
SKU: 5M1952-STD
Price: $80.73
Returns: 30 Days
Ships From: Melbourne

Description

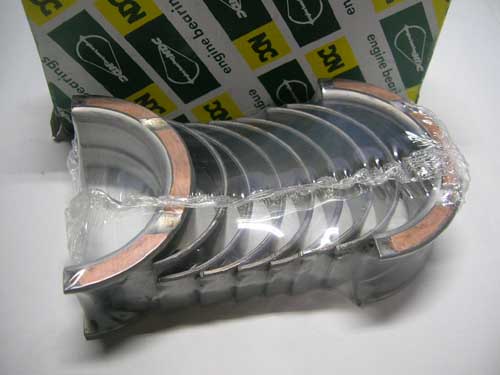

NDC Main bearing set fits Honda 1.5L EW2 4 Cyl SOHC Civic AH AK AN PC Crx AF Lead

NDC Main bearing set
Over Size: STD

Notes

Material Tri-Metal
*
Position 1-5
Std Shaft Diam 50.000mm/50.000mm
Oil Clearance TBA
Maximum Wall 1.998mm
Housing Bore 54.000mm/54.000mm
Max Length 20.00mm
*
Contains 10 Pieces
*
Thrust Washers 1T1952-STD

Variations for this Engine

These are the different Variations for the Honda EW2 SOHC 1.5L 4 Cyl Lead Engine. Please check carefully you have selected the right part for your vehicle.

Suitable For

Honda
Accord JJ EG 1.6L SOHC 4 Cyl
Accord SJ EL 1.6L SOHC 4 Cyl
Accord SM EK 1.8L SOHC 4 Cyl
Accord SV EL 1.6L SOHC 4 Cyl
Accord SY EL 1.6L SOHC 4 Cyl
Accord SZ EK 1.8L SOHC 4 Cyl
Civic AH EW2 1.5L SOHC 4 Cyl
Civic AK EW2 1.5L SOHC 4 Cyl
Civic AN EW2 1.5L SOHC 4 Cyl
Civic PC EW2 1.5L SOHC 4 Cyl
Civic RA EN EN1 EN4 1.3L SOHC 4 Cyl
Civic RC EN EN1 EN4 1.3L SOHC 4 Cyl
Civic SB EB1 1.2L SOHC 4 Cyl
Civic SE EC 1.5L SOHC 4 Cyl
Civic SJ EL 1.6L SOHC 4 Cyl
Civic SL EN EN1 EN4 1.3L SOHC 4 Cyl
Civic SV EL 1.6L SOHC 4 Cyl
Civic SY EL 1.6L SOHC 4 Cyl
Civic WB EC 1.5L SOHC 4 Cyl
Civic WC EN EN1 EN4 1.3L SOHC 4 Cyl
Crx AF EW2 1.5L SOHC 4 Cyl
Prelude SN EK 1.8L SOHC 4 Cyl
Prelude SN EL 1.6L SOHC 4 Cyl
Various EB2 1.2L SOHC 4 Cyl
Various EB3 1.2L SOHC 4 Cyl
Various ED 1.5L SOHC 4 Cyl
Various EF 1.6L SOHC 4 Cyl
Various EJ 1.3L SOHC 4 Cyl
Various EM 1.5L SOHC 4 Cyl
Various EP 1.6L SOHC 4 Cyl
Various EV1 CVCC 1.3L SOHC 4 Cyl
Rover
Quintet EL 1.6L SOHC 4 Cyl
Triumph
Acclaim EN EN1 EN4 1.3L SOHC 4 Cyl

Other Parts for this Engine

These are the different parts available for the Honda EW2 SOHC 1.5L 4 Cyl Lead Engine

Cogged V-Belts
Conrod Bearings
Taiho (R456H 0.25) Set of 4 +010 Conrod Bearings Set STD 010 020 030
Shaft 41.976/42.000mm 1.6526/1.6535¨
Tunnel 44.999/45.024mm 1.7716/1.7726¨
AU $28.20
Taiho (R456H) Set of 4 STD Conrod Bearings Set STD 010 020 030
Shaft 41.976/42.000mm 1.6526/1.6535¨
Tunnel 44.999/45.024mm 1.7716/1.7726¨
AU $43.20
Conversion Gasket Sets
Cooling

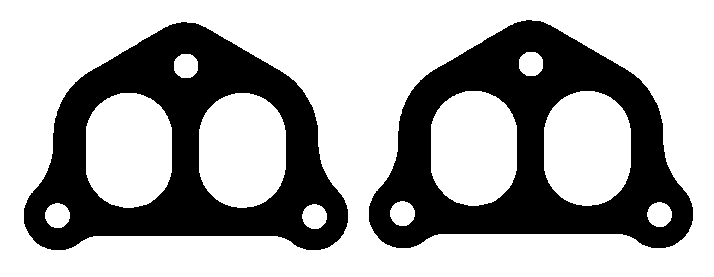

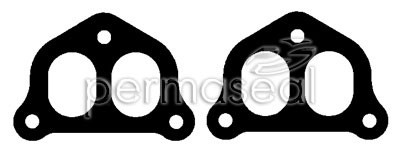

Exhaust Gaskets
Full Gasket Sets

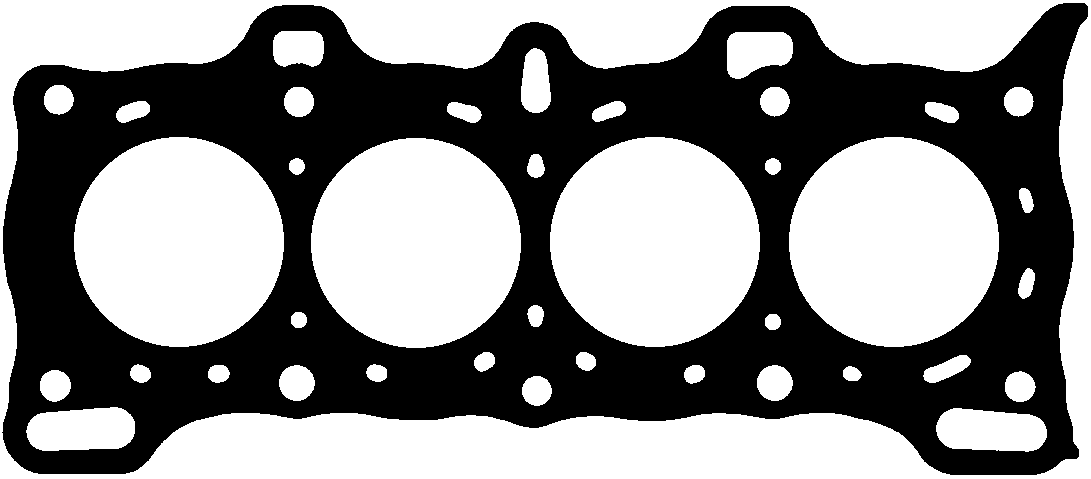

Head Gaskets
Hose and Fittings

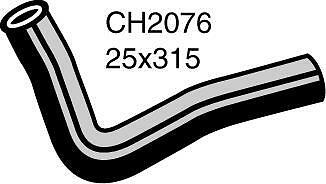

Mackay CH2076 Radiator Hose (Top) Radiator hose (top)
Suits Civic AL/AH/AG/AJ models 84-87
AU $32.85

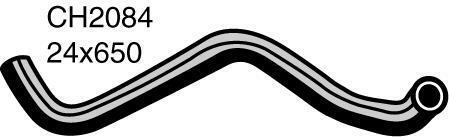

Mackay CH2084 Radiator Hose (Bottom) Radiator hose (bottom)
Suits Civic AL,AJ,AG,AH models 1/84-12/87
AU $21.60

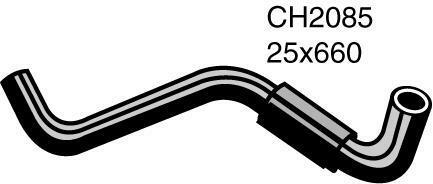

Mackay CH2085 Radiator Hose (Bottom) Radiator hose (bottom)
Suits Civic AL/AH/AG/AJ models 84-87
AU $65.45

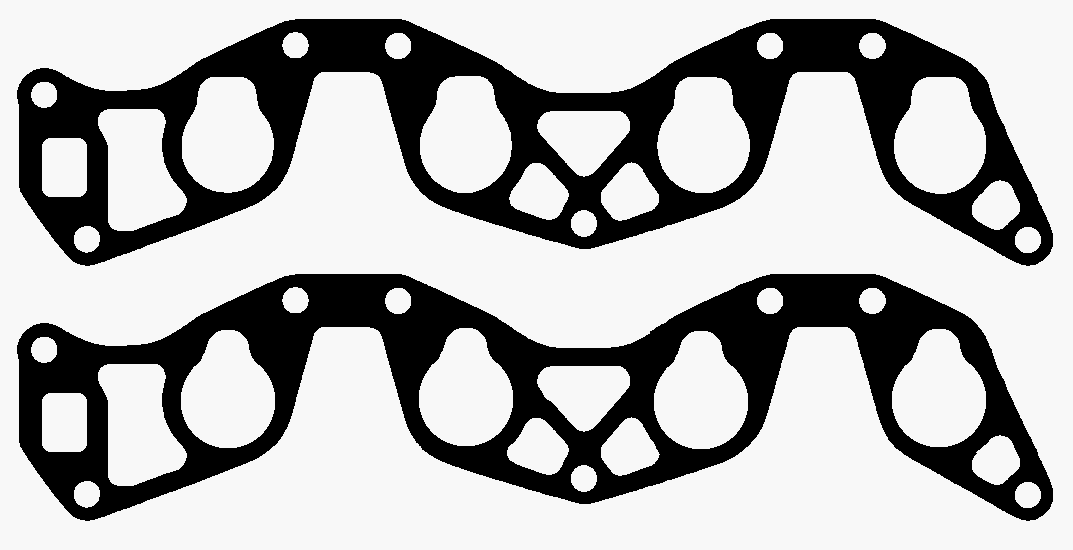

Inlet Manifold Gasket
Main Bearings
King Engine Bearings (MB5168AM +010) Main Bearings STD 010 020 030
Shaft 49.976/50.000mm 1.9676/1.9685¨
Tunnel 54.038/54.064mm 2.1275/2.1285¨
AU $45.05
King Engine Bearings (MB5168AM +020) Main Bearings STD 010 020 030
Shaft 49.976/50.000mm 1.9676/1.9685¨
Tunnel 54.038/54.064mm 2.1275/2.1285¨
AU $45.05
King Engine Bearings (MB5168AM +030) Main Bearings STD 010 020 030
Shaft 49.976/50.000mm 1.9676/1.9685¨
Tunnel 54.038/54.064mm 2.1275/2.1285¨
AU $45.05
Misc Gaskets
Miscellaneous

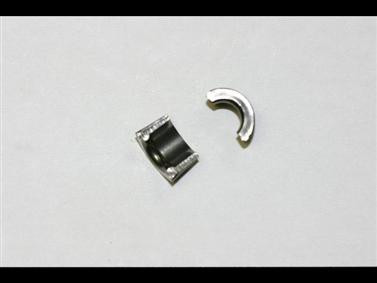

12 x Nason 121-1054 Valve collet Sold as Single Collet 2 Reqired Per Valve AU $21.27
Nason 121-1054 Valve collet Sold as Single Collet 2 Reqired Per Valve AU $21.27
Multi-Ribbed Belts
Endurotec (4PK0740) Alternator belt Multi Ribbed Belt Alternator belt
Suits Civic 1/1984 - 12/1987
AU $25.71
Oil Pumps
Piston and Rings
Piston Rings Cast
Hastings (4396) STD Piston Rings Cast STD 020 030 040
1.5mm/1.5mm/4mm
AU $80.63
Hastings (4396020) +020 Piston Rings Cast STD 020 030 040
1.5mm/1.5mm/4mm
AU $80.63
Hastings (4396030) +030 Piston Rings Cast STD 020 030 040
1.5mm/1.5mm/4mm
AU $63.31
Hastings (4396040) +040 Piston Rings Cast STD 020 030 040
1.5mm/1.5mm/4mm
AU $63.31
Hastings Chrome STD 2C6173-STD Piston Ring set Chrome Top 1.20 1.20 2.80 AU $119.80
Hastings Moly 040 2M4396-040 Piston Ring set Moly Top 1.50 1.50 4.00 AU $94.69
Piston Rings Chrome
Hastings (2C4396) STD Piston Rings Chrome STD 020 030 040
1.5mm/1.5mm/4mm
AU $68.60
Hastings (2C4396020) +020 Piston Rings Chrome STD 020 030 040
1.5mm/1.5mm/4mm
AU $68.60
Hastings (2C4396030) +030 Piston Rings Chrome STD 020 030 040
1.5mm/1.5mm/4mm
AU $68.60
Piston Rings Moly
Hastings (2M4396) STD Piston Rings Moly STD 020 030 040
1.5mm/1.5mm/4mm
AU $68.60
Hastings (2M4396020) +020 Piston Rings Moly STD 020 030 040
1.5mm/1.5mm/4mm
AU $68.60
Hastings (2M4396030) +030 Piston Rings Moly STD 020 030 040
1.5mm/1.5mm/4mm
AU $68.60
Hastings (2M4396040) +040 Piston Rings Moly STD 020 030 040
1.5mm/1.5mm/4mm
AU $94.79

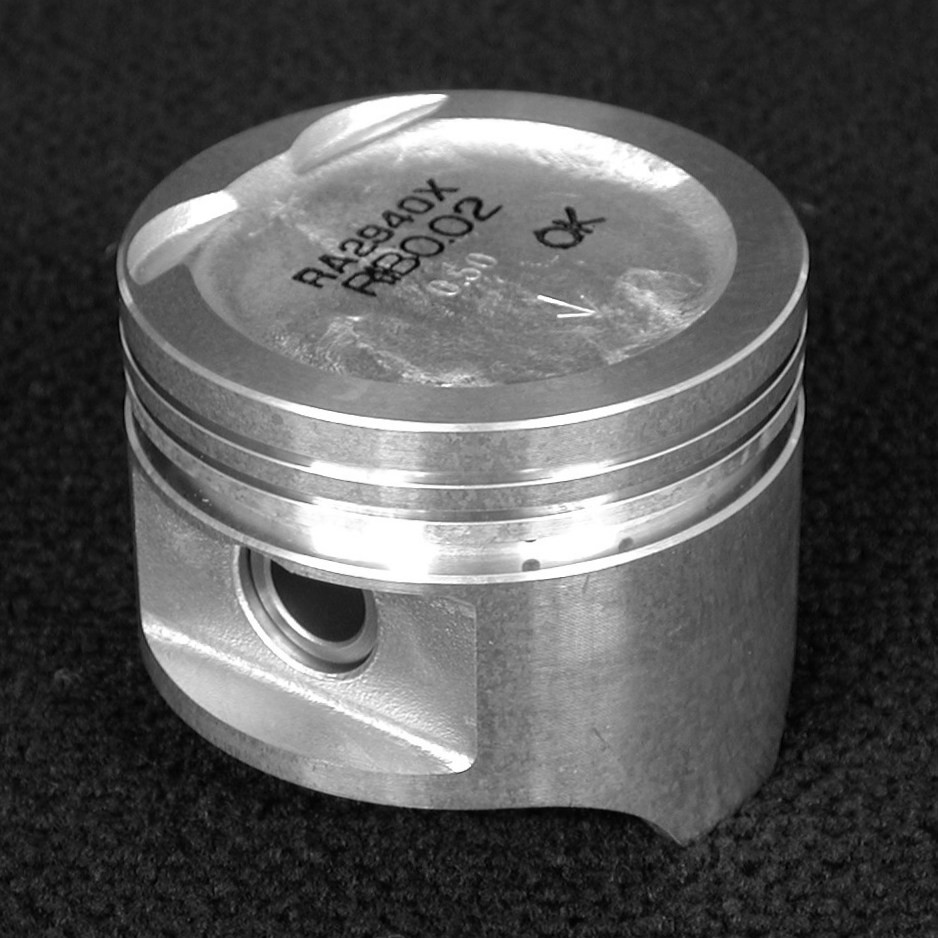

Pistons
Endurotec (PHNEV40001E) STD Pistons Set Of 4 STD 010 020 040 (set of 4) Rings not included
(use RS1417 piston rings)
Compression height 30mm -1.5mm
AU $122.89
Endurotec (PHNEV40401E) +040 Pistons Set Of 4 STD 010 020 040 (set of 4) Rings not included
(use RS1417 piston rings)
Compression height 30mm -1.5mm
AU $122.89

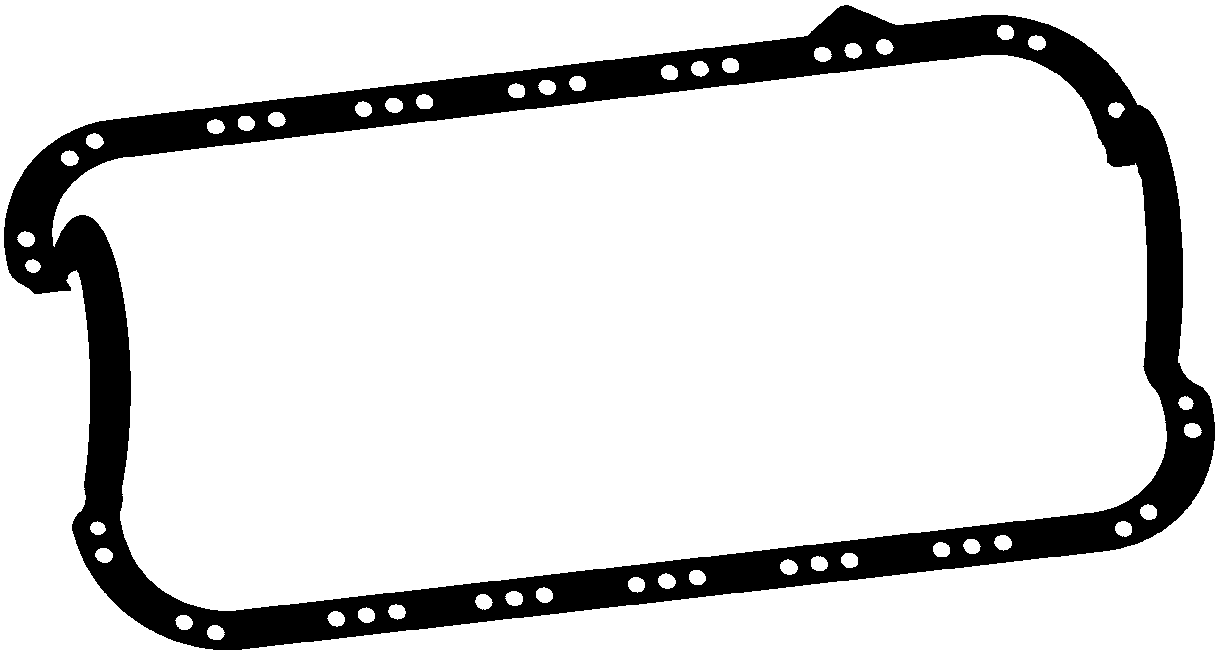

Sump Gasket Sets
Thrust Washers
Timing Belts

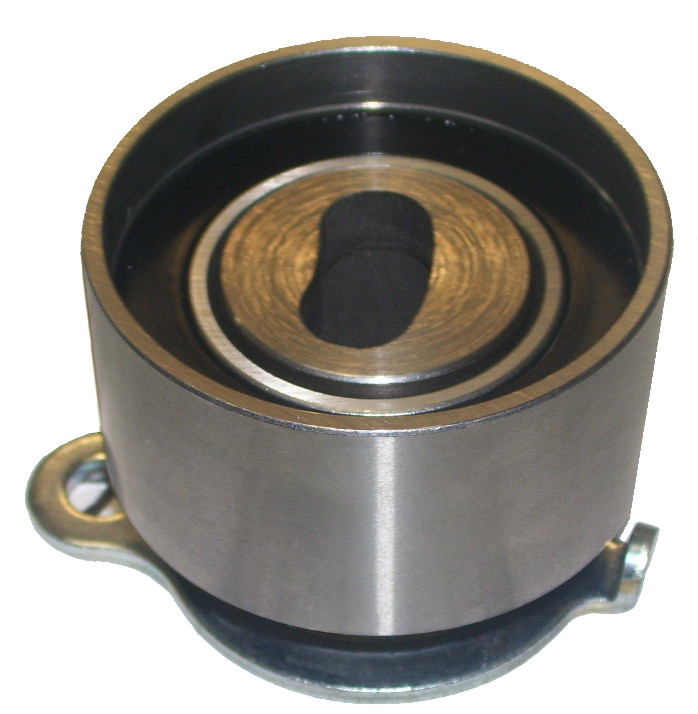

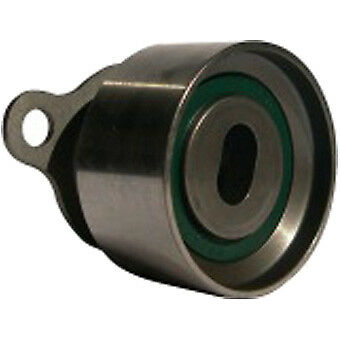

Timing Kits

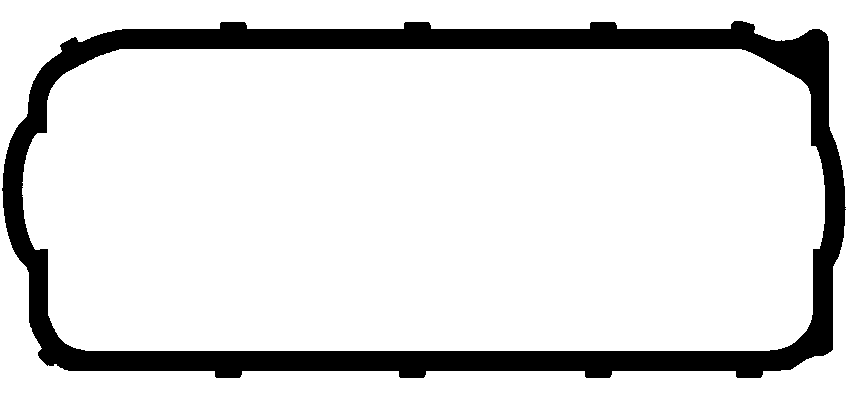

Valve Cover Gaskets
Valve Guides
Valve Regrind Gasket Set (VRS)
Valve Stem Seals
Valves-Exhaust
JCMC (14721-PE0-000) Exhaust Valve Head 32mm x length 113.8mm x stem 6.6mm AU $35.59
JCMC (14721-PE0-660) Exhaust Valve Head 29mm x length 113.8mm x stem 6.6mm AU $18.00
Valves-Inlet
JCMC (14711-PE0-660) Inlet/Intake Valve 2 required
Head 30mm x length 112.7mm x stem 6.6mm
AU $15.80

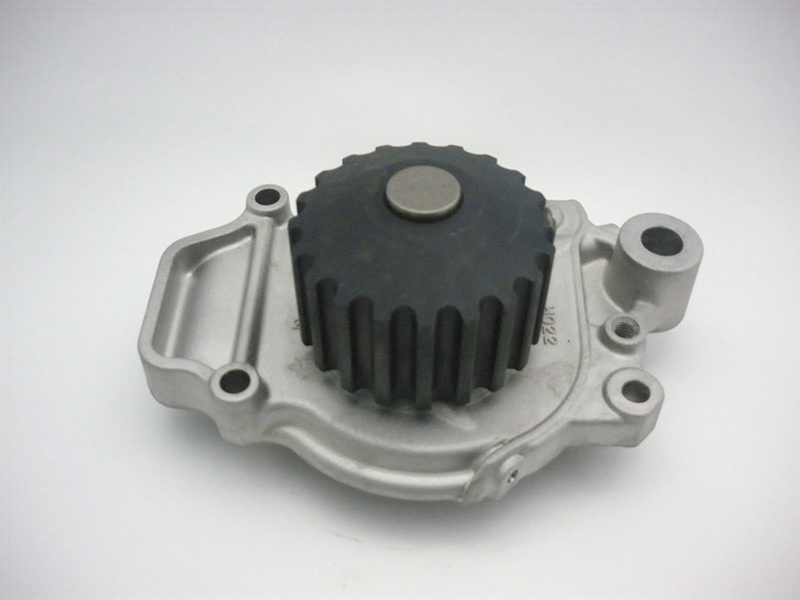

Water Pumps
