Product Information

SealedPower +010 Main bearing set fits Ford 250 4.1 X Flow CI Cortina TD TE Fairlane FB FC ZH ZJ Fairmont XA XC XD Falcon XC XD Transit 115 125 175

Item Specifics
SKU: 4916M-010
Price: $164.09
Returns: 30 Days
Ships From: Melbourne

Description

SealedPower Main bearing set fits Ford 4.1L 250 4.1 X Flow CI 6 Cyl OHV Cortina TD TE Fairlane FB FC ZH ZJ Fairmont XA XC XD Falcon XC XD Transit 115 125 175 Lead

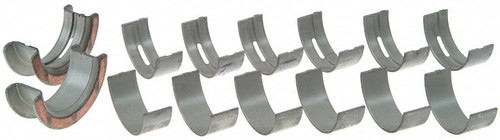

SealedPower Main bearing set
Over Size: 010
7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange

Notes

Material (Trimetal)
*
Poistion 1, 2, 3, 4, 6, 7
Std Shaft Diam 2.3982"/2.3990"
Oil Clearance 0.0002"/0.0028"
Maximum Wall 0.0955"
Housing Bore 2.5902"/2.5910"
Max Length 0.9700"
*
Position 5
Std Shaft Diam 2.3982"/2.3990"
Oil Clearance 0.0002"/0.0028"
Maximum Wall 0.0955"
Housing Bore 2.5902"/2.5910"
Max Length 1.1950" (Flanged)

Microbond Washers

Microbond washers are dry to the touch adhesives, bonded to a mesh substrate and cut into various sizes. The adhesive in each washer is activated when crushed or sheared under the pressure of the fastener during installation. Microbond washers lock and seal under the head of the fastener, and provide a wide range of benefits when compared to metal lock washers, or even neoprene. Please note this product is made to order and has a MINIMUM quantity of 30,000 pieces for a production run.

Variations for this Engine

These are the different Variations for the Ford 250 4.1 X Flow CI OHV 4.1L 6 Cyl Lead Engine. Please check carefully you have selected the right part for your vehicle.

SealedPower 010 4916M-010 Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
SealedPower 020 4916M-020 Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
SealedPower 030 4916M-030 Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
SealedPower STD 4916M-STD Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09

Suitable For

Ford
Cortina TD 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Cortina TE 200 3.3 X Flow CI 3.3L OHV 6 Cyl
Cortina TE 250 4.1 X Flow CI 4.1L OHV 6 Cyl
F100 200 3.3 X Flow CI 3.3L OHV 6 Cyl
Fairlane FB 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairlane FC 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairlane ZH 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairlane ZJ 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairmont XA 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairmont XC 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairmont XD 200 3.3 X Flow CI 3.3L OHV 6 Cyl
Fairmont XD 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Fairmont XE 200 3.3 X Flow CI 3.3L OHV 6 Cyl
Falcon XC 200 3.3 X Flow CI 3.3L OHV 6 Cyl
Falcon XC 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Falcon XD 200 3.3 X Flow CI 3.3L OHV 6 Cyl
Falcon XD 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Transit 115 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Transit 125 250 4.1 X Flow CI 4.1L OHV 6 Cyl
Transit 175 250 4.1 X Flow CI 4.1L OHV 6 Cyl

Other Parts for this Engine

These are the different parts available for the Ford 250 4.1 X Flow CI OHV 4.1L 6 Cyl Lead Engine

Camshaft Bearings
Camshafts
Engine Pro EPC86200 Camshaft Standard Replacement - Leaded Fuel Carby AU $223.14
Engine Pro Stage 2 EPC86212 Camshaft Performance Stage 2 AU $223.14
Conrod Bearings
Crankshaft Gears
Exhaust Gaskets
Full Gasket Sets
Permaseal FP340 Full gasket set See Notes AU $157.90
Lifters
12 x Melling RHT900 Lifter Hydraulic Lifter AU $153.53
12 x Nason AT2000 Lifter Solid Mechanical Lifter AU $291.60
12 x Nason RHT900R Lifter Anti Pump Up Lifter AU $328.30
Melling RHT900 Lifter Hydraulic Lifter AU $23.34
Nason AT2000 Lifter Solid Mechanical Lifter AU $34.84
Nason RHT900R Lifter Anti Pump Up Lifter AU $37.90
Main Bearings
SealedPower 010 4916M-010 Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
SealedPower 020 4916M-020 Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
SealedPower 030 4916M-030 Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
SealedPower STD 4916M-STD Main bearing set 7 Main Crank 2.399" Shaft Diameter 1.195" Width Flange AU $164.09
Manifold Gaskets
Misc Gaskets

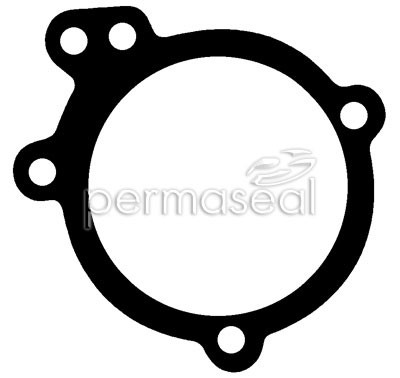

Permaseal KA517 Water pump gasket See Photo AU $15.92
Miscellaneous
12 x SBI 121-1019 Valve collet Suits 11/32" Stem, 4 Round Beads AU $27.87
SBI 121-1019 Valve collet Suits 11/32" Stem, 4 Round Beads AU $27.87
Oil Pumps

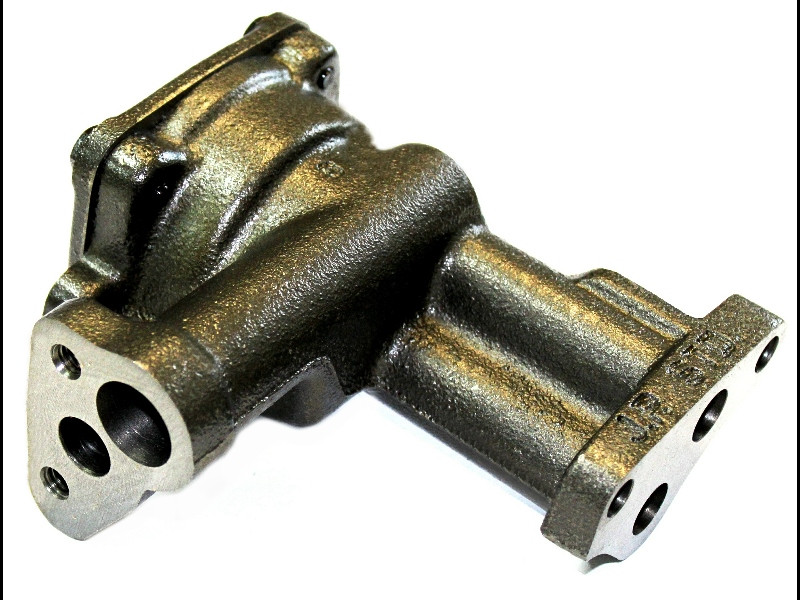

JP JP9438 Oil pump Standard Volume AU $172.93
Melling M250 Oil pump Standard Volume AU $67.03
Piston Cylinder Sleeves
Piston Rings Cast
Hastings Cast 020 4409-020 Piston Ring set Cast Top 1.50 1.50 4.00 AU $86.24
Hastings Cast 020 586-020 Piston Ring set Cast Top 5/64 5/64 3/16 AU $60.21
Hastings Cast 030 586-030 Piston Ring set Cast Top 5/64 5/64 3/16 AU $60.79
Hastings Cast 040 586-040 Piston Ring set Cast Top 5/64 5/64 3/16 AU $86.59
Hastings Cast 060 4409-060 Piston Ring set Cast Top 1.50 1.50 4.00 AU $86.24
Hastings Cast 060 586-060 Piston Ring set Cast Top 5/64 5/64 3/16 AU $61.26
Hastings Cast STD 4409-STD Piston Ring set Cast Top 1.50 1.50 4.00 AU $86.24
Hastings Chrome 030 2C4409-030 Piston Ring set Chrome Top 1.50 1.50 4.00 AU $142.95
Hastings Chrome 040 2C4409-040 Piston Ring set Chrome Top 1.50 1.50 4.00 AU $142.95
Hastings Chrome STD 2C4409-STD Piston Ring set Chrome Top 1.50 1.50 4.00 AU $142.75
Hastings Moly 020 2M586-020 Piston Ring set Moly Top 5/64 5/64 3/16 AU $123.65
Hastings Moly 030 2M586-030 Piston Ring set Moly Top 5/64 5/64 3/16 AU $123.65
Hastings Moly 040 2M586-040 Piston Ring set Moly Top 5/64 5/64 3/16 AU $123.65
Hastings Moly 060 2M586-060 Piston Ring set Moly Top 5/64 5/64 3/16 AU $123.75
Nason 020 M1166-020 Piston Ring set M1166 Suits 6KRY4106 6KRY4107 Pistons AU $61.31
Nason 030 PS1166-030 Piston Ring set PS1166 Suits 6KRY4106 6KRY4107 Pistons AU $51.26
Nason 040 M1166-040 Piston Ring set M1166 Suits 6KRY4106 6KRY4107 Pistons AU $61.31
Rear Main Seals
Permaseal HN055 Crankshaft seal rear HN055 Rope type seal AU $66.85
Permaseal HN064 Crankshaft seal rear Moulded Rubber 2 Piece Seal AU $40.63
Permaseal NA993 Crankshaft seal front NA993 44.5x60.2x9.5mm AU $22.85
Sump Gasket Sets
Timing Chains
Valve Cover Gaskets
Valve Springs
12 x SBI 160-1154 Valve spring Standard Replacement - Boss AU $317.21
12 x SBI 160-1161 Valve spring Standard Replacement AU $150.36
SBI 160-1154 Valve spring Standard Replacement - Boss AU $36.98
SBI 160-1161 Valve spring Standard Replacement AU $23.07
Valve Stem Seals
Permaseal HR202 Valve stem seal set For 5.0L Engine only suits Bronco F100 F350 AU $40.50
Valves-Exhaust
Valves-Inlet
