Product Information

ACL Duraglide +010 Main bearing set fits Holden 202 3.3 Blue Black Commodore VC VH VK One Tonner HJ

Item Specifics
SKU: 7M2398-010
Price: $116.24
Returns: 30 Days
Ships From: Melbourne

Description

ACL Duraglide Main bearing set fits Holden 3.3L 202 3.3 Blue Black 6 Cyl OHV Commodore VC VH VK One Tonner HJ

ACL Duraglide Main bearing set
Over Size: 010

Notes

Main Bearing Set 7M2398
Brand ACL Duraglide
Manufacturer ACL
Main Bearing (c) 2398
Half Type Upper & lower
OE Part Number 1 2821741
Manufacturer ACL
Min Std Shaft Size 2.4978in / 63.444mm
Max Std Shaft Size 2.4988in / 63.47mm
Min Std Tunnel Size 2.6906in / 68.341mm
Max Std Tunnel Size 2.6916in / 68.367mm
Max Wall At Crown 0.0955in / 2.426mm
Max Overall Length 0.8071in / 20.5mm
Min Vertical Oil Clearance 0.0007in / 0.019mm
Max Vertical Oil Clearance 0.0038in / 0.097mm
Material F780
Main Bearing (c) 2399(F)
Half Type Upper & lower
OE Part Number 1 2823927
Manufacturer ACL
Min Std Shaft Size 2.4978in / 63.444mm
Max Std Shaft Size 2.4988in / 63.47mm
Min Std Tunnel Size 2.6906in / 68.341mm
Max Std Tunnel Size 2.6916in / 68.367mm
Max Wall At Crown 0.0955in / 2.426mm
Max Overall Length 1.0091in / 25.63mm
Min Vertical Oil Clearance 0.0007in / 0.019mm
Max Vertical Oil Clearance 0.0038in / 0.097mm
Material F780

Microbond Washers

Microbond washers are dry to the touch adhesives, bonded to a mesh substrate and cut into various sizes. The adhesive in each washer is activated when crushed or sheared under the pressure of the fastener during installation. Microbond washers lock and seal under the head of the fastener, and provide a wide range of benefits when compared to metal lock washers, or even neoprene. Please note this product is made to order and has a MINIMUM quantity of 30,000 pieces for a production run.

Variations for this Engine

These are the different Variations for the Holden 202 3.3 Blue Black OHV 3.3L 6 Cyl Engine. Please check carefully you have selected the right part for your vehicle.

King Engine Bearings (MB7704AM +001) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +010) Main Bearings 010 020
Includes .010¨ oversize thrust flange
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +010) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +020) Main Bearings 010 020
Includes .010¨ oversize thrust flange
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $78.40
King Engine Bearings (MB7704AM +020) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +030) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $144.95
King Engine Bearings (MB7704AM +040) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $144.95
King Engine Bearings (MB7704AM STD) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $144.95

Suitable For

Bedford
Cf 173 Red 2.8L OHV 6 Cyl
Holden
Commodore VB 202 Red 3.3L OHV 6 Cyl
Commodore VC 2.85 Blue 2.8L OHV 6 Cyl
Commodore VC 202 3.3 Blue Black 3.3L OHV 6 Cyl
Commodore VH 2.85 Blue 2.8L OHV 6 Cyl
Commodore VH 202 3.3 Blue Black 3.3L OHV 6 Cyl
Commodore VK 202 3.3 Blue Black 3.3L OHV 6 Cyl
Eh EH 149 Red 2.5L OHV 6 Cyl
Hd HD 149 Red 2.5L OHV 6 Cyl
Kingswood HJ 173 Red 2.8L OHV 6 Cyl
Kingswood HJ 202 Red 3.3L OHV 6 Cyl
Kingswood HK 173 Red 2.8L OHV 6 Cyl
Kingswood HQ 202 Red 3.3L OHV 6 Cyl
Kingswood HX 173 Red 2.8L OHV 6 Cyl
Kingswood HX 202 Red 3.3L OHV 6 Cyl
Kingswood HZ 173 Red 2.8L OHV 6 Cyl
Kingswood HZ 202 Red 3.3L OHV 6 Cyl
Monaro HQ 202 Red 3.3L OHV 6 Cyl
One Tonner HJ 173 Red 2.8L OHV 6 Cyl
One Tonner HJ 202 3.3 Blue Black 3.3L OHV 6 Cyl
One Tonner HQ 173 Red 2.8L OHV 6 Cyl
One Tonner HQ 202 Red 3.3L OHV 6 Cyl
One Tonner HX 202 Red 3.3L OHV 6 Cyl
One Tonner HZ 202 Red 3.3L OHV 6 Cyl
One Tonner WB 173 Red 2.8L OHV 6 Cyl
One Tonner WB 202 Red 3.3L OHV 6 Cyl
Torana LC 173 Red 2.8L OHV 6 Cyl
Torana LH 173 Red 2.8L OHV 6 Cyl
Torana LH 202 Red 3.3L OHV 6 Cyl
Torana LJ 173 Red 2.8L OHV 6 Cyl
Torana LJ 202 Red 3.3L OHV 6 Cyl
Torana LX 173 Red 2.8L OHV 6 Cyl
Torana LX 202 Red 3.3L OHV 6 Cyl
Torana UC 173 Red 2.8L OHV 6 Cyl
Torana UC 202 Red 3.3L OHV 6 Cyl

Overview

ACL supplies an extensive range of automotive engine bearings for niche applications and the aftermarket worldwide. Although ACL manufactures several different materials to suit various applications, tri-metal copper lead DuraglideTM F780 is considered to be the premium material and is used extensively in many aftermarket applications.

The material provides the widest range of load carrying capacities with excellent durability, making it ideal for connecting rod and main bearings in passenger cars using gas and diesel, and high performance engines.

ACL DuraglideTM F780 bearings are a tough solution for a tough problem. Engine re-builders are confronted by an increasingly diverse range of engines with a wide range of OEM bearing types. While these OEM bearing types and materials may be well suited to engines finished to the exacting specifications of modern engine manufacturers, they are often ill suited to used engines reconditioned and rebuilt in a flexible workshop.

The ACL F780 tri-metal material system at the heart of DuraglideTM 780 bearings has been designed for and proven in a wide range of engine applications, both OE and aftermarket. The complimentary layers ensure that superior strength is available from the steel and sintered copperlead-tin lining, accompanied by the excellent anti-seizure properties of the lead-tin-copper overlay. For the engine rebuilder this means confidence – the confidence provided by a tough bearing capable of great performance whether fitted in a garage or precision workshop.

ACL DuraglideTM F780 bearings are precision manufactured to a wall thickness tolerance of ±.00026″ giving the engine builder close control of vertical oil clearance. For performance engines the extra build quality provided by tight clearance control can make all the difference.

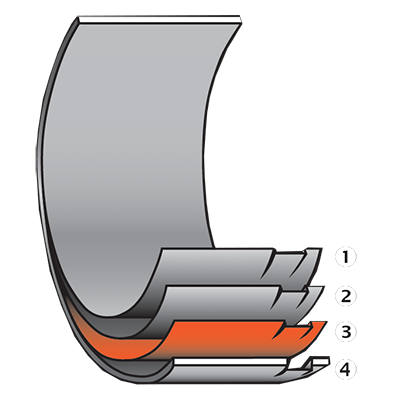

Bearing Construction
1 - Steel strip onto which is added powdered copper-lead-tin metal alloy. The strip is sintered and compressed to bond the alloy to the steel backing.

2 - ACL sintered copper-lead-tin alloys provide a tough structure capable both of resisting high compressive loads and providing excellent adaptability.

3 - A lead-tin-copper overlay is applied to copper-lead-tin bearings produced by ACL. It is necessary however, to include a nickel intermediate layer (barrier plate or dam) to preserve the optimum metallurgy of the overlay under all operating conditions. ACL’s superior quality construction and control in electroplating eliminate potential overlay flaking.

4 - The lead-tin-copper overlay used by ACL consists of approximately 90% lead, 9% tin and 1% copper. Overlay thicknesses are nominally .0005″ – .0007″ for most automotive applications. TM

DuraglideTM F780 – the only solution when quality counts.


Construction
F780
(Tri-Metal)
= Sintered copper lead, lead plated, steel backed.
NOMINAL COMPOSITION: 74% Copper, 24% Lead, 2% Tin

Layer

Alloy (Typical)

Thickness

Contribution

1. Overlay

Lead-Tin-Copper

.0005″- .0007″

Seizure resistance -
Low friction &
deformable

2. Barrier

Nickel

.00004″

Separation layer

3. Lining

Copper-Lead-Tin

.012″

Fatigue strength -
Strong yet deformable

4. Steel

SAE1010
(High Tensile)

Remaining

High Strength -
supports bearing lining


Bearing Type Characteristic DuraglideTM F780
Strength
Ability to assume prolonged, high fatigue loads.
Babbitt overlay (<20HV) is supported by a strong copper lead alloy (>50HV) in turn supported by the steel backing.
Strength is high as long as the overlay is thin (<.0008″).
Anti-Seizure Conformability
Ability to adapt to assembly and misalignment errors.
Very soft Babbitt overlay readily adapts. Copper lead alloy has
moderate conformability and helps to adapt where shape errors are significant.
Compatibility
Ability to accommodate shaft to bearing contact through thin oil films.
Crankshaft journal finish is the dominant factor. Contact with the
surface results in adaptation through wear of the Babbitt layer with no damage to the shaft.
Emergency Running
Ability to continue operation during
temporary oil film breakdown.
The lead in the Babbitt and copperlead alloy has natural lubricity and can function as a dry lubricant. The low melting point on the alloy also allows it to provide a temporary liquid lubricant.
Anti-Wear
Resistance to abrasion by shaft and dirt.
Babbitt alloys are prone to wear (see above), however the alloy composition is carefully controlled to optimise the strengthening effects of copper and minimising the wear potential.
Embeddability The soft Babbitt readily absorbs all kinds of dirt particles up to .0006″ without damage. Larger particles are adequately accommodated by the underlying layers.
Anti-Corrosion Tin content in both the lining and overlay alloys provides protection from chemical attack.
Applications DuraglideTM bearings provide a high combination of high strength and the ability to withstand harsh and demanding operating conditions. This makes them ideal for performance engines and rebuilds.

Other Parts for this Engine

These are the different parts available for the Holden 202 3.3 Blue Black OHV 3.3L 6 Cyl Engine

Camshaft Bearings
Camshafts
Dynotec (CM202D) Camshaft Standard AU $343.43
Engine Pro EPC13202 Camshaft Standard Replacement Blue/Black Carby Engine AU $260.32
Engine Pro EPC13204 Camshaft Standard Replacement Black EFI Engine AU $244.88
Engine Pro Stage 4 EPC13220 Camshaft Performance Stage 4 AU $246.90
Sealed Power (55-400) Prelube Camshaft assembly lube 4oz. AU $27.98
Sealed Power (55-403) Prelube Camshaft assembly lube 1-1/2oz. AU $16.36
Chassis and Driveline

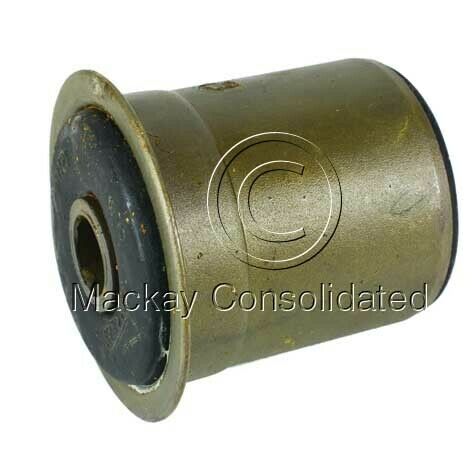

Mackay A1121 Control Arm Lower Inner Front/Rear Bush Control arm lower inner front/rear bush (4 required)
Suits HQ/HJ/HX/HZ/WB models
AU $26.69

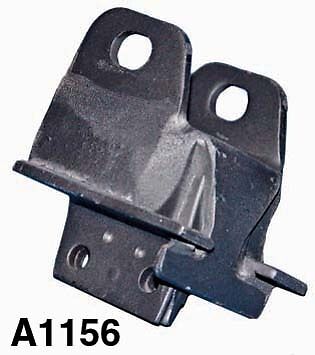

Mackay A1156 Engine Mount Bush Engine mount left hand and right hand side
(2 required)
Suits Commodore VC models with 4 speed manual and Trimatic automatic transmission
Suits Commodore VK models
AU $29.85
Mackay A2138 Strut Bar to Lower Control Arm Bush Strut bar to lower control arm bush AU $18.85
Mackay PP1999 Brake Pedal Pad Brake pedal pad
Suits Commodore VB-VZ, Statesman VR-VQ and Monaro VZ-V2
AU $16.28
Mackay PP2004 Clutch Pedal Pad Clutch pedal pad
Suits Commodore VB-VZ, Statesman VR-VQ and
Monaro VZ-V2
AU $15.83

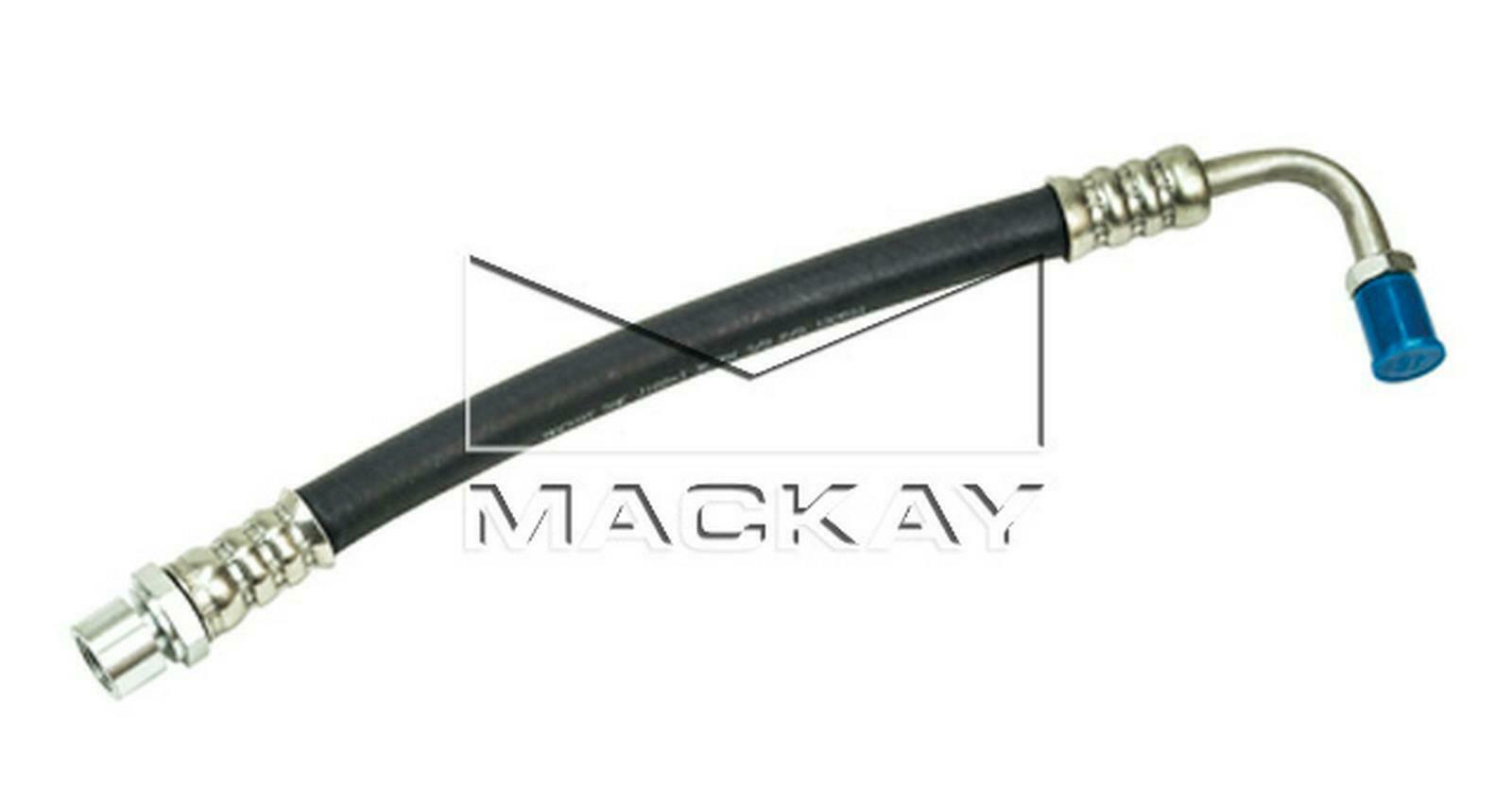

Mackay PSH1014 POWER STEERING HOSE Power steer hose AU $56.60
Cogged V-Belts
Endurotec (10A0925) Alternator V Belt 10A x 10mm x 925mm x 38º Aircondiotioner belt
10mm wide x 925mm length
AU $25.29
Endurotec (11A0875) Generator V Belt 11A x 11mm x 875mm x 38º Airconditioner
Suits VH models
Airconditioner with Sankyo Compressor
Suits VC models
AU $26.90
Endurotec (11A0890) Power Steering V Belt 11A x 11mm x 890mm x 38º Fan and air pump
Suits VK models
AU $27.32
Endurotec (11A0900) Alternator and Generator V Belt 11A x 11mm x 900mm x 38º Alternator without airconditioner
Suits VC and VH models
AU $25.71
Endurotec (11A0925) Alternator (Suits V-Belt models only) V Belt 11A x 11mm x 925mm x 38º Airconditioner with Delco compressor
Suits VC models
AU $27.91
Endurotec (11A1030) Airconditioner V Belt 11A x 11mm x 1030mm x 38º Alternator and airconditioner with Sankyo compressor
Suits VC and VH models
AU $27.91
Endurotec (11A1055) Fan and Generator V Belt 11A x 11mm x 1055mm x 38º Alternator and airconditioner with Delco
compressor
Suits VC models
AU $28.42
Endurotec (11A1105) Air pump V Belt 11A x 11mm x 1105mm x 38º Power Steering
Suits VC and VH models
AU $29.01
Conrod Bearings
King Engine Bearings (CR6649AM +001) Conrod Bearings STD 001 010 020 030 040
Shaft 1.8990¨/1.9000¨ 48.235/48.260mm
Tunnel 2.0247/2.0252¨ 51.427/51.440mm
AU $83.97
King Engine Bearings (CR6649AM +010) Conrod Bearings STD 001 010 020 030 040
Shaft 1.8990¨/1.9000¨ 48.235/48.260mm
Tunnel 2.0247/2.0252¨ 51.427/51.440mm
AU $84.58
King Engine Bearings (CR6649AM +020) Conrod Bearings STD 001 010 020 030 040
Shaft 1.8990¨/1.9000¨ 48.235/48.260mm
Tunnel 2.0247/2.0252¨ 51.427/51.440mm
AU $83.97
King Engine Bearings (CR6649AM +030) Conrod Bearings STD 001 010 020 030 040
Shaft 1.8990¨/1.9000¨ 48.235/48.260mm
Tunnel 2.0247/2.0252¨ 51.427/51.440mm
AU $83.97
King Engine Bearings (CR6649AM +040) Conrod Bearings STD 001 010 020 030 040
Shaft 1.8990¨/1.9000¨ 48.235/48.260mm
Tunnel 2.0247/2.0252¨ 51.427/51.440mm
AU $83.97
King Engine Bearings (CR6649AM STD) Conrod Bearings STD 001 010 020 030 040
Shaft 1.8990¨/1.9000¨ 48.235/48.260mm
Tunnel 2.0247/2.0252¨ 51.427/51.440mm
AU $84.58
Conversion Gasket Sets
Permaseal EF220 Conversion gasket set Suits 2.85L Blue & 3.3L Blue Black Motor AU $109.95
Cooling

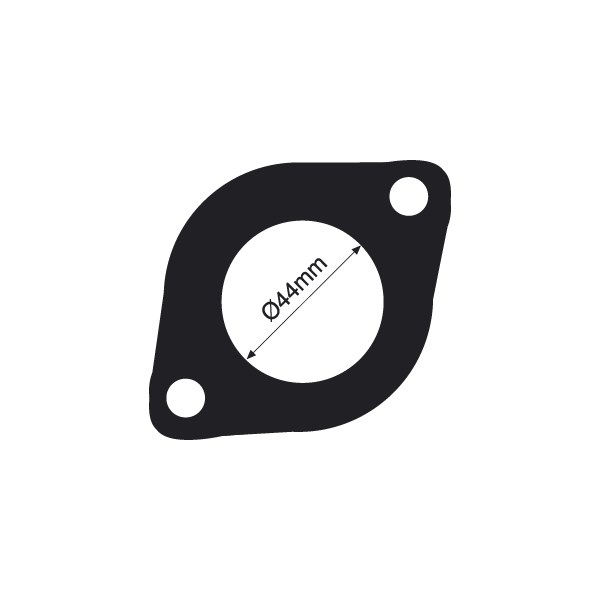

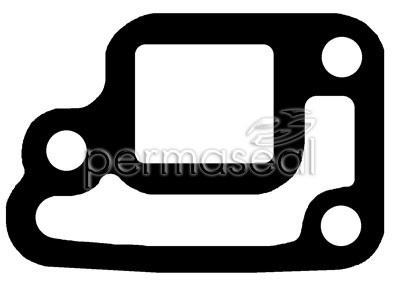

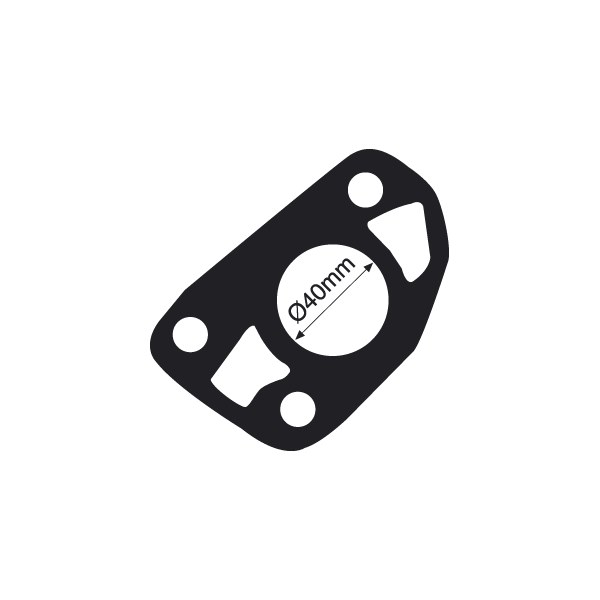

Tridon Thermostat Gasket Paper Style Gasket. Self Adhesive Back. - TTG5 Thermostat gasket
Check illustration for correct application
AU $12.93

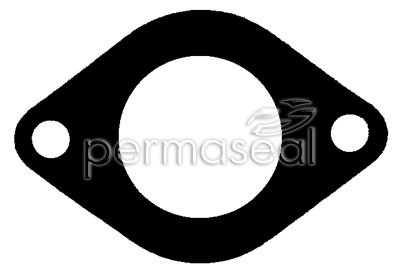

Tridon Thermostat Gasket Paper Style Gasket. Self Adhesive Back. - TTG7 Thermostat gasket
Check illustration for correct application
AU $12.93
Exhaust

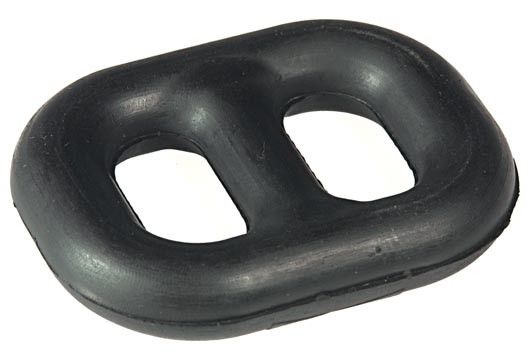

Mackay EXM1248 Exhaust Mount Rear Exhaust mount
Suits various
AU $12.84
Exhaust Gaskets

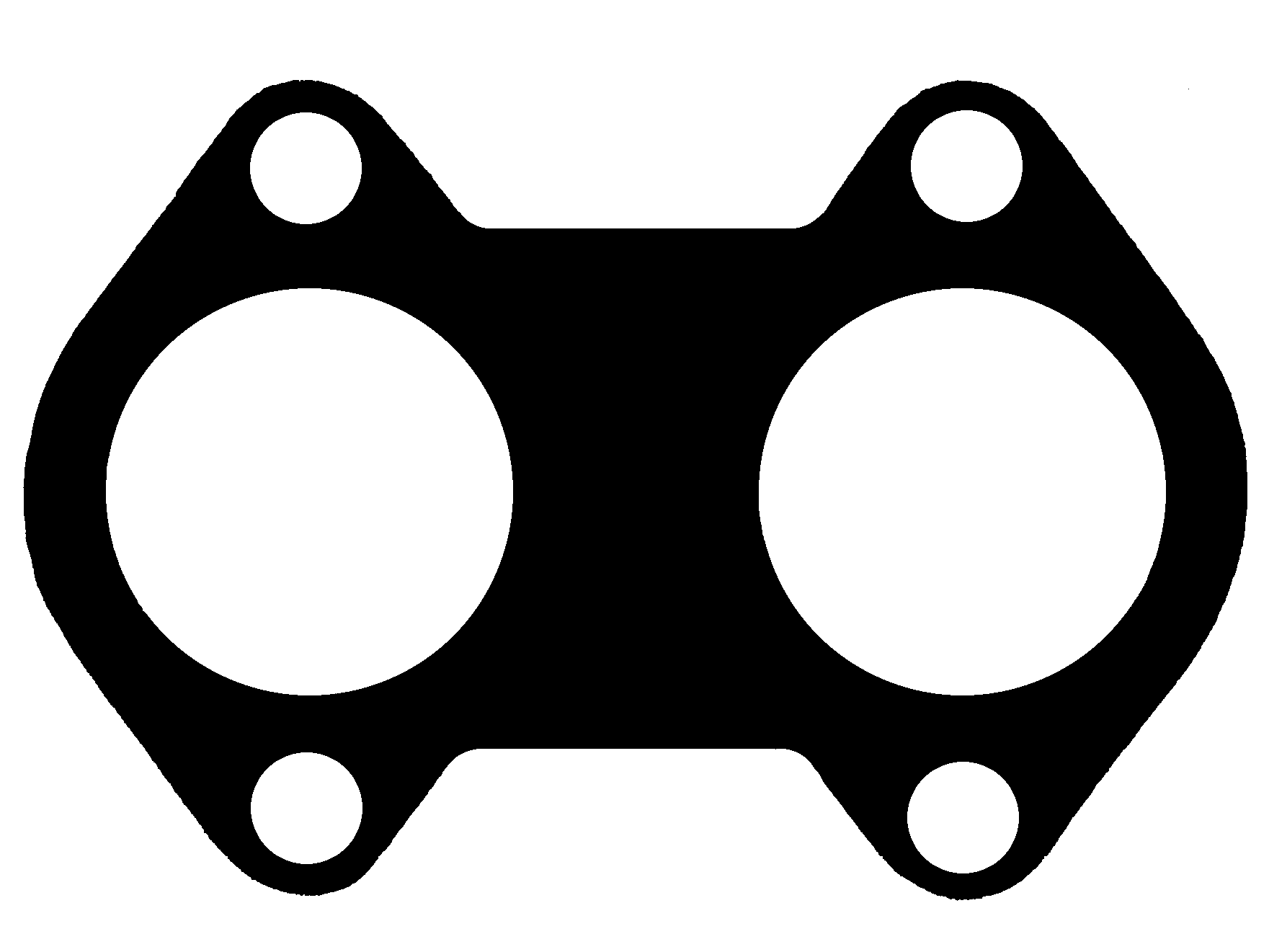

Durapro (GSJE762D) Exhaust Flange Gasket Exhaust flange AU $18.44

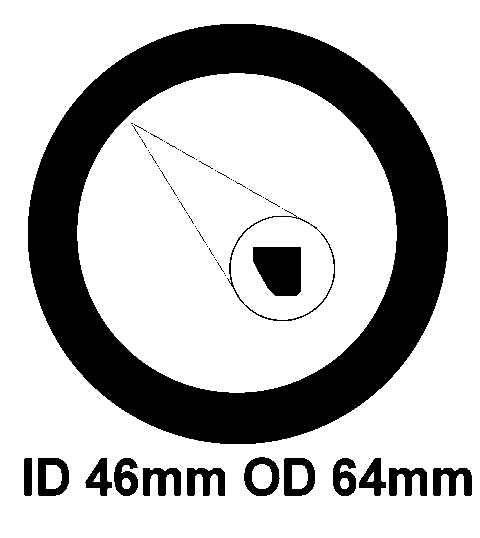

Durapro (GSJE914D) Exhaust Flange Gasket Exhaust collar AU $23.61

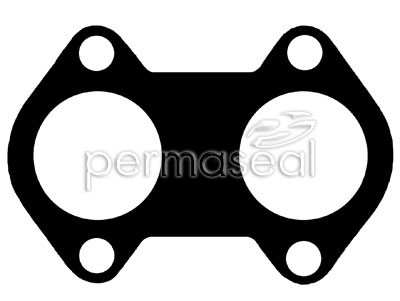

Permaseal JE762 Exhaust flange JE762 Exhaust flange gasket AU $15.92
Permaseal JE914 Exhaust flange JE914 Exhaust collar Not included in sets AU $19.85

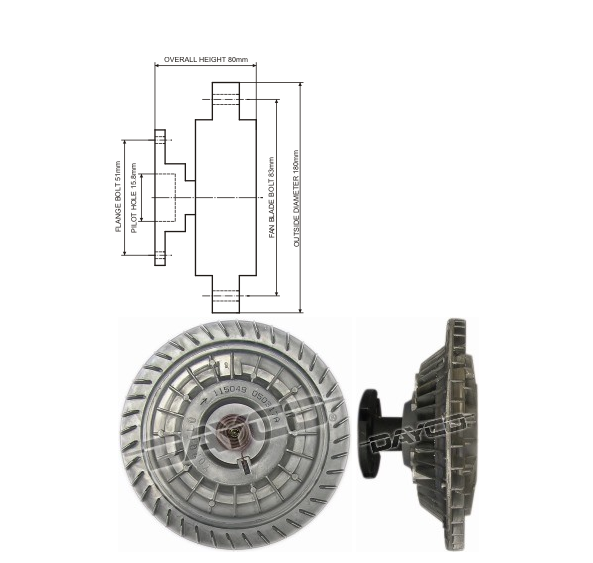

Fan Clutches
Filters

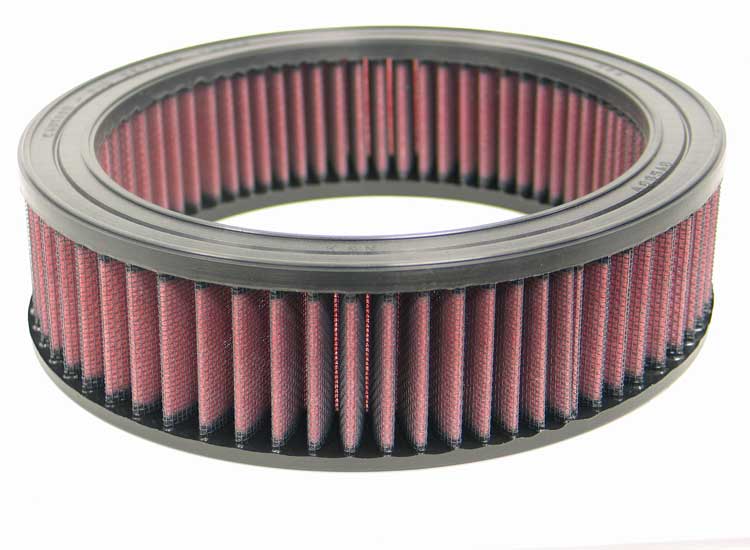

K&N E-3492 Air Filter Air filter (reusable)
Suits VC/VH/VK (carby models)
Does not suit VK EFI engine
AU $116.86

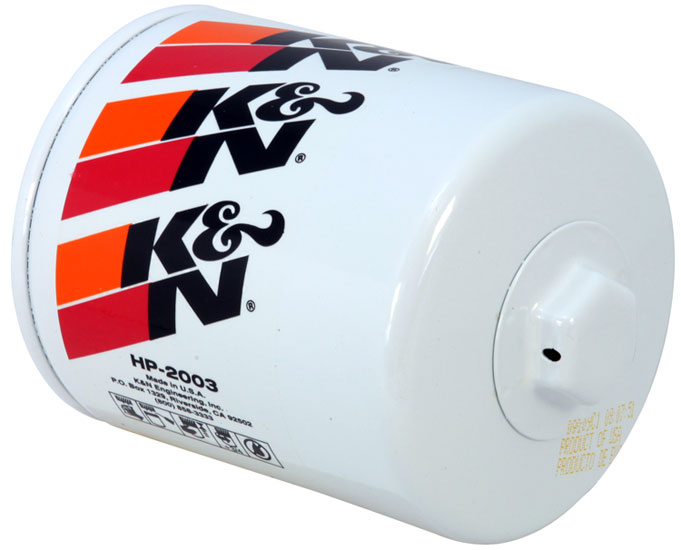

K&N HP-2003 Oil Filter Performance oil filter
96mm OD X 119mm height
AU $36.04

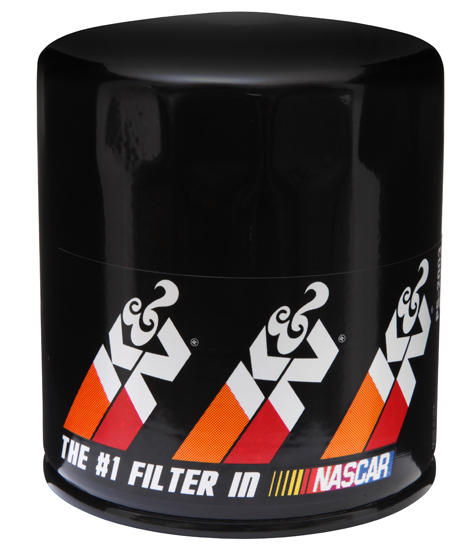

K&N PS-2003 Oil Filter Oil filter
96mm OD X 119mm height
AU $32.91

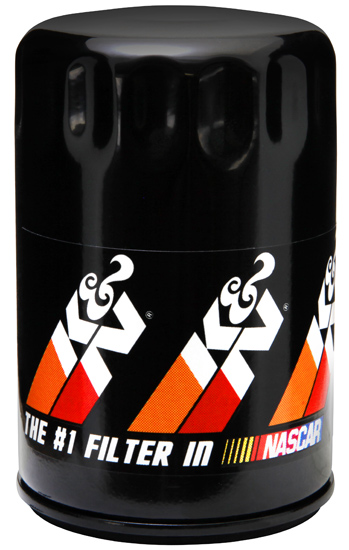

K&N PS-2006 Oil Filter Oil filter (Narrow)
76mm OD X 121mm height
AU $23.91
Full Gasket Sets
Harmonic Balancers
Powerbond (PB9752SS) Harmonic Balancer Steel, race performance AU $282.07
Powerbond (PB9752ST) Harmonic Balancer Steel, street performance AU $251.31

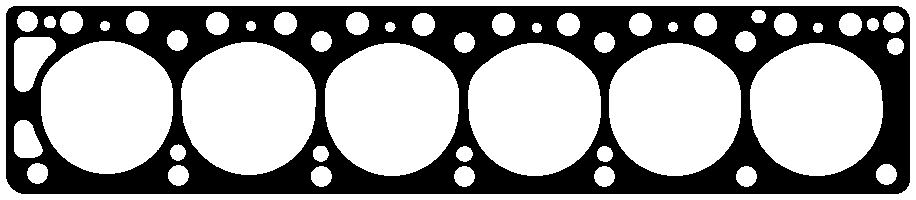

Head Gaskets
Durapro (GSBH110S15D) Head Shim Head shim (1.5mm thick) AU $89.44

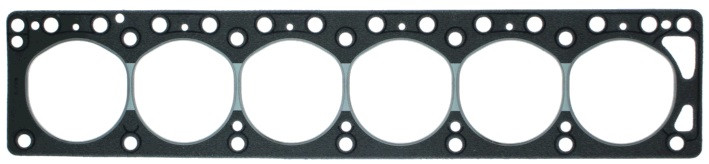

Permaseal BH110R Head gasket Nominal compressed thickness 1.20mm AU $66.76
Hose and Fittings

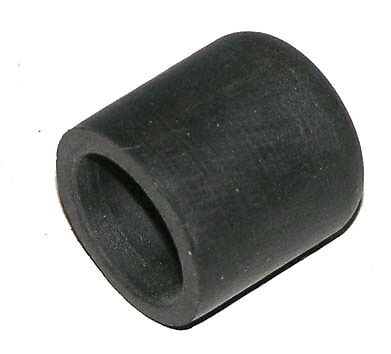

Mackay BC19 Universal Blanking Cap 19 mm Water pump cap (19mm 3/4¨) AU $13.87
Mackay CH1129 Connecting Pipe (Heater Hose) Bypass hose (with Delco compressor)
Suits Commodore VC models
AU $20.45
Mackay CH1170 Connecting Pipe (Heater Hose) Bypass hose (with Sankyo compressor)
Suits Commodore VC models
AU $20.45

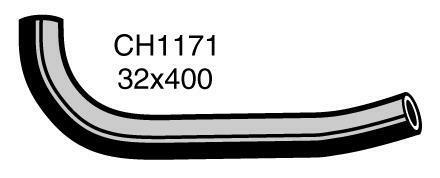

Mackay CH1171 Radiator Hose (Top) Top hose (without airconditioner)
Suits Commodore VC and VH models
AU $21.00

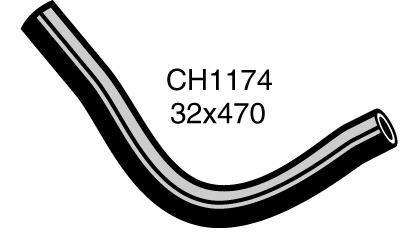

Mackay CH1174 Radiator Hose (Top) Top hose (with airconditioner)
Suits Commodore VC models
AU $24.30

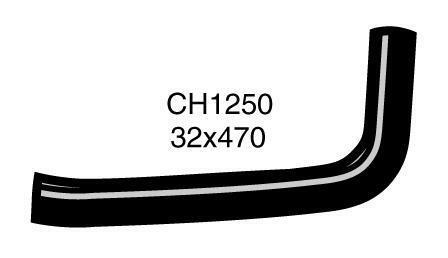

Mackay CH1250 Radiator Hose (Top) Radiator hose (top)
Suits WB models without airconditioner 4/80-85
AU $22.67

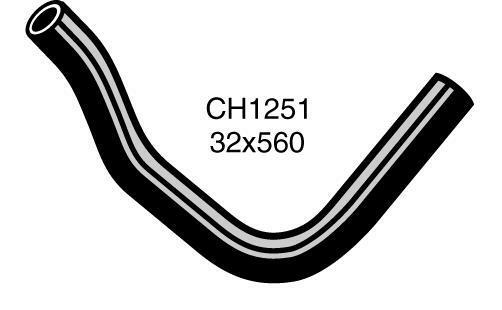

Mackay CH1251 Radiator Hose (Top) Radiator hose (top)
Suits WB models 4/80-85
AU $23.63

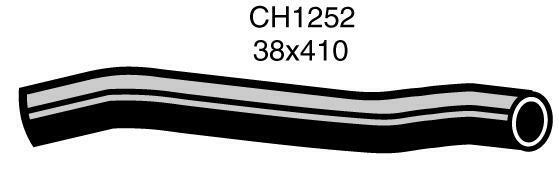

Mackay CH1252 Radiator Hose (Bottom) Radiator hose (bottom)
Suits WB 4/80-85
AU $24.06

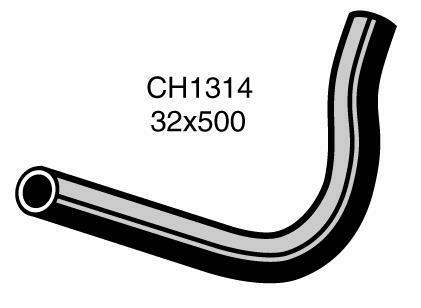

Mackay CH1314 Radiator Hose (Top) Top hose
Suits Commodore VK models
AU $22.95

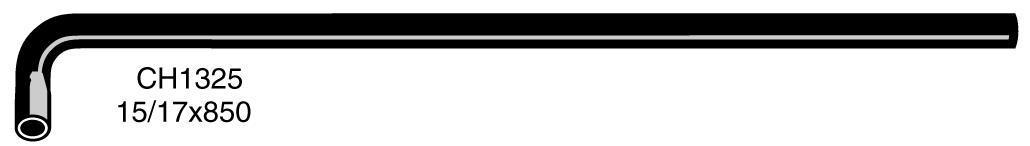

Mackay CH1325 Connecting Pipe (Heater Hose) Hose (thermostat to heater) AU $20.45

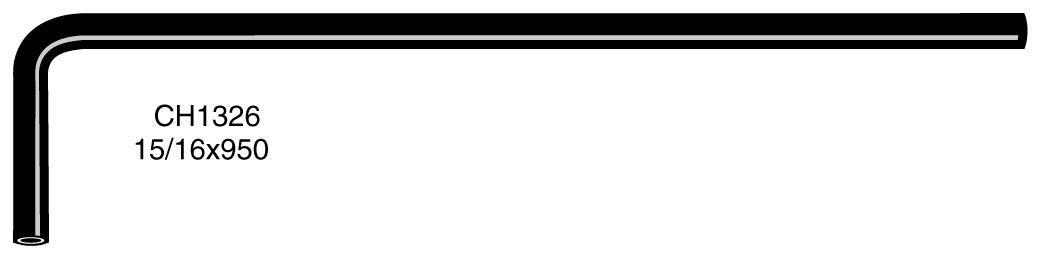

Mackay CH1326 Connecting Pipe (Heater Hose) Heater to water pump (with Sankyo compressor) AU $20.77
Lifters
12 x Delphi RHT969-USA Lifter Hydraulic Valve Lifter AU $222.70
12 x Nason AT992 Lifter Solid Mechanical Lifter Flat Tappet AU $222.70
12 x Nason RHT969R Lifter Anti Pump Up Lifter AU $381.10
Delphi RHT969-USA Lifter Hydraulic Valve Lifter AU $22.94
Nason AT992 Lifter Solid Mechanical Lifter Flat Tappet AU $29.10
Nason RHT969R Lifter Anti Pump Up Lifter AU $42.30
Main Bearings
King Engine Bearings (MB7704AM +001) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +010) Main Bearings 010 020
Includes .010¨ oversize thrust flange
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +010) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +020) Main Bearings 010 020
Includes .010¨ oversize thrust flange
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $78.40
King Engine Bearings (MB7704AM +020) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $165.83
King Engine Bearings (MB7704AM +030) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $144.95
King Engine Bearings (MB7704AM +040) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $144.95
King Engine Bearings (MB7704AM STD) Main Bearings STD 001 010 020 030 040
Shaft 2.4978¨/2.4988¨ 63.444/63.470mm
Tunnel 2.6906/2.6916¨ 68.341/68.367mm
AU $144.95

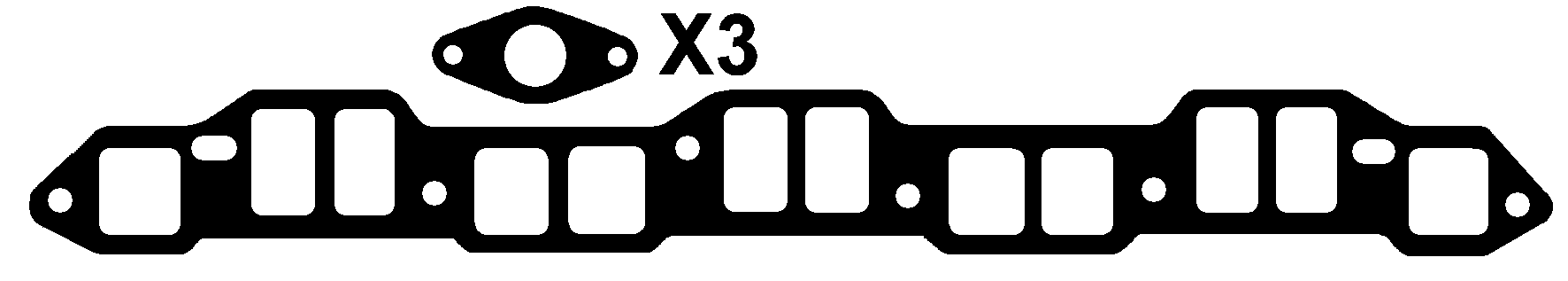

Manifold Gaskets
Misc Gaskets
Permaseal HJ130 Gear box gasket set Suit Australian 3 & 4 Speed AU $37.91

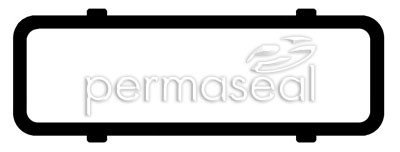

Permaseal KT695 Side plate gasket KT695 Side plate gasket AU $19.70
Permaseal KV968 Thermostat housing gasket Thermostat Hsg KV968 Suits VC & VH AU $15.22

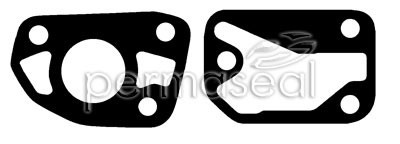

Permaseal LT962 Thermostat housing gasket LT962 Suits VK contains both thermostat & water outlet gasket AU $17.22
Miscellaneous
Engine Pro 04-1000-24 Valve collet 11/32" Stem, 7 Deg - Stamped Steel AU $48.13
Engine Pro 04-1001-24 Valve collet 11/32" Stem, 7 Deg - Chrome Moly AU $93.76
Oil Pumps

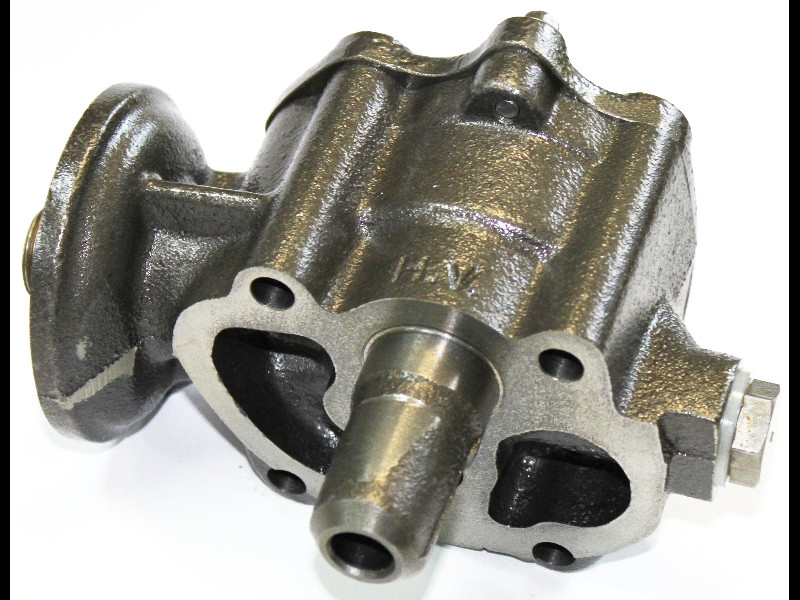

JP High Volume JP9456 Oil pump High Volume AU $235.52

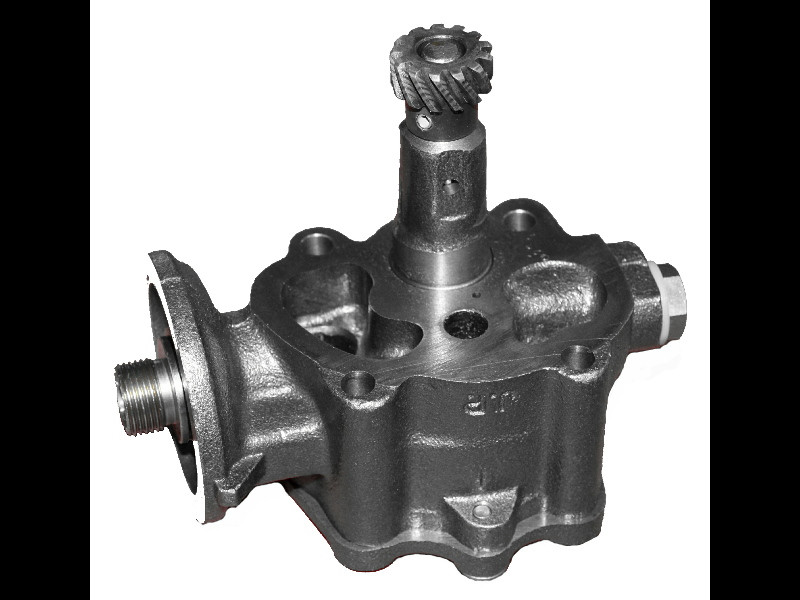

JP JP9451 Oil pump Standard Volume AU $221.51
Piston Cylinder Sleeves
Piston Rings Cast
Hastings (586) STD Piston Rings Cast 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $77.12
Hastings (586020) +020 Piston Rings Cast 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $77.12
Hastings (586030) +030 Piston Rings Cast 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $77.12
Hastings (586040) +040 Piston Rings Cast 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $112.46
Hastings (653) STD Piston Rings Cast STD 020 030 040 060 080
5/64¨/5/64¨/3/16¨
AU $79.80
Hastings (653020) +020 Piston Rings Cast STD 020 030 040 060 080
5/64¨/5/64¨/3/16¨
AU $79.80
Hastings (653030) +030 Piston Rings Cast STD 020 030 040 060 080
5/64¨/5/64¨/3/16¨
AU $79.80
Hastings (653040) +040 Piston Rings Cast STD 020 030 040 060 080
5/64¨/5/64¨/3/16¨
AU $79.80
Hastings (653060) +060 Piston Rings Cast STD 020 030 040 060 080
5/64¨/5/64¨/3/16¨
AU $79.80
Hastings Cast 030 653-030 Piston Ring set Cast Top 5/64 5/64 3/16 AU $79.90
Hastings Cast 040 653-040 Piston Ring set Cast Top 5/64 5/64 3/16 AU $84.10
Hastings Cast 060 653-060 Piston Ring set Cast Top 5/64 5/64 3/16 AU $84.10
Hastings Cast STD 653-STD Piston Ring set Cast Top 5/64 5/64 3/16 AU $79.90
Hastings Moly 030 2M5878-030 Piston Ring set Moly Top 1.50 1.50 4.00 AU $137.80
Hastings Moly 030 2M653-030 Piston Ring set Moly Top 5/64 5/64 3/16 AU $95.91
Hastings Moly 035 2M4949-035 Piston Ring set Moly Top 1/16 1/16 3/16 AU $202.90
Hastings Moly 040 2M653-040 Piston Ring set Moly Top 5/64 5/64 3/16 AU $95.91
Hastings Moly 045 2M4949-045 Piston Ring set Moly Top 1/16 1/16 3/16 AU $199.14
Hastings Moly 060 2M653-060 Piston Ring set Moly Top 5/64 5/64 3/16 AU $95.91
Hastings Moly 065 2M4949-065 Piston Ring set Moly Top 1/16 1/16 3/16 AU $199.14
Hastings Moly STD 2M653-STD Piston Ring set Moly Top 5/64 5/64 3/16 AU $95.91
Piston Rings Chrome
Hastings (2C653) STD Piston Rings Chrome STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $127.22
Hastings (2C653020) +020 Piston Rings Chrome STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $189.52
Hastings (2C653030) +030 Piston Rings Chrome STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $189.52
Hastings (2C653040) +040 Piston Rings Chrome STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $189.52
Hastings (2C653060) +060 Piston Rings Chrome STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $189.52
Piston Rings Moly
Hastings (2M4949045) +045 Piston Rings Moly 035 045 065
1/16¨/1/16¨/3/16¨
AU $212.74
Hastings (2M4949065) +065 Piston Rings Moly 035 045 065
1/16¨/1/16¨/3/16¨
AU $212.74
Hastings (2M586) STD Piston Rings Moly 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $123.65
Hastings (2M586020) +020 Piston Rings Moly 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $123.75
Hastings (2M586030) +030 Piston Rings Moly 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $123.65
Hastings (2M586040) +040 Piston Rings Moly 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $123.75
Hastings (2M586060) +060 Piston Rings Moly 030 (File back rings for 080 pistons)
5/64¨/5/64¨/3/16¨
AU $123.75
Hastings (2M653) STD Piston Rings Moly STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $96.36
Hastings (2M653030) +030 Piston Rings Moly STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $96.36
Hastings (2M653040) +040 Piston Rings Moly STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $96.36
Hastings (2M653060) +060 Piston Rings Moly STD 020 030 040 060
5/64¨/5/64¨/3/16¨
AU $96.36
Pistons
Hypatec (PHO20260001H) STD Pistons Set Of 6 STD 020 030 040 060 080 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec dish top 6.4cc
Compression height 1.658¨ -0.063¨
AU $325.56
Hypatec (PHO20260201H) +020 Pistons Set Of 6 STD 020 030 040 060 080 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec dish top 6.4cc
Compression height 1.658¨ -0.063¨
AU $494.66
Hypatec (PHO20260202H) +020 Pistons Set Of 6 STD 020 030 040 060 080 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec dish top
Compression height 1.658¨ -0.120¨
AU $325.56
Hypatec (PHO20260402H) +040 Pistons Set Of 6 STD 020 030 040 060 080 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec dish top
Compression height 1.658¨ -0.120¨
AU $325.56
Hypatec (PHO20260601H) +060 Pistons Set Of 6 STD 020 030 040 060 080 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec dish top 6.4cc
Compression height 1.658¨ -0.063¨
AU $330.06
Hypatec (PHO202FT60001H) STD Pistons Set Of 6 STD 020 030 040 060 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec flat top
Compression height 1.658¨
AU $494.66
Hypatec (PHO202FT60401H) +040 Pistons Set Of 6 STD 020 030 040 060 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec flat top
Compression height 1.658¨
AU $494.66
Hypatec (PHO202FT60601H) +060 Pistons Set Of 6 STD 020 030 040 060 (set of 6) Rings not included
Use RS1256 piston rings
Hypatec flat top
Compression height 1.658¨
AU $325.56
Hypatec (PHO202R60301H) +030 Pistons Set Of 6 030 040 060 (set of 6) Rings not included
Use RS3625 piston rings
Hypatec HQ racing flat top
Compression height 1.71¨
AU $368.53
Hypatec (PHO202R60401H) +040 Pistons Set Of 6 030 040 060 (set of 6) Rings not included
Use RS3625 piston rings
Hypatec HQ racing flat top
Compression height 1.71¨
AU $367.68
Rear Main Seals
Permaseal HN022 Crankshaft seal rear Rope Type Seal AU $49.19
Permaseal NA417 Crankshaft seal front Timing Case Oil Seal AU $19.85
Sump Gasket Sets

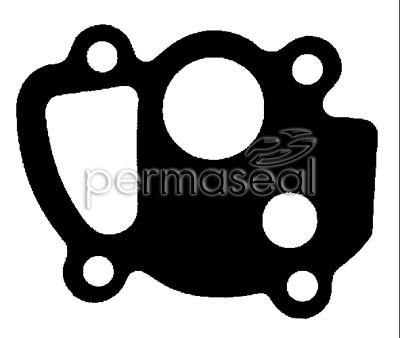

Permaseal KT696 Oil pump gasket Oil Pump To Block AU $15.22
Permaseal KT697 Oil pump gasket Oil Pump To Cover AU $15.22
Timing Cover Seals
Durapro (GSNA417D) Crankshaft Seal Front ID 45mm x OD 61.5mm x depth 9.3mm AU $23.61
Timing Gasket Sets
Valve Cover Gaskets
Valve Guides
JCMC (VGHO-08-Z) Valve Guide Cast iron
OD 0.502¨ x ID 0.343¨ x depth 2.125¨
AU $20.20
Valve Regrind Gasket Set (VRS)
Valve Spring Retainers
Engine Pro 03-1000-12 Valve spring retainer Spring O.D. 1.250" AU $61.04
Engine Pro 03-1001-12 Valve spring retainer Spring O.D. 1.250" AU $68.70
Valve Stem Seals
Valves-Exhaust
6 x Nason EX7511 Exhaust Valve 1.48" Head AU $202.64
6 x Nason EX8511 Exhaust Valve 1.547" Head AU $204.75
EVL (BM 33717 TUF) Exhaust Valve Head 1.41¨ x length 4.469¨ x stem 0.344¨ AU $44.14
EVL (BM 33719 TUF) Exhaust Valve Head 1.41¨ x length 4.469¨ x stem 0.349¨ AU $21.65
EVL (TF 36896 TUF) Exhaust Valve Head 1.549¨ x length 4.48¨ x stem 0.349¨ AU $44.14
EVL (TF 36905 TUF) Exhaust Valve Head 1.479¨ x length 4.48¨ x stem 0.344¨ AU $41.89
EVL (TF 36906 TUF) Exhaust Valve Head 1.479¨ x length 4.48¨ x stem 0.349¨ AU $43.81
EVL (TF 36925 TUF) Exhaust Valve Head 1.549¨ x length 4.48¨ x stem 0.344¨ AU $21.14
JCMC (EVHO-04-E) Exhaust Valve Head 1.41¨ x length 4.469¨ x stem 0.344¨ AU $37.50
JCMC (EVHO-14-E) Exhaust Valve Head 1.479¨ x length 4.48¨ x stem 0.344¨ AU $39.86
JCMC (EVHO-19-E) Exhaust Valve Head 1.549¨ x length 4.48¨ x stem 0.344¨ AU $41.97
JCMC (EVHO-30-E +0.13) Exhaust Valve Head 1.41¨ x length 4.469¨ x stem 0.349¨ AU $50.51
Nason EX7511 Exhaust Valve 1.48" Head AU $43.36
Nason EX8511 Exhaust Valve 1.547" Head AU $43.71
Valves-Inlet
6 x Nason IN2910+005 Inlet Valve OVERSIZE STEM 0.005" AU $100.86
6 x Nason IN7910 Inlet Valve 1.675" Head AU $182.84
6 x Nason IN8910 Inlet Valve 1.740" Head AU $168.71
EVL (SC 36871 TUF) Inlet/Intake Valve Head 1.624¨ x length 4.469¨ x stem 0.349¨ AU $28.70
EVL (SC 36871 TUF) Inlet/Intake Valve Head 1.624¨ x length 4.469¨ x stem 0.349¨ AU $19.21
EVL (SC 36900 TUF) Inlet/Intake Valve Head 1.68¨ x length 4.48¨ x stem 0.344¨ AU $37.15
JCMC (EVHO-20-I) Inlet/Intake Valve Head 1.74¨ x length 4.48¨ x stem 0.344¨ AU $37.79
JCMC (EVHO-23-I) Inlet/Intake Valve Head 1.68¨ x length 4.48¨ x stem 0.344¨ AU $37.09
JCMC (EVHO-26-I) Inlet/Intake Valve Head 1.624¨ x length 4.469¨ x stem 0.344¨ AU $37.80
Nason IN2910+005 Inlet Valve OVERSIZE STEM 0.005" AU $26.39
Nason IN7910 Inlet Valve 1.675" Head AU $40.06
Nason IN8910 Inlet Valve 1.740" Head AU $37.60
Water Pumps
GMB (GWHD-01A) Water Pump Long shaft (suits VC models only) AU $32.30
GMB (GWHD-03A) Water Pump Large hub (suits VC models only) 2.620¨ AU $32.30
GMB (GWHD-06A) Water Pump Suits VH & VK models only AU $44.00
GMB (GWHD-06A) Water Pump Suits VH & VK models only AU $44.00

Web Store Pty Ltd is a Melbourne based warehouse with thousands of the latest products at great prices. We hand select our range of Australian designed products from only the best local suppliers. We pride ourselves on our customer service and our friendly team are available to assist you through the buying process. When comparing prices know we only sell great quality items and our manufacturing passes strict quality checks before posting.

To ensure a smooth transaction, please follow the payment instructions laid out in the eBay system. If you are new to eBay and unsure how to purchase, please don't hesitate to get in contact with us as our Customer Service team will be happy to assist.

The simplest way to facilitate payment is via Mastercard, Visa, or Paypal via the Checkout process.

Please contact us if yous wish to pay via direct deposit and then we can supply our Account and BSB details.

If paying by bank deposit, please ensure you have your reference of your payment with your eBay user ID so we can identify the payment as yours. Failure to correctly reference your payment will cause a delay in our system which will ultimately delay the shipment of your order.
We check our bank accounts daily so as soon as your payment has cleared, we will start processing your order.

Our stock levels can change at any time. An order is only complete once payment has cleared. To prevent missing out, it's best to pay as soon as possible. Once a payment has cleared, 90% of products are dispatched within 1 business day, however please see our shipping page for estimated shipping times by state. Wedding Wish is not liable for any unidentified payments or delays of delivery due to failure to follow instructions during checkout.

For all payments outside of eBay, please ensure you send us the reference you used, the day and time you paid, and the amount deposited.

As always, if you have any questions, please get in contact with our Customer Service team who are more than happy to help.

We are happy to combine shipping on any orders. Individual listings with combined shipping will automatically calculate on checkout. When buying from multiple listings, please message us prior to purchase to confirm postage rates, be sure to include your postcode for accurate quoting and the items you are after. Express post is available on request for most orders, please note handing times will usually still apply.

Pre-arranged pickup is available from our warehouse in Dingley Village, Victoria. Please note that a handling time will still apply. Please call ahead or email us to ensure item is available for pickup.

POSTAGE & DISPATCH

After payment is cleared 90% of all items are dispatched within two business days, however please see below for estimated delivery times by state. Your item will be sent via courier or Australia Post depending on its size and weight.

Where goods are sent through Australia Post, the buyer may receive a knock on the door or a card in their letterbox indicating their item is available for pickup from their local post office.

A re-delivery fee will be charged to buyers for items that are undeliverable and/or returned due to incorrect delivery address or unsuccessful delivery.

Buyers have the full responsibility to provide us with the correct delivery address and mobile phone number on the checkout page before payment. Any changes to address after checkout will not be considered as valid.

Our staff work tirelessly to ensure customer satisfaction however we understand that on occasion issues do arise. If you have a problem with your purchase please contact us PRIOR to leaving feedback and we will do our best to rectify the situation.

Claims entered directly via this method will be given priority.

The fastest and best way to contact us is through the eBay messaging system. If you contact us out of eBay we may not see your message and our support team will be much slower in dealing with your issue. Thank you for your business!

Copyright (C) 2018 Web Store Pty Ltd. All Rights Reserved
