USR-G806 Industrial 3G 4G Router 802.11b/g/n SIM Card Slot with APN VPN
USR-G806 Industrial 3G 4G Routers Support 802.11b/g/n and SIM Card Slot with APN VPN
Introduction

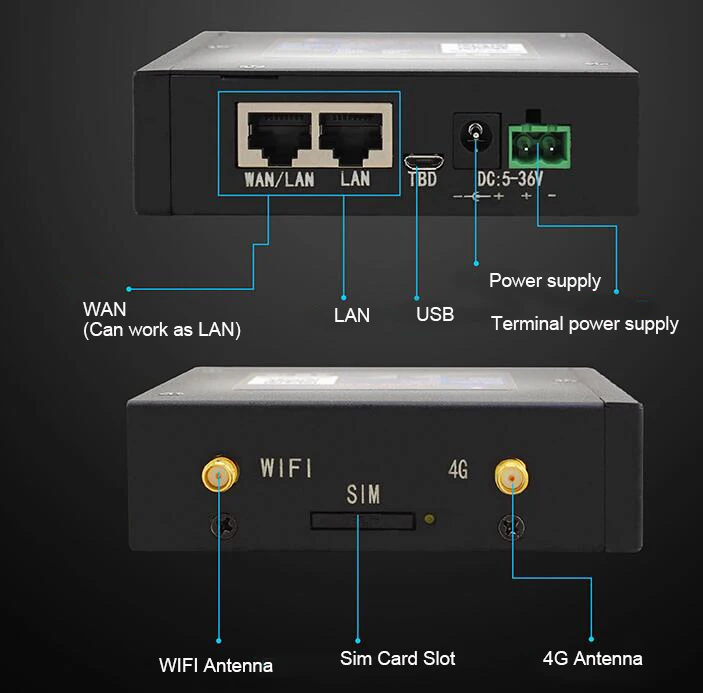

G806 is Industrial Wireless 4G Router which supports FDD-LTE /TDD-LTE /WCDMA /HSPA/GPRS/GSM Network. It has one Sim card slot and one WAN, LAN and USB interface. It is widely used in public bus and Vending machine for data transmission at high speed.
Function
- WIFI 802.11b/g/n protocol, the max wireless transmission distance is 180m
- Built- in webpage parameter configuration
- Support APN and VPN (support PPTP, L2TP)
- Port mapping/ forwarding
- Restore factory setting and reload button
- Reverse connection projection, ESD anti-surge, anti-static, Surge protection
- software and hard ware watchdog
- QOS flow control management
- Static Router configuration and firewall
- Traffic service can limit the speed depends on interface, limit IP and MAC speed
| Operation Band | ||||||
| Network Type | G806 (Asia ) | G806-E (Europe ) | G806-AU ( Australia ) | G806-A ( USA ) | G806-V ( USA ) | |
| 4G | FDD-LTE | 1/3 | 1/3/5/7/8/20 | 1/2/3/4/5/6/7/8/28 | 2/4/12 | 4/13 |
| TDD-LTE | 38/39/40/41 | 38/39/40/41 | 40 | |||
| 3G | WCDMA/HSPA/UMTS | 1/8 | 1/8 | 1/2/5/8 | 2/4/5 | |
| 2G | GPRS/GSM/EDGE | 3/8 | 3/8 | 2/3/5/8 | ||
Note: G808-A Support AT&T SIM Card; G808-V Support Verizon SIM Card


Application
• Self service terminal equipment (Vending machine, Advertising machine, Lottery machine, Intelligent Express, ATM remote control)
• City public transportation and Industrial automation
