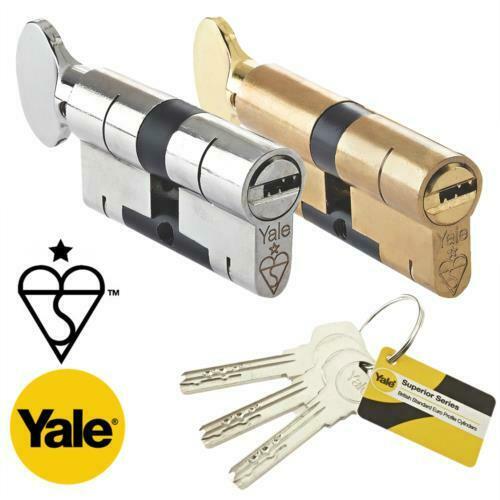

YALE Superior Thumb Turn Cylinder Lock Anti Snap Bump High uPVC Door Euro Barrel

There is no other great reason to either to replace your existing lock with the Yale 1* Superior cylinder. This lock is designed to fit all standard European Profile Cylinder locks. The Yale Superior cylinder offers a superior resistance against all current known attack methods such as cylinder snapping, drilling, bumping and picking.

Features:

• Unique high precision 12 telescopic pin tumbler system
• Anti-snap: Break point allows interior key to work even if external snap damage occurs
• Anti-bump: features 'V pins' on both ends to resist bumping
• Anti-pick: four special anti pick pins on each end resist picking.
• Anti-drill: protected against drilling by anti drill pins and balls on both ends.
• Secure-By-Design approved TS007 1* Kite marked security euro cylinder
• Over 100,000 combinations for ultimate key security
• EN1303:2005 - Grade 2 attack pass - the highest category.
• Kite-Marked approved with BS EN1303:2005 accreditation.
• 3 security keys supplied with key card per single cylinder.

What's in the Bag?

• 1 x Yale Superior Series Euro Profile Cylinder Lock.
• 1 x Key Card.
• 3 x Laser Cut Dimple Keys.
• 1 x Fixing Screw.

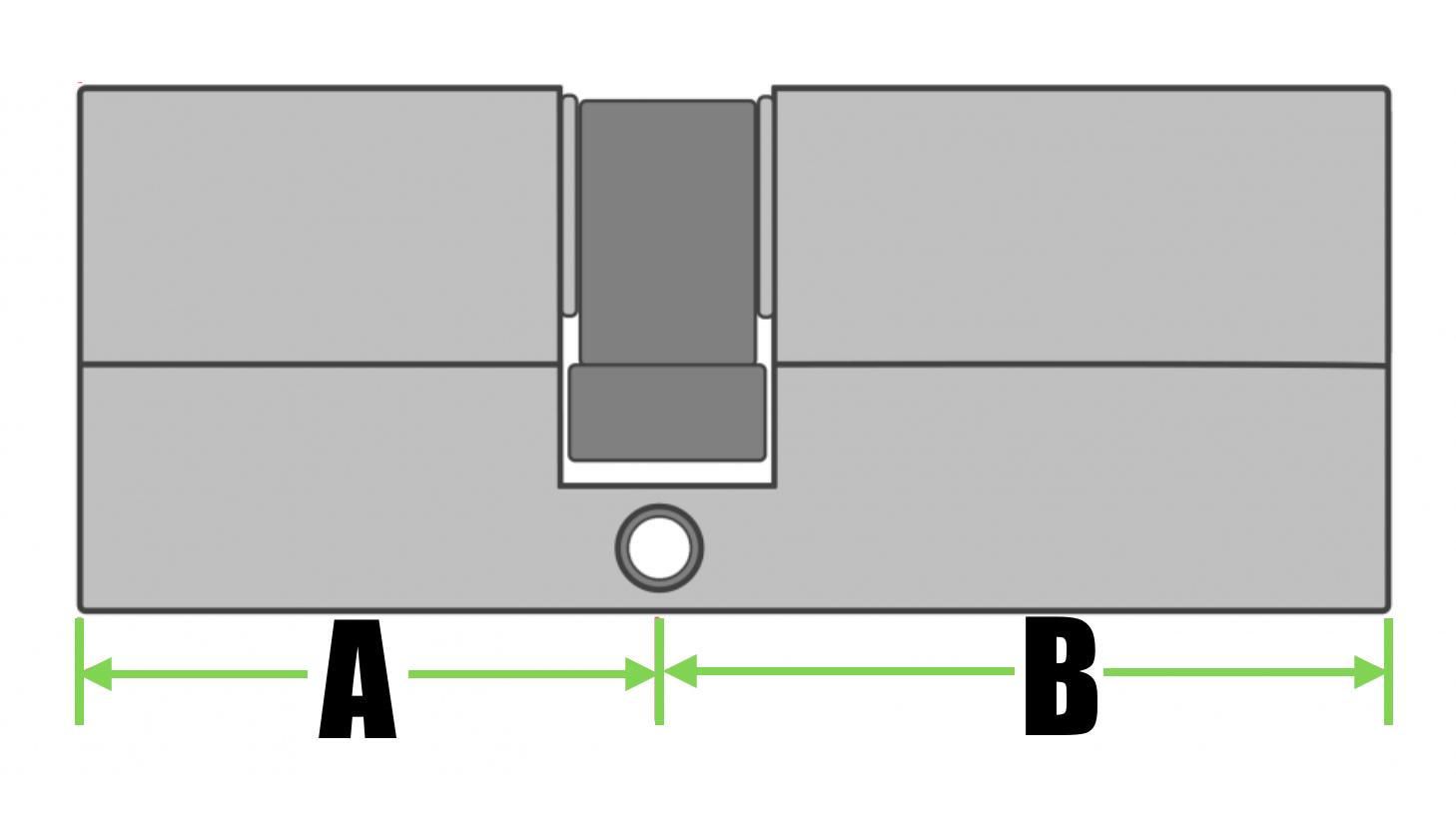

How to Measure your Lock?

• Measurement A - Measure from one end of the cylinder to the middle of the central screw hole.

• Measurement B - Measure from the other end to the middle of the central screw hole.

Now Check Your Measurements...

• Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.

• For example: If measurement (A) = 35mm and measurement (B) = 45mm the size required would be 35/45 cylinder (80mm in length). No further measurements are required.

• When ordering please remember that the Thumb Turn will always be on the 'T' side (i.e. T35/45 Thumb turn , thumb turn knob will be on the 35mm side).
