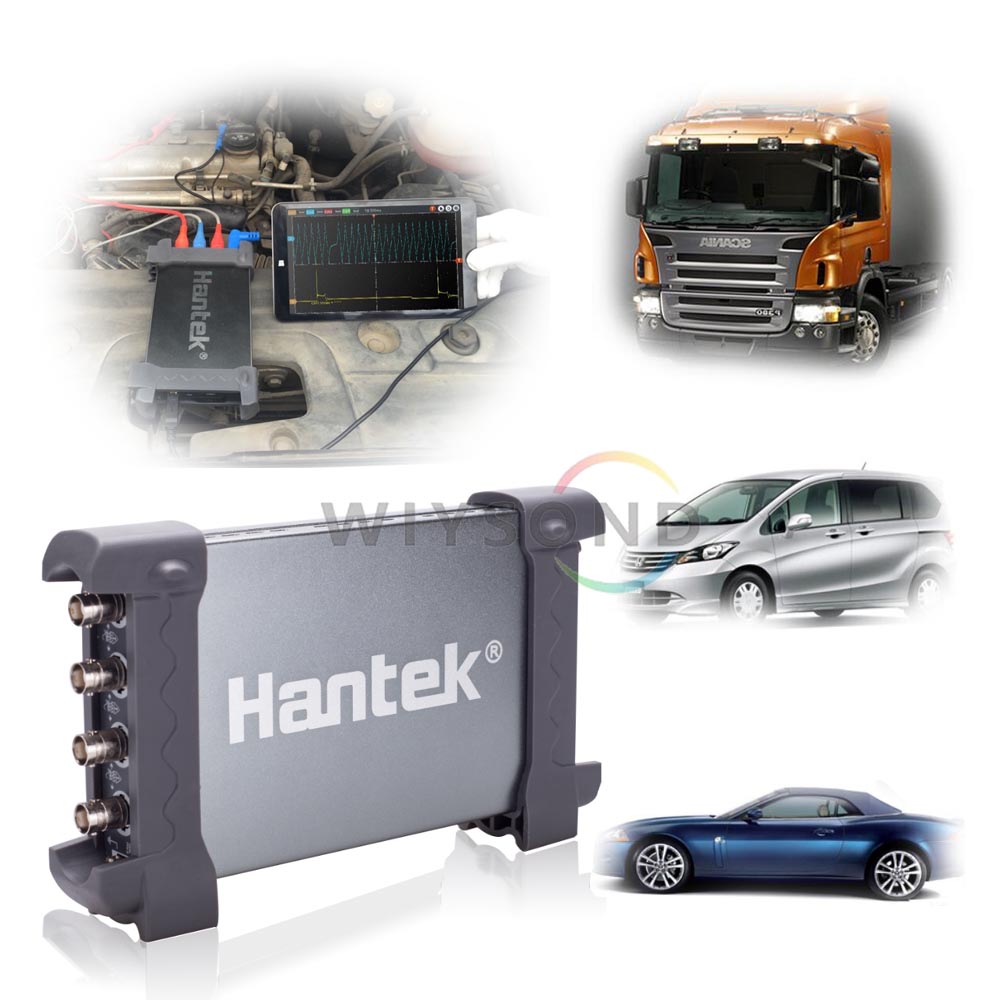

HANTEK 6104BE 6204BE 6254BE 100Mhz 200MHz 250MHz USB PC Automotive Diagnostic KIT I



Feature:

• Standard equipped over 80 types of automotive measurement function；

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

• Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
• USB 2.0 interface plug and play, and no need extra power supply;

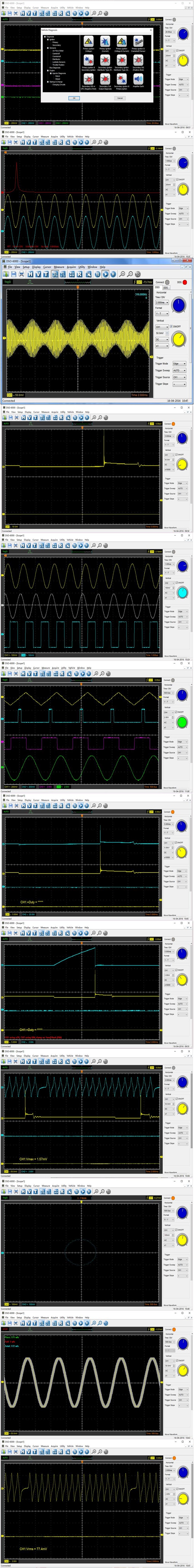

• Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function.

• Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

• Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium.

• It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

• 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
• The waveform data could be output to EXCEL,BMP,JPG.
• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
• FFT spectrum analyzer
• One computer could connect with multiple oscilloscopes, expand the channel number easily.
• Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples.



Characteristic:

Bandwidth	70MHz / 100MHz / 200MHz / 250MHz
Automotive  Measurement Function	Intake manifold vacuum &  ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust  ignition, Starting exhaust ignition; Sensor: Air Flow Meter,  Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position; CAN bus data examine, CAN bus  signal integrity, CAN bus LH long time acquisition, LIN bus; Performer: Petrol/Diesel; Starter and charging circuits
Channel	4 CH
Real-time  Sampling Rate	1GSa/s
Memory Depth	64K
Time Base Precision	±50ppm
Time Base  Range	2ns/div-1000s/div (1-2-4 sequences)
Input  Impedance	1MΩ 25pF
Input  Sensitivity	2mV/div～10V/div
Vertical  Resolution	8Bit
Vertical  Displacement Range	2mV ~ 10V/div @ x1 probe;  20mV ~ 100V/div @ x10 probe； 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain  Accuracy	±3%
Bandwidth	20MHz
Trigger Mode	Edge, Pulse,  Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform  Signal Process	+,-,x,÷,FFT,  Invert
Cursors  Measurement	Cross, Trace,  Horizontal, Vertical
Auto  Measurement	Vpp, Vamp,  Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,  Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty  Cycle
Volume	175mm * 105mm  * 25mm
Weight	0.9KG
Accessory	2 passive  probes, 2 gator clip lines



Package:

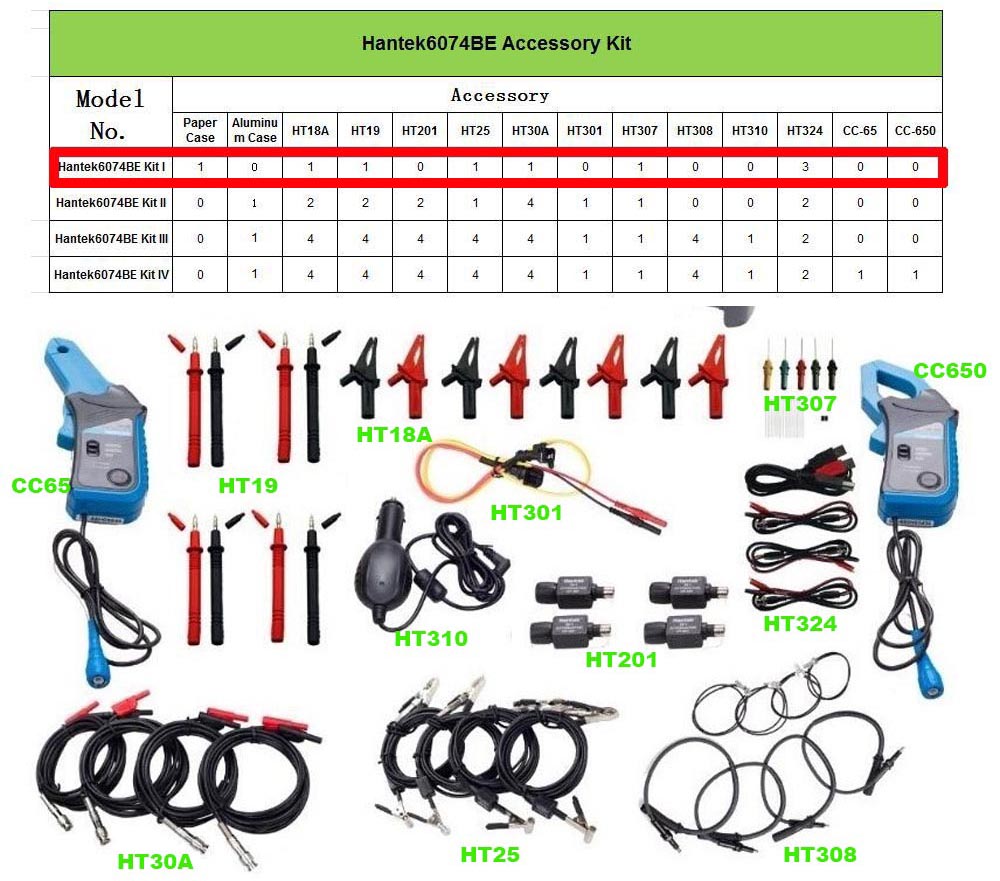

1 set Kit I (main body + HT18Ax1; HT19x1; HT25x1; HT30Ax1; HT307x1; HT324x3)

Kindly please be reminded this is Kit I.
