Ortofon Concorde MK II Overview

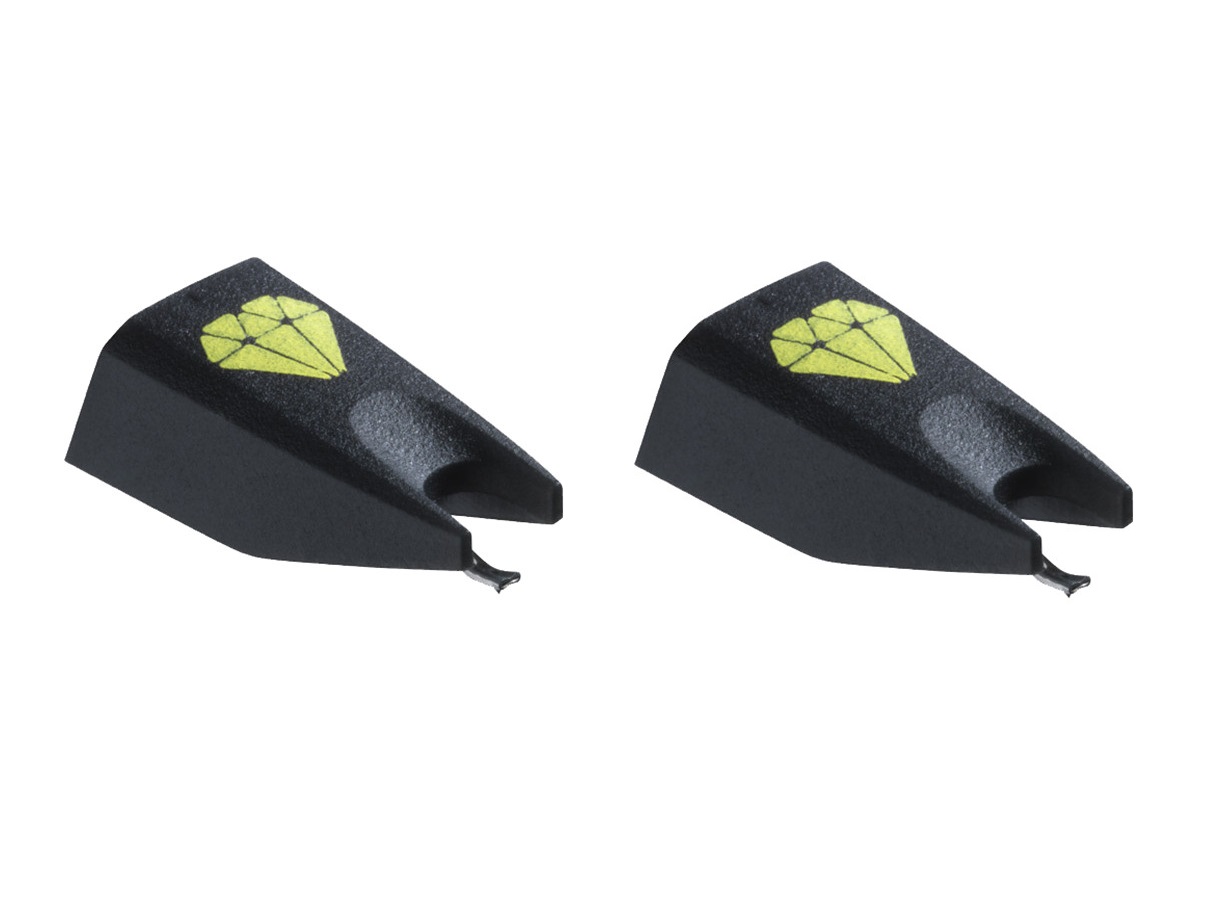

The Ortofon Concorde MKII CLUB Stylus is designed to replace the original stylus, offering the same detailed quality sound. The special-elliptic stylus offers more contact area for clean sound production and less susceptibility to feedback in live environments.
Ortofon Concorde MK II Specs
| Output Voltage | 8 mV (at 1 kHz, 5 cm/second) |
| Channel Balance | 1 dB (at 1 kHz) |
| Channel Separation | 1 kHz: 25 dB 15 kHz: 15 dB |
| Frequency Range | 20 Hz to 20 kHz (at -3 dB) |
| Tracking Ability | 100 μm (at 315 Hz at recommended tracking force) |
| Compliance | 14 μm/mN (dynamic lateral) |
| Stylus Type | Special Elliptical r/R 13/25 μm |
| Tracking Force | Range: 2 to 4 g Recommended: 3 g |
| Dimensions | Not specified by manufacturer |
| Cartridge Weight | 18.5 g |
Brand Ortofon
| Brand | Ortofon |
| Type | Stylus |
 |
