Features:

1.High torque, More smooth movement

2.High efficiency, energy-saving, low noise, low vibration, high start torque, low start current and reliable performance.

3.We offfer mach 3 software by free,if you want please download on our website.

This item includes:

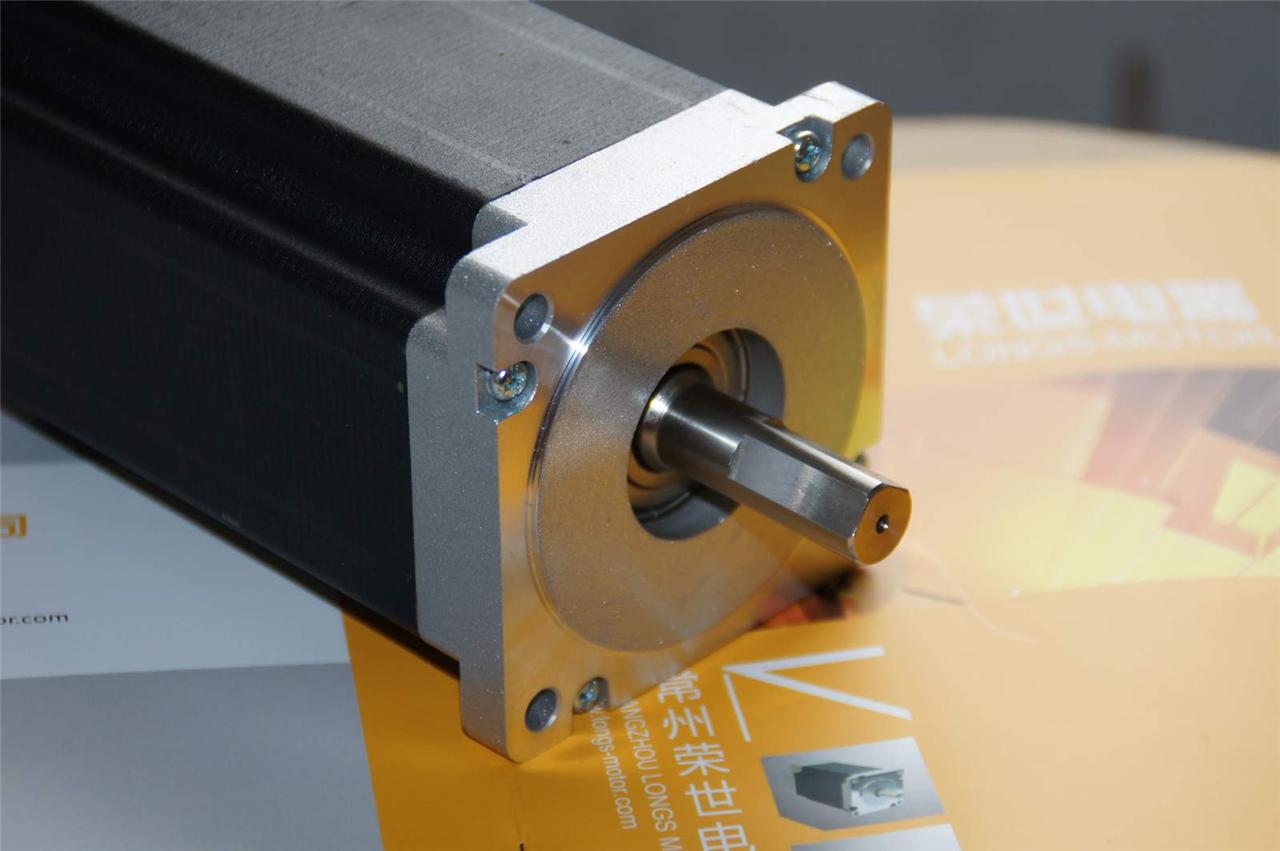

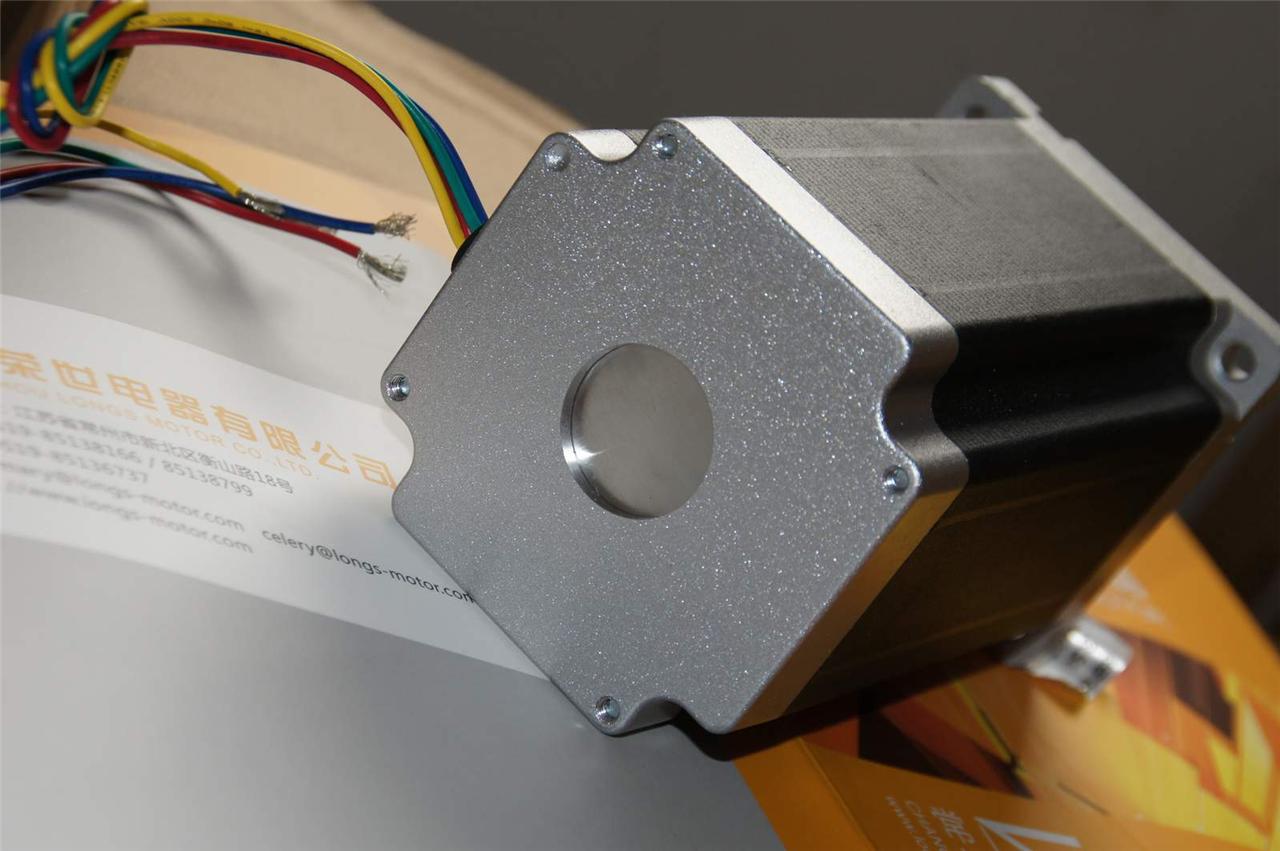

1PCS Nema34HS5435C-37B2  stepper motor 1600oz.in=10.5N.m 3.5A 151mm ,single shaft

Detailed information:

1. Nema 34 stepper motor:

Technical Specifications

Part No.:                         34HS5435C-37B2

Frame Size:                     NEMA34

Phase:                 2 Phase

Step Angle:                    1.8 degree

Current:                        3.5A

Rated Voltage:         5.6V

Resistance:                   1.6 Ohm/phase

Inductance:                   22mH/phase

Holding torque:           1600oz-in     (10.5N.m)

Detent torque:                  24.5N.cm

Rotor inertia:                3600g.cm²

Number of wire leads:   4 (Red A+ ,Green A- ,Yellow B+ ,Blue B-)

Weight:                               5kg

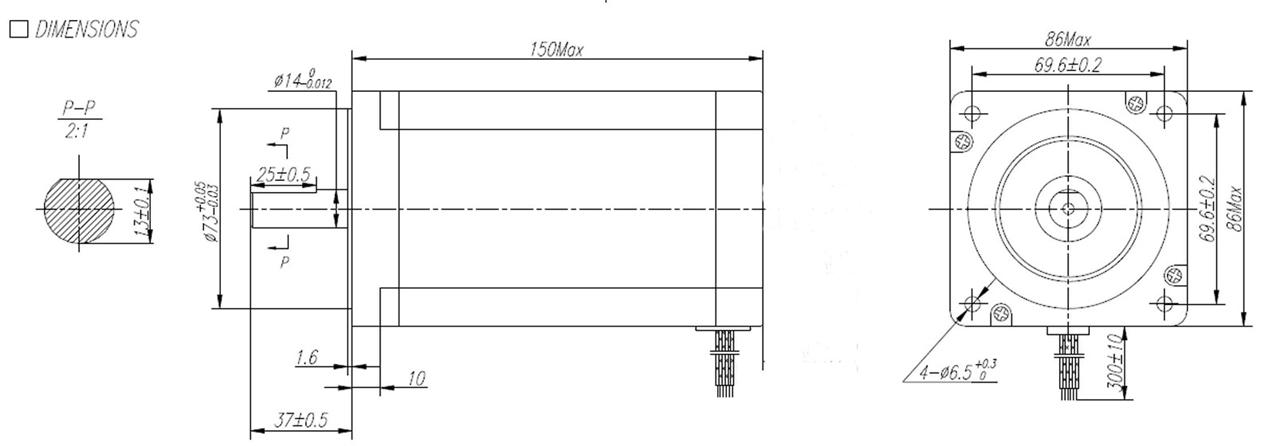

Length:                                151mm

Front shaft length               37mm

The diameter for motor shaft is 14mm
