Features:
Find the open or shorts of cables in the wall or earth
Track cables in the wall or earth
Find the fuse and safeguard
Find the open or shorts of conduit under the floor
Track the conduit made by metal in the project of ware or hot
Sensitivity of receiver can be selected
Flashlight function
| Conformance to IEC61010-1 CAT III 600V |
|
|
|
|
| Display |
1999 Counts |
|
|
|
|
| Diode Check |
√ |
|
|
|
|
| Continuity Check |
√ |
|
|
|
|
| Auto/Manual range |
√ |
|
|
|
|
| Data Hold |
√ |
|
|
|
|
| Max value Measurement |
√ |
|
|
|
|
| Back light |
√ |
|
|
|
|
| Telephone Check |
Identify the state for the working telephone line: Busy, Ringing or Clear |
| Tone |
Judge continuity of the cables or wires. |
|
| |
Track the cables or wires, and diagnose the break point. |
| NetCable Check |
Test for open circuits, Shorts, miswires, reversals, split pairs and LCD display the test results. |
| |
SHIELD detection tests a cable's shield integrity. |
| |
Main unit and one remote allow one person testing of T568A, T568B, 10Base-T. |
| |
Easy to read fault display and high speed testing. |
| |
Debug mode for detailed fault identification result. |
| Low Battery Indication |
√ |
|
|
|
|
| Auto Power Off |
√ |
|
|
|
|
| None Contact Voltage Detect |
√ |
|
|
|
|
| Power Supply |
9V(6F22) |
|
|
|
|
| Dimension |
186(L) x 88(W) x 55(H)mm |
|
|
| Weight |
Appro.400g |
|
|
|
|
Function:
| |
Range |
Accuracy |
| DC Voltage |
200mV/2V/20V/200V/600V |
0.7%rdg+3dgt |
| AC Voltage |
200mV/2V/20V/200V/600V |
0.8%rdg+5dgt |
| DC Current |
200uA/2000uA/20mA/200mA |
1.2%rdg+5dgt |
| |
2A/10A |
|
|
2.0%rdg+5dgt |
| AC Current |
200uA/2000uA/20mA/200mA |
1.5%rdg+5dgt |
| |
2A/10A |
|
|
3.0%rdg+5dgt |
| Resistance |
200Ω/2k/20k/200k/2M/20M |
1.0%rdg+3dgt |

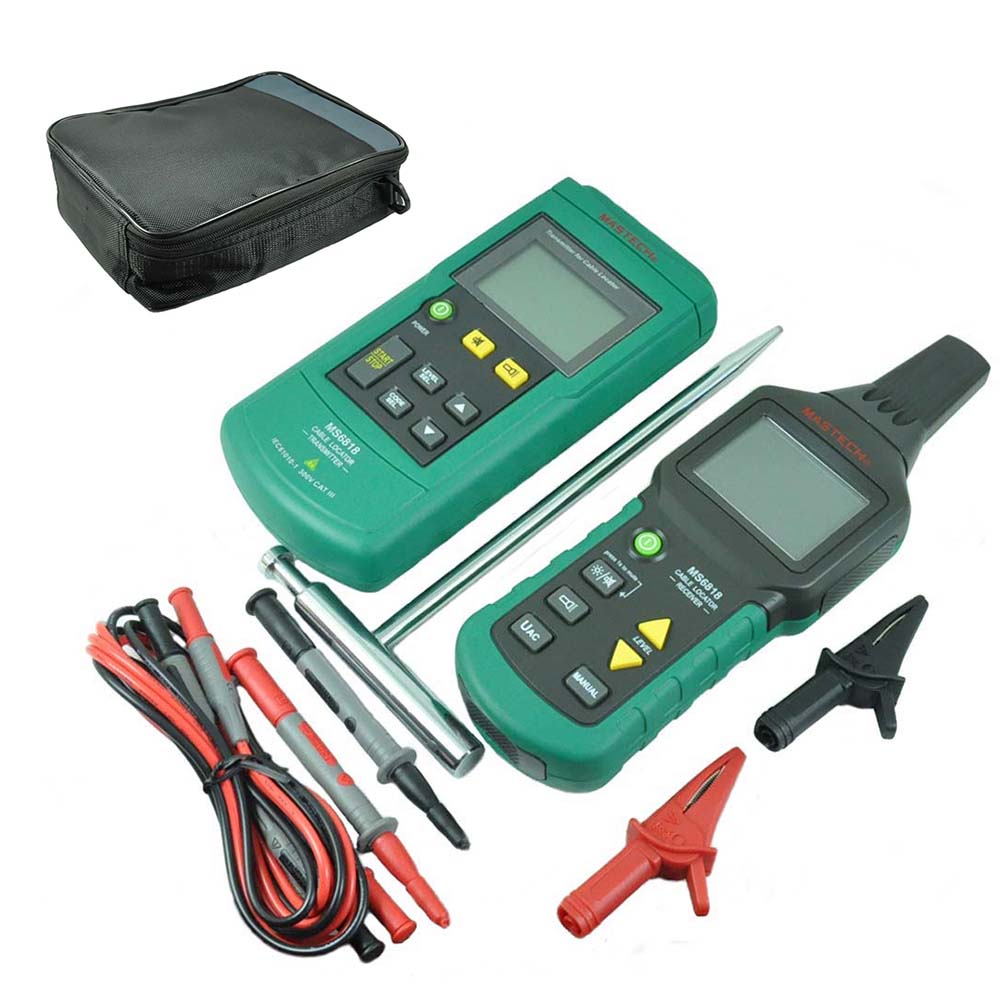

Package:
- 1 x MS6818 transmitter & receiver
- 2 x crocodile clamp
- 2 x test lead
- 2 x test probe
- 1 x ground rod
- 1 x manual
- 1 x package bag
|
