SB-5 Digital Rotary Phase Converter - Smart-Boost™ 5HP, USA Made

Item Description

5HP Smart-Boost™ Rotary Phase Converter SB-5

North America Phase Converters & Electrical Supply is pleased to offer our SB-5 Smart-Boost™ 5HP Rotary Phase Converter on eBay.

Designed to start and run a 2.5HP motor or CNC/Resistive/Inductive loads up to 7 amps at 208-240 volts.


The Smart-Boost™ is a new breed of Digital Rotary Phase Converters. Our Smart-Boost technology aids in the startup of motors external of the phase converter downstream. The Smart-Boost Controller uses solid state switching to re-engage the start capacitors at zero degree crossing. Which in turn, surges 600% more current to the motors during their startup.

North America Phase Converters understands you have a lot of choices when it comes to purchasing a rotary phase converter, Thank you for your consideration!

Please visit our eBay Store for more sizes and other great products!

Quick Features

Control Panel Features

  • Smart Boost™ Digital Controller
  • Solid State Switching
  • Built-In Motor Starter with Start/Stop Switch
  • High Current Protective Coils
  • Output Power Failure Protection
  • Power "ON" Indicator Light
  • Easy Installation
  • Large Wiring Compartment
  • Power Factor Corrected
  • Made In the USA
  • Lifetime Warranty

Generator Features

  • Custom made Phase Converter Generators
  • High Speed/High Efficiency Design
  • Low Impedance/Delt Design
  • Made by Baldor USA
  • Custom Copper Windings and Rotor
  • Corrosion Resistant Paint
  • Vacuum Pressure Impregnation for all Windings
  • Shielded Windings

Available Upgrades

  • NEMA 3R Enclosures
  • Plugs and Outlets
  • Automatic Controls

Specifications
Model
Brand NAPCES
Line Smart-Boost™
Model # SB-5
General Specifications
Horse Power (HP) 5
Kilo-watt (kW) 3.7
Frequency (Hz) 60
Generator Type ODP
Enclosure Type NEMA 1 (Indoor)
Generator Frame 182
Single Phase Electrical Specifications
Voltage Input 220 - 250
Minimum Fuse Size 20
Minimum Circuit Breaker Size 20
Maximum Fuse Size 30
Maximum Circuit Breaker Size 30
Minimum Wire Input 10 AWG
Idle Amperage 1.54
Three Phase Electrical Specifications
Voltage Output 220 - 250, based on input
Output Amperage 14
Voltage Balance 5 - 10%
Minimum Wire to Generator 12 AWG
Minimum Wire to Load 12 AWG
Dimensions & Weights
Enclosure (H X W X D) 18" X 12" X 8"
Idler (Approx.) Length X Dia. 10" X 6.5"
Approx. Total Shipping Weight 87 lbs.
Sizing Guidelines - Motor Loads
Easy Load 3 HP
Medium Load 3 HP
Hard Load 2.5 HP
Very Hard Load 2.5 HP
Sizing Guidelines - CNC, Resistive and Inductive Loads
Total Amps 7
Total kVA 2.4
Total kW 1.7
Total Spindle HP 2.5
Click here to download of brochure for SB-5 Smart-Boost™ 5HP Digital Rotary Phase Converter.

North America Phase Converters 101
Illustration

Answer: Every 3 phase machine.
North America Phase Converters offers several lines of rotary phase converters:
Pro-Line, UL-Listed, Smart-Boost™ and Smart-Phase™.

If you are unsure of which rotary phase converter is right for your application,
please call our application engineers at:

Sizing
The SB-5 Smart-Boost™ Rotary Phase Converter is best sized for:
Easy / Light Motor Loads - up to 3HP
Examples of Easy Loads: Table Saw, Milling Machine, Drill Press
Medium Motor Loads - up to 3HP
Examples of Medium Loads: Belt Sander, Grinder, Mixer
Hard Motors Loads - up to 2.5HP
Examples of Hard Loads: Gearhead Lathe, Dust Collector, Fan
Very Hard Motor Load - up to 2.5HP
Examples of Very Hard Motor Loads: Air Compressor, Sub. Pump
CNC, Resistive and Inductive Loads
up to 7 amps @ 240 volts

Smart-Boost™ Quick Sizing Rules

*For light & medium motor loads: Choose the converter that is 1.5 times larger then your motor load.

*For hard & very hard motor loads: Choose the converter that is double the size of your horsepower.

Sizing note: The Smart-Boost™ Rotary Phase Converter will start motors of equal size; however, we recommend over-sizing the phase converter for hard and very hard loads to maintain better voltage balance.
Quick Sizing

Please call or contact us if you have any questions about sizing a Smart-Boost™ Rotary Phase Converter:

Click here for more details on how to size a North America Rotary Phase Converter.

Video: See How it Works

Please call or contact us
if you have any questions our new Smart-Boost™ Controllers.

Complete Details of Features
Built-In Motor Starter with Start/Stop Switch

Smart-Boost™ Digital Controller

  • Electronic Solid State Switching (no contactors)
  • 120 Degree Pure Sine Wave
  • Zero Degree Capacitor Switching
  • Self Protected Power Semi Conductors - SCR
  • Voltage Differential Technology
Digital Protected Start Circuit

600% Motor Starting Boost Current

  • Provides high starting current for hard starting / high inertia loads
  • Active when phase converter starts and for every external motor start
  • Allows for flying restarts
  • Synchronization of capacitors voltage when reconnecting start
Complete Phase Power Failure Protection

Built-In Motor Starter

  • Integrated magnetic motor starter complete with On/Off switch
  • Power "On" indicating light lets's you know the phase converter is on from across the room
  • Raised "Off" bottom for quick shut downs

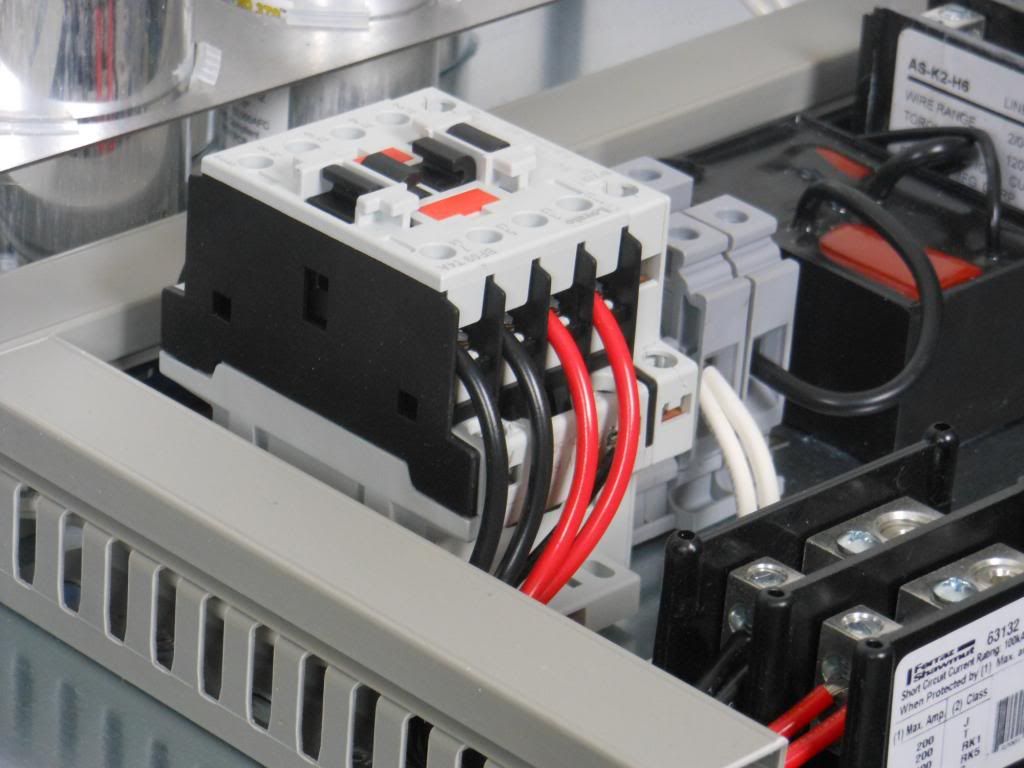

CNC Voltage Balancing

Power/Phase Protection

  • Disconnects all 3 output lines from the phase converter (not just the manufactured line)
  • Shuts down the the phase converter in the event of power outage (blackouts)
  • Protects your motors and equipment from "single-phasing" when power is restored
Power "ON" Indicator Light

Easy Installation

  • Large wiring compartment
  • Removable sub panel design makes the enclosure light and easy to mount
  • Over-sized power distribution blocks are well marked and easily accessible
  • Punch out "Knock-Outs" on all 4 side of the enclosure
Easy Installation

Important Extras

  • Oil and epoxy filled capacitors - no limit on the number of motor starts ups and can be energized for long periods of time
  • High current protective coils - provides a layer of protection against voltage surges & fast transient short circuits
  • Large bleed resistiors for extended capacitor life
Made In the USA

Made In the USA

  • Proudly made in Wisconsin
  • Built by a UL 508A Panel Shop (Not every panel is UL listed)
  • Clean design makes for easy inspections
  • Din rail mounted components and twist and release capacitors
Custom made Phase Converter Generators, Low Impedance/High Efficiency Generator Design

Custom designed Phase Converter Generator by ABB-Baldor USA

  • Built & designed to work with our Smart-Boost™ Controllers
  • Custom copper windings and rotor for phase conversion
  • Built in America

High Speed/Low Impedance Design

  • Promotes a tough and stronger manufactured leg of power and we have the data to prove it!
  • Low resistance produces high efficiency
  • Built to run cool and quiet
  • Custom laminated windings, designed to provide feedback to the Smart-Boost™ Controller
