Water filling steps: first counterclockwise rotation of the airbag on the filling knob, and then to the aluminum seat on the hole to add water (probably add 2 cups of disposable cups of water or so)

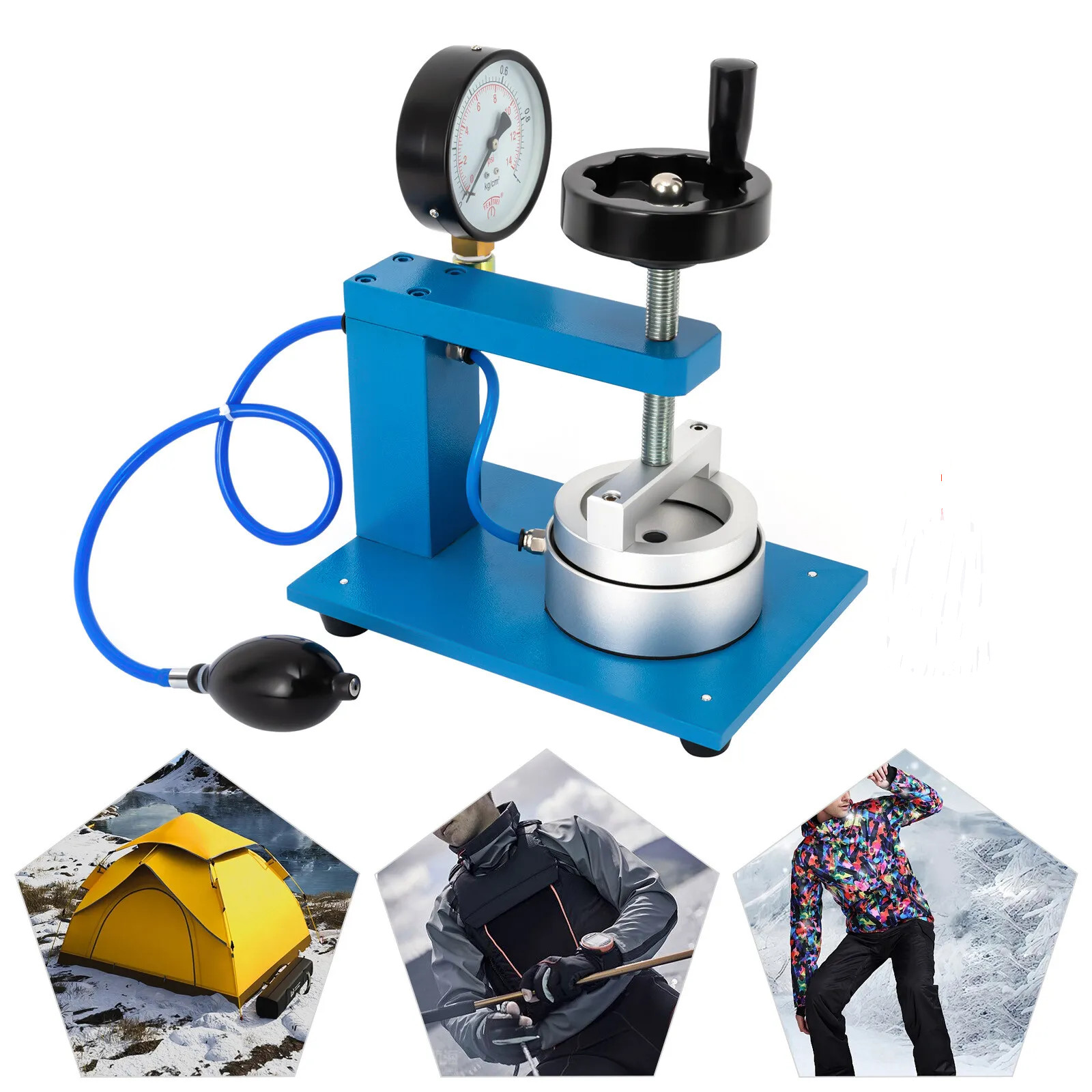

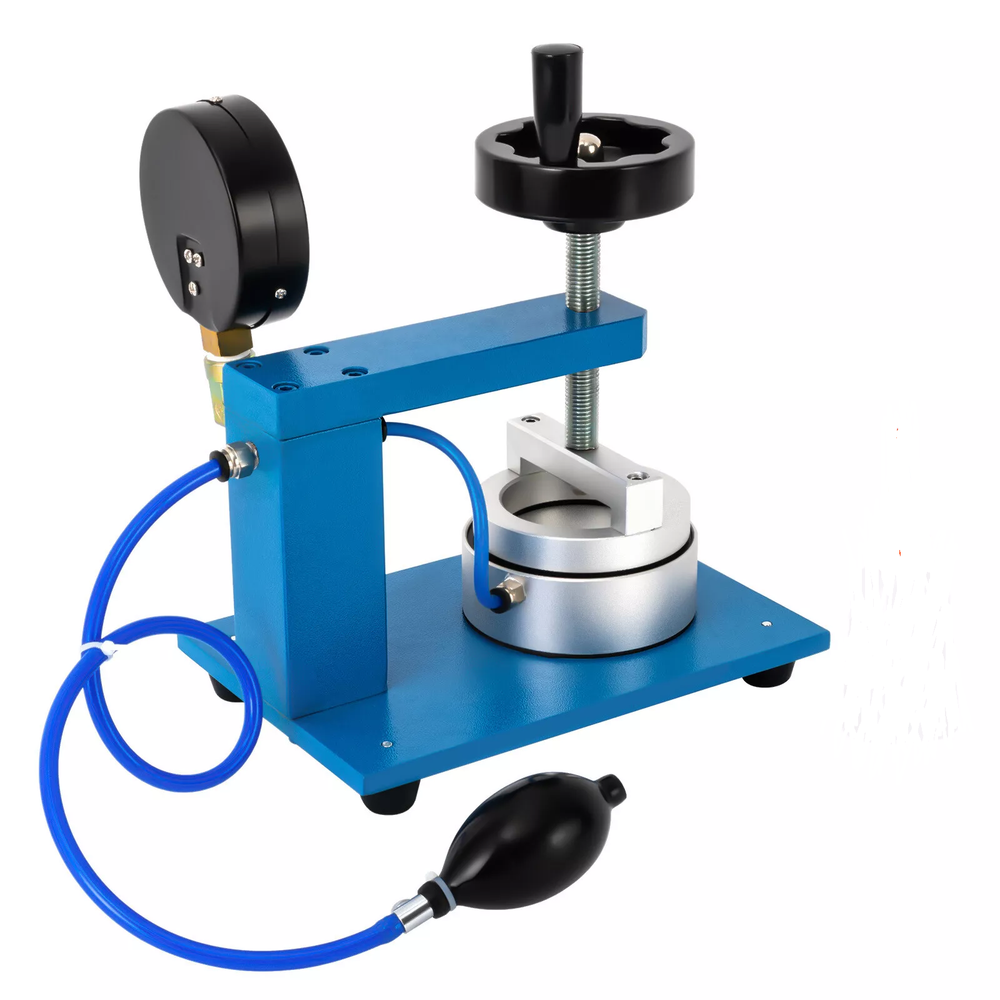

Water pressure tester use:
This machine is novel in design, simple in operation, beautiful and generous in appearance, small in size, reliable in work, and can be widely used in waterproof fabrics, tents, raincoats, down jackets, ski jackets, mountaineering suits, diving suits, nautical suits, PVC, PU, PA and other coated fabrics, snow boots, advertisements balloons, gloves, firefighting garments, police uniforms, army field uniforms, special uniforms, and other kinds of fabrics and garments, such as cross position and straight position of the water-resistant pressure test. Test.
Third, YJ-1200 water pressure tester technical parameters:
1, the implementation of standards: in line with gb4744-84, also in line with iso-811
2、Measuring range: plastic bags, winter clothing, tents, raincoats, fabrics, etc.
3、Technical parameters: the specimen is placed horizontally, the specimen under pressure
4、Pressure area: 100cm2, d=11.28cm
5、Range: 0-14psi
0-1kg/square cm can be converted to mmHg
9, machine size: 280 × 200 × 300mm
10、Machine weight: 5.5Kg
Water pressure resistance tester features:
1、No need to connect any power supply and gas source;
2, light and convenient, especially suitable for office use;
3、Manually hold the gas projector to add gas test
