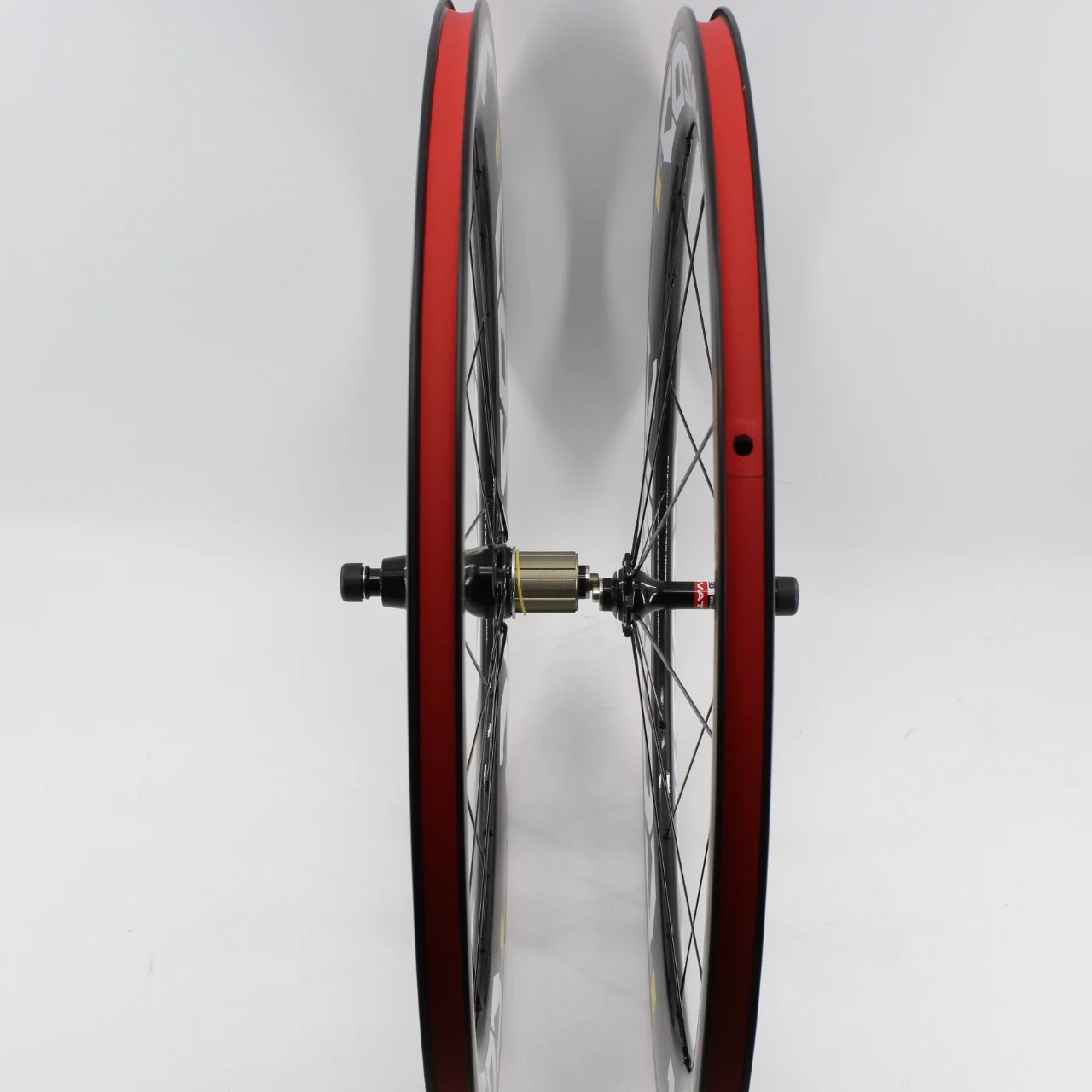

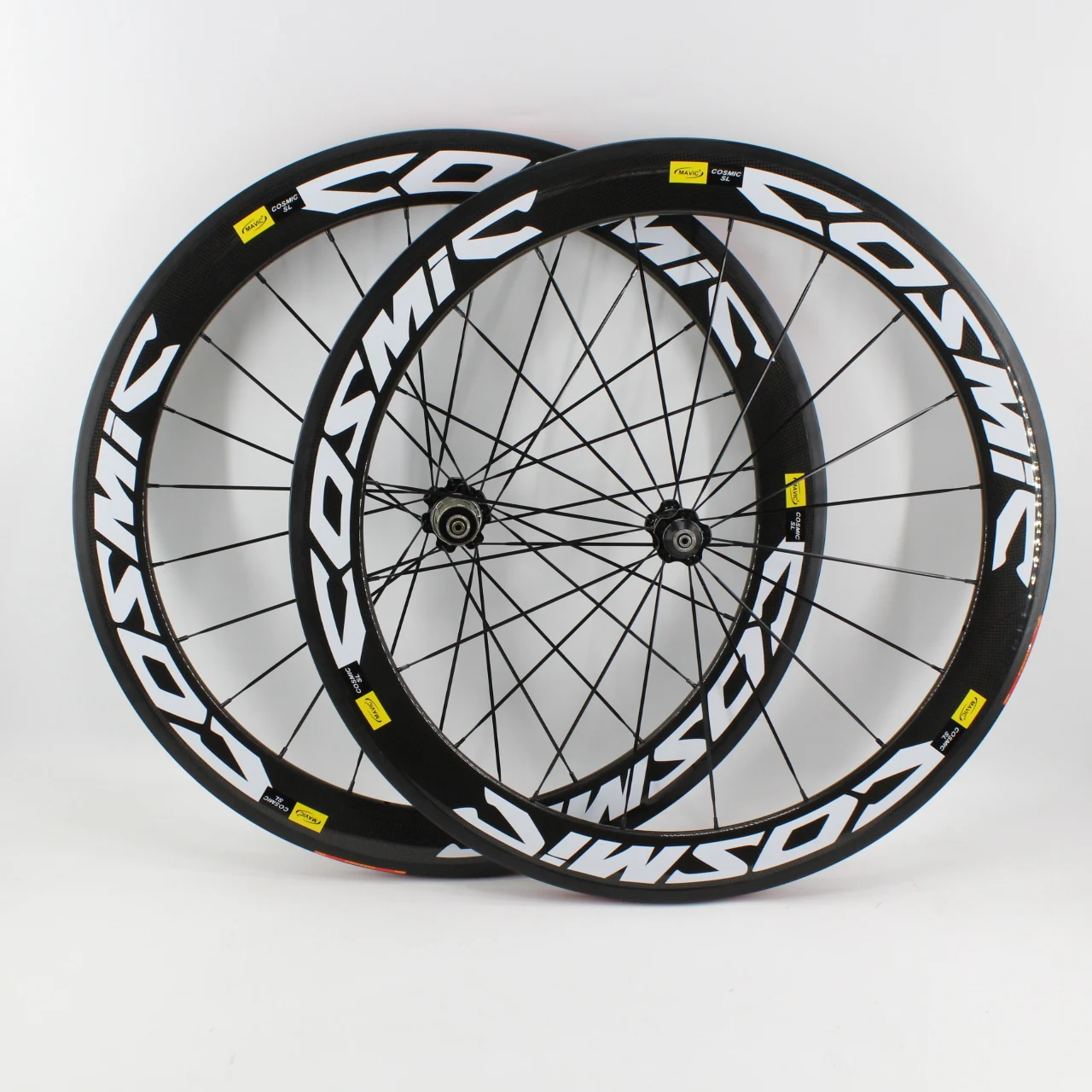

60m m gloss 3K finish-271 hubs photo:

3K/UD/12K Comparison chart:
Clincher / tubular / tubeless comparison chart:

DESCRIPTION & MATERIALS

  • Size: 700C

  • Model: 38/50/60/88mm tubular or clincher or tubeless wheelset(please choose your favorite)

  • Rim width: 23 / 25mm(default 23mm,tubeless style only have 25mm width)

  • Color: such as the pictures(We also can do with other logo,and welcome cooperators around the world to wholesale and custom-made.)

  • Finish: gloss ; matt(default gloss finish)

  • Material: 3K / UD / 12K(default 3K)

  • Hole count: front 20+rear 24 or front 18+rear 21 G3(G3 style hubs is 18/21 G3 holes)

  • 1pair wheelset(one front wheel and one rear wheel and 1 pair skewers)

  • include spokes(black color bladed pokes, Stainless steel material,when you place order,please in order "note" tell me your need color of the hubs and spokes.)

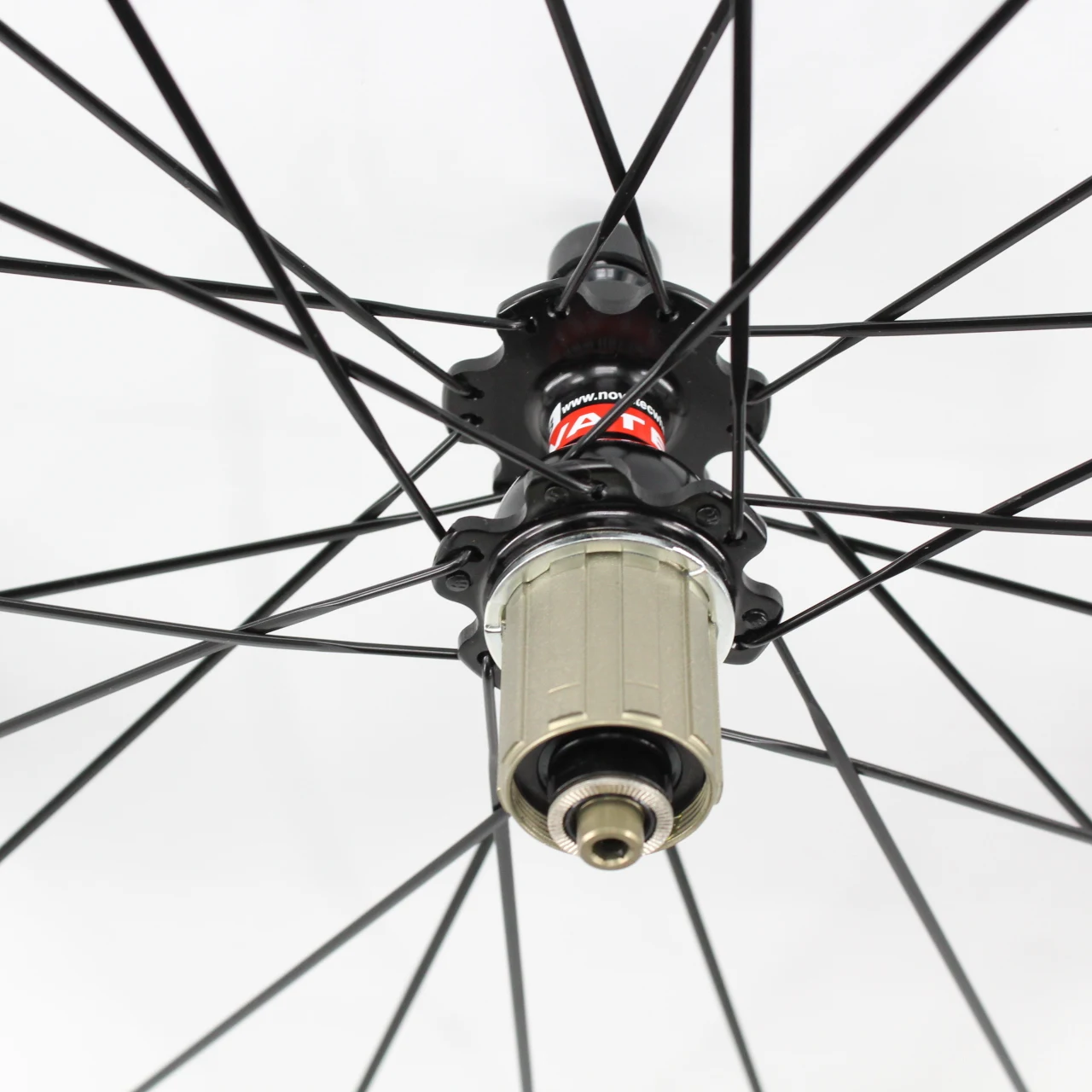

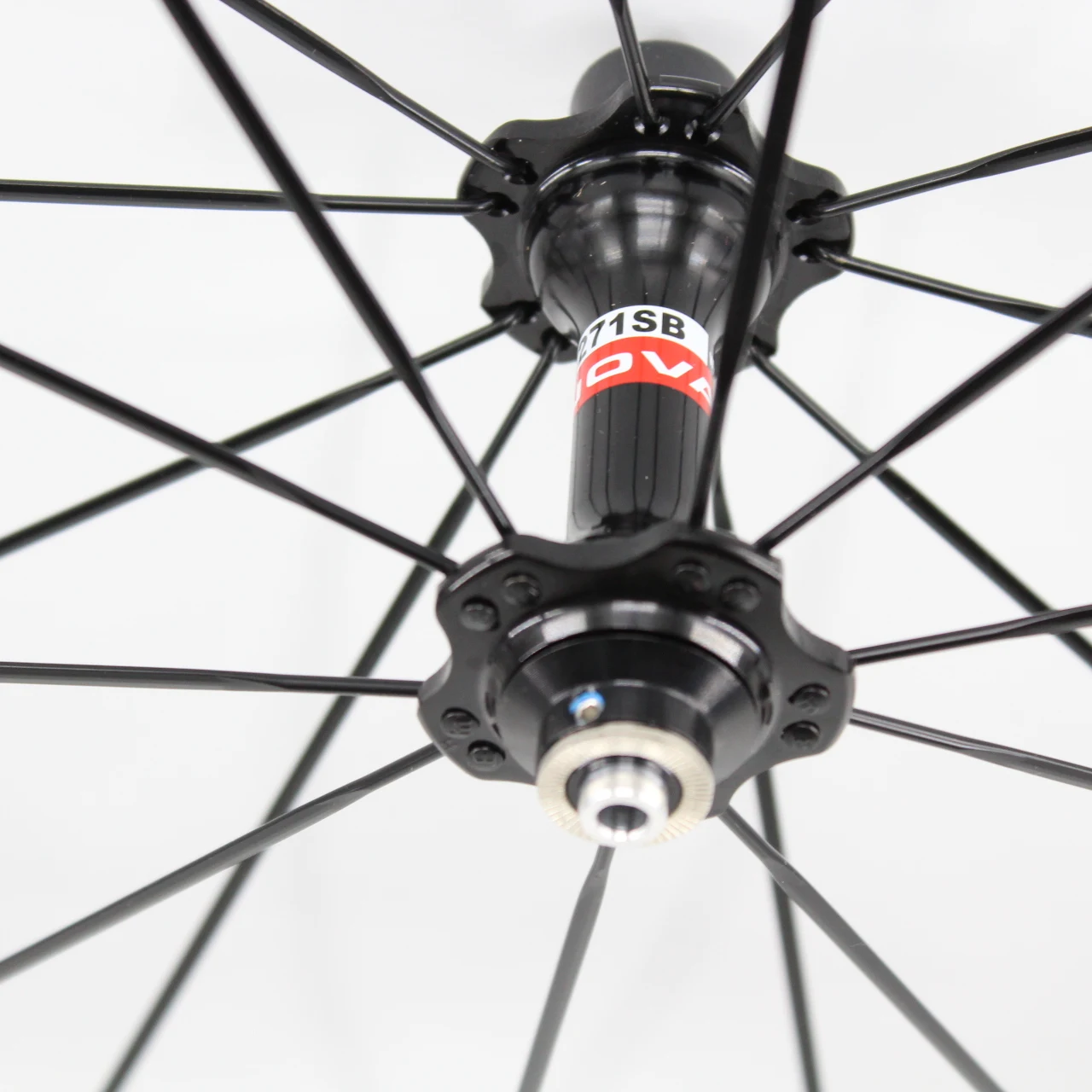

  • include hubs(Please choose your favorite hubs ,black / red color, can use for 8/9/10/11 speed SHIMANO/SRAM freewheel,and include skewers, if you need use for CAMPAGNOLO freewheel,please in order "note" tell me.)

  • Hubs size: front 9*100mm ; rear 10*130mm

  • Can do with basalt brake surface

  • Weight: approx Front wheel 0.74kg(60mm tubular) , Rear wheel 0.94kg(60mm tubular)

  • Bike Type: Road Bike

  • Passed Europe EN14781 Standards and the JAPAN JIS Standards.

  • One year quality warranty

  • NOTE:Please use professional carbon wheelset's brake pads,we will free give brake pads.

Important parameters of the wheelset:

Max recommend rider weight: 150KG

Max recommend tyre pressure: clincher-120PSI ; tubular-220PSI

Rim outer diameter: approx 633mm

Front wheel spokes tension: approx 80-100kg

Rear wheel spokes tension: approx 80-100 / 100-120kg

Flatness and Yaw: <0.2mm

Roundness: <0.5mm
