REED Instruments R9000 HD Video Inspection Camera System

Model: R9000 | Order No:R9000

Complete HD video inspection system with 65.6ft (20m) cable, 7" TFT LCD monitor and ability to record video and audio.

Brand:	REED
Model:	R9000
Order No:	R9000
Condition:	NEW

Description

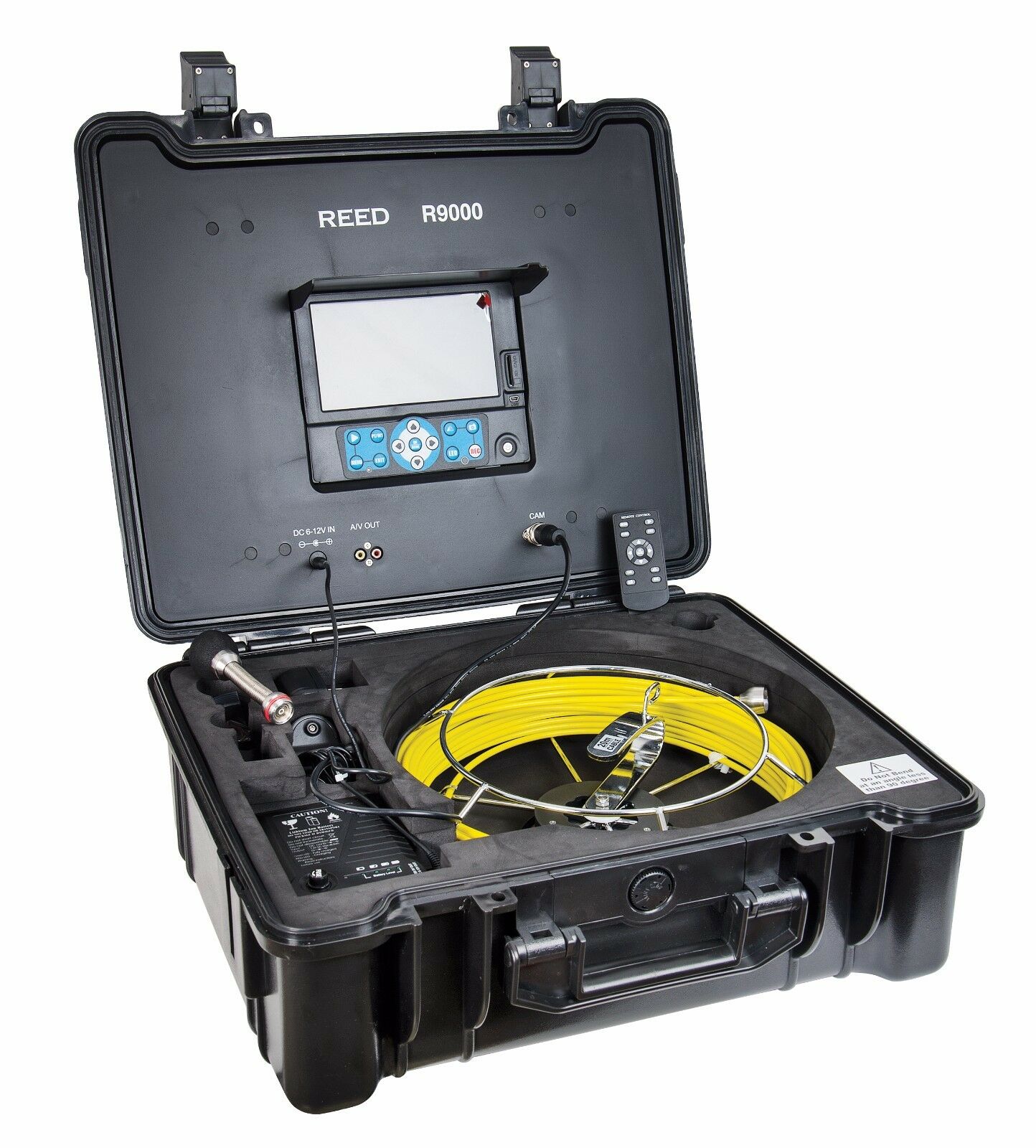

REED Instruments R9000 HD Video Inspection Camera System

REED R9000 Offers

This high resolution video inspection system features a 65.6ft (20m) meter cable built into a portable carrying case. The R9000 is capable of saving images and recording video/audio on internal memory or on an external memory card (sold seperately). This video inspection system is commonly used to determine the condition of small diameter sewer lines and household connection pipes. The R9000 includes a rechargeable lithium-ion battery and a car charger for continuous use in the field.

Features

Complete video inspection system built in a hard carrying case
Camera and video functions save high resolution images and records video/audio
Twelve high visibility LED lights provide illumination in dimly lit environments
Scratch-resistant sapphire lens and durable stainless steel camera housing
65.6ft (20m) cable mounted on cable reel
High resolution 16:9 7" TFT LCD display
Video and audio output
Rechargeable lithium-ion battery and car charger
Sun visor is included to act as a sun shield for outdoor inspections
90° mirror rotation and low battery indicator

Included

What's included with the REED R9000

HD Video Inspection System
Camera Head
20m Cable Reel and Push Cable
Remote Control
Hard Carrying Case with built-in DVR
Battery Pack and Cable
Car Charger
Fuse
Ball Guide (x2)
Plastic Skid
Screw (x2)
Nut (x2)
Waterproof Ring and Adapters
Screwdriver

Specifications

REED R9000 Specifications

Camera
Camera Resolution	800 x 480
Camera Diameter	0.91" (23mm)
Camera Length	4.7" (120mm)
Lens/Housing Material	Saphire / Stainless Steel
Viewing Distance	7.9 to 39.4" (20 to 100cm)
Depth of Field	100cm to infinity
Viewing Angle	0 to 140°
General Specifications
Display	7" Color TFT LCD (16x9)
Display Resolution	800 x 480
Frames per Second (FPS)	30
Standard Gooseneck/Cable Length	65.6' (20m)
Cable Diameter	0.2" (5.2mm)
Rotate Display	Yes (90°)
Playback	Photo, Video and Audio
Memory	Internal / SD Card
TV Out	PAL / NTSC
Data Output	USB / SD Card
LED Brightness Adjustment	Yes (12 white LEDs)
Low Battery Indicator	Yes
Power Supply	Rechargeable Li-ion Battery, AC Adapter, Car Charger
On-Screen Supported Languages	English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese
Product Certifications	CE, IP67 (Camera Head)
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	4 to 140°F (-20 to 60°C)
Operating Humidity Range	30 to 90%
Dimensions	22.7 x 10.4 x 20.4" (575 x 265 x 520 mm)
Weight	22lbs (10kg)
