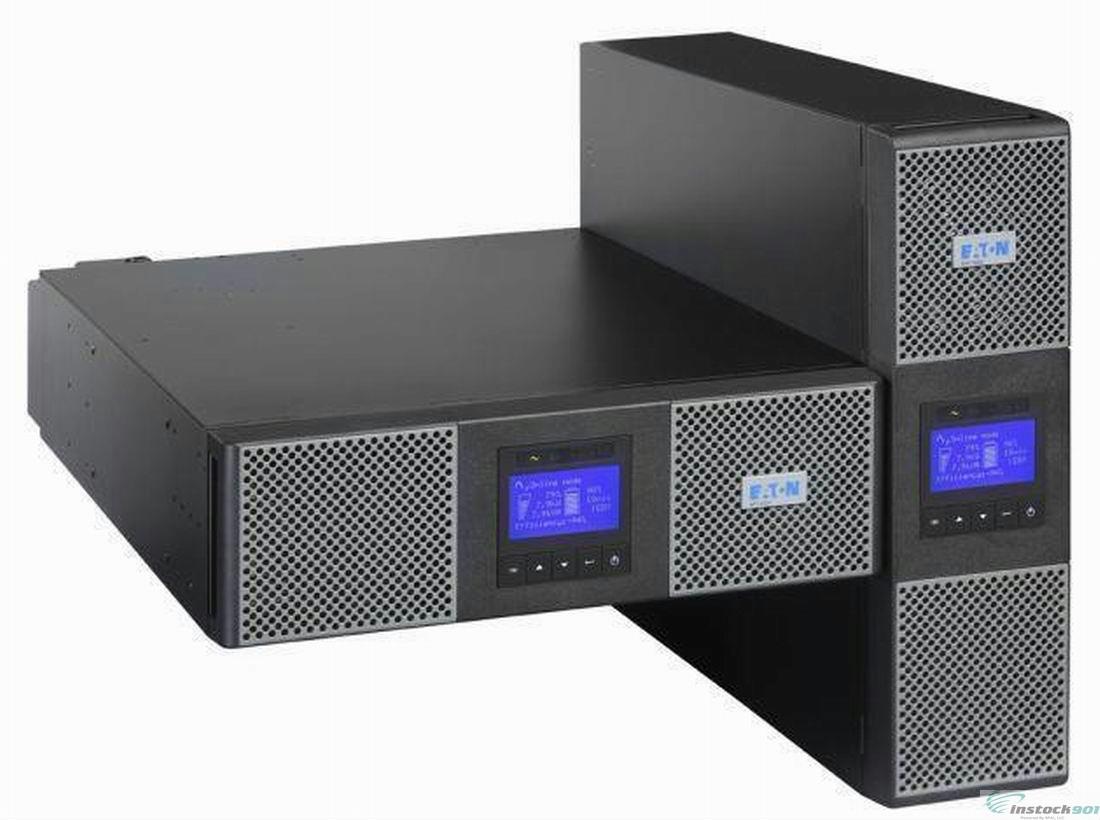

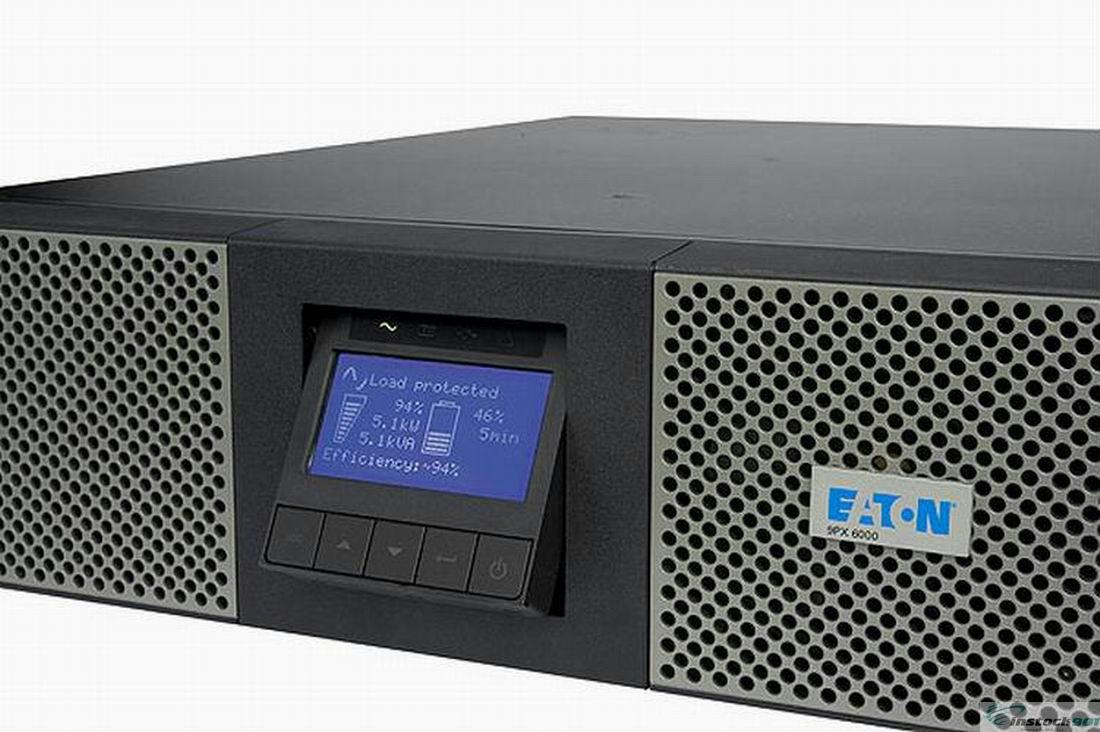

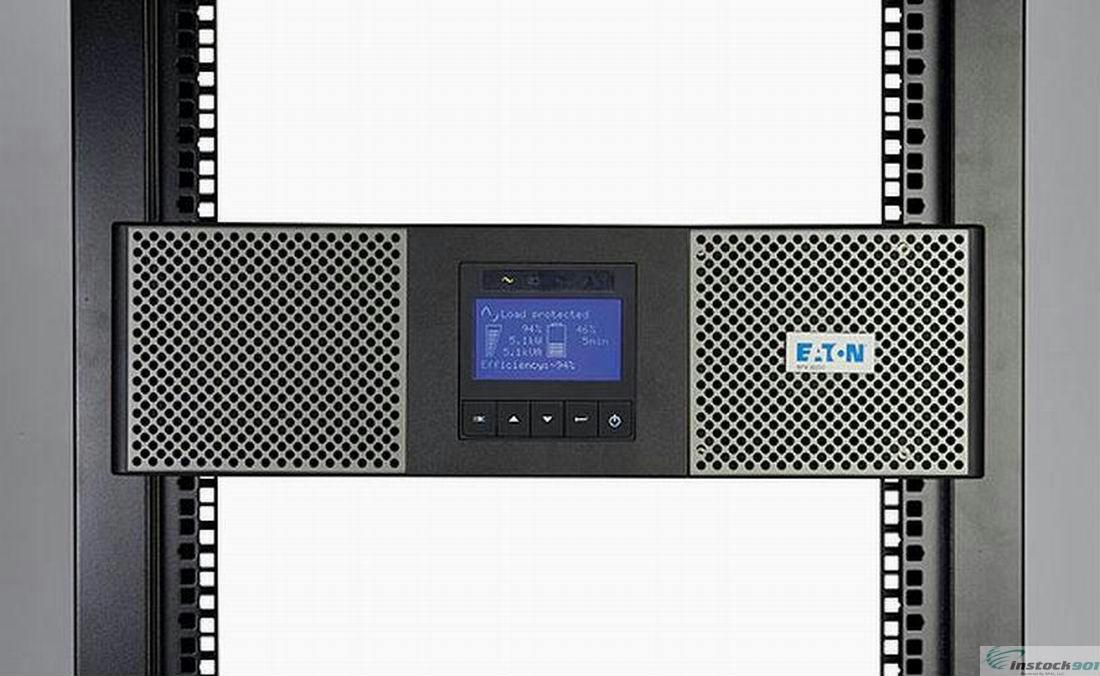

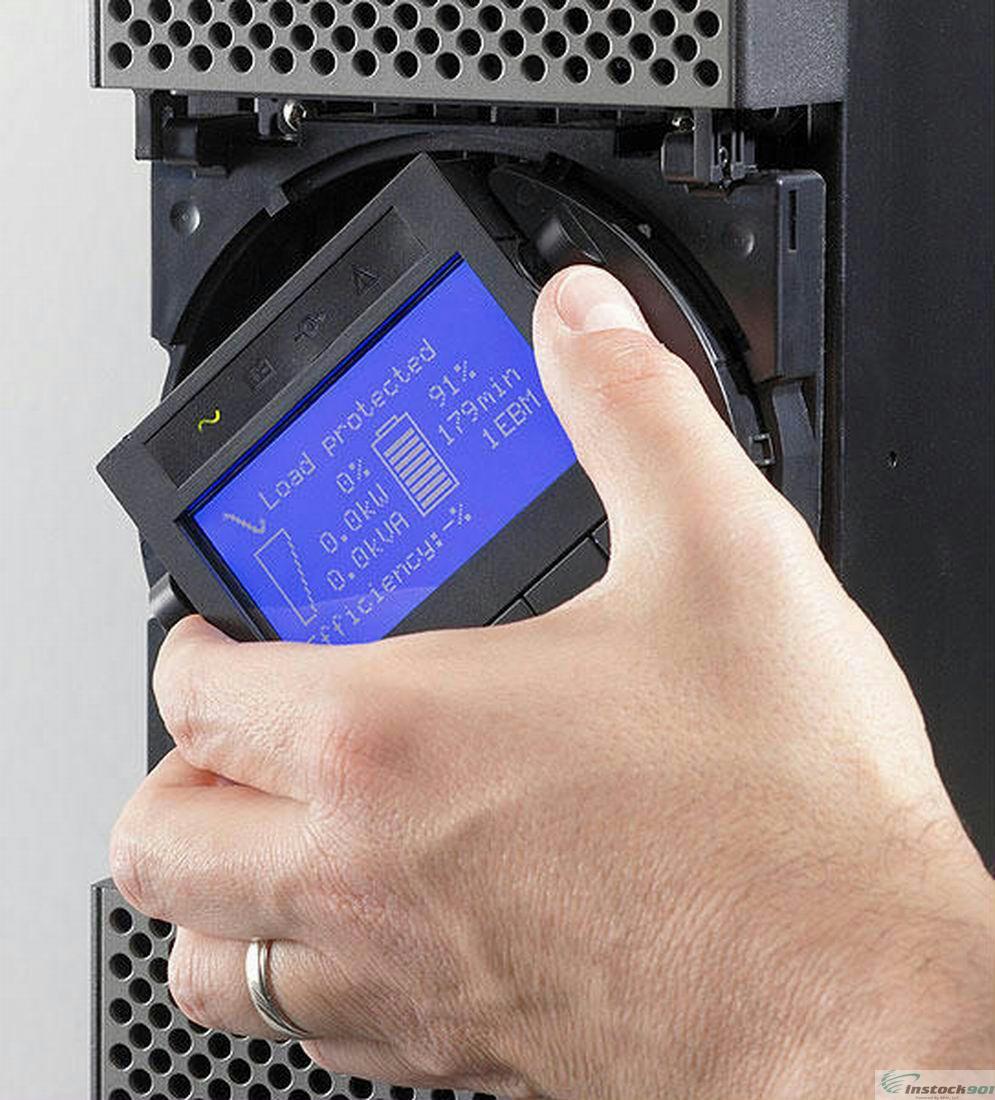

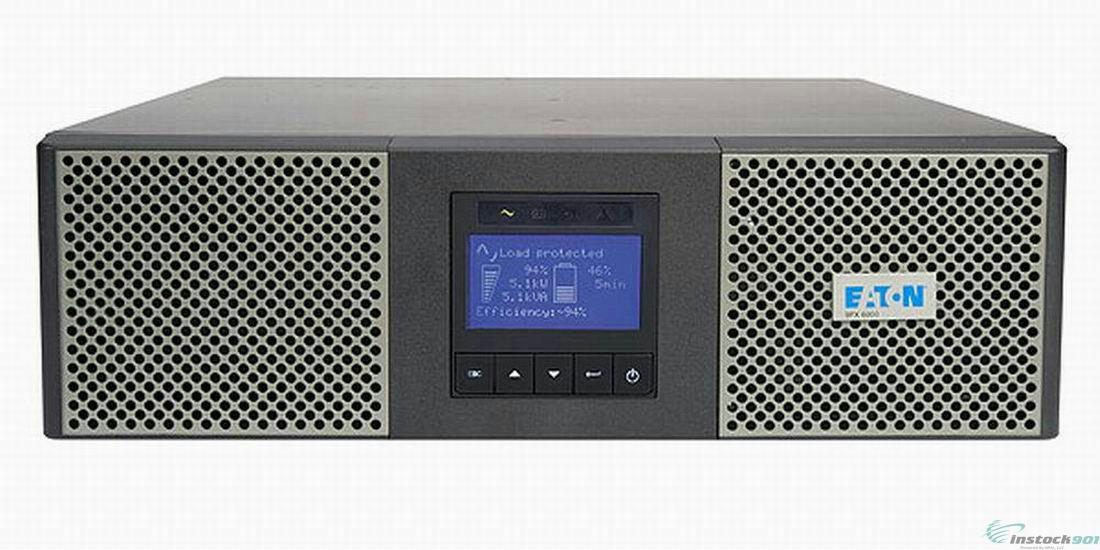

EATON 9PX5K Double-Conversion On-Line UPS 5000VA 4500W 208V 3U Power Backup
New Batteries, Load Tested, Warranty
Item Condition: Used
Pro Refurbished By Seller, New Batteries, Rackmount Kit. 1Year warranty on Batteries and 60Day on UPS
| BRAND | Eaton |
| TYPE | Enterprise/Data Center UPS |
| VOLTAGE COMPATIBILITY | 208 V, 230 V, 5000 VA, 220V, 240V |
| MAXIMUM POWER | 4500 W |
| FEATURES | Audible Alarm, AVR (Automatic Voltage Regulation), Cold Start, Fused, LED Display, Noise Filtering, Rack Mountable, Surge Protection, Remote Monitoring |
| COMPATIBLE BRAND | Universal |
| COLOR | Black |
| MODEL | 9PX5K |
| MPN | 9104-5211-00P |
| UNIT QUANTITY | 1 |
| UNIT TYPE | Unit |
| NUMBER OF OUTLETS | (2) NEMA L6-20R & (2) L6-30R |
| MAXIMUM WATTAGE | 4500W |
| MAXIMUM INPUT CURRENT | 30A |
| FORM FACTOR | Rackmount 3U |
| COUNTRY/REGION OF MANUFACTURE | Philippines |
| ITEM HEIGHT | 5.1" |
| ITEM LENGTH | 28.4" |
| ITEM WIDTH | 17.3" |
Eaton 9PX5K Double-Conversion On-Line 5000VA 4500W 208V-240V Rackmount 3U UPS
Network Card-MS included
Condition: Item is Refurbished by seller, Load Tested, New Internal Batteries (1Year Warranty on Batteries)
Warranty: 1 year warranty on the Batteries 30Days on the UPS from Seller
Options: UPS is configured as Rack-mountable and Comes with Full Rail/Ears kit
Manufacturers Link Interact With a 9PX
| General | |
| Topology | Double-conversion online |
| Configuration | Rack/Tower |
| Catalog Number | 9PX5K |
| Color | Black and silver |
| Rating (VA/Watts) | 6000/5400 |
| Diagnostics | Full system self test at power up |
| UPS Bypass | MBP6K208 optional |
| Dimensions (H x W x D, inches) | 5.1 (3U) x 17.3 x 28.4 |
| Dimensions (H x W x D, mm) | 130 (3U) x 439 x 721 |
| Weight (kg) | 48 |
| Weight (lbs) | 106 |
| Warranty | 1 year |
| Rail Kit Included | 4-post rail kit and tower pedastals included |
| Remote Emergency Power off (REPO) | ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off) |
| Contents (Ships with the following items) |
9PX5K 5 kVA UPS Network-MS Web/SNMP card 4-post rail kit |
| Electrical Input | |
| Connection |
(1) Terminal block with L6-30P
 |
| Input Cord | 6 feet (1.8 meters) |
| Input Voltage Range | Full load: 176-276V, Derating: 100-276V |
| Nominal Voltage | 208V default (200/208/220/230/240V) |
| Frequency | 50/60 Hz |
| Frequency Range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Input Power Factor | >99 |
| Input Current Distortion | <5% |
| Electrical Output | |
| Nominal Voltage | 208V default (200/208/220/230/240V) |
| Output voltage regulation | ±1% steady-state |
| Voltage THD | <2% for linear loads |
| Output Receptacles |
(2) NEMA L6-20R
 (2) NEMA L6-30R
 Hardwired - see manual for terminal block layout
 |
| Power Factor | 0.9 |
| Transfer Time | 0 ms |
| Circuit Breaker | (2) 20A for L6-20R |
