Product View
Product Details
Product Parameter

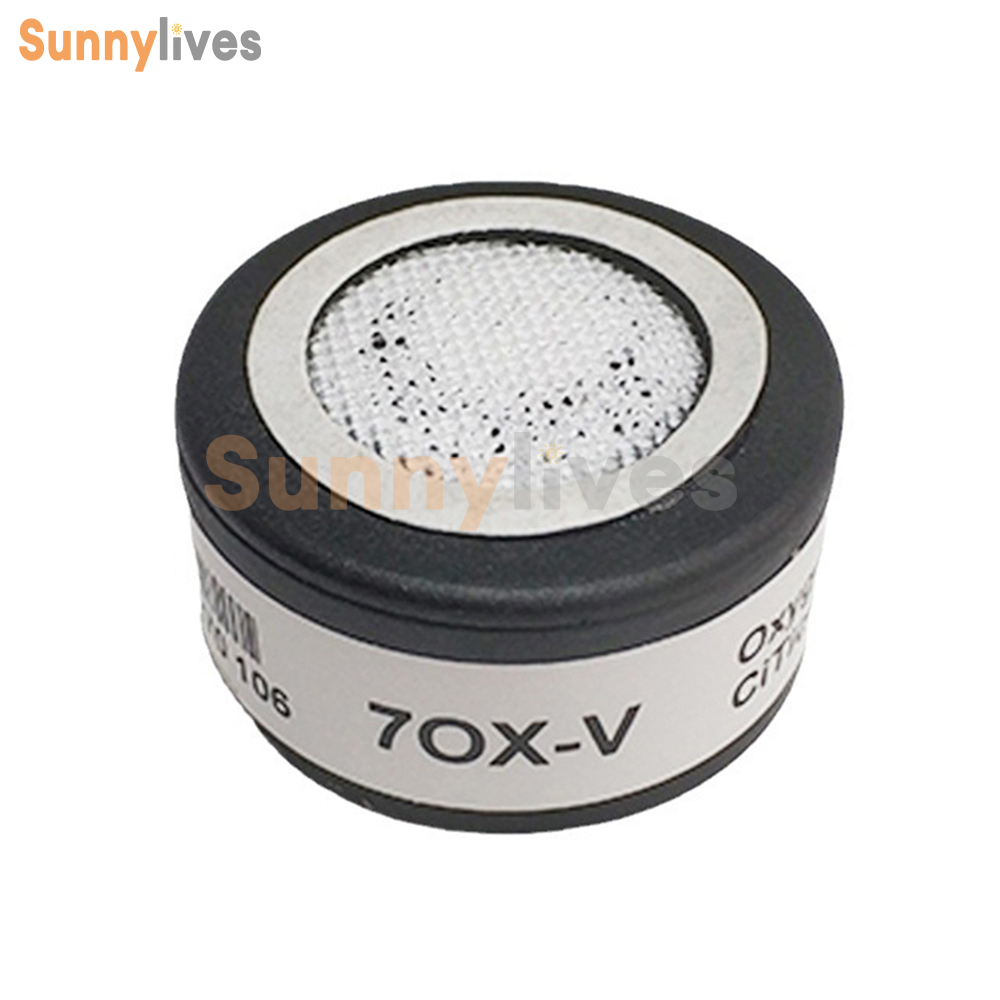

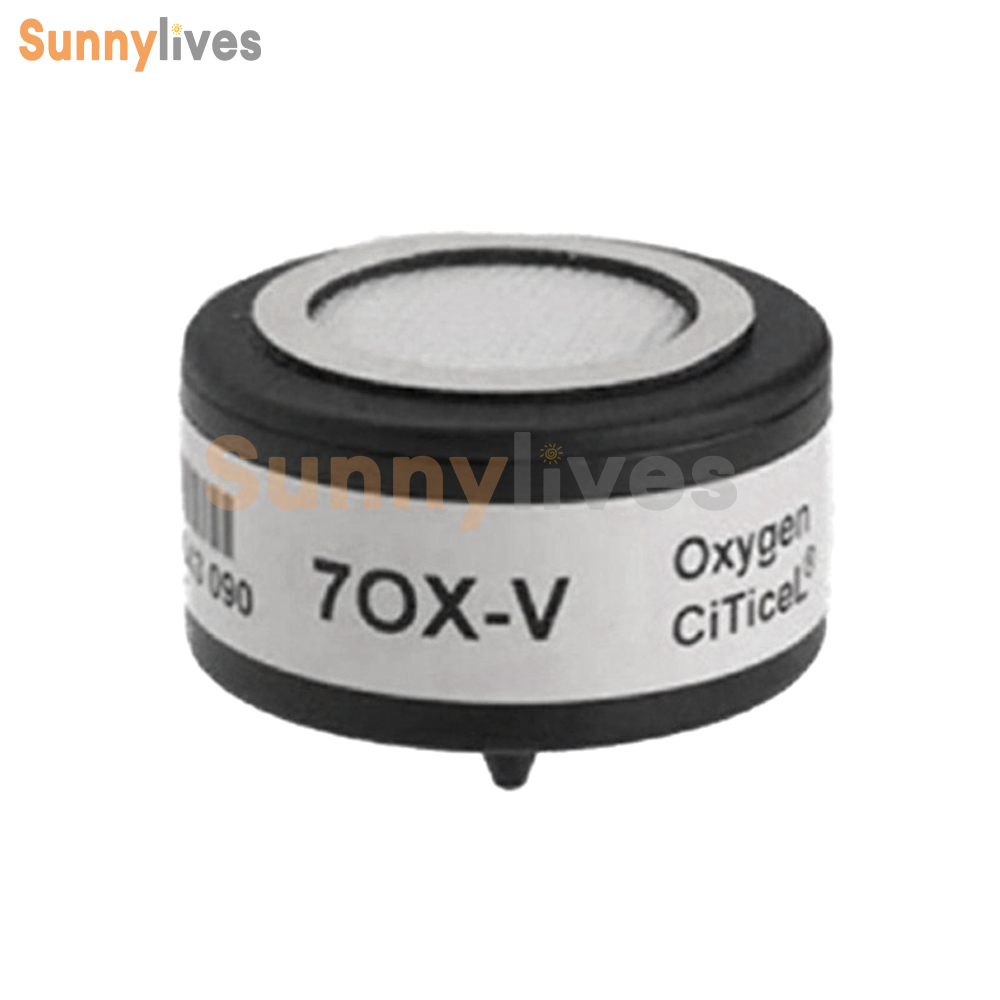

UK CITY 70X-V Oxygen Sensor
Nominal Measuring Range: 0-25
Service life: 2 years (in air)
Overload: 30%
Output signal: 0.195- 0.25mA (in air)
Response time: ≤15s
Temperature range: -20°C to +50°C
Temperature coefficient: 0.2% signal/°C
Long-term output drift: <5% signal loss/year
Absolute pressure range: 10% of atmospheric pressure

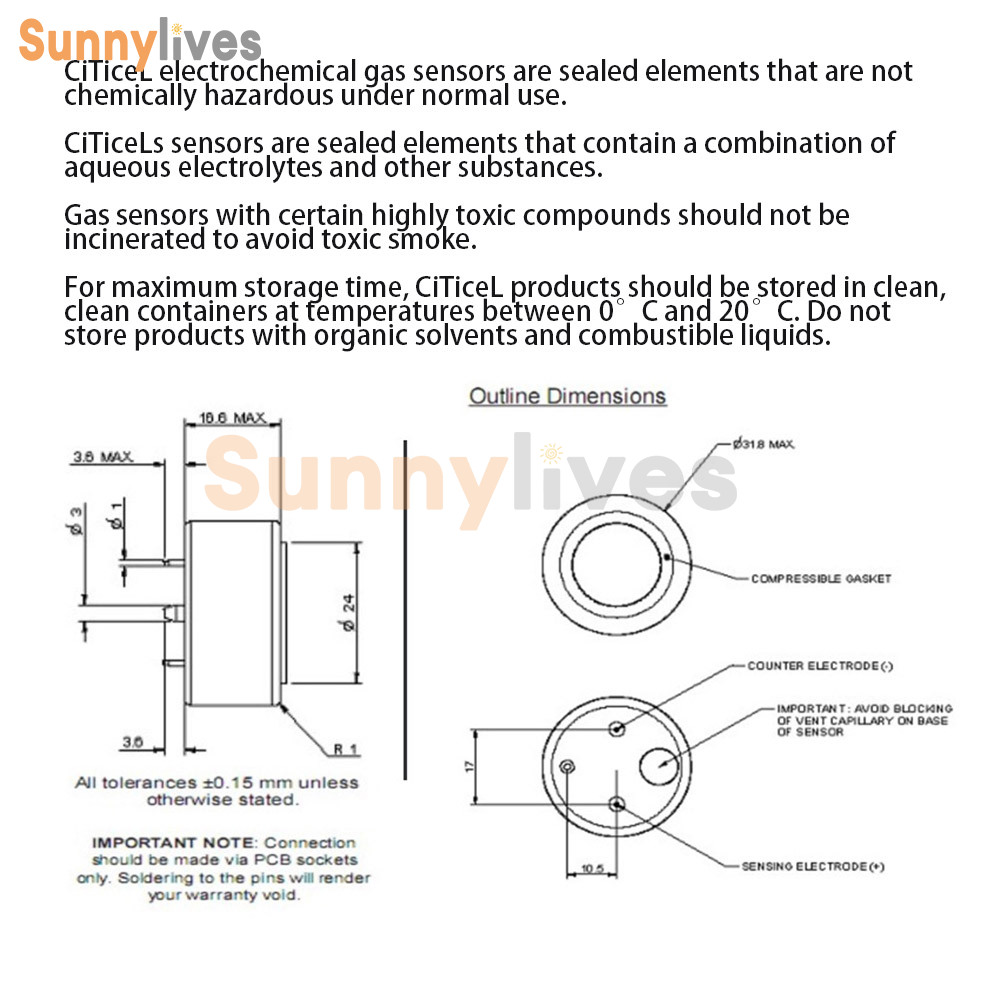

UK CITY 70X-V Oxygen Sensor Knowledge
CiTiceL electrochemical gas sensors are hermetically sealed components that are not chemically hazardous under normal use.
CiTiceLs sensors are hermetically sealed components containing a combination of aqueous electrolytes and other substances.
Gas sensors with certain highly toxic compounds should not be incinerated to avoid the generation of toxic fumes.
For maximum storage time, CiTiceL products should be stored in clean, clear containers at temperatures between 0°C and 20°C Do not store products with organic solvents and flammable liquids.
UK CITY 70X-V Oxygen Sensor
Nominal Measuring Range: 0-25
Service life: 2 years (in air)
Overload: 30%
Output signal: 0.195- 0.25mA (in air)
Response time: ≤15s
Temperature range: -20°C to +50°C
Temperature coefficient: 0.2% signal/°C
Long-term output drift: <5% signal loss/year
Absolute pressure range: 10% of atmospheric pressure
UK CITY 70X-V Oxygen Sensor Knowledge
CiTiceL electrochemical gas sensors are hermetically sealed components that are not chemically hazardous under normal use.
CiTiceLs sensors are hermetically sealed components containing a combination of aqueous electrolytes and other substances.
Gas sensors with certain highly toxic compounds should not be incinerated to avoid the generation of toxic fumes.
For maximum storage time, CiTiceL products should be stored in clean, clear containers at temperatures between 0°C and 20°C Do not store products with organic solvents and flammable liquids.
Shipping List
Sensor Module*1
Sensor Module*1
