The 12G-SDI Fiber Optic Extender is designed for long-distance transmission of uncompressed SDI video signals over single-mode optical fiber. It supports full SDI formats from SD-SDI to 12G-SDI, delivering high-quality video up to 4K@60Hz without latency or signal loss.

With strong anti-interference capability and stable performance, it ensures reliable operation in demanding environments. The LC SFP optical interface supports transmission distances up to 20KM (depending on module type).

The built-in SDI loop out enables simultaneous local monitoring while transmitting the signal to a remote location, making it ideal for broadcast, live production, and professional video applications.

Featuring automatic signal detection, built-in equalization, and ESD protection, the device ensures stable transmission and clear image quality. Its plug-and-play design and flexible power options ( 5–12V or rack-mounted power supply) make it suitable for both fixed installations and mobile use.

Key Features

• Supports SD-SDI / HD-SDI / 3G-SDI / 6G-SDI / 12G-SDI signals
• Resolution up to 4K@60Hz
• Compatible with SMPTE ST-2082 / ST-2081 / 424M / 292M / 259M and DVB-ASI
• LC SFP optical interface (single-mode fiber)
• Transmission distance up to 20KM
• SDI loop out for real-time local monitoring
• Uncompressed, low-latency transmission
• Automatic signal detection and built-in equalization
• ESD protection for stable operation
• Plug and play, no configuration required
• Flexible power input:  5–12V or rack-mounted power supply

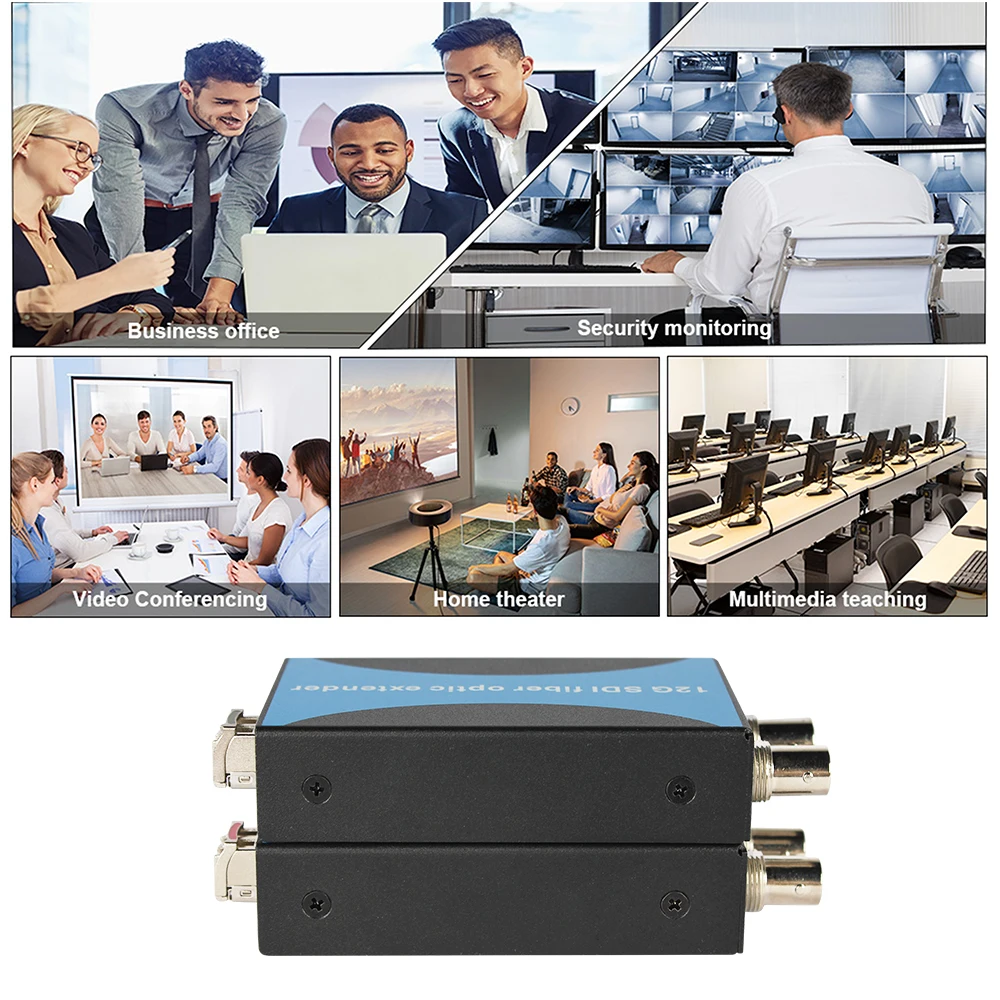

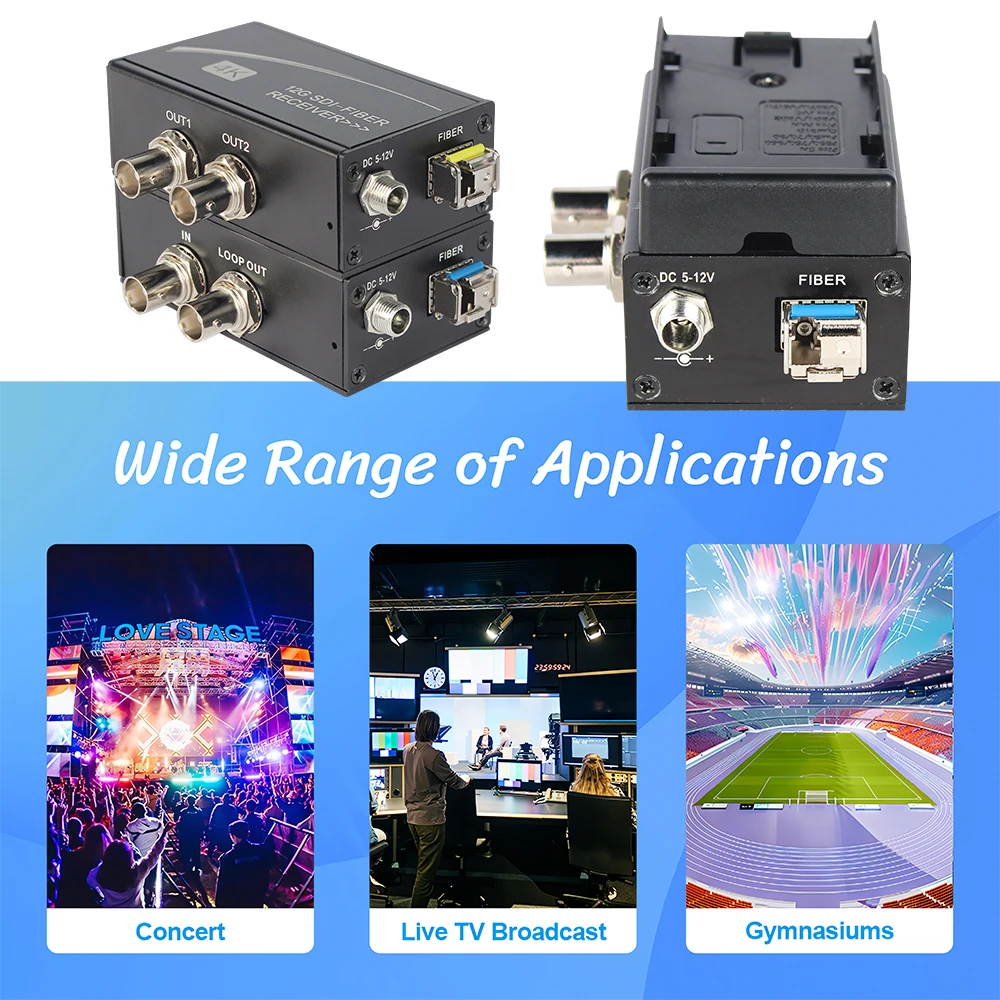

Applications

• 4K UHD video transmission over long distance
• Broadcast and television studios
• Live events and stage production
• Outdoor video signal transmission
• Multimedia control centers and stadiums

Package Includes

• 1 × 12G-SDI Fiber Transmitter
• 1 × 12G-SDI Fiber Receiver

Technical Specifications

Video Interface
1 × SDI Input (BNC 75Ω)
1 × SDI Output / Loop Out (BNC 75Ω)

Supported Formats
SD-SDI: 480i, 576i
HD-SDI: 720p50/60, 1080i50/60, 1080p24/25/30
3G-SDI: 1080p50/60
6G-SDI: 4K@30Hz
12G-SDI: 4K@60Hz

Standards
SMPTE ST-2082 (12G-SDI)
SMPTE ST-2081 (6G-SDI)
SMPTE 424M / 292M / 259M
DVB-ASI

Optical Interface
LC SFP (Single-mode)
Wavelength: 1310 / 1550nm
Bandwidth: 12Gbps
Distance: 20KM

Power 5–12V
Power Consumption: 3W (per unit)

Environment
Operating Temperature: -20°C to +75°C
Humidity: 5%–90% (non-condensing)
