JABO Spheric Wave Horn Kh 30 Rohversion White Primed Horn Gfk Fibre Glass 1 Pair

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.


Logo Art of Sound
 To the shop
 Reviews


Trust our many years of experience

in loudspeaker construction and electronics retail.
  • Known from Hobby Hifi and Klang+Ton
  • 35 years of building your own loudspeakers
  • 30 years authorized specialist dealer

Shipping from Germany!

ITEM DESCRIPTION

JABO KH-30

RAW VERSION

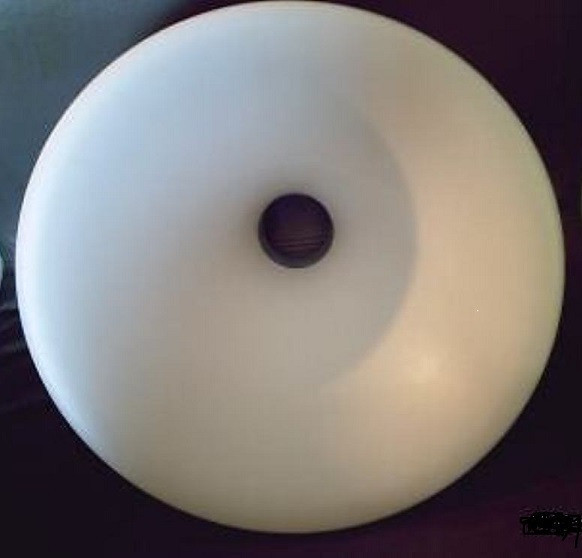

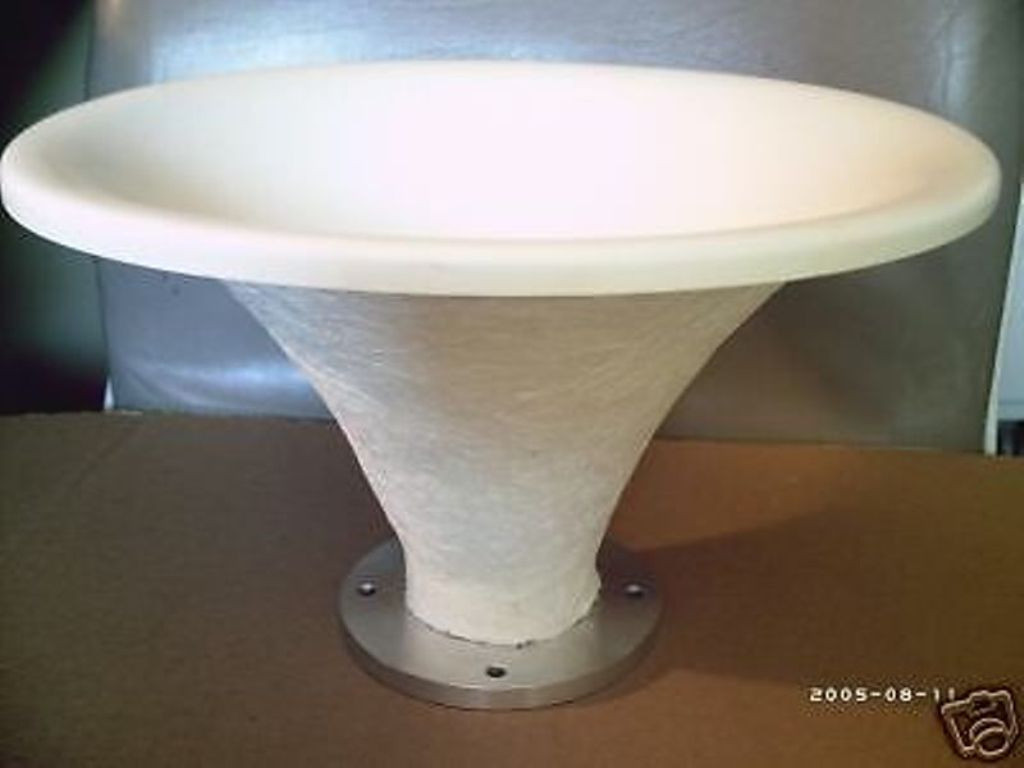

JABO KH-30 ball shaft horn primed

1 PAIR
RAW VERSION

Product Name: KH-30
Box contents: 1 pair
Price: 490.00  (incl. VAT)
Buy now

JABO
BALL SHAFT HORN
KH-30

Raw horn primed white
High gloss color: aA

EXTRAVAGANT BALL SHAFT HORN WITH FUNNEL DIAMETER 31 CM AND CONSTANT DIRECTIVITY BEAM BEHAVIOR INCL. ADAPTER FOR 2" DRIVER

Optimized horn curve calculated and developed specifically for JABO (no Tractrixhorn) !
With these horns you can create real dream speakers!

Product info

  • Laminated on a polyester base (GRP) - resonance-free playback over the entire range!
  • Diameter 31 cm - Length 18.5 cm - Cut off frequency 500 Hz (with DSP processor from 350 Hz!)
  • rec. Crossover frequency: from 600 Hz
  • Ideal for combination with 16 cm to 20 cm bass drivers (e.g. Fostex FW 168 N or FW 208 N)
  • Also available with a high-gloss finish in the color of your choice for an additional charge

- CUT OFF FREQUENCY: 350 HZ - IDEAL MID-TREWETER COMPLEMENT WITH COAX DRIVER BMS 4590 or mid-range driver BMS 4591 TO SMALLER BASS HORNS (e.gAOS BK 169 WITH 16 CM BASS DRIVER) - WITH ADAPTER FOR 2" DRIVER (opening 50 mm) - SEPARATION FREQUENCY 500 HZ - Weight: 2.6 kg (pair)

Planned: Version with 1" adapter (aA)

Screw hole spacing diagonally: 101.6 mm



 Specify RAL number for any other color



ENTER THE HIGHEST LEVEL OF HORN TECHNOLOGY

Box contents: 1 PAIR












Payment methods:


EBAY processing

Shipping on the same working day via DHL

if payment is received by 2:00 p.m






Return service:

DHL
For international members:
We will send our stuff worldwide. Please ask us for the price to deliver in your country.
SET WITH
EXTRAVAGANT BALL SHAFT HORN WITH FUNNEL DIAMETER 31 CM AND CONSTANT DIRECTIVITY BEAM BEHAVIOR INCL. ADAPTER FOR 2" DRIVER Optimized horn curve calculated and developed specifically for JABO (no Tractrixhorn) ! Diameter 31 cm - Length 18.5 cm - Cut off frequency 500 Hz (with DSP processor from 350 Hz!) Ideal for combination with 16 cm to 20 cm bass drivers (e.g. Fostex FW 168 N or FW 208 N) Also available with a high-gloss finish in the color of your choice for an additional charge - CUT OFF FREQUENCY: 350 HZ - IDEAL MID-TREWETER COMPLEMENT WITH COAX DRIVER BMS 4590 or mid-range driver BMS 4591 TO SMALLER BASS HORNS (e.gAOS BK 169 WITH 16 CM BASS DRIVER) - WITH ADAPTER FOR 2" DRIVER (opening 50 mm) - SEPARATION FREQUENCY 500 HZ - Weight: 2.6 kg (pair) We will send our stuff worl
