Instructions:
    【Split-phase Parallel Solar Inverter】This split-phase inverter supports split-phase and single-phase pure sine wave output. One 6500w inverter can also output 120V and 240V simultaneously through different connections. You can upgrade your setup with parallel operation capabilities, expanding up to 39kW with up to 6 units.

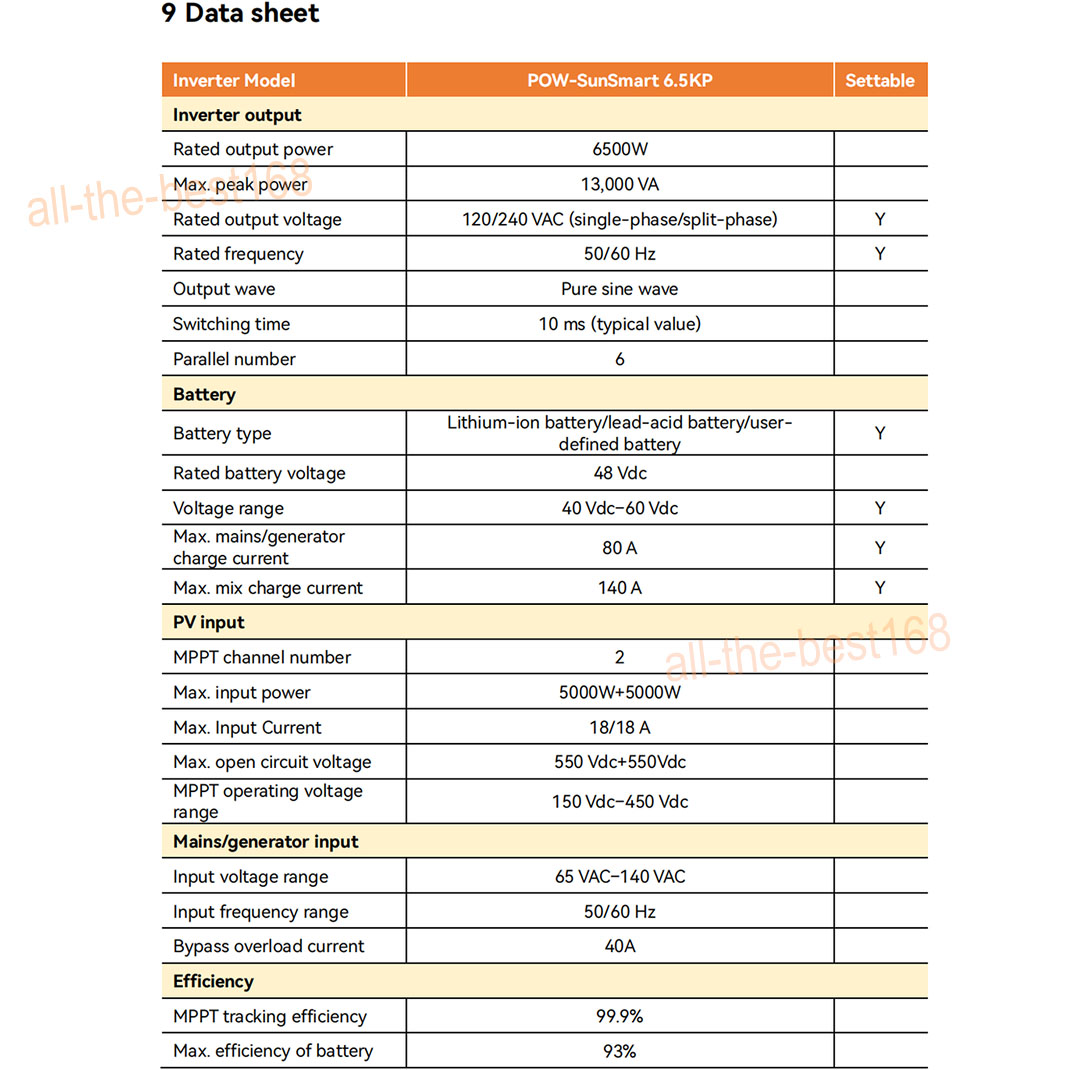

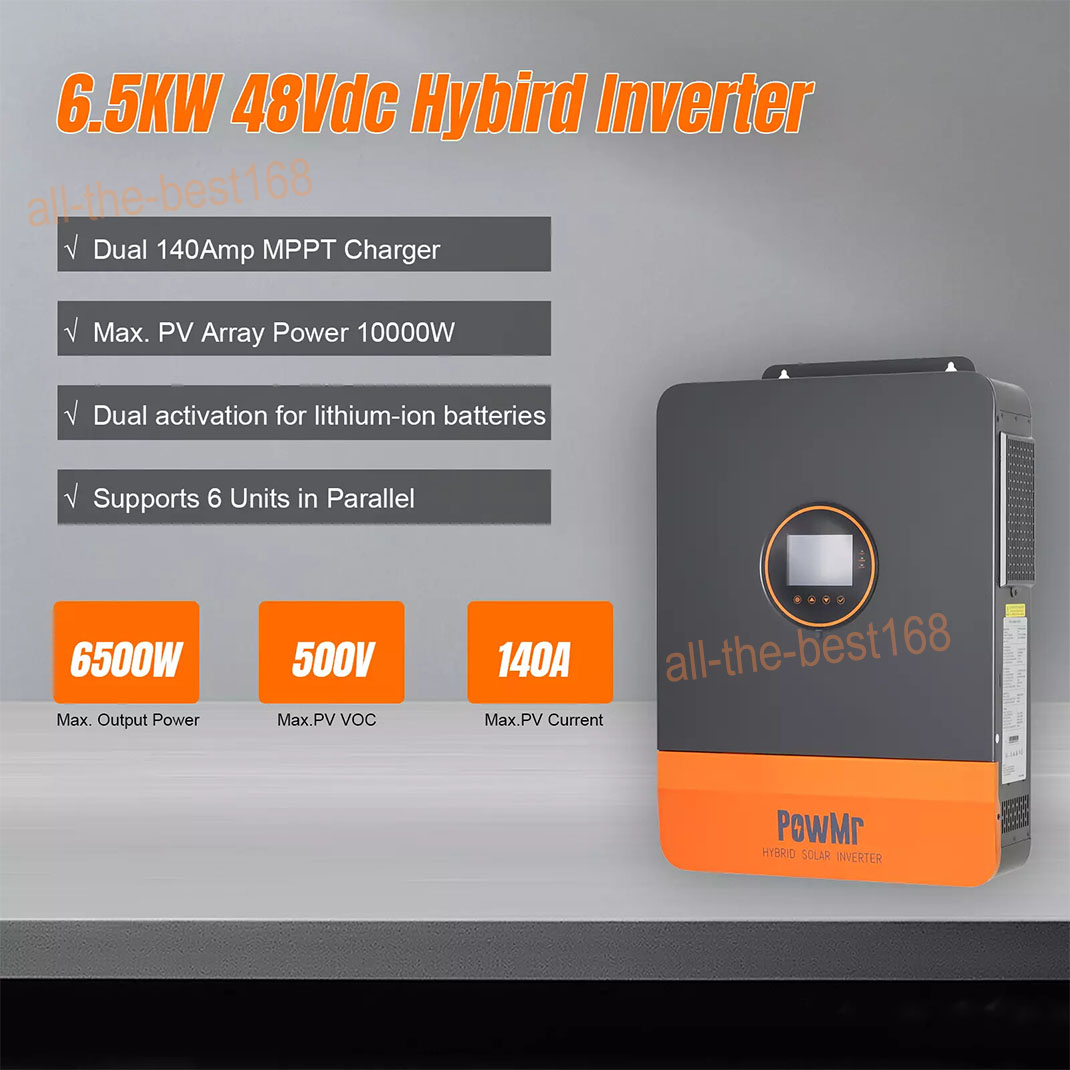

    【TECHNICAL SPECIFICATIONS】Solar Inverter 48V built-in 140A(70*2) MPPT controller and 6.5KW Pure sine wave inverter. Rated Output Power: 6500W continues (Surge 13000W), Rated Output Voltage: 120/240Vac (split phase/single phase), Switch Time: 10ms, Max.PV Input Power: 10KW(5000*2), Max.PV input Voltage: 550Vdc, Max.PV input current: 18A, PV Starting voltage > 150V, PV Wire:12~10AWG. Support CAN, USB, and RS485 communication
    【6.5K INVERTER BUILT-IN DUAL MPPT】Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. Support split-phase and single-phase pure sine wave output
    【CHARGING MODES AND TIME CAN BE SET】6500W Solar Inverter Pure Sine Wave has 4 charging modes that are optional, i.e. only PV, mains first, PV first, and mains + PV; and provide two output modes: mains bypass output and inverter output, achieving uninterrupted power supply

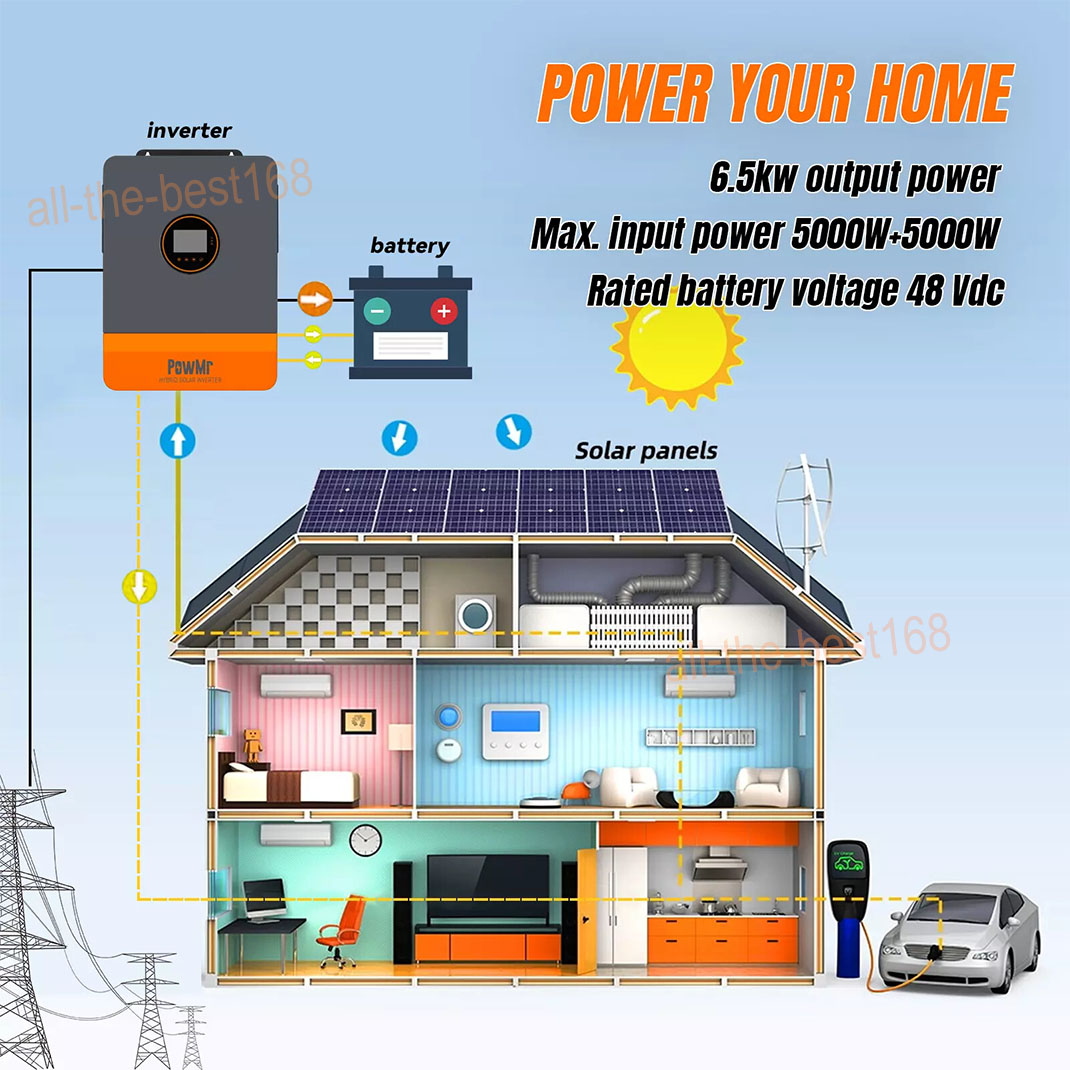

    【360° PROTECTION AND APPLICATIONS】PowMr's 6500W Solar Inverter charger with complete short circuit protection, over-current protection, over-under voltage protection, overload protection, backfill protection, etc, is ideal for off-grid backup and self-use applications. Widely used for home, cabin, camper, RV, trailer, boat, and so on and used as backup supply while utility outages
    【COMPATIBLE WITH VARIOUS BATTERIES】48V split-phase power inverter 6500W is compatible with AGM, Gel, Lead acid, Lithium-ion, and LiFePO4 batteries, and support batteryless. Supports solar, utility, or generator power to charge the battery. It can flexibly schedule the Inverter charging and discharging time. With a dual activation function when the li-ion battery is dormant; either mains / photovoltaic power supply access can trigger the activation of the Li-ion battery


Advantages:
⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the Li-ion battery.

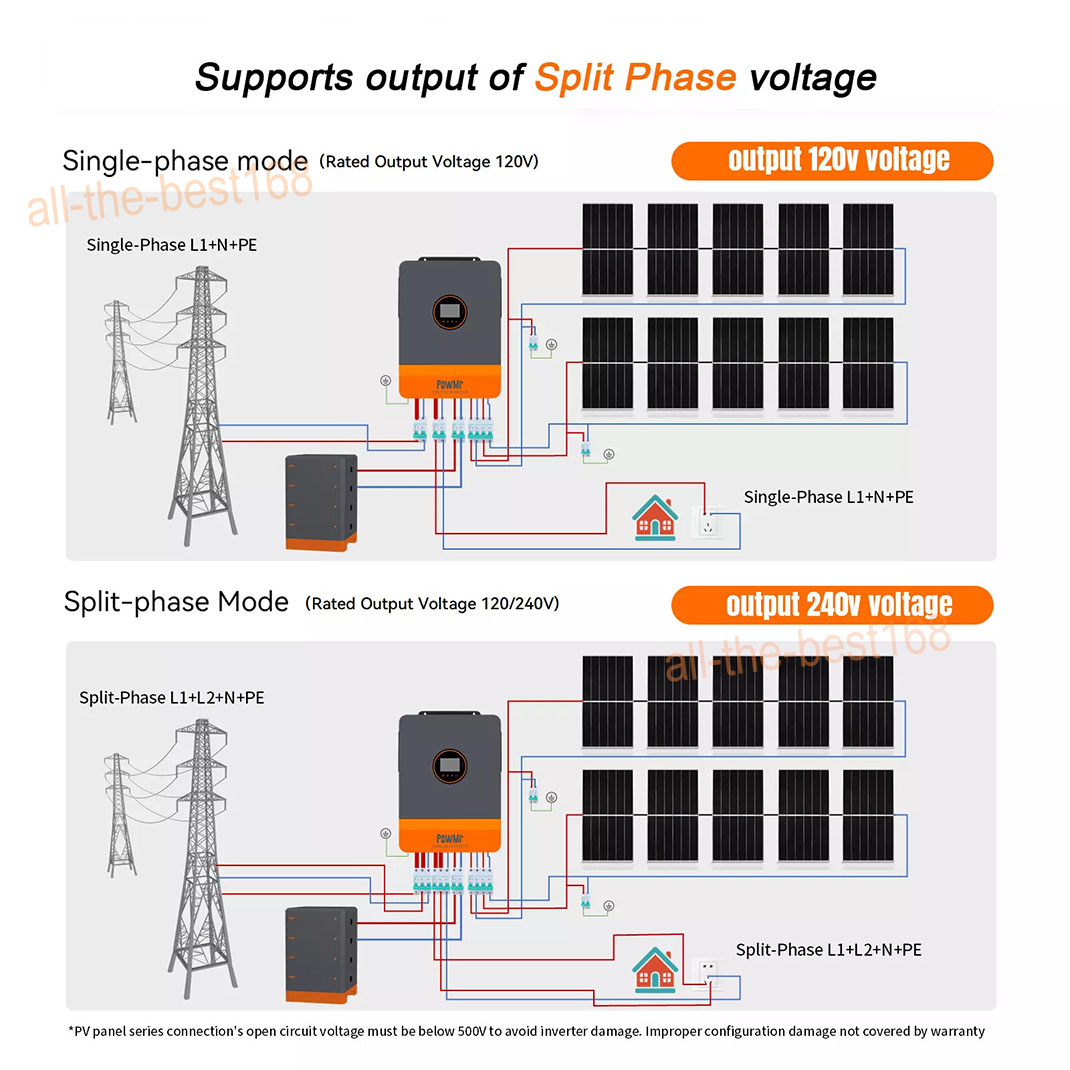

⚫ Support split-phase and single-phase pure sine wave output.
⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules.

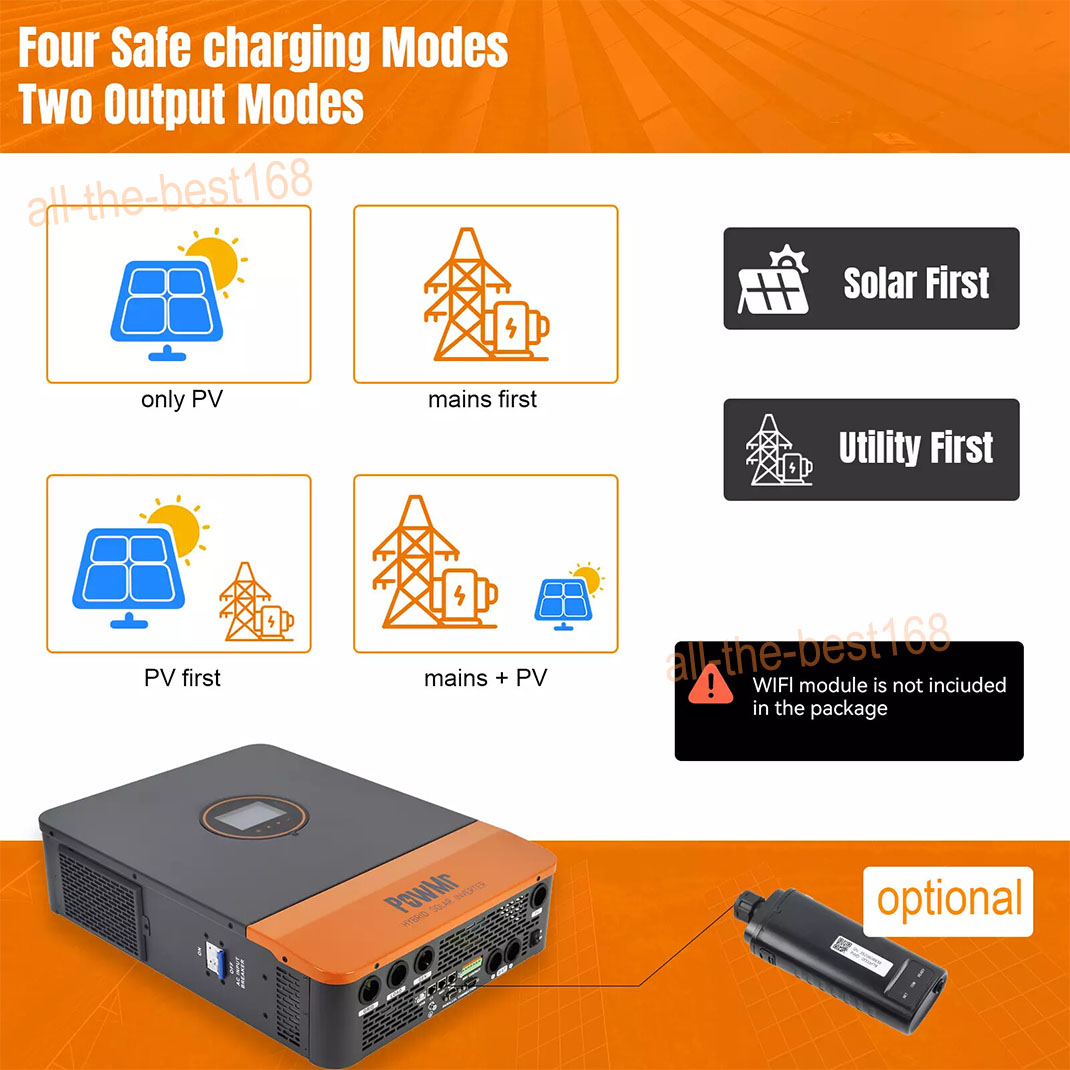

⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

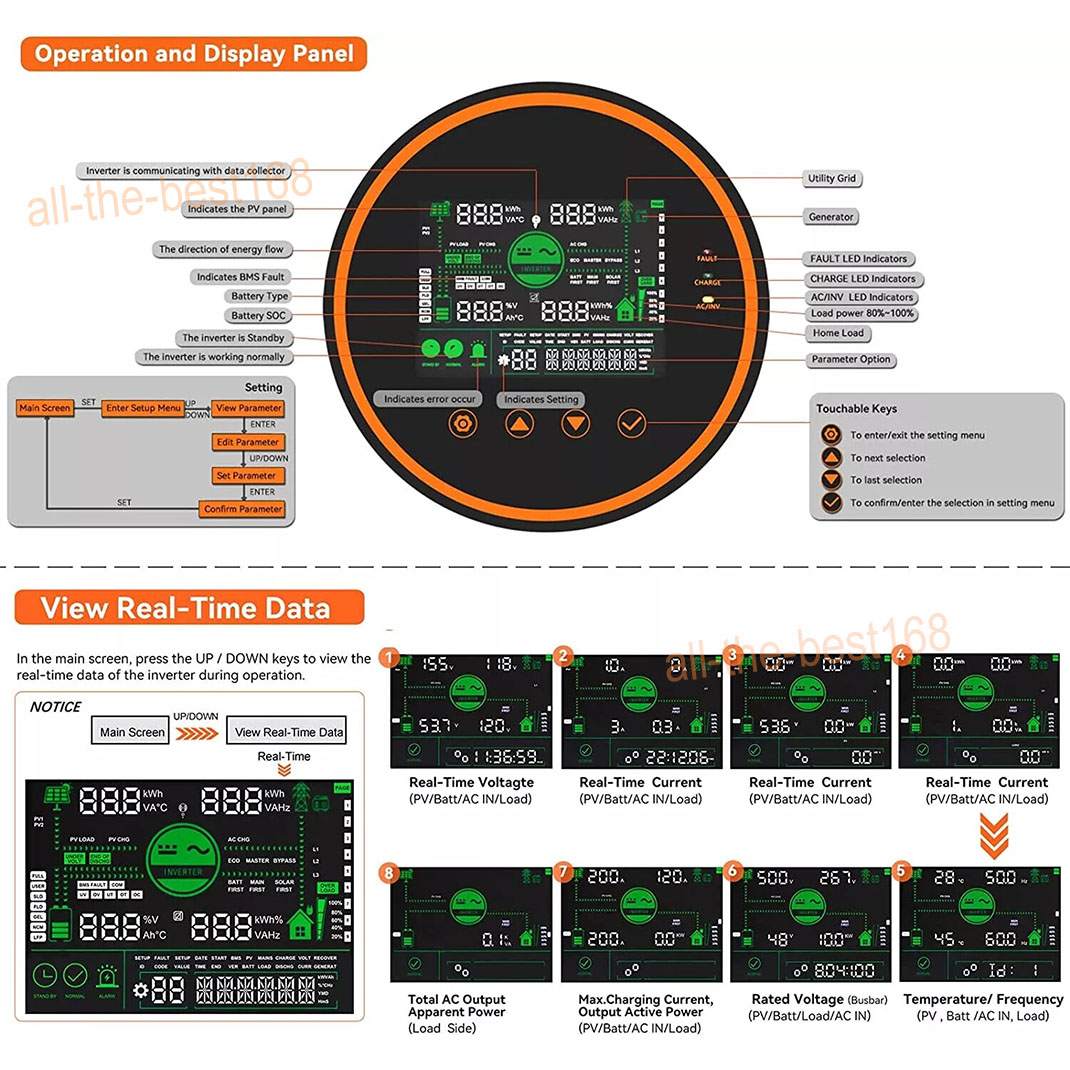

⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and
operation status.

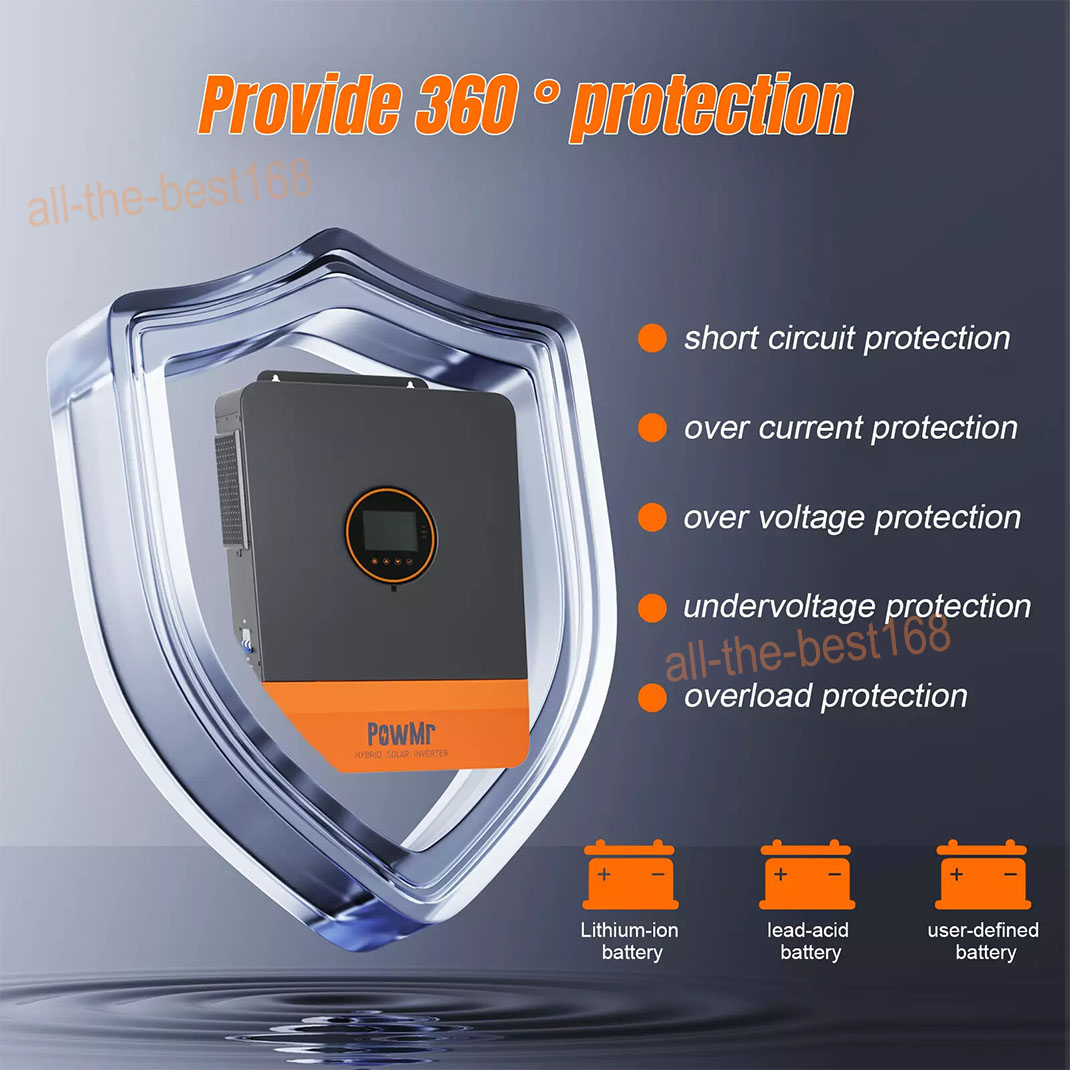

⚫ 360° protection with complete short circuit protection, over-current protection, over under voltage protection, overload protection, backfill protection, etc.

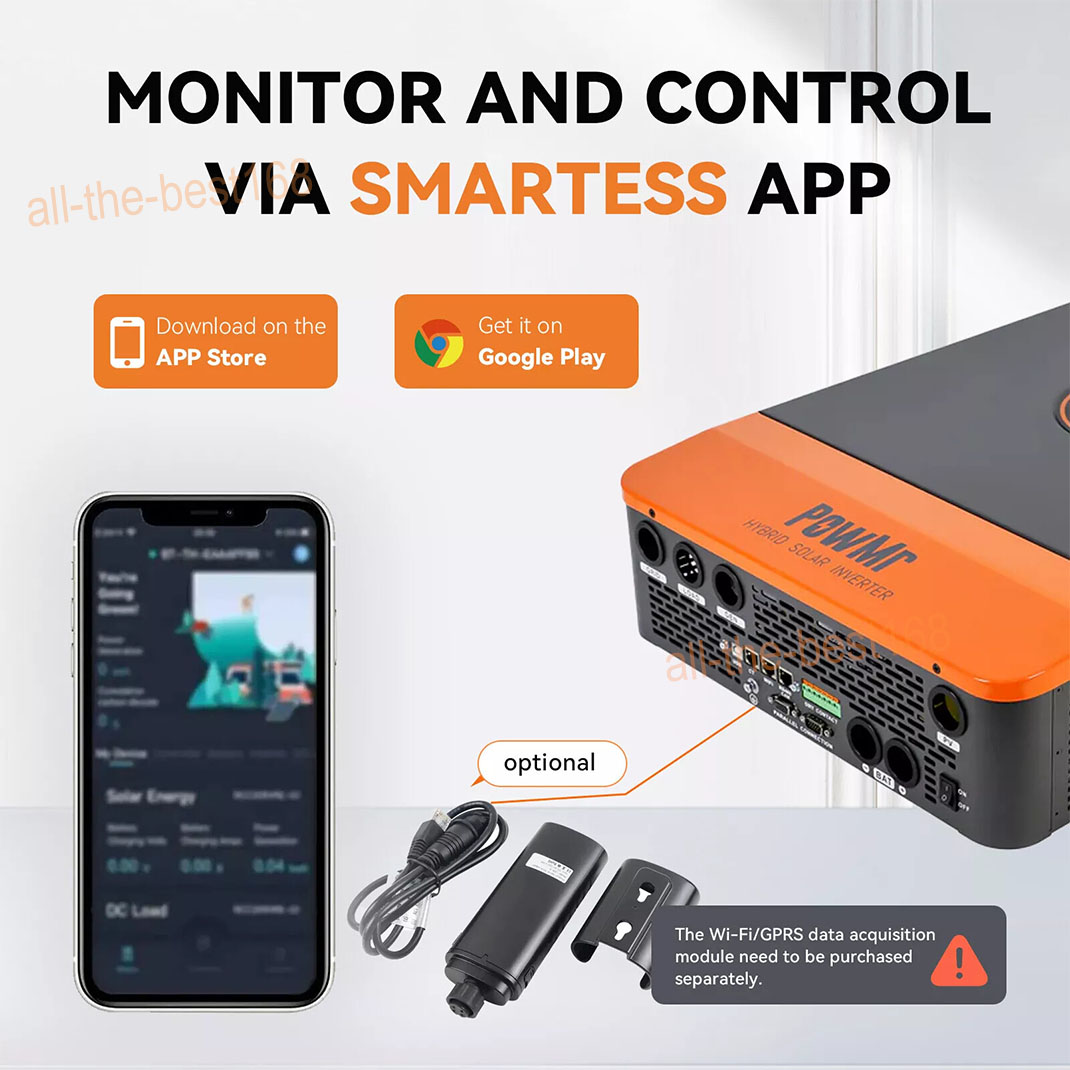

⚫ Support CAN, USB, and RS485 communication.


Keywords:
⚫ Single phase/split phase/three phase
⚫ 120/208/240V AC output(208V 3-Phase support ，3 unit parallel)
⚫ Off-grid & on-grid
⚫ 2 MPP Tracker

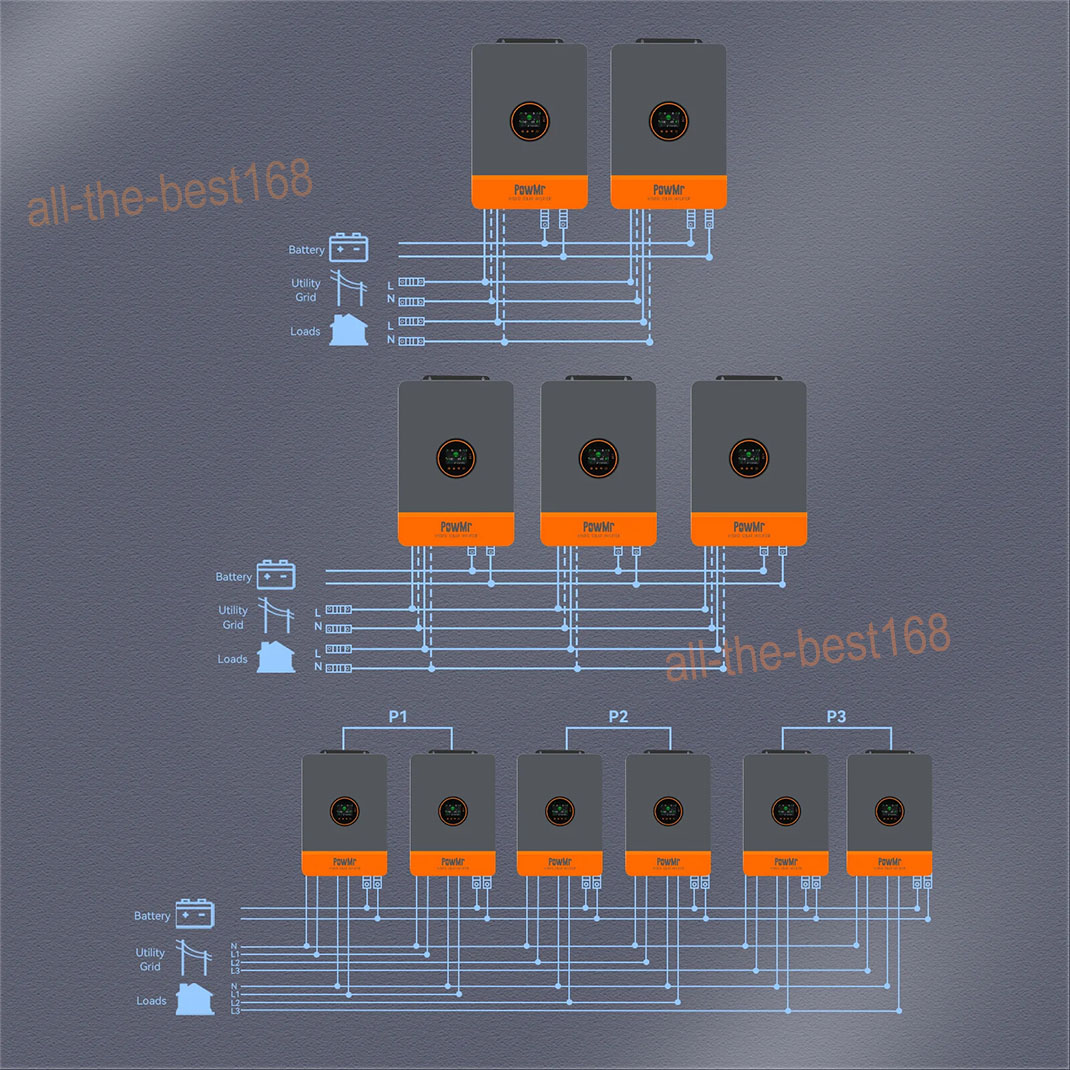

⚫ Parallel operation

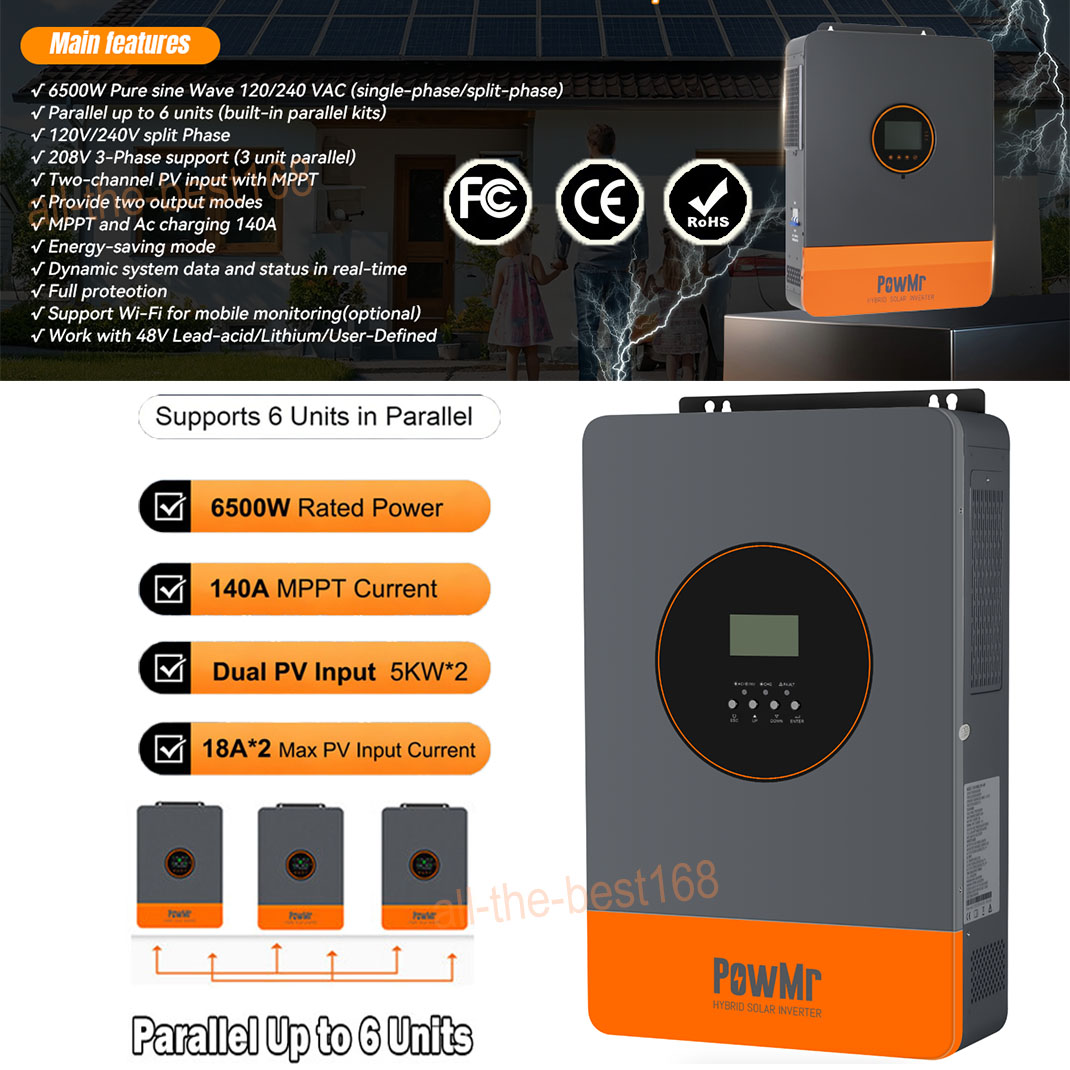

Characteristic:
⚫ Off-grid & on-grid pure sine wave inverter.

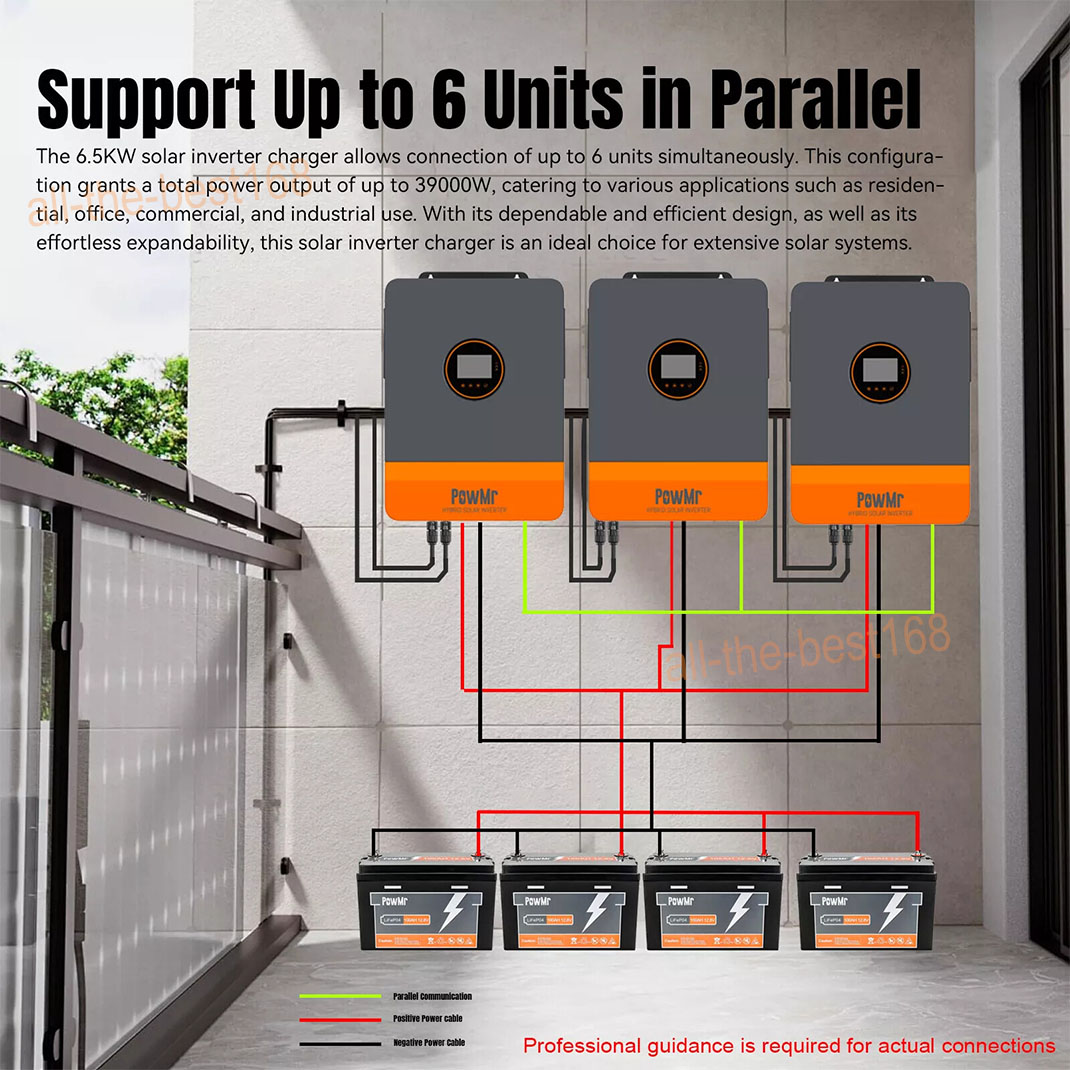

⚫ The Maximum number of parallel connections is 6.
⚫ Higher output power up to 6500W.
⚫ 120/208/240Vac AC output.
⚫ Supports single-phase/split-phase/three-phase devices.
⚫ Compatible with 48V lithium-ion and lead-acid batteries, support user-define.
⚫ Fast switching time of 10ms.

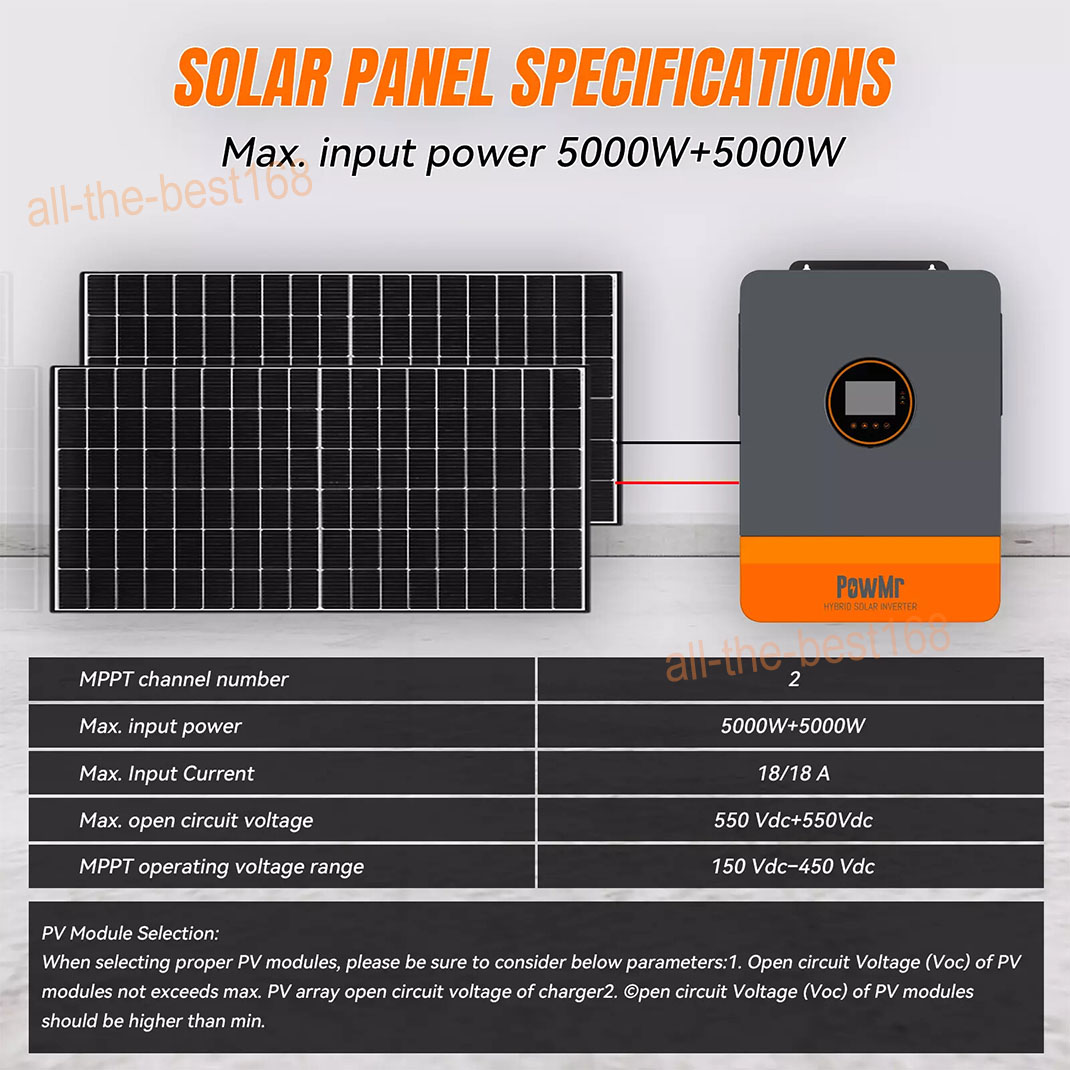

⚫ Max PV input power is 5000W+5000W.
⚫ Max PV open circuit voltage is 550 Vdc+550Vdc.
⚫ Max. mix charge current up to 140A.
⚫ Max. mains/generator charge current  to 80A.
⚫ MPPT operating voltage range 150 Vdc−450 Vdc.
⚫ 40 Vdc−60 Vdc Battery voltage range.
⚫  MPPT channel number are 2.
⚫ 65 VAC−140 VAC Input voltage range for Mains/generator input .
⚫ Timed power charge/discharge function.
⚫ Energy saving mode function to reduce no-load energy losses.

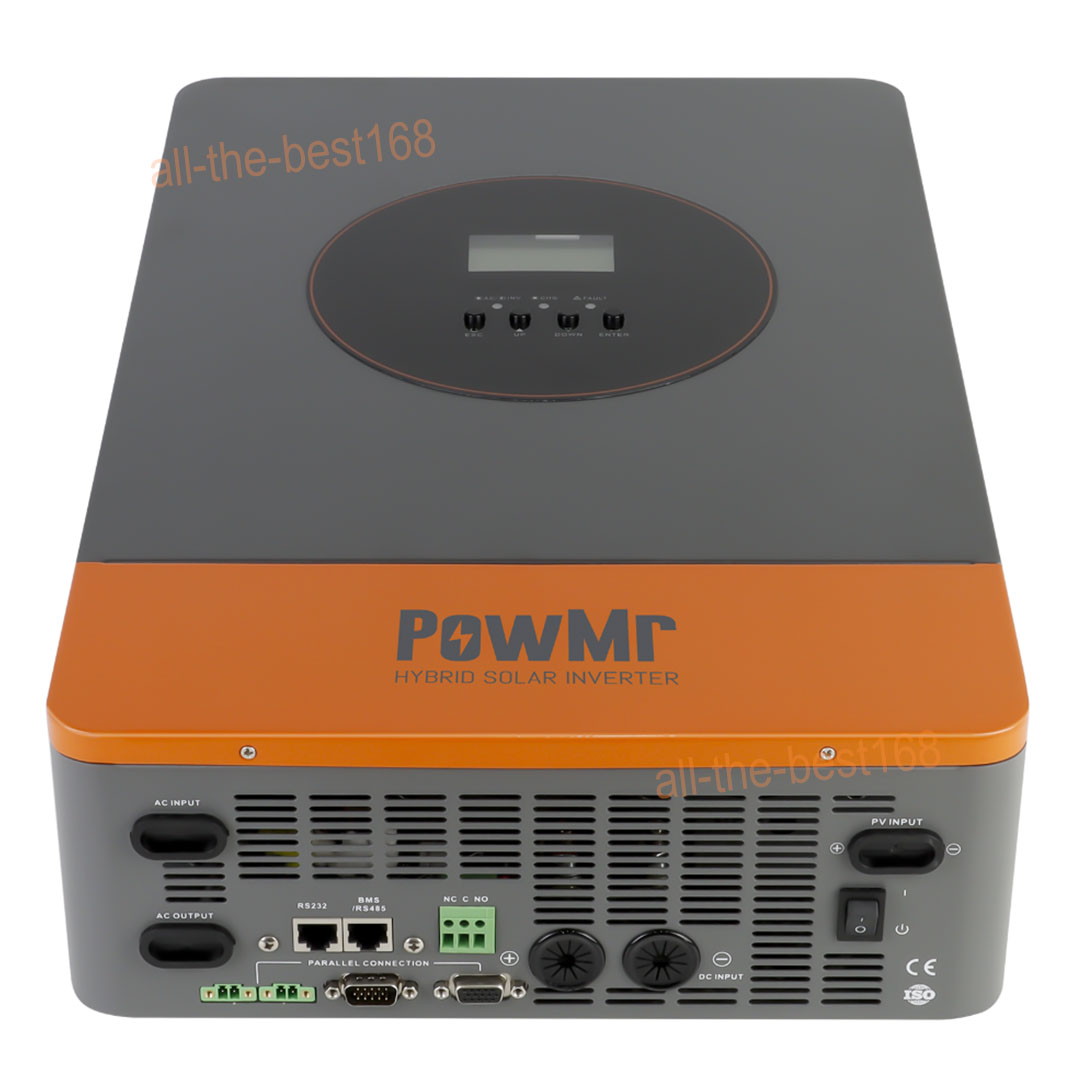

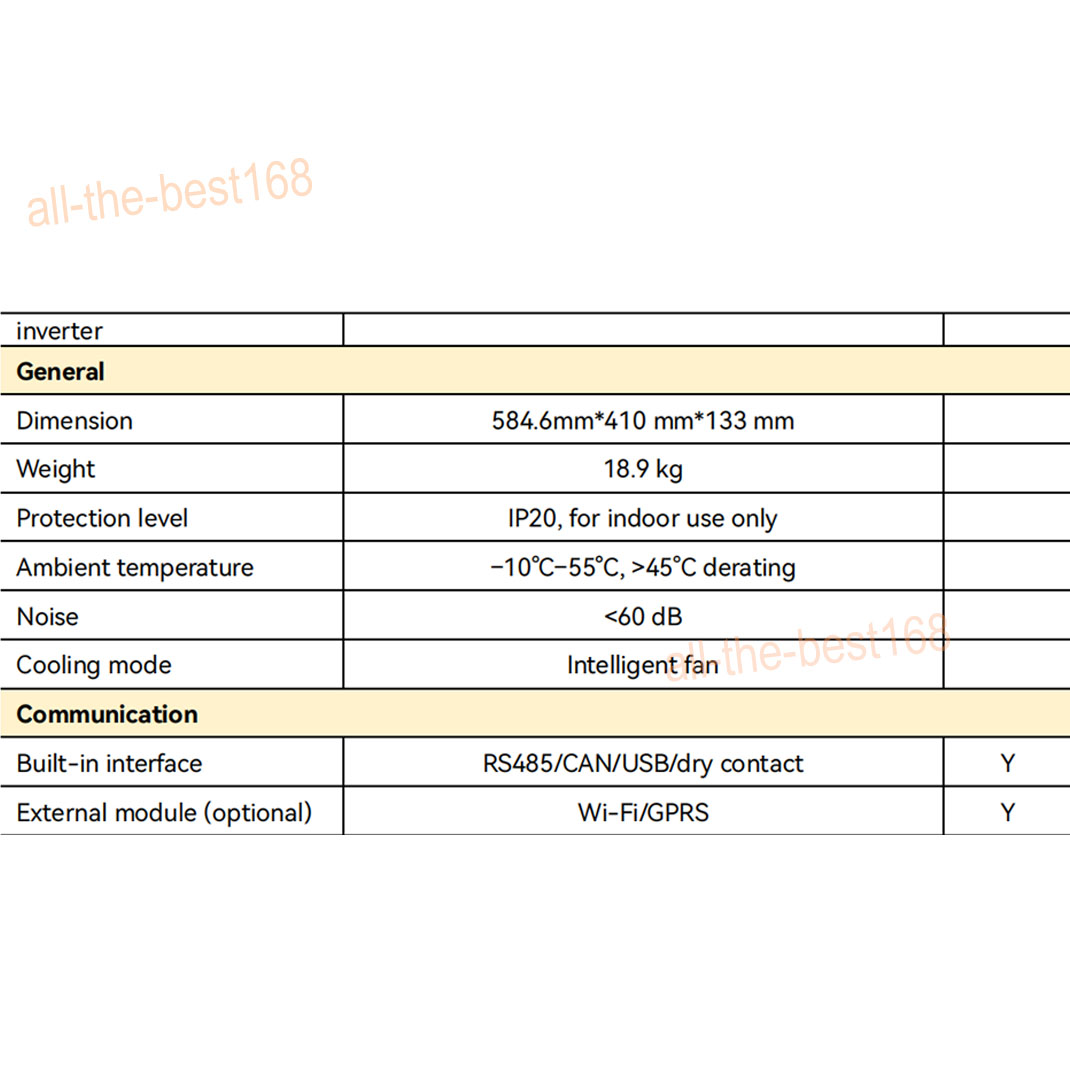

⚫ Configure multiple communication interfaces (RS485/CAN/USB/dry contact).
⚫ Durable finish with high anti-corrosion.
⚫ Effective forced air cooling to ensure that the equipment runs stably.
