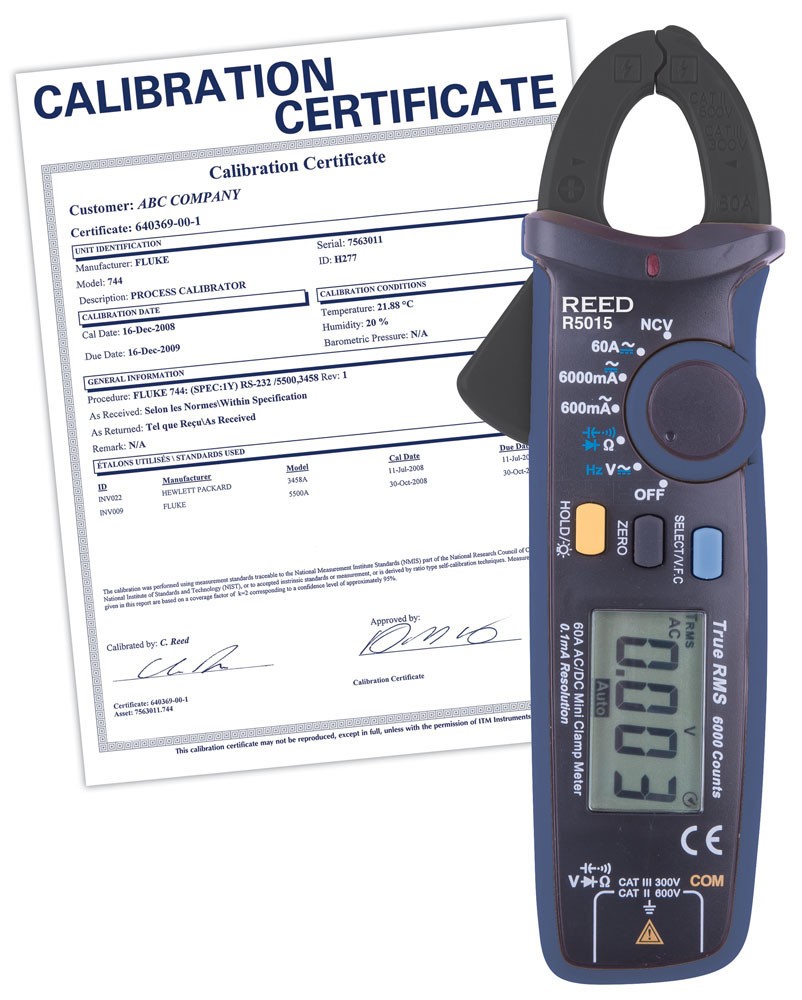

REED Instruments R5015-NIST True RMS mA Clamp Meter,

Model: R5015-NIST | Order No:R5015-NIST

Compact mA clamp meter with built-in non-contact voltage detector.

Brand:	REED
Model:	R5015-NIST
Order No:	R5015-NIST
Condition:	NEW

Description

REED Instruments R5015-NIST True RMS mA Clamp Meter,

This compact auto-ranging mA clamp meter is capable of measuring AC/DC current/voltage, resistance and capacitance. The R5015 features high resolution AC/DC mA readings on a 6000-count backlit LCD display, diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Format->drawDescription($name, $product ); ?>

Features

Measures AC/DC current/voltage, resistance and capacitance
High resolution 0.1 mA (AC) and 1 mA (DC)
True RMS for AC current/voltage
6000-count backlit LCD display
Built-in non-contact voltage detector with LED indicator
V.F.C (variable frequency control) mode for air-conditioner maintenance and diagnostics
Low battery and over range indicators
Diode test and continuity check functions
Durable double molded plastic housing
CAT. II 600V, CAT. III 300V safety rating
Auto shut-off

Included

R5015 mA Clamp Meter
Format->drawIncluded($name, $product ); ?>
Test Leads
Batteries
Soft Carrying Case

Specifications

AC/DC Current
Range	AC: 600mA, 6000mA, 60A / V.F.C 600mA-60A DC: 6000mA, 60A
Accuracy	AC (@ 50/60Hz): 600mA ±(1.5% rdg. +10 dgt.) 6000mA±(2.5% rdg. +5 dgt.) 60A±(2% rdg. +5 dgt.) V.F.C ±(4% rdg. +10 dgt.) DC: 6000mA±(2% rdg. +5 dgt.) 60A±(2% rdg. +3 dgt.)"
Resolution	AC: 0.1mA, 1mA, 0.01A / 0.1mA, 0.01A DC: 1mA, 0.01A
AC/DC Voltage
Range	AC: 6, 60, 600V / V.F.C 200-600V DC: 600mV, 6, 60, 600V
Accuracy	AC: ±(0.8% rdg. +3 dgt.) / ±(4.0% rdg. +3 dgt.) DC: 600mV ±(0.7% rdg. +5 dgt.) ±(0.7% rdg. +3 dgt.)
Resolution	AC: 1mV, 10mV, 0.1V, 1V / 0.1V DC: 10µV, 1mV, 10mV, 0.1V
Resistance
Range	600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
Accuracy	600Ω: ±(1% rdg. +2 dgt.) 6/60/600kΩ: ±(0.8% rdg. +2 dgt.) 6MΩ: ±(1.2% rdg. +3 dgt.) 60MΩ: ±(1.5% rdg. +5 dgt.
Resolution	1pF, 10pF, 100pF, 1nF, 10nF, 100nF, 1μF, 10μF
Capacitance
Range	6.2nF, 62nF, 620nF, 6.2μF, 62μF, 620μF,6.2mF,62mF
Accuracy	6.200nF±(4%+10) 62.00nF~ 620.0μF ±(4%+5) 6.200mF~ 62.00mF ±10%
Resolution	1pF, 10pF, 0.1µF, 1µF, 10µF
General Specifications
Range Selection	Autoranging
True RMS	Yes
Display	6,000 count LCD display
Display Hold	Yes
Zero Push Button Adjustment	Yes
Diode Test	Yes
Backlit Display	Yes
Overrange Indicator	Yes
Continuity Check	Audible signal if resistance <10Ω
Non-Contact Voltage Detector	Yes
Autoshut off	Yes (after 15 mins)
Power Supply	2 AAA Batteries
Low Battery Indicator	Yes
Jaw Opening	0.67" (17mm)
Overvoltage Category	CAT. II 600V, CAT. III 300V
Product Certifications	CE, ETL, RoHS
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 122°F (-10 to 50°C)
Dimensions	6.9x 2.4 x 1.3" (175 x 60 x 33.5 mm)
Weight	6oz (170g)
