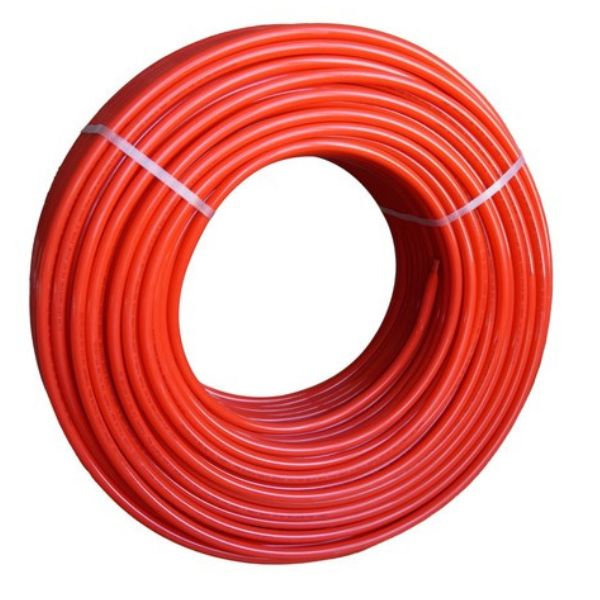

Underfloor Heating Pipe PERT EVOH 16mm - 500m Coil

3 Layer Pipe

---

EVOH 3 layer Underfloor Heating Pipe is intended for use in underfloor heating systems, hot and cold water sanitary and distribution systems, and various heating systems for domestic, commercial, and industrial applications.

Construction and Materials:

Inner Layer: Polyethylene (PE-RT).
Adhesive Layer: An adhesive layer bonds the inner pipe layer to the oxygen barrier.
Oxygen Barrier: An outer layer of ethylene vinyl alcohol copolymer (EVOH). The EVOH barrier complies with DIN 4726, rendering the pipe virtually impervious to gases.

Technical Specifications (for 16mm x 2.0mm Pipe):

Pipe Description: 16mm×2.0mm PE-RT barrier pipe.
Outer Diameter: 16.0–16.3 mm.
Wall Thickness: 2.0–2.3 mm.
Maximum Operating Temperature: 80 ∘ C.
Minimum Bending Radius: 150mm.
Thermal Conductivity: 0.45 W/m C.
Coefficient of Linear Expansion: 0.18 mm/m K.
