Temperature Sensor PT100 with RS485 Transmitter for MODBUS RTU Protocol Systems
DESCRIPTION

Features:

Wide Temperature Measurement Range: Measuring range from -20°C to +400°C, suitable for a variety of industrial applications.

For MODBUS RTU Protocol Support: Supports 03 read and 06 write, easily integrated into control systems.

High Accuracy: Compatible with PT100 sensors, providing accurate temperature readings for reliable temperature monitoring.

Compact Design: Facilitates installation in confined spaces.

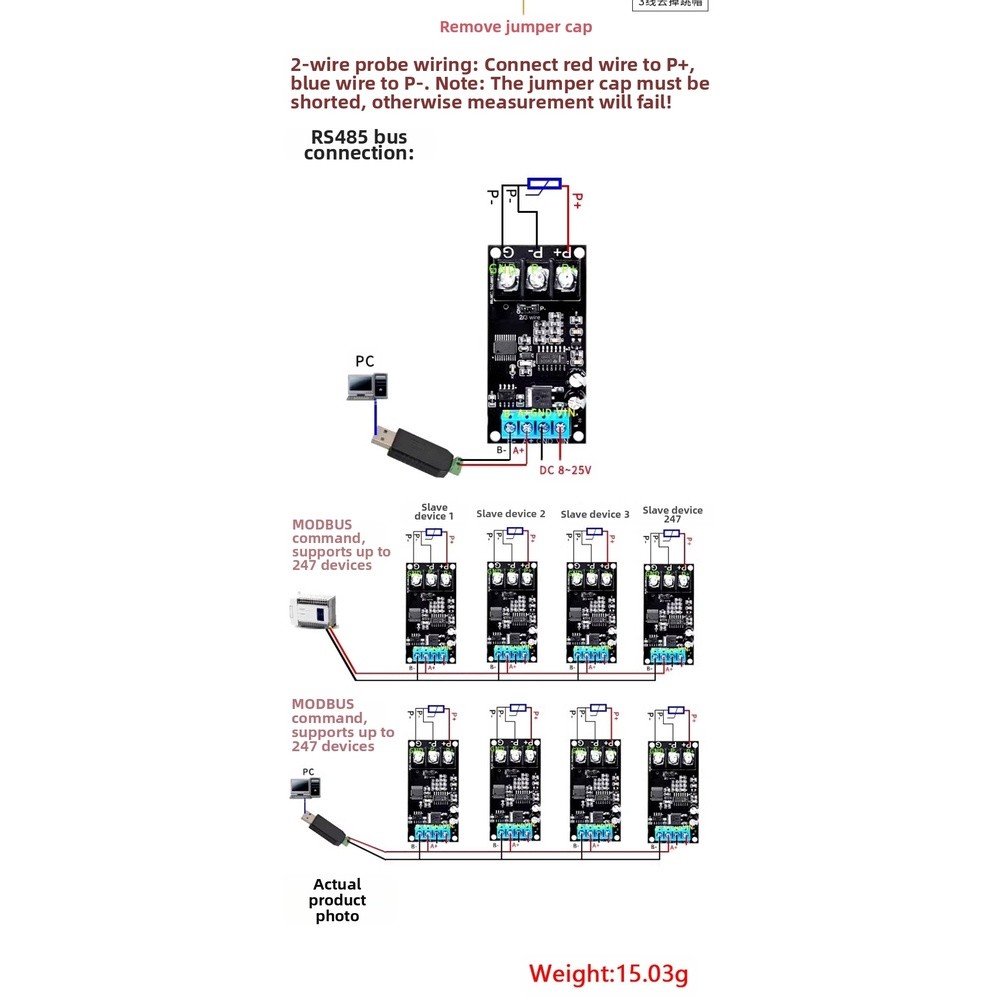

Multi-Device Connectivity: Up to 247 modules can be cascaded via the RS485 interface for scalable network configuration.

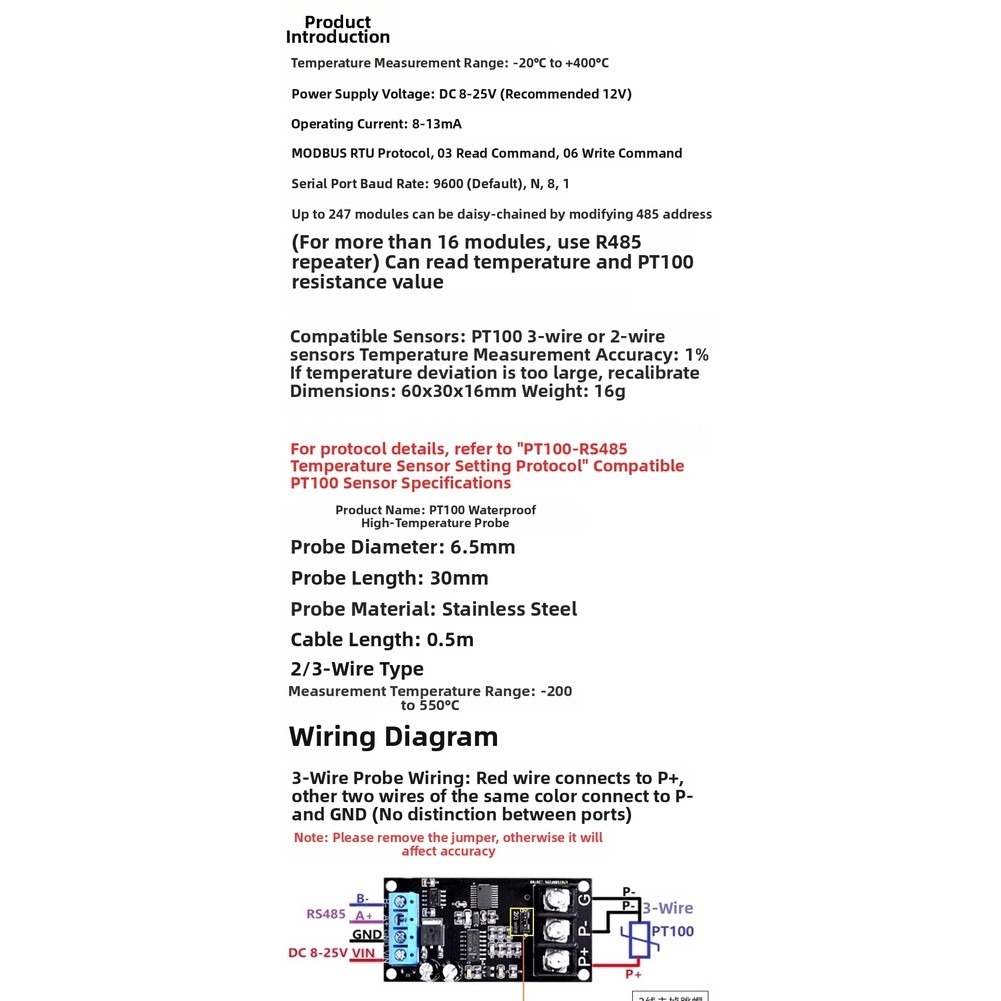

Specifications:

Temperature Measurement Range: -20°C to +400°C

Power Supply Voltage: DC8-25V (12V recommended)

Operating Current: 8-13MA

For MODBUS RTU Protocol, 03 Read , 06 Write

Serial Port Baud Rate: 9600 (default), N, 8, 1

Compatible Sensors: PT1003-wire or 2-wire sensor

Temperature Measurement Accuracy: 1%; if the temperature deviation is too large, please recalibrate.

Part Name: Temperature Sensor

Material: ABS

Color: Black

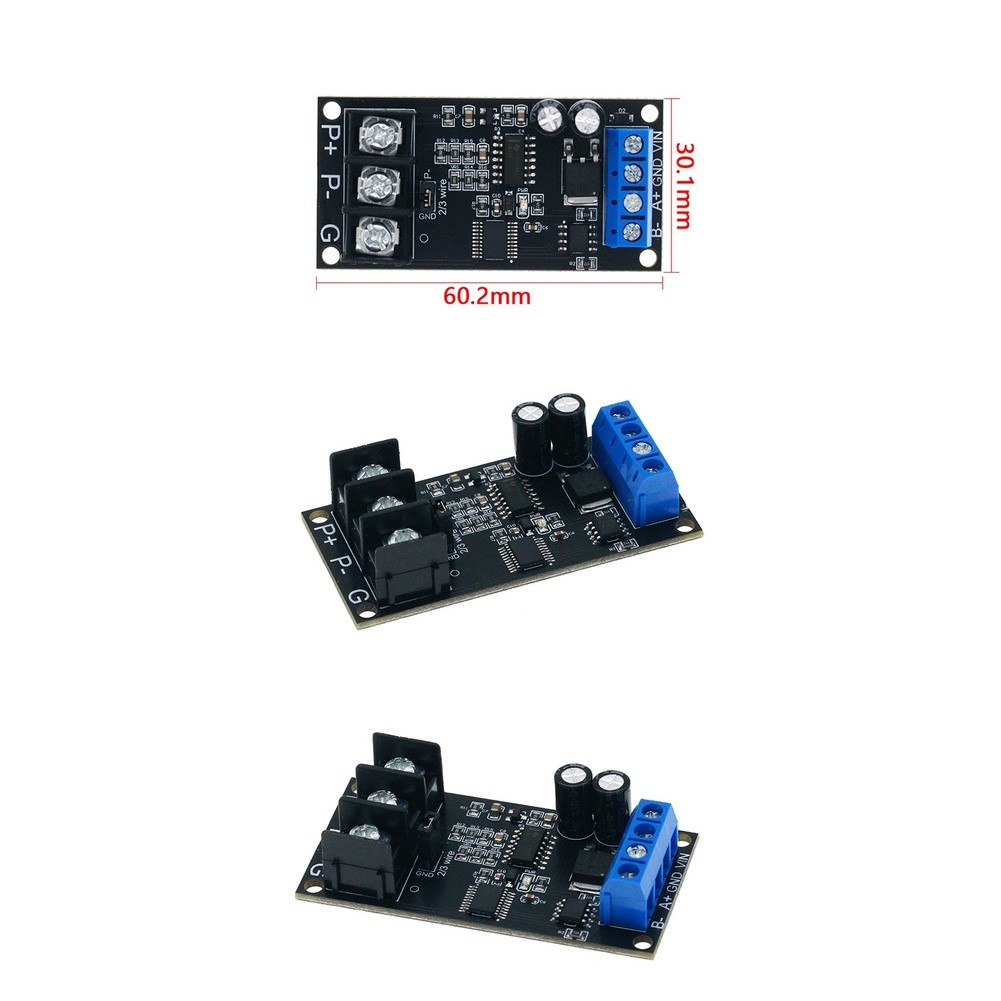

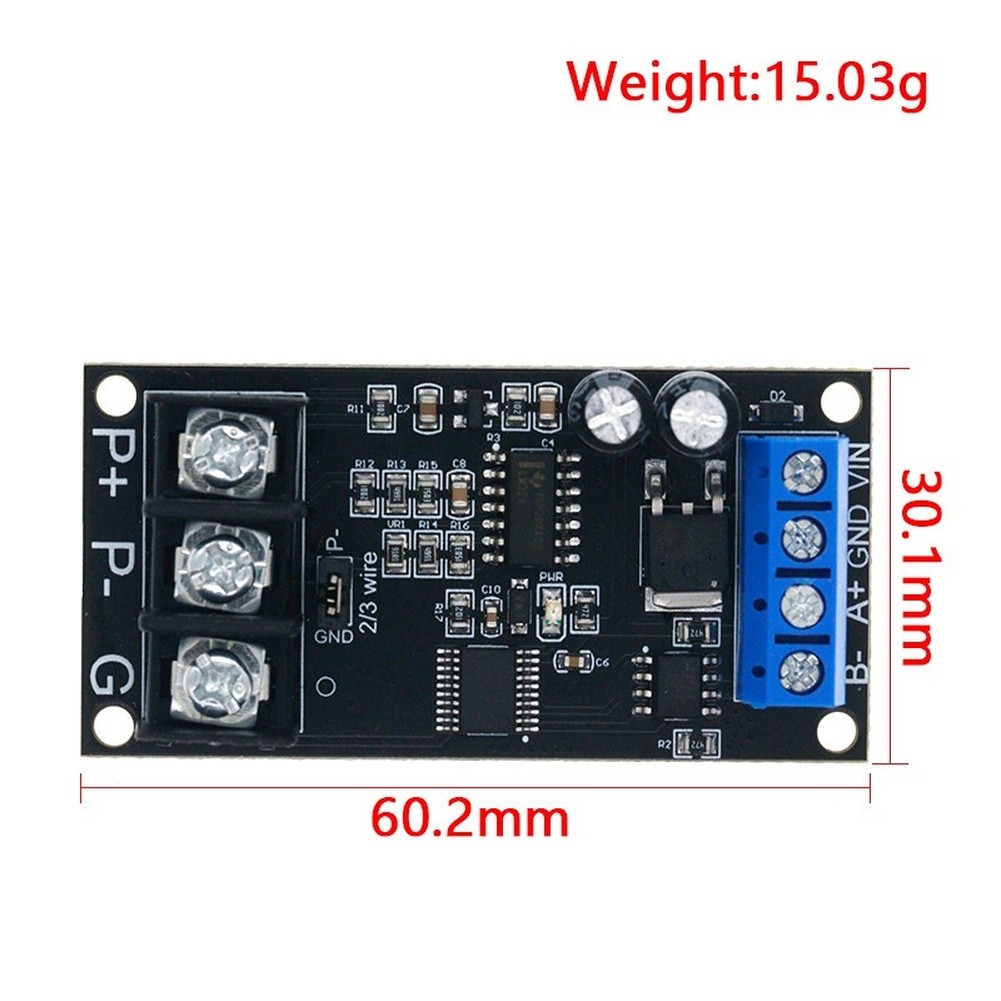

Size: 6*3*1.6 cm


Package Contents:

1*Temperature Sensor


Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
