Describe:

48V/36V 15A waterproof

Controller dimension

about 8.3 * 5.3 * 3.3  cm

weight: 165g

cable length :all about 10-13cm

6  mosfets

Maximum current: 15±1A

Rated voltage:DC36V/48V

Speed set:1-4.2V

Rated current:7A

Brake input :Low-Level

Low voltage protection: DC30/40±0.5V

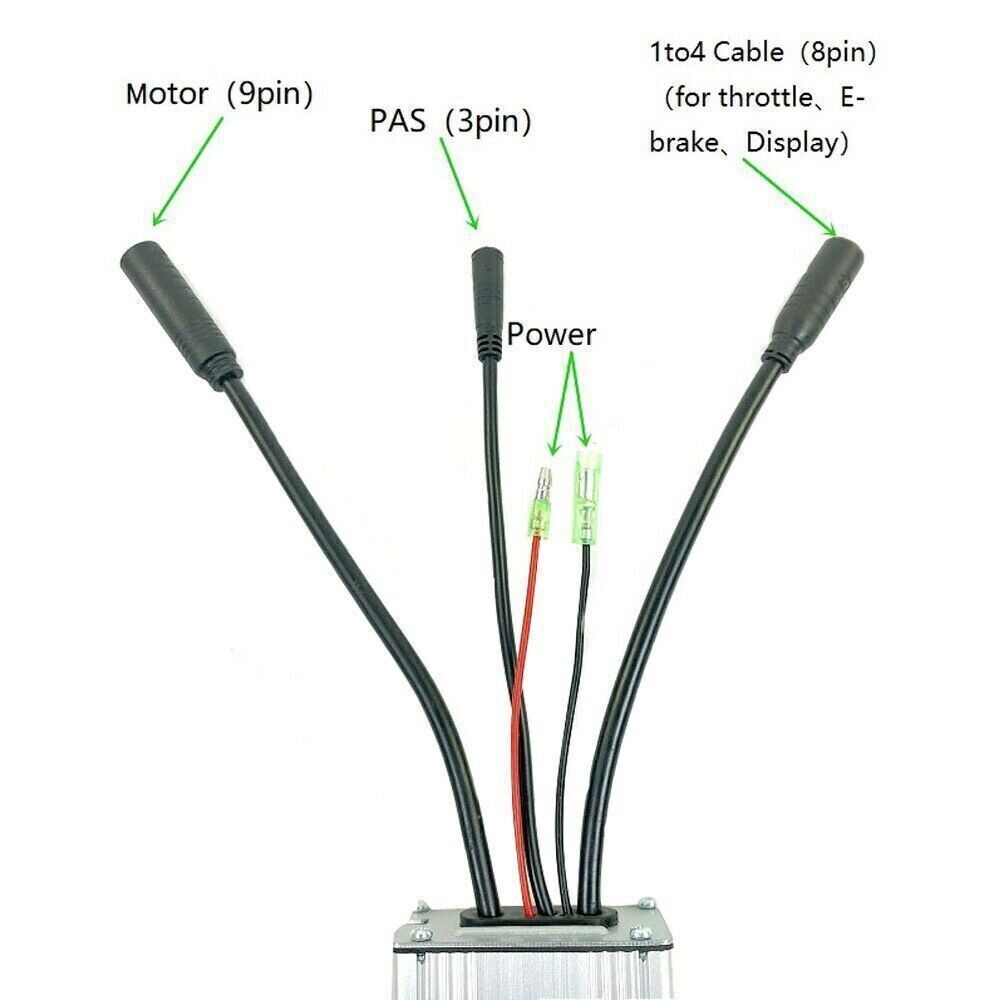

Connectors：

motor (9pin waterproof plug )

Power

PAS (3pin waterproof plug)

1 to 4 cable(8 pins for throttle, e-bike, display)

KT controller just only compatible with KT display(same communication protocol) . Please make sure that your system is KT system.

This controller can work with eletric bicyle only, not suitable for electric scooter.

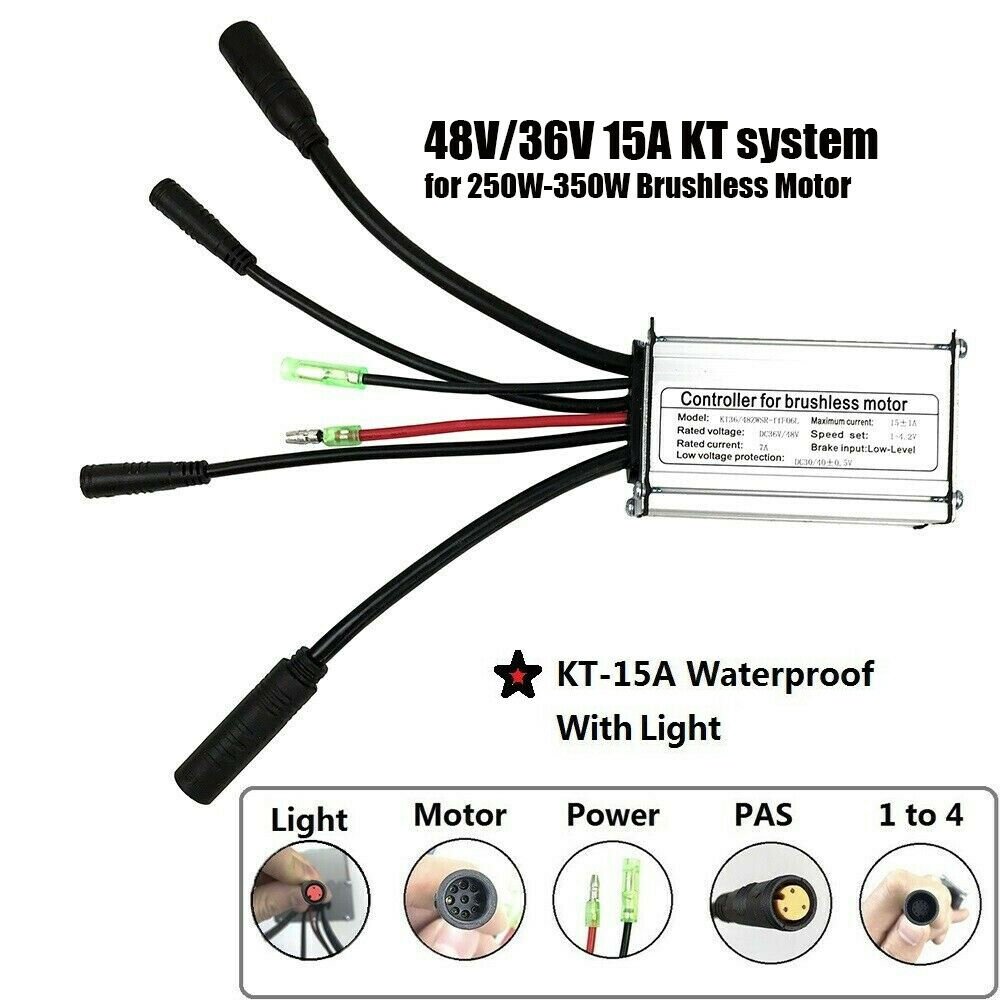

48V/36V 15A waterproof w/ light cable

With Display function, suitable for KT LED790-900S LCD1-LCD8 all Display, with headlight function, headlight switch on the Display

Controller dimension

about 8.3 * 5.3 * 3.3 cm

weight: 175g

cable length :all about 10-13cm

6 mosfets

Maximum current: 15±1A

Rated voltage:DC36V/48V

Speed set:1-4.2V

Rated current:7A

Brake input :Low-Level

Low voltage protection: DC30/40±0.5V

Connectors：

motor (9 pin waterproof plug )

Power

PAS (3pin waterproof plug)

1 to 4 cable(8 pins for throttle, e-bike, display)

Light cable

KT controller just only compatible with KT display(same communication protocol) . Please make sure that your system is KT system.

This controller can work with eletric bicyle only, not suitable for electric scooter.

package includes:

1*48V/36V 15A Controller
