This Listing Is Including:

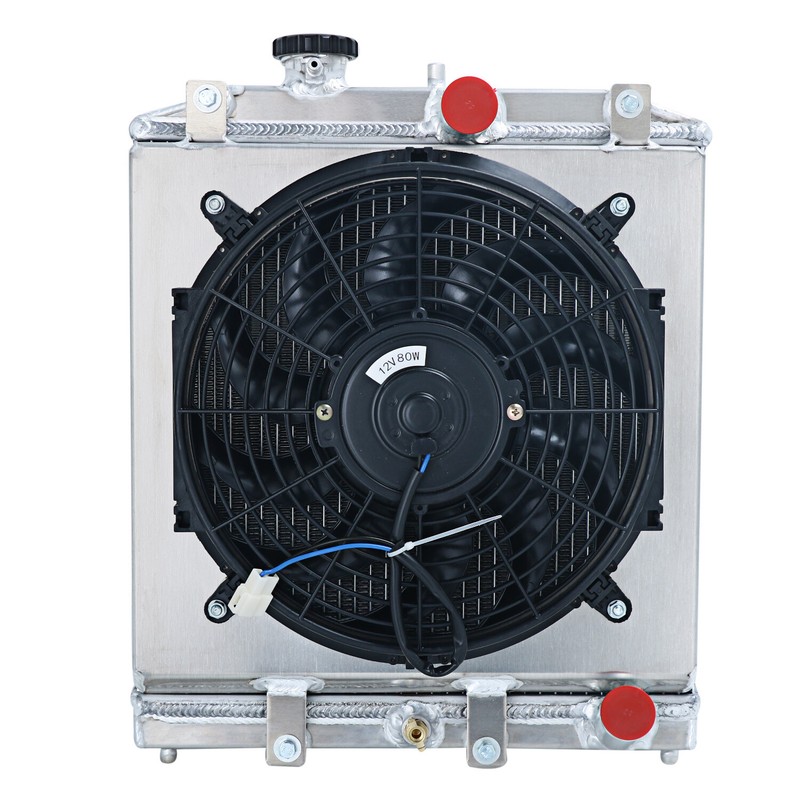

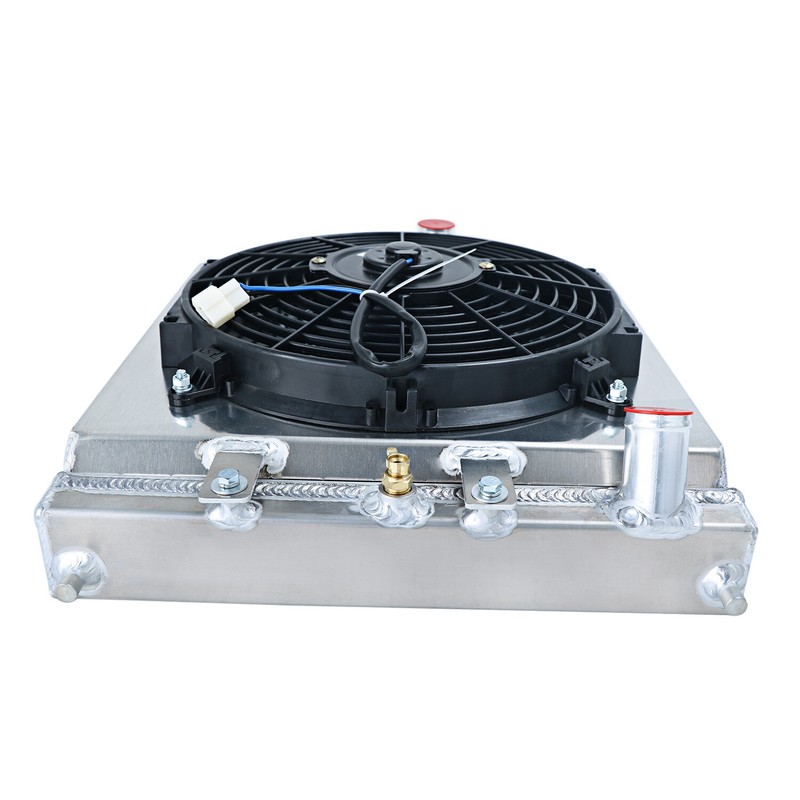

1 X 4-Row AA5052 Aluminum Radiator
1 x 1.1Bar CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 12" Fan (Includes mounting kits)
1 X Thermostat Relay Kits

Application:
This Radiator Fits:
For Honda Civic D15 D16 EK EG 1992-2000
For Honda Civic EK EG 1992-2000 DEL SOL 1993-1997
For Honda Acura Integra GS LS HX L4 L6 1992-2001
Other Part Number: HO3010123 HO3010125 19010P07014 19010P07024
OEM Part Number: 17111728908;17111469179;17112241912

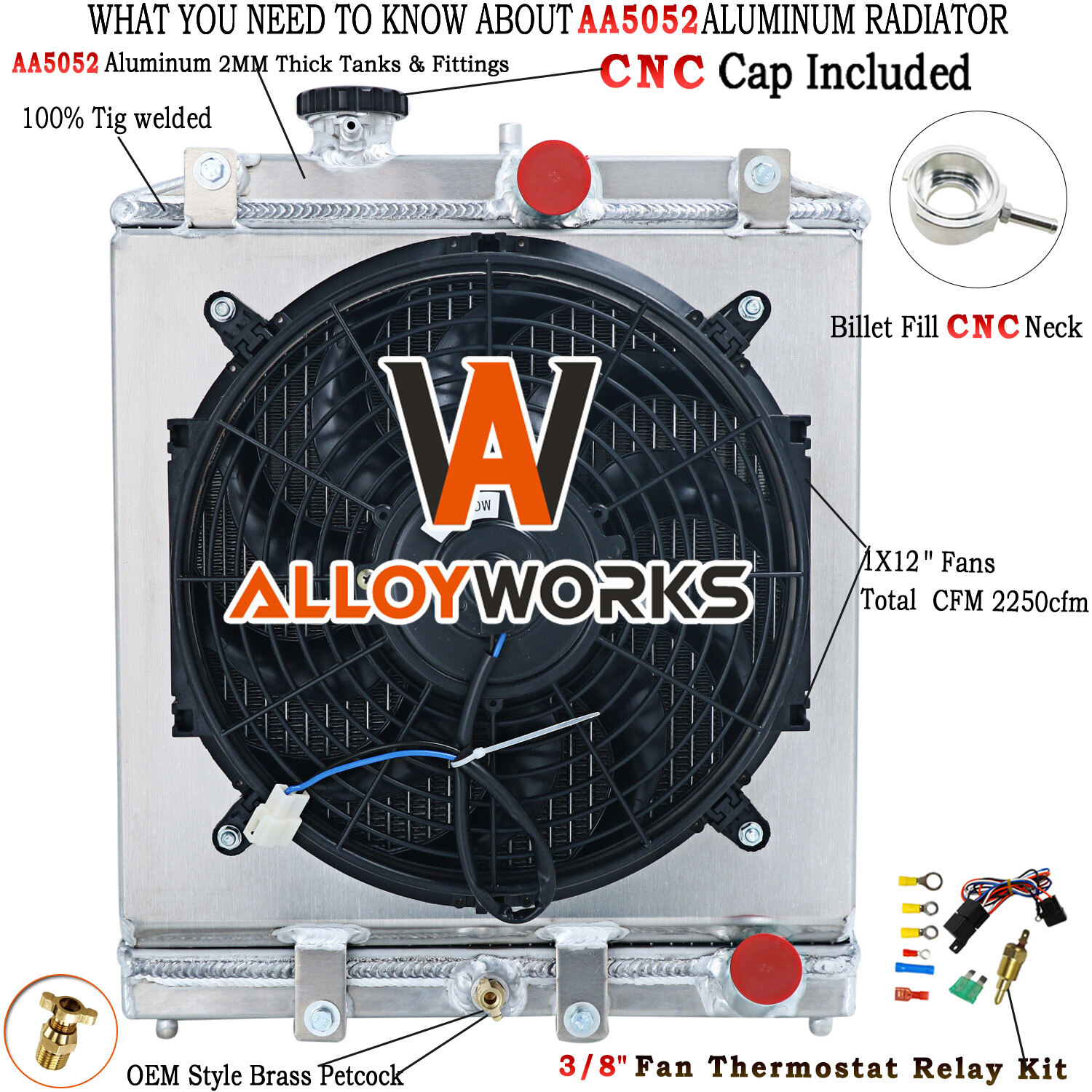

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: AA5052 Aluminum
Overall Size:  14 1/2"W X 18 1/2" H
Core Size: 13 7/8"W X 14" H
Inlet/Outlet:   1 1/4" / 1 1/4"
Radiator Cap: CNC Precision Machined Radiator Cap
Radiator Drain Plug: OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!

Fan Specification:
Diameter: 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 80W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.

Description:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3. AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators, throws off much more heat.

AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
P.S. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

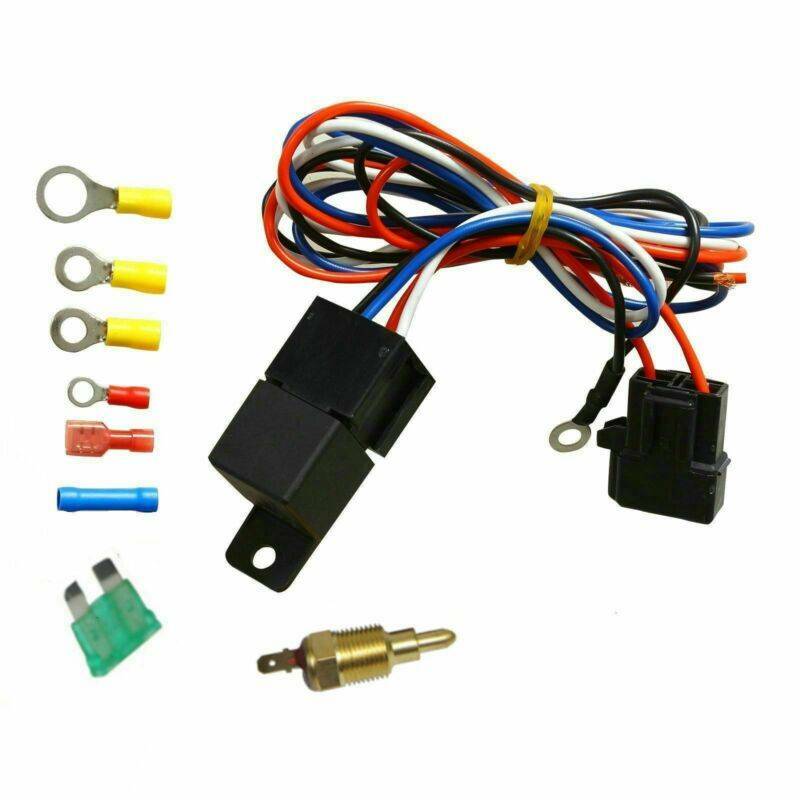

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

                • Please check the compatible vehicles below.
                • Please check the size before you buy.
                • There may be some deviation in manual measurement data
                • One year warranty and USA warehouse
                Paypal ONLY --the easiest and most secure way to pay on line Bank Deposit
                All orders will be sent within one business day after payment received. Note: Please contact for quote if international postage NOT display.

                A new return is considered a brand new item that you ended up not needing or perhaps you purchased incorrectly for your specific vehicle.

                Please keep in mind that spending time before purchasing the part to confirm it is indeed exactly what you need can help prevent you from ordering the wrong part.

                Please remember to email us which warehouse to send the item back before return. And all returns must be shipped back in their original factory packaging.

                Shipping Damage

                Shipping damage is any item/package suspected of being broken or damaged in anyway during the shipping process. We purchase full insurance for this, however the damage must be reported to us within 3 days of receiving the package.

                1 Year warranty against manufacture defect.

                Replace/return are available if buyers receive wrong/damaged/defective items.
                For replacement or return , buyer should keep the item in acceptable packing.

                Before replace or return ,buyer should submit proof to us by pics if possible.

                Anyway ,by nice communications ,we can find a way to make you satisfied

                Very appreciated for your support. I hope you are happy with your purchase.

                We maintain high standards of excellence and strive for 100% customer satisfaction! pics2 Feedback is very important to us.

                We request that you contact us immediately BEFORE you give us pics1 or pics3 feedback, so that we can satisfactorily address your concerns.

                If you have any problem, please feel free to contact us via ebay message, we will reply your email within 24 hours (except weekends and holidays). We will do our best to solve your problem as soon as possible.

                We appreciate your continued patience and willingness to work with us. Thank you for choosing us and have a great day!
