Product Features:
1. 200W High-Power LED Module

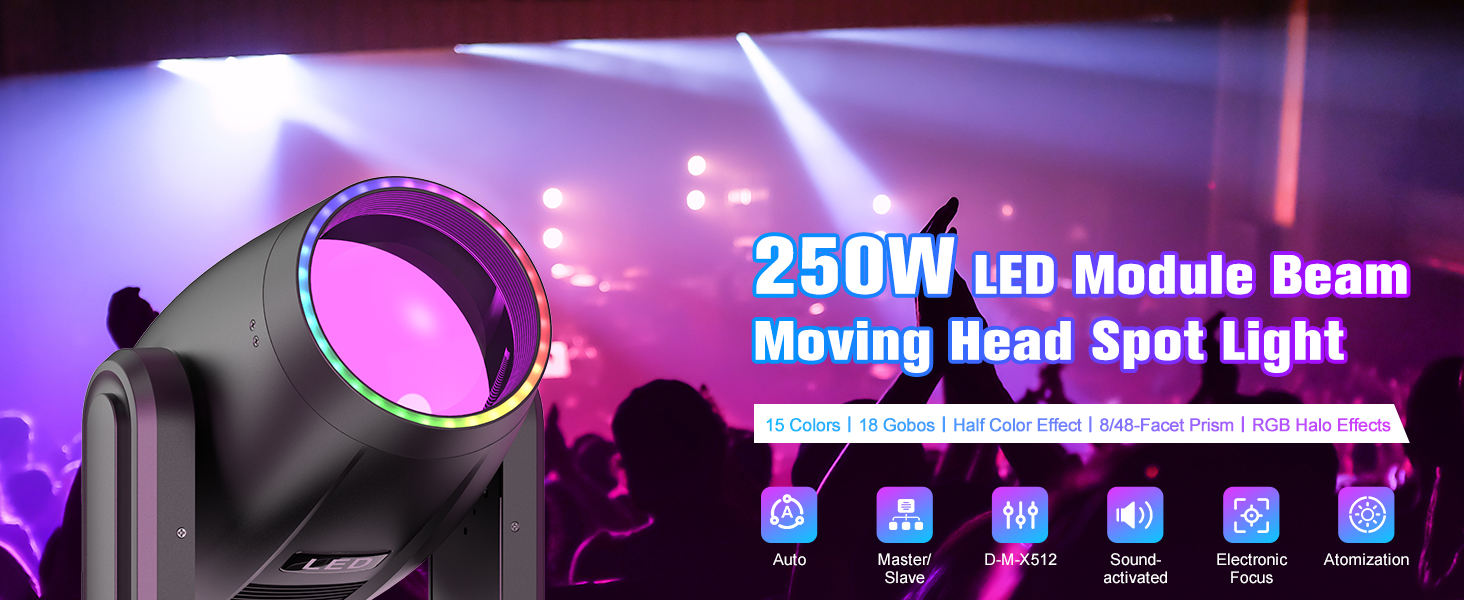

1. 200W High-Power LED Module
Equipped with a 250W high-brightness LED module, this beam light delivers ultra-stable performance with exceptional luminosity and energy efficiency.
2. 360° Dynamic RGB Effects
Features 31 high-quality 0.2W full-color LEDs, creating stunning 360° dynamic effects with multiple built-in modes for vibrant and immersive lighting scenes.
3. 152MM HD Optical Lens & Precision Control
A large 152MM high-definition optical lens paired with an advanced light control system ensures intense beams, smooth color transitions, and sharp patterns (prism, rainbow, frost) with consistent saturation.
4. Advanced Cooling & Durable Build
The built-in high-efficiency cooling system maintains stable operation even during prolonged use, while flame-retardant, high-temperature-resistant materials enhance durability in any environment.
5. Smart DMX512/RDM Control & User-Friendly LCD
Supports DMX512/RDM protocols for seamless integration with consoles and intelligent programming, plus an intuitive LCD screen for easy parameter adjustment.
Specifications:
Input voltage: AC100V-240V 50/60Hz
Rated (power) power: 250W
Actual total power of the whole machine: 200W
Light source: 1pcs 250W LED module + 31pcs 0.2W RGB LED
Optical aperture: 152MM

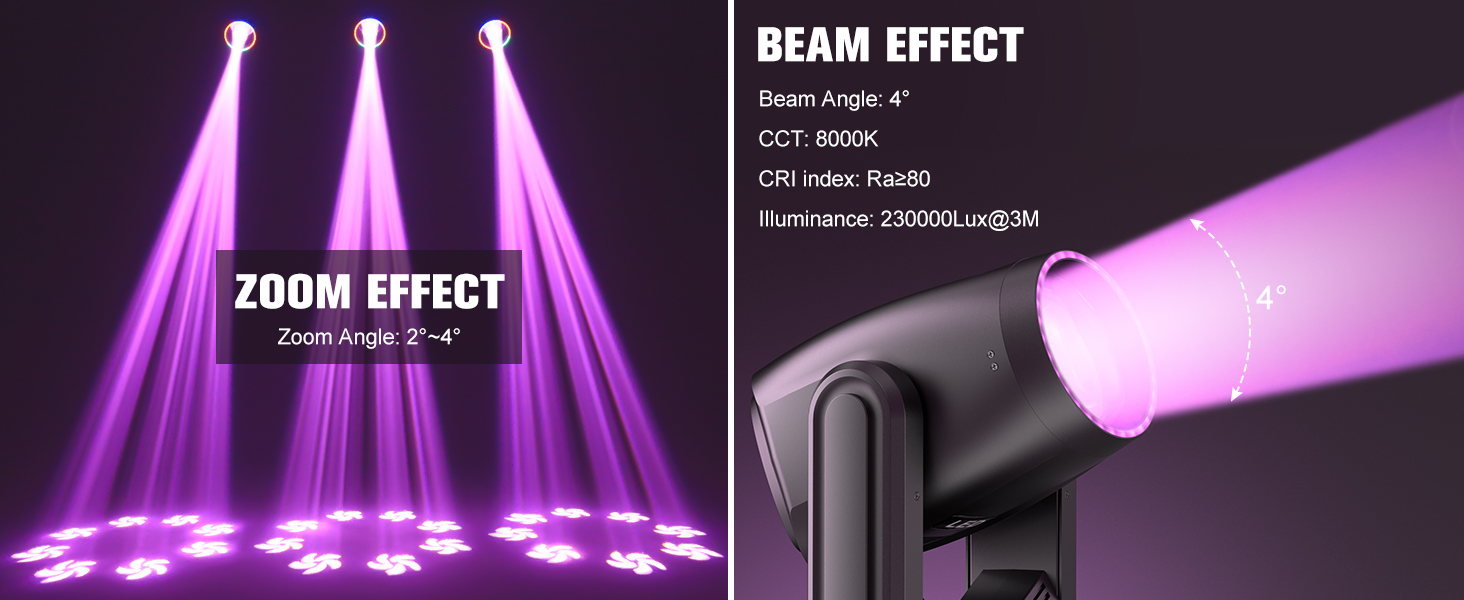

Light output angle: 4°
Color temperature: 8000K
Optimal projection distance: 5-10 meters
Illuminance: 230000Lux@3M
Average LED life: 20000h
Dimming curve: 0-100% linear dimming
Strobe: 1-25Hz
Color disk: 14 colors + white (two-way speed change, rainbow effect speed adjustable, with half-color color effect)
Fixed pattern disk: 17 patterns + circular white light pattern, can rotate at two-way speed change
Colorful atomization: rainbow + atomization effect
Prism 1: 8 prism, can rotate forward and reverse
Prism 2: 48 prism, can rotate forward and reverse
Focus: electronic focus

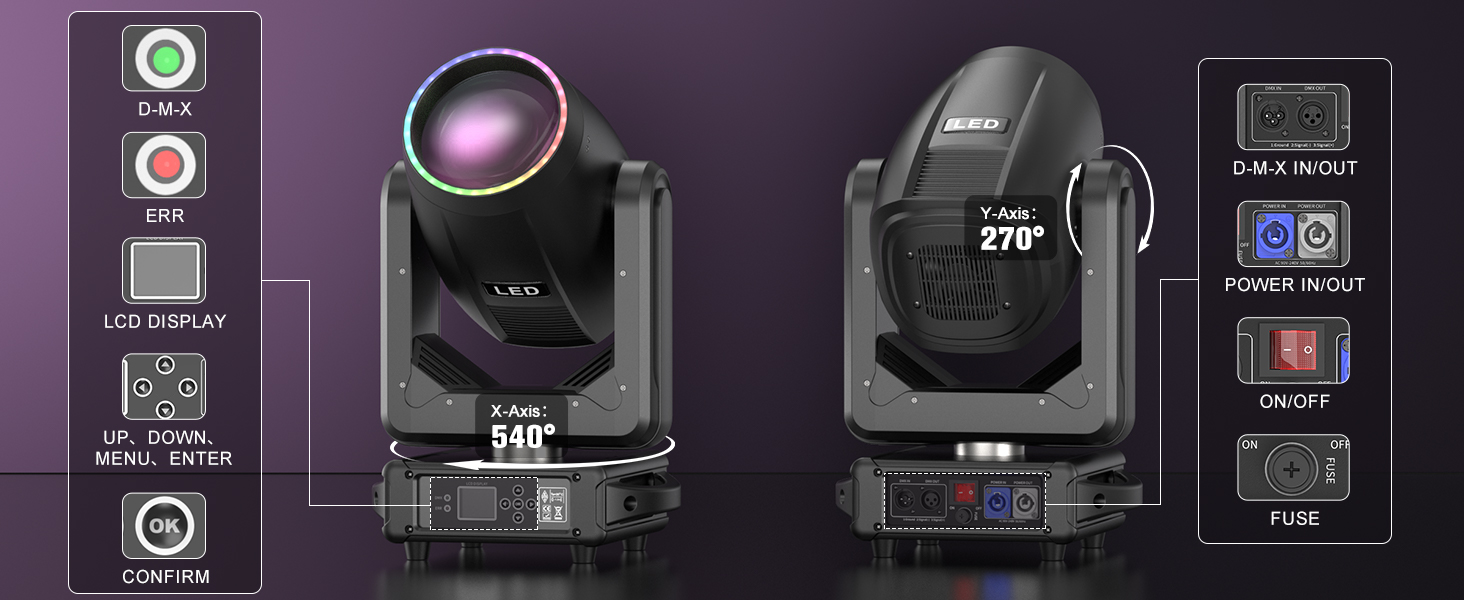

X-axis: 540° Fine-tuning accuracy: 1.8°
Y-axis: 270° Fine-tuning accuracy: 1.8°
Operation mode: voice controlmaster-slaveself-propelledDMX512
Control channel: 16/22CH
Protocol: standard DMX512 protocol, RDM protocol
Data connection: three-core XLR input/output
Display: LCD liquid crystal display
Protection level: IP20
Working environment: -20℃-40℃
Material：Nylon plastic shell
Product Specification：
Size：31.7*24.3*53.2cm/12.48*9.57*20.94in
Net weight：14.9kg/32.85lb
Size：31.7*24.3*53.2cm/12.48*9.57*20.94in
Net weight：14.9kg/32.85lb

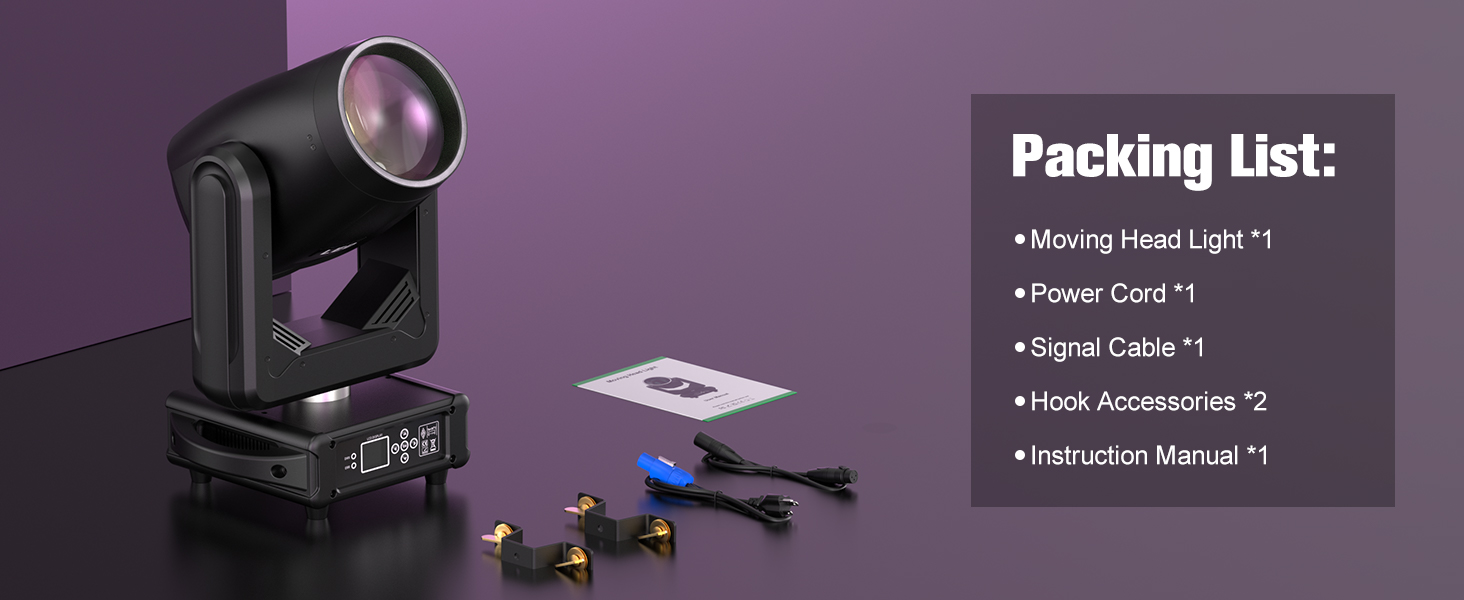

Packing List:
Moving Head Light *1
Moving Head Light *1
Power Cord *1
Signal Cable *1
Hook Accessories *2
Instruction Manual *1
