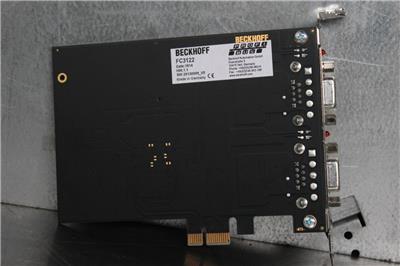

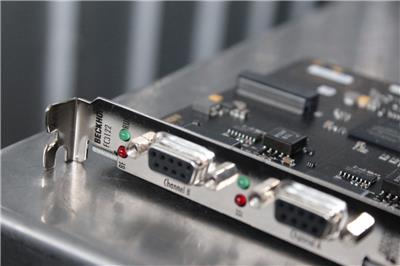

Beckhoff FC3122 Master / Slave Card, 2 Channels, PCIe x1 Profibus DP or DP-V1

The Beckhoff FC3122 is a 2-channel PCI Express (PCIe) PROFIBUS fieldbus card designed for fast, high-performance communication with PROFIBUS DP and DP-V1 networks, supporting speeds up to 12 Mbit/s. It operates as a master, slave, or PROFIBUS monitor and enables independent operation of its two channels for advanced automation control within TwinCAT systems.

Key Features and Specifications:
Interface: PCIe x1 card, suitable for modern Beckhoff Industrial PCs.
Channels: Two independent PROFIBUS channels.
Protocol: Supports PROFIBUS DP and PROFIBUS DP-V1.
Data Rate: Up to 12 Mbit/s.
Operation: Acts as a master, slave, or for monitoring.
Configuration: Supports automatic assignment of GSD files and flexible error management for each bus user.
Data Transfer: Up to
 kB of PROFIBUS input/output data can be transmitted per channel.
Diagnostic Tools: Features 2 LEDs per channel for easy hardware diagnosis.
Compatibility: Optimized for use with Beckhoff TwinCAT 2.11 R3 or higher.
Optional Memory: Available with FC600x NOVRAM cards for fail-safe data storage.

This card is particularly used to integrate PROFIBUS devices into TwinCAT-based control systems, providing high-speed communication and, due to its PCIe interface, faster data handling than older PCI cards.

If you have any questions, please do not hesitate to ask.
WE SHIP QUICK!
