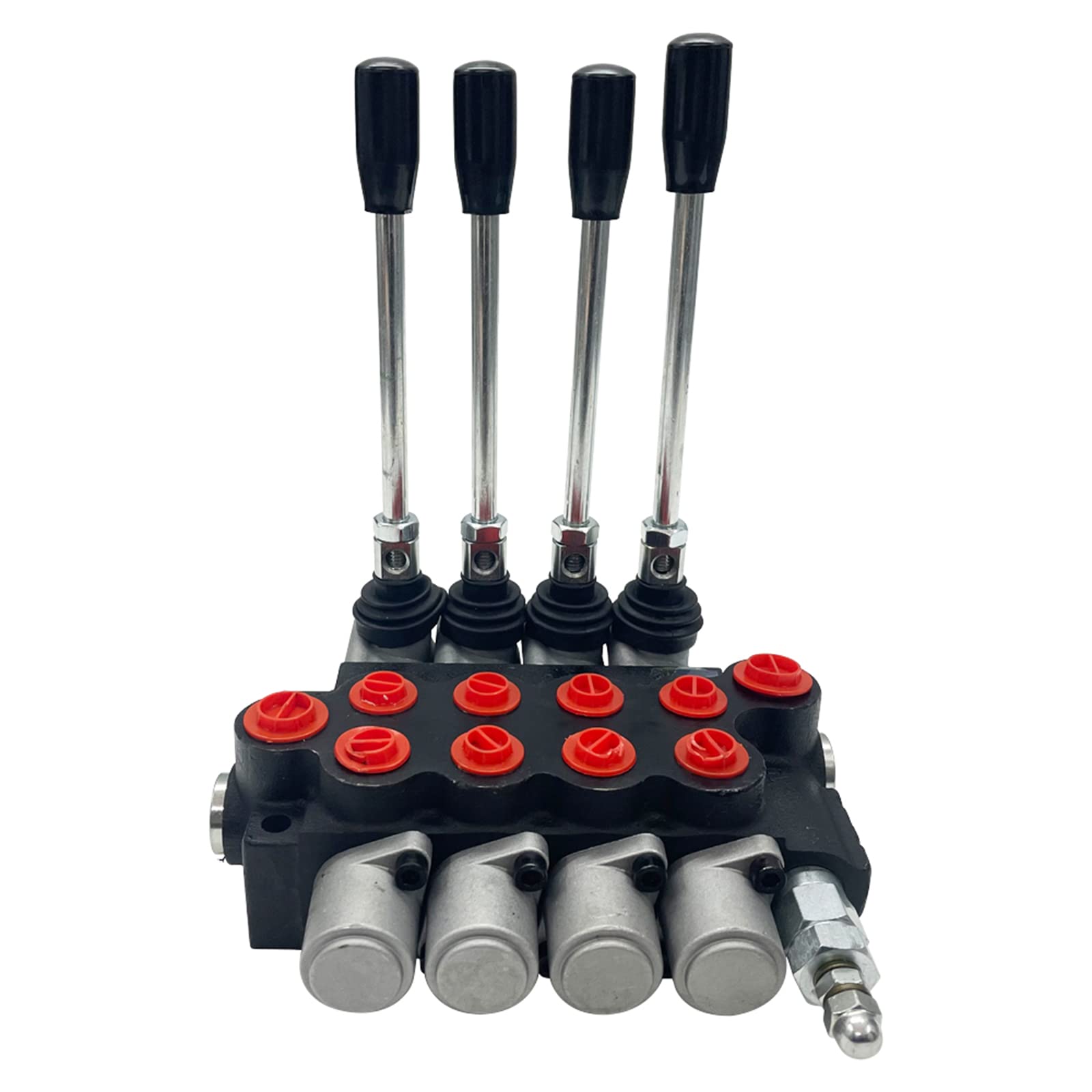

PreAsion Hydraulic Control Valve 4 Spool Max Flow 13GPM Four Way Reversing Valve
- 【4 spool】The product is equipped with 4 spool hydraulic control valve,which can control pump,cylinder and motor.The control valve with casting iron structure is wear - resistant,durable,and has long service life.
- 【13GPM 4500PSI】Multiple directional valve is more flexible and convenient when using,because of compact structure and reasonable internal design.The pressure of relief valve is up to 4500PSI and the maximum flow is 13GPM.
- 【Automatic reset handle】The handle is spring reset,push forward or pull back to realize the lifting of the cylinder;after releasing,the handle automatically returns to the middle position,and the cylinder is in the state of maintaining pressure.The handle can be mounted vertically or horizontally.
- 【Long service life】All spool is neutral spring,with stable performance and long service life.
- 【Wide application】Simple operation and wide application.It is mainly used for small tractors, loaders,wood splitters,excavators,hydraulic equipment,etc.
Description:
The function of hydraulic control valve is to control and adjust the flow direction,pressure and flow in hydraulic system,so that the device can obtain the required motion direction and speed.The new design 4 spool 13GPM hydraulic control valve can manage pumps and hydraulic cylinders,motors,tanks,etc.The adjustable release valve is durable cast iron body.All spools for neutral spring center with adjustable release valve are easy to use.
Feature:
The product is equipped with 4 spool hydraulic control valve,which can control pump,cylinder and motor.The control valve with casting iron structure is wear - resistant,durable,and has long service life.
Multiple directional valve is more flexible and convenient when using,because of compact structure and reasonable internal design.The pressure of relief valve is up to 4500PSI and the maximum flow is 13GPM.
The handle is spring reset,push forward or pull back to realize the lifting of the cylinder;after releasing,the handle automatically returns to the middle position,and the cylinder is in the state of maintaining pressure.The handle can be mounted vertically or horizontally.
All spool is neutral spring,with stable performance and long service life.
Simple operation and wide application.It is mainly used for small tractors, loaders,wood splitters,excavators,hydraulic equipment,etc.
Parameters:
Spool:4
Nominal Pressure:2900 PSI
Nominal flow:10.5 GPM
Max Pressure: 4500 PSI
Max Flow: 13 GPM
Allowable Back Pressure≤145 PSI
Hydraulic Oil Tem.range:-20～+80℃
Hydraulic Oil Visc.range:10～400 mm2/s
Hydraulic Oil Filtrating accuracy ≤10 μm
