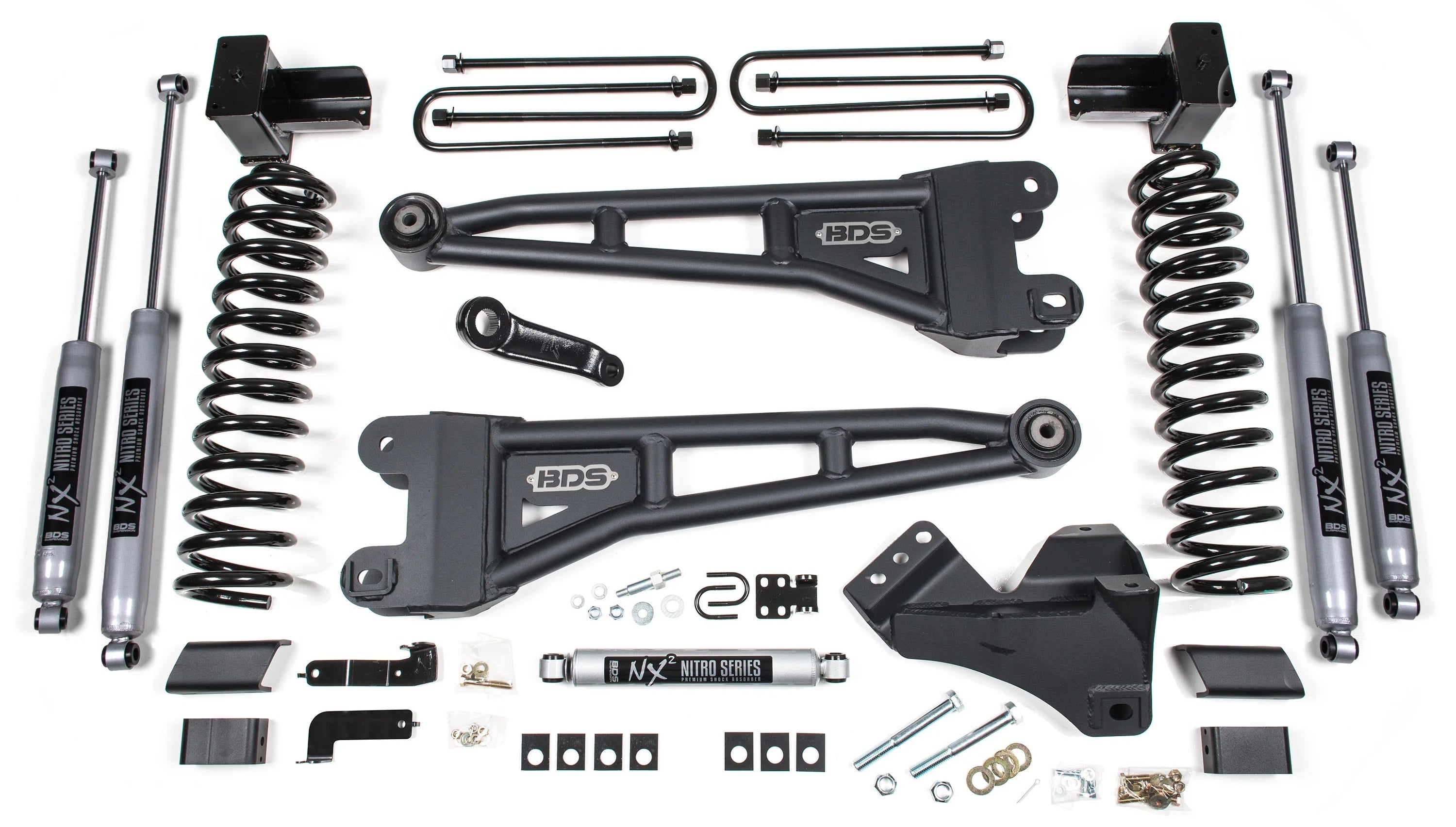

You are bidding on a Brand New BDS Suspension 5" Radius Arm Lift Kit with Nitro Shocks, Coil Springs, & 5" Blocks (Part #BDS2204H).

Improve the ride on your Ford Super Duty gas truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of shocks.

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate kit.

Fits:

  • Ford:
    • 2023-2026 F-250 Super Duty 4WD Gas with Overload
    • 2023-2026 F-350 Super Duty 4WD Gas with Overload

Notes:

  • Ford recommends the replacement of the pitman arm nut after each time it has been removed.
  • Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
  • If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
  • Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
  • Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
  • Installation requires a torque wrench capable of 406 ft-lbs.
  • Trucks without top mounted overload springs will require (4) UBT4028.
  • Fits SRW models only.
  •  Exhaust modification is required to clear the front driveshaft.
  • Vehicles with radius arm mounted ride height sensors will require BDS123303
  • Re-calibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 5"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here.
