Product Details

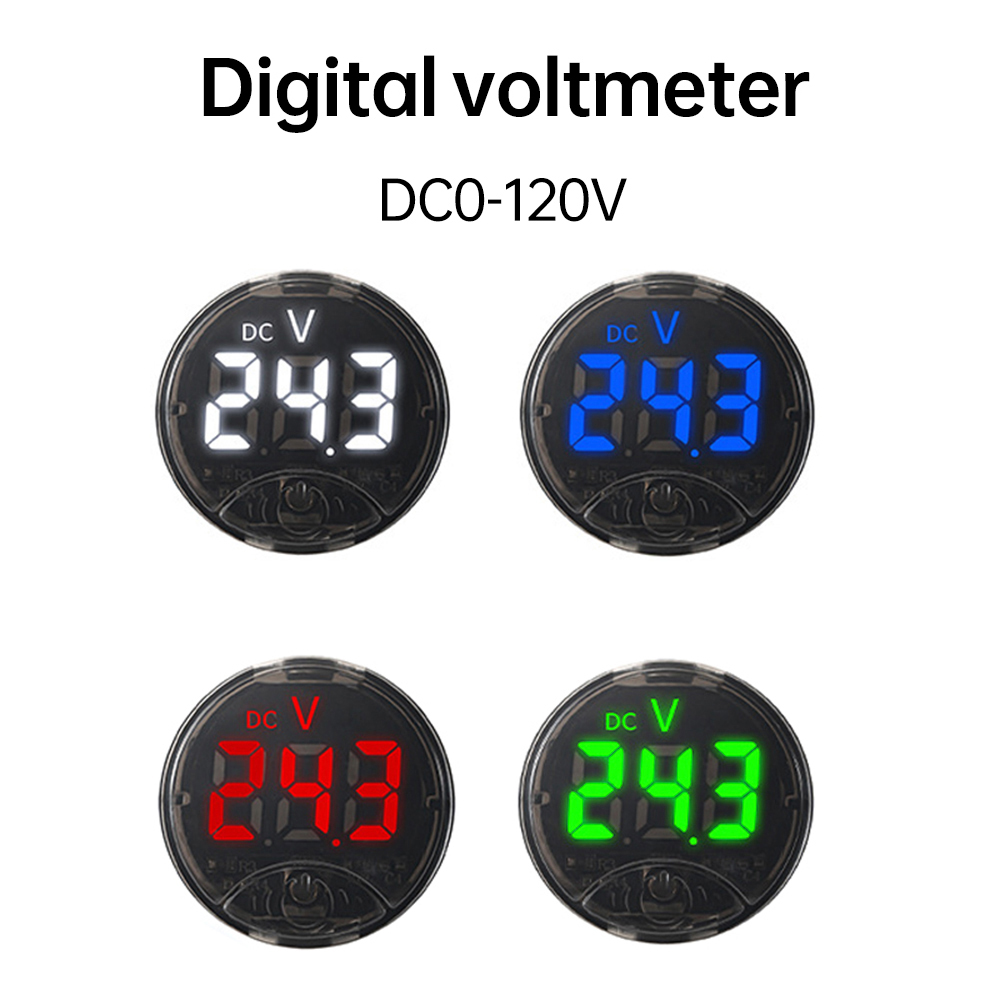

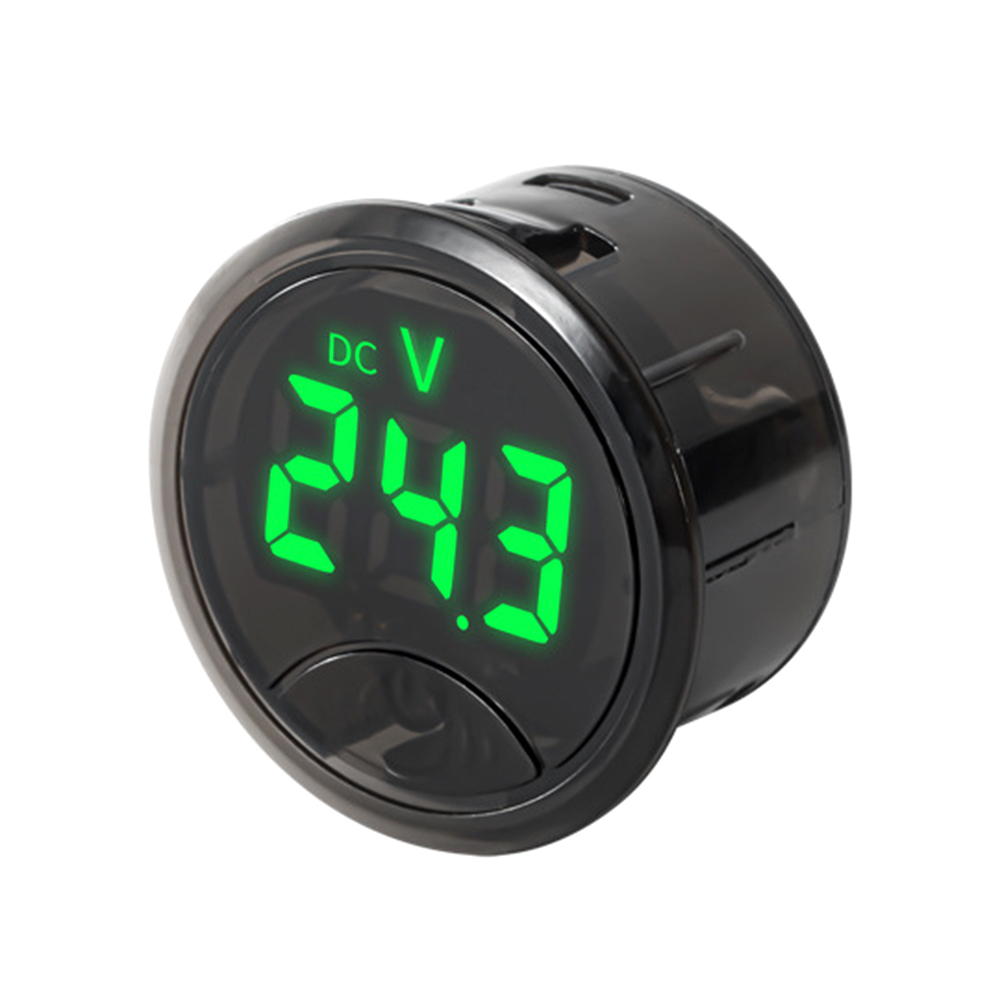

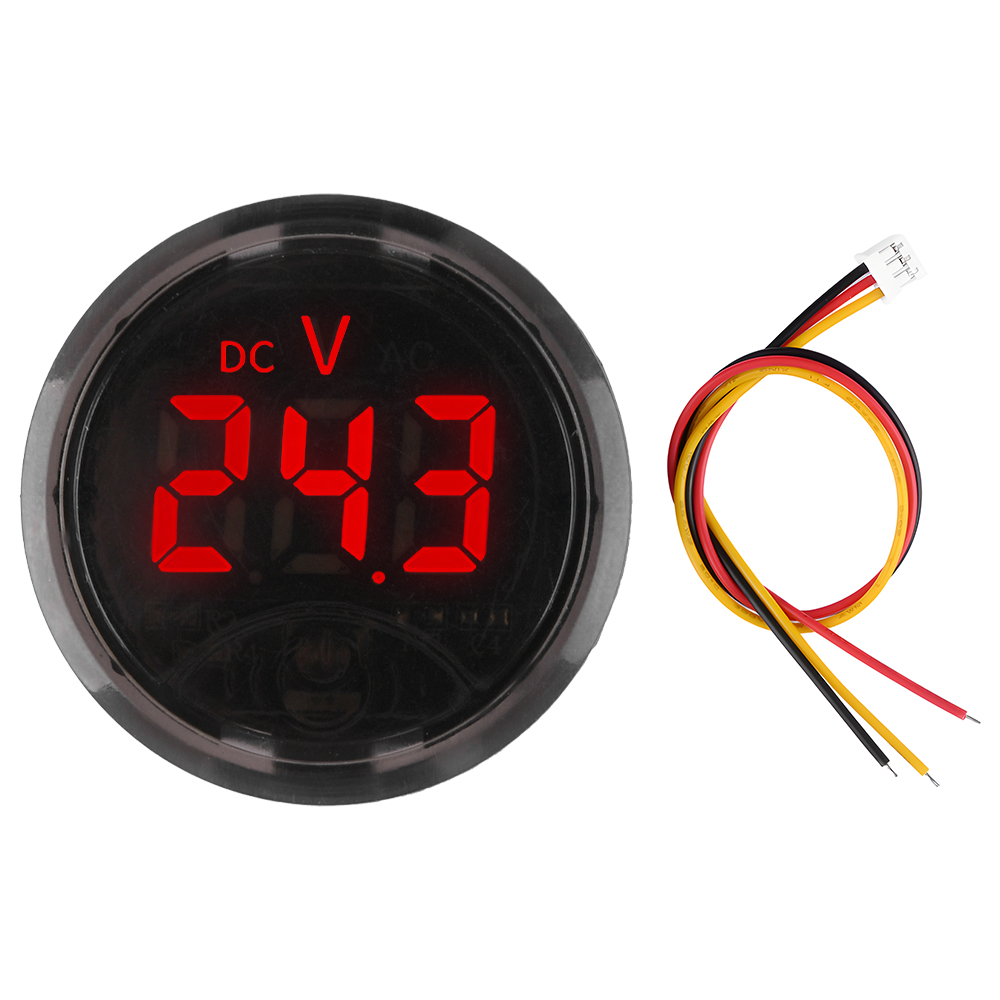

DC7-120V/DC 0-120V
Features:
1.Touch voltage meter, solid snap-on design, round structure for easy installation.
2. 3-bit LED digital tube display, touch switch, can set the low voltage alarm function.
3. Simple wiring, easy access to various batteries, electric boxes, can grasp the voltage status in real time.
4. With reverse connection protection, even if the wire is connected in reverse, it will not be damaged.
5. Wide range of applications, wide voltage DC 0~120V, stable performance, long service life.
Parameter:
DC two-wire: detection voltage DC 7~120V
DC three-wire: supply voltage 7~24V; detection voltage DC 0~120V
Working current: ≤20MA (ultra-low power consumption)
Measurement rate: ≥200mS/time
Measurement accuracy: 1% (±1 word)
Display mode: LED digital tube

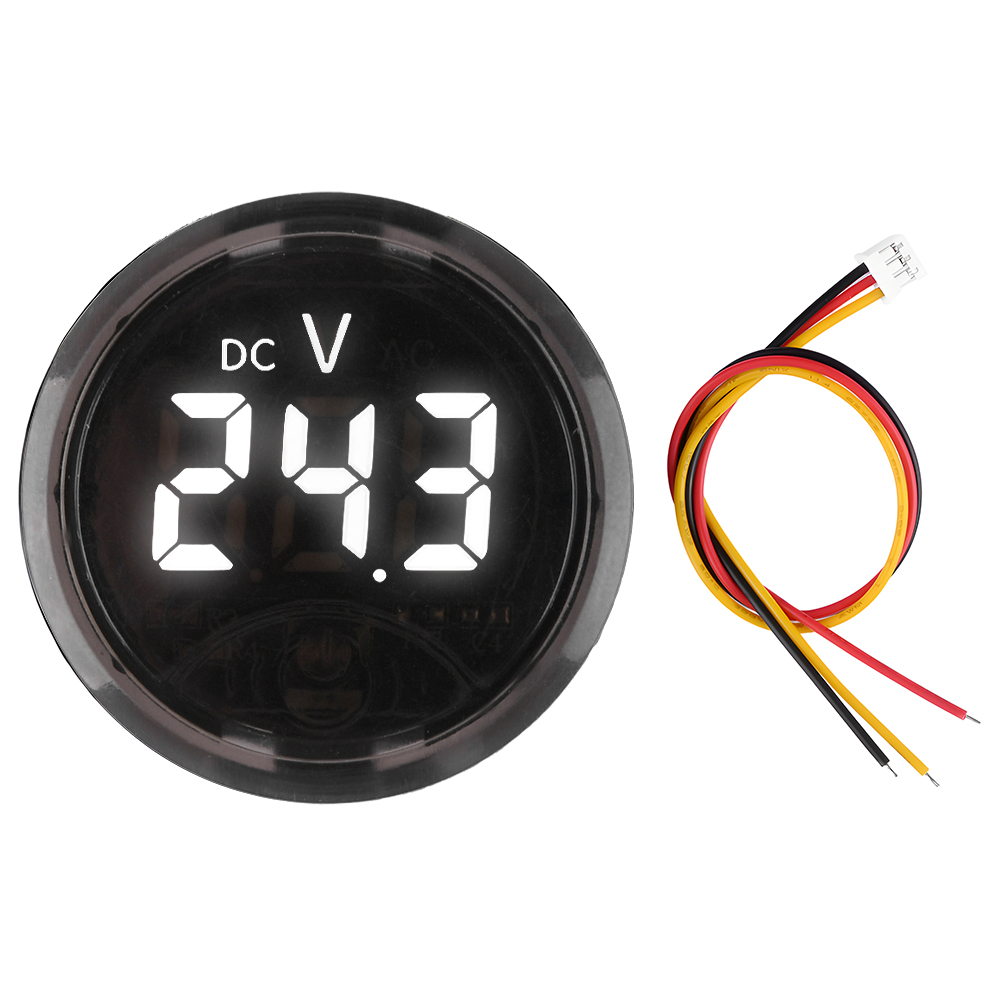

Display color: red, green, blue, white (optional)

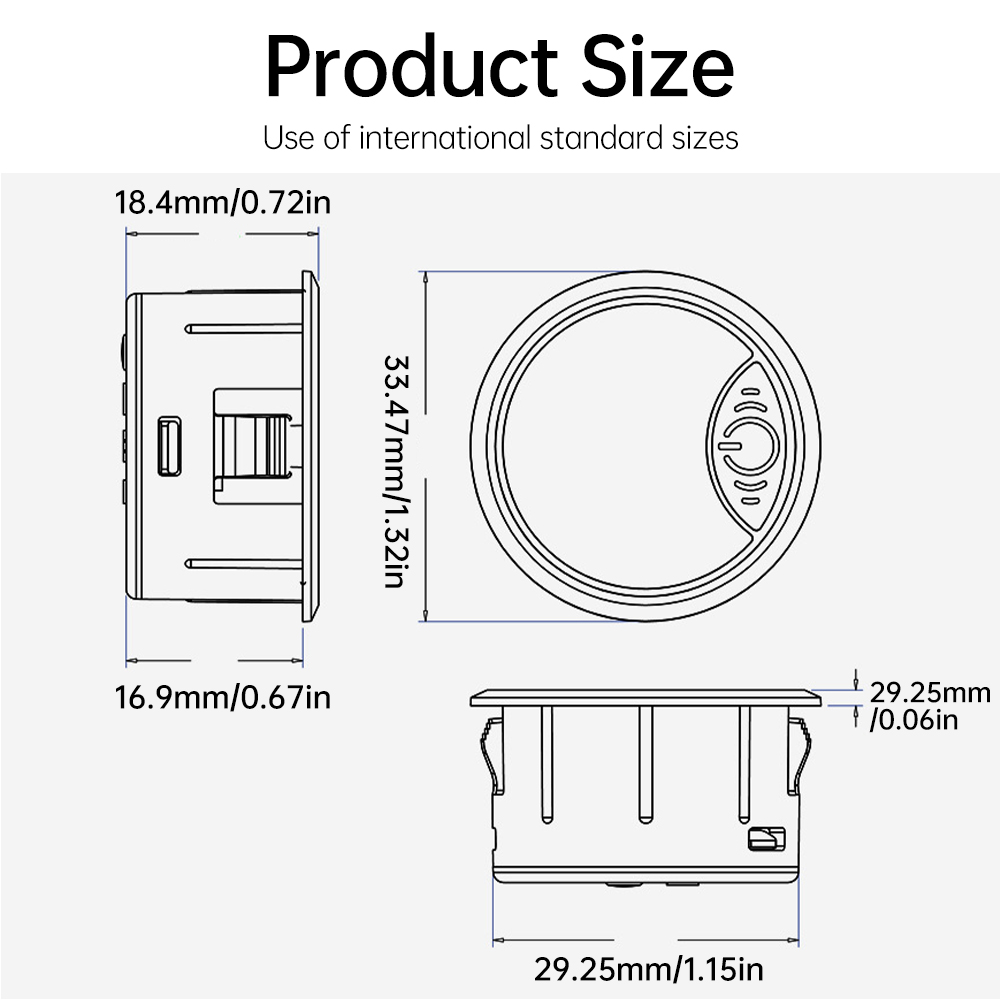

Overall dimensions: circular diameter 33.5mm
Installation aperture: circular diameter 30mm
Two-wire connection method:
Measuring range DC 7~120V, red wire and yellow wire together with the positive pole, black wire can be connected to the negative pole.

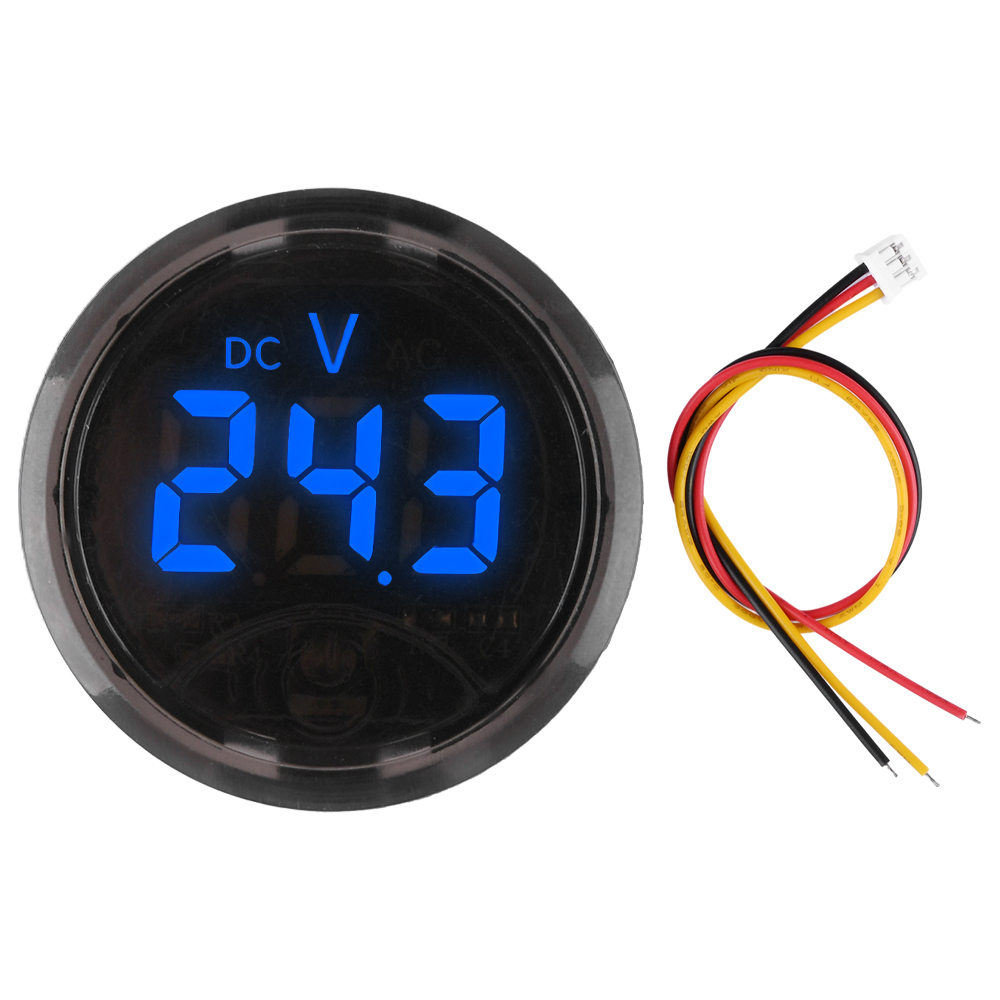

Three-wire connection method:
Measuring range: DC 0~120V, external power supply is required, the red wire and the black wire supply (7~24V) positive and negative, the yellow wire is connected to the positive pole of the voltage to be tested, and the negative pole is common.
Package include:
Voltmeter*1
Wiring *1

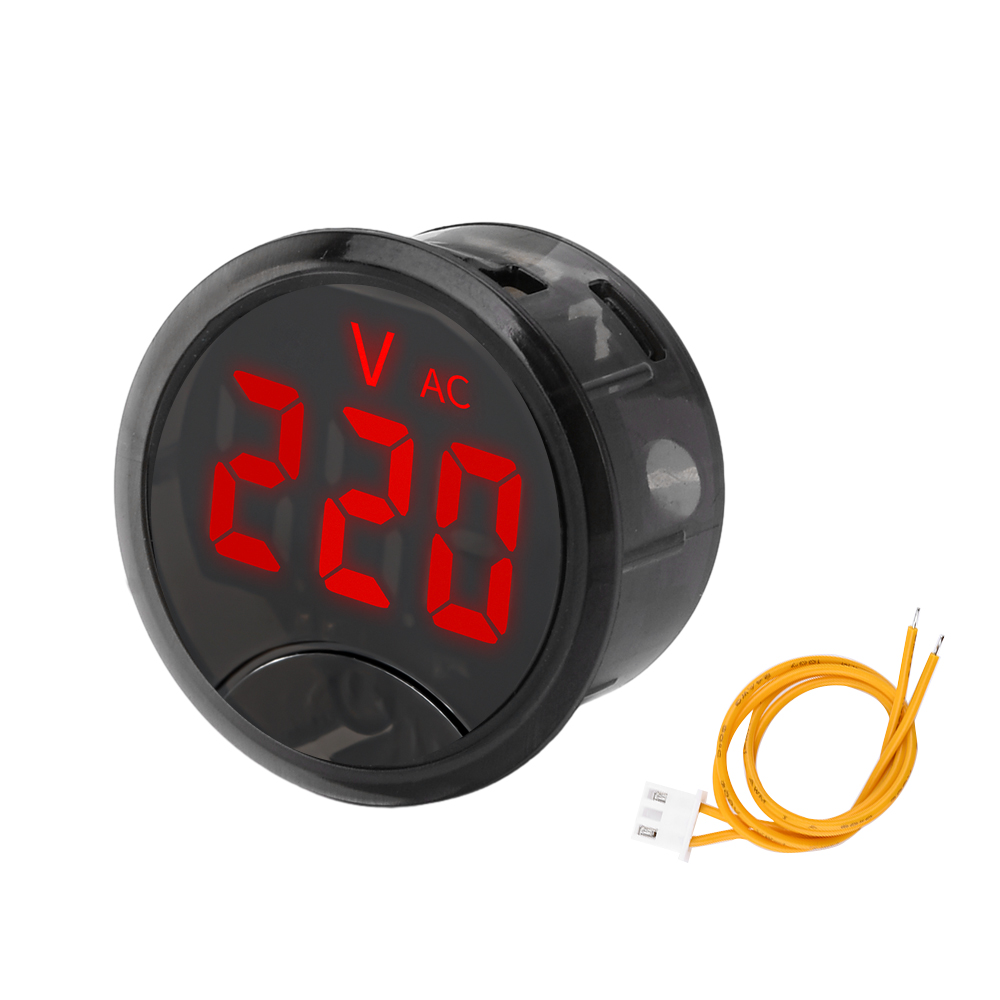

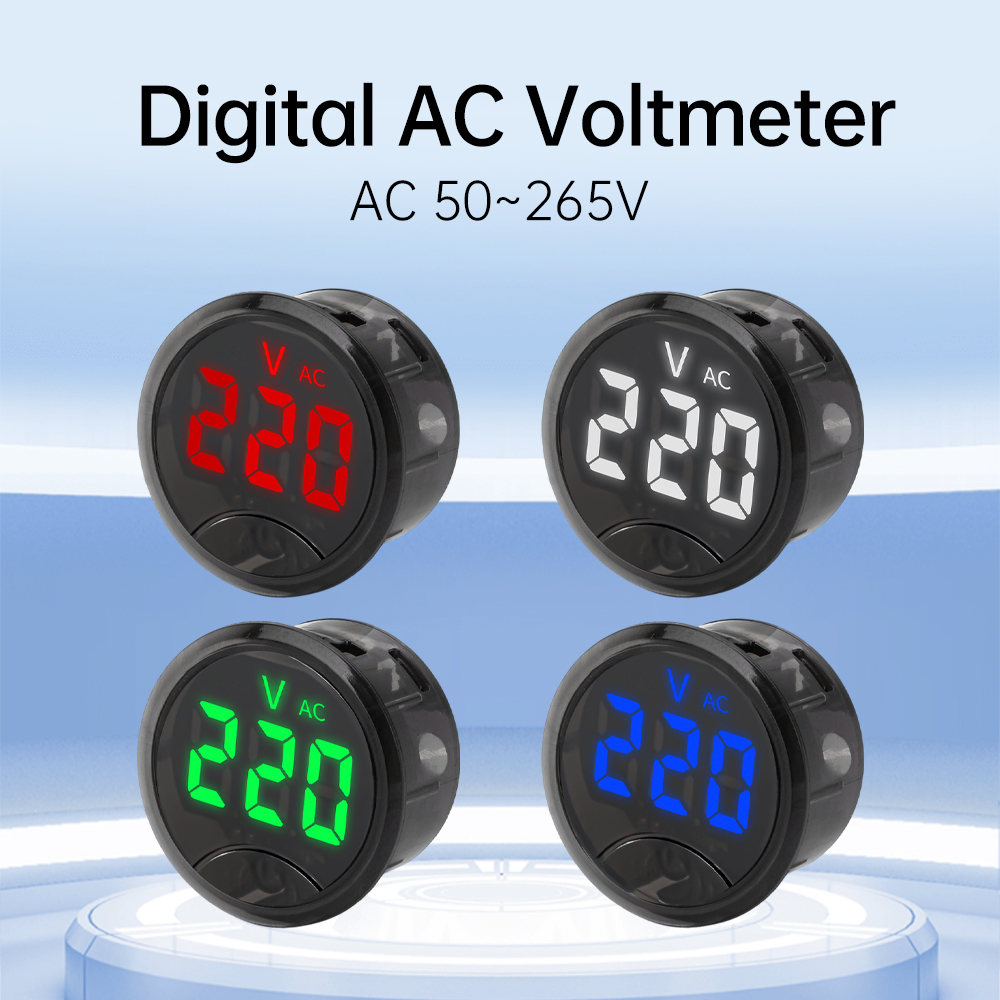

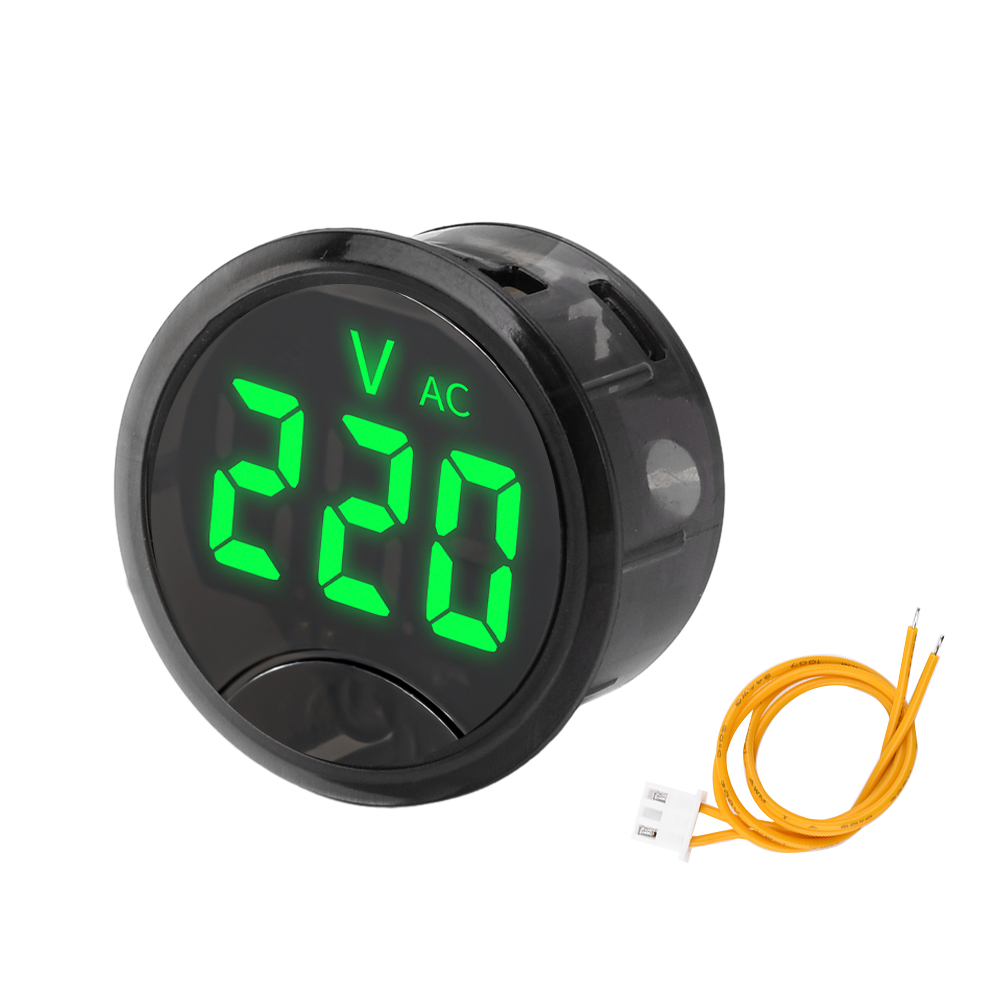

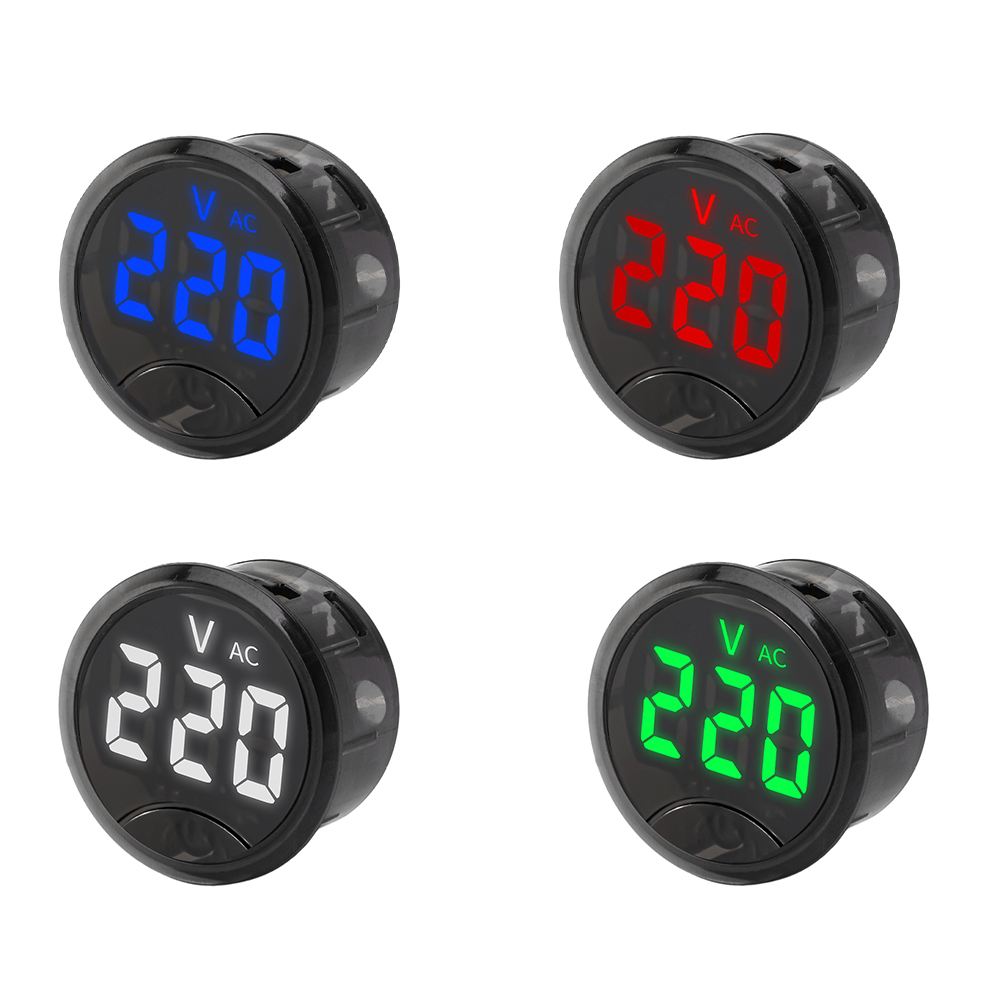

AC 50~265V
1. 3- digit LED digital tube display, clear display, high measurement accuracy.
2. Good product stability, ultra-low power consumption, strong anti-interference ability.
3. Digital display voltmeter, solid card position design, round structure for easy installation.
4. Simple wiring, convenient access to a variety of batteries, electric boxes, can grasp the voltage status in real time.
5. Wide range of applications, wide voltage AC 50~265V, stable performance, long service life.
Detection voltage: AC 50~265V
Working current: ≤20MA (ultra-low power consumption)
Measurement rate: ≥200mS/time
Measurement accuracy: 1% (±1 word)
Display mode: LED digital tube

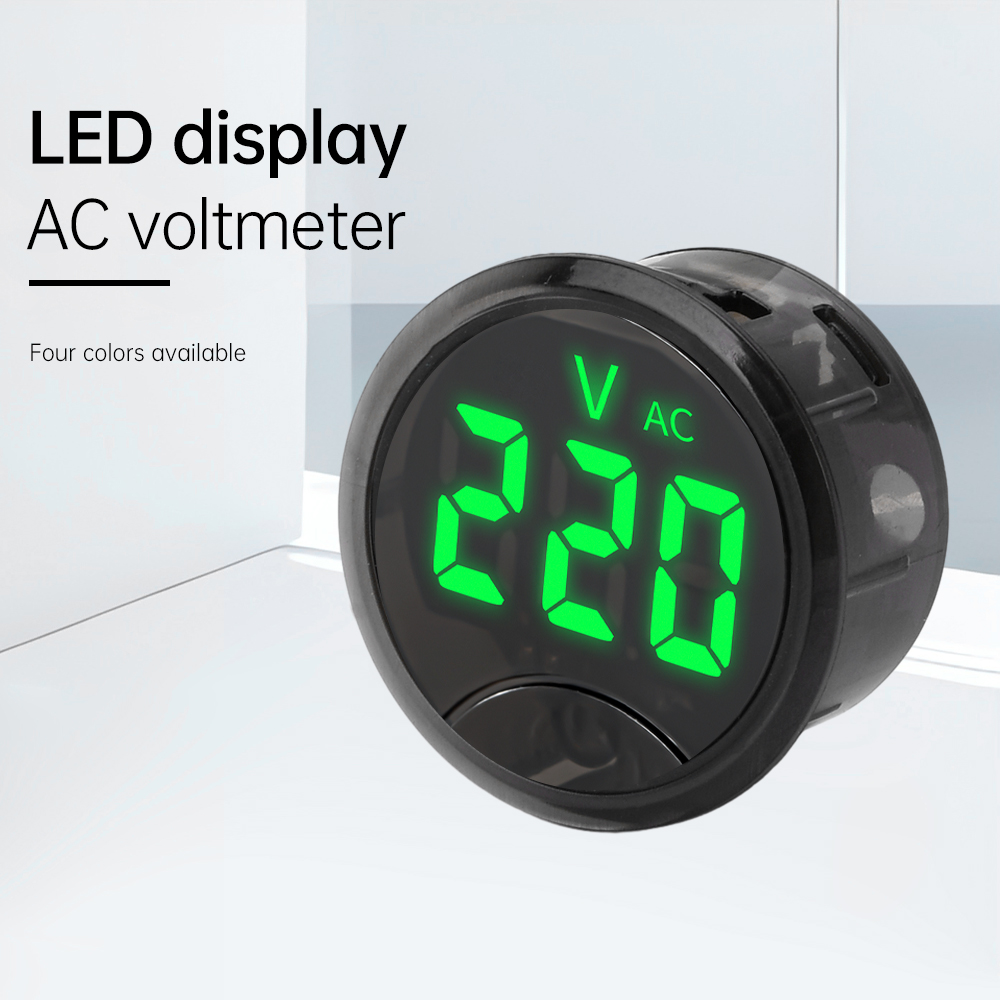

Display color: red, green, blue, white (optional)

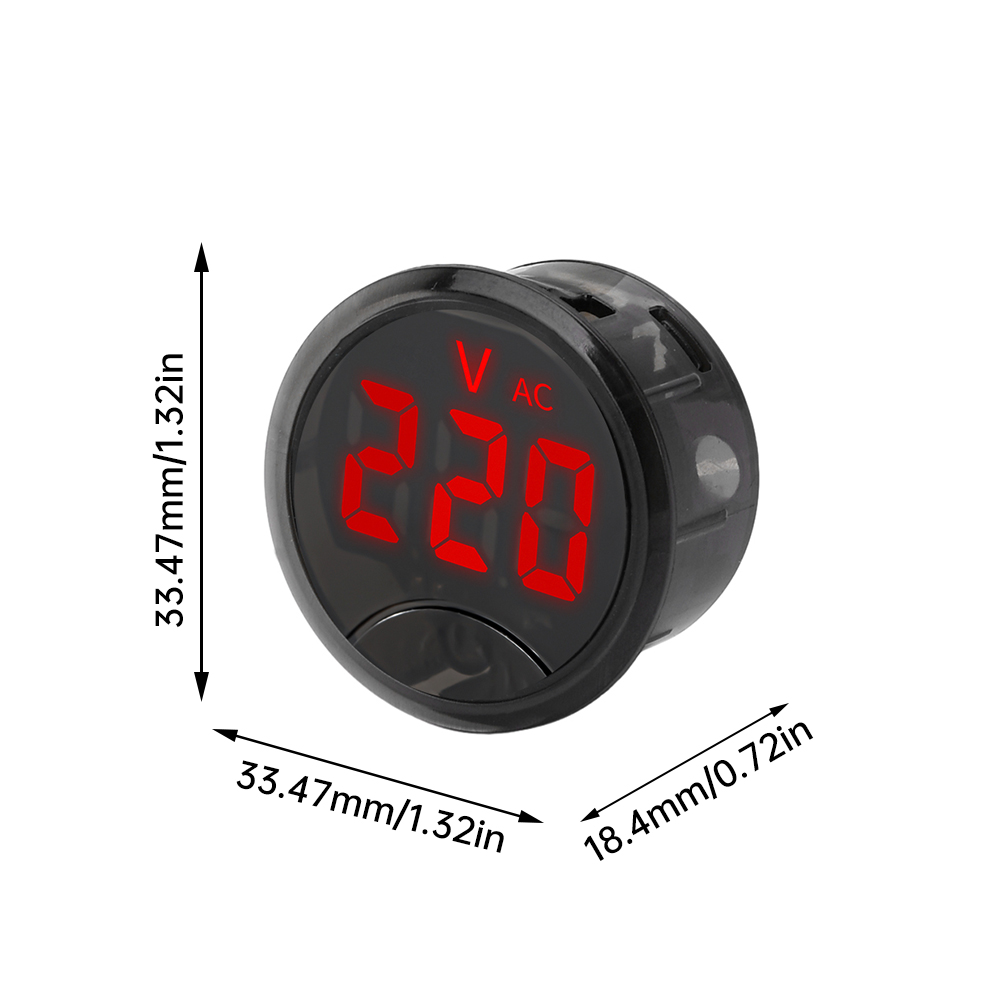

Overall dimensions: circular diameter 33.5mm
Installation aperture: circular diameter 30mm
Voltmeter*1
Wiring *1
