WS2812B WS2815 WS2811 WS2813 RGB SK6812 RGBW RGBWW LED Pixel
Strips SMD 5050 Individually Addressable 30/60/144Leds/m Smart Tape Light
IP30/65/67
Pay attention：
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

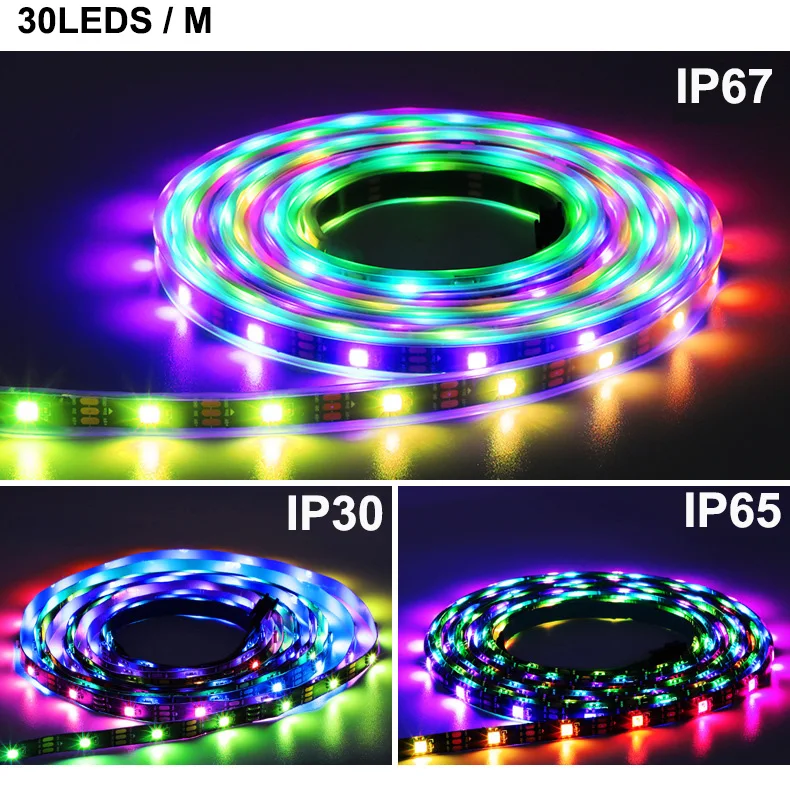

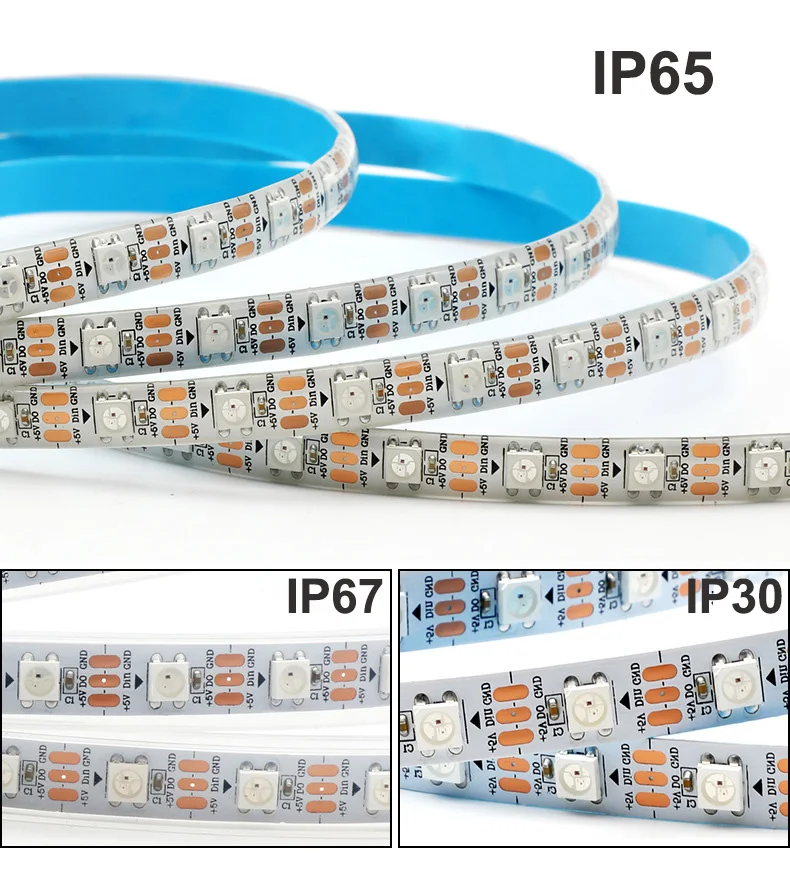

2. IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating

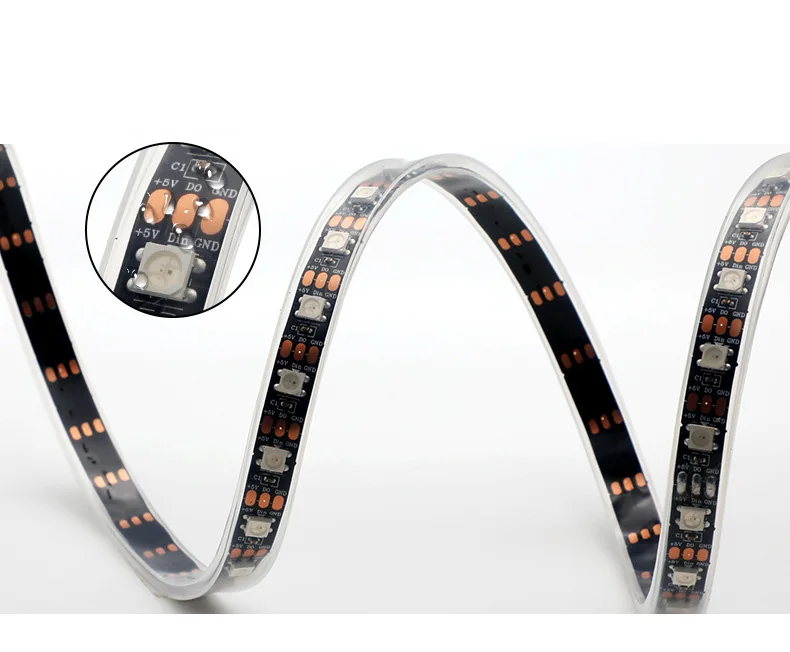

IP67: Waterproof in SiliconTube
This link is not include power supply and led controller,please know it

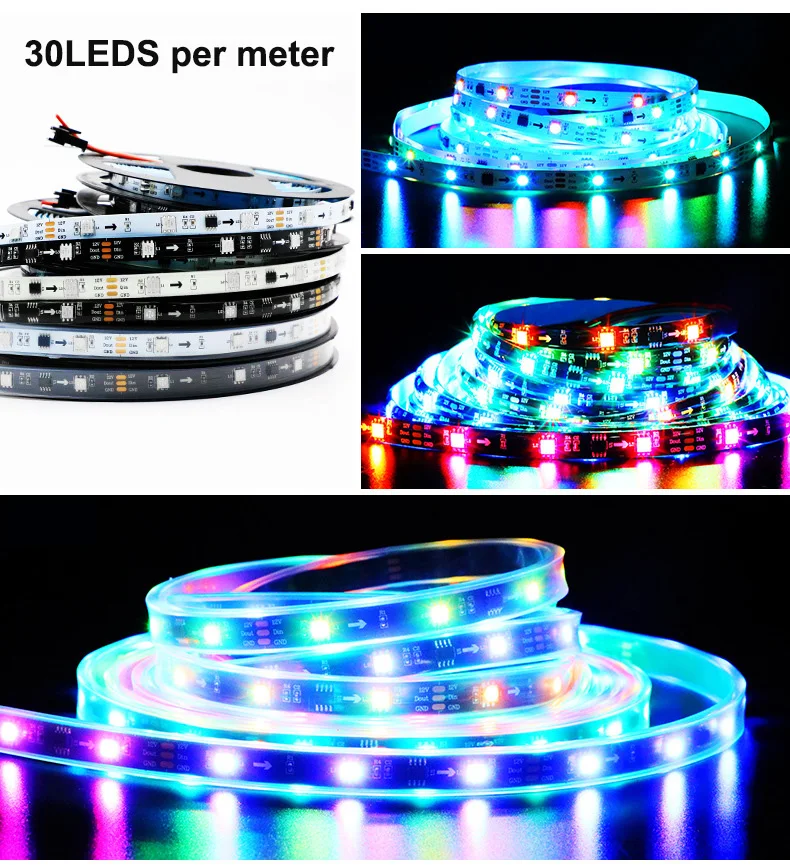

WS2811 LED Strip:
(1) Working Voltage: DC 12V
(2) LED Source: SMD 5050 RGB
(3) LED Chip: Epistar
(4) LED QTY: 30/60 LED/M
(5) IC QTY: 10/20M
(6) Power: 9/18W /M
(7) Grey scale: 256 / Color
(8) Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)
(9) Beam Angle: 120 °
(10) Color Mode: 133Pattern & 100 Speeds
(11) IP Grade: ip30 non -waterproof / ip67 waterproof
(12) Dimension: 5000 x 10 x 2.4mm
(13) Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector

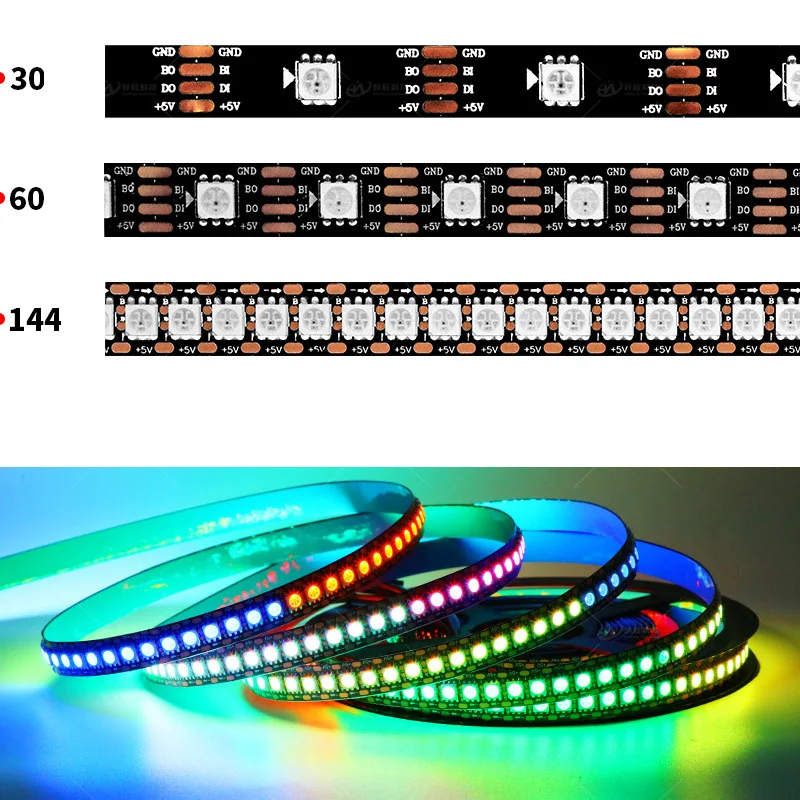

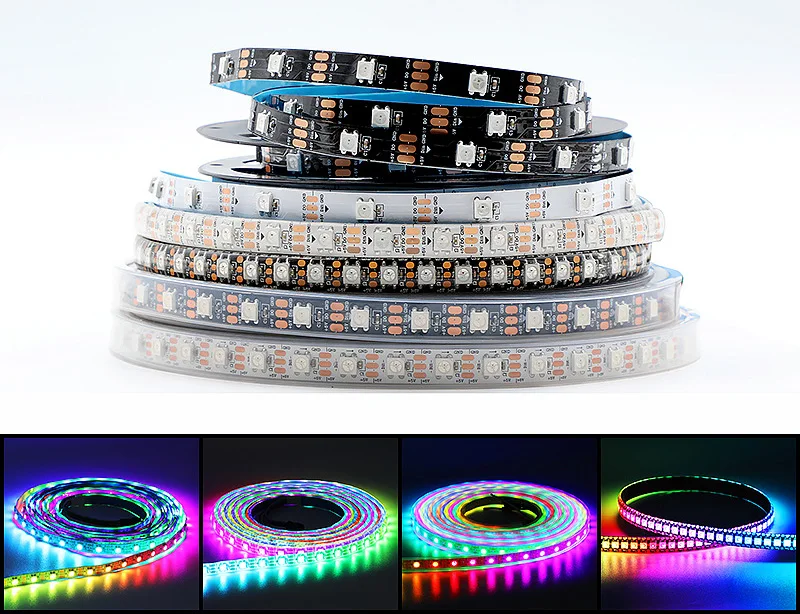

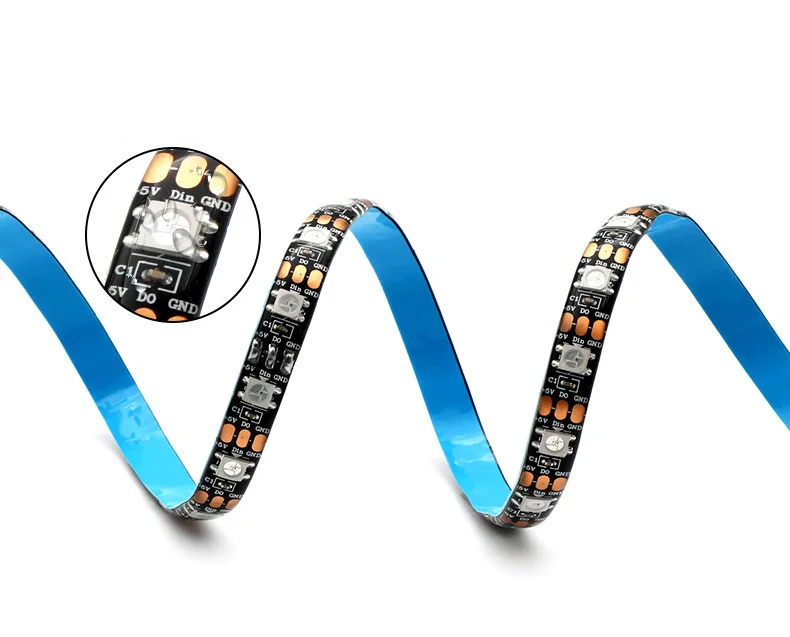

WS2812B LED Strip:
Input Voltage: DC5V
Power: 30Leds/m----9Watt/meter
60Leds/m----18Watt/meter
144Leds/m----43.2Watt/meter
LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip
Pixels: 30/60/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color

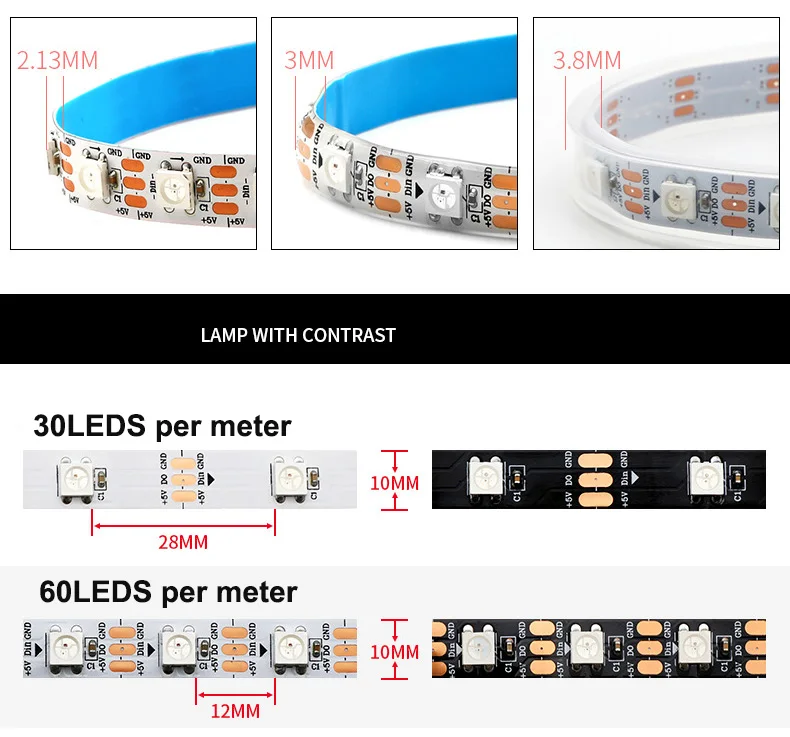

FPC Width: 30Leds/m----10mm
60Leds/m----10mm

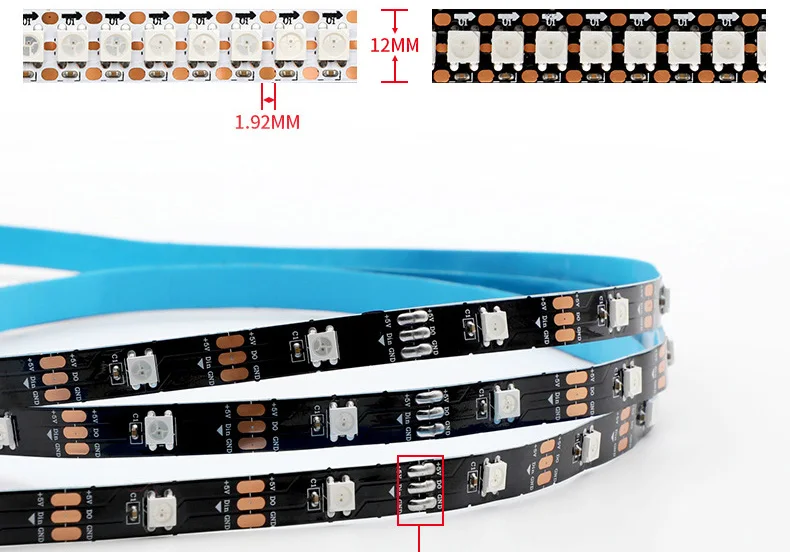

144Leds/m----12mm
FPC color: Black/White
Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
WS2813 LED Strip:
Input Voltage: DC5V
Power: 30 Leds/M --- 9 Watt/Meter / 60 Leds/M --- 18 Watt/Meter / 144 Leds/M --- 43.2 Watt/Meter
LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: Each LED is separately controlled
IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)
Of IC: (1 IC Drives 1 led chip)
Pixels: 30Leds/60Leds/144Leds/meter
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Colors: Full color RGB, dream color changing
Bits/Color: 8-Bits/Color
FPC Color: BLACK / White
FPC Width: 30 Leds/M --- 10 MM / 60 Leds/M --- 10 MM / 144 Leds/M --- 12 MM
Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
Cuttable: Every LED is cuttable
Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector
Source Life: 50,000 hours

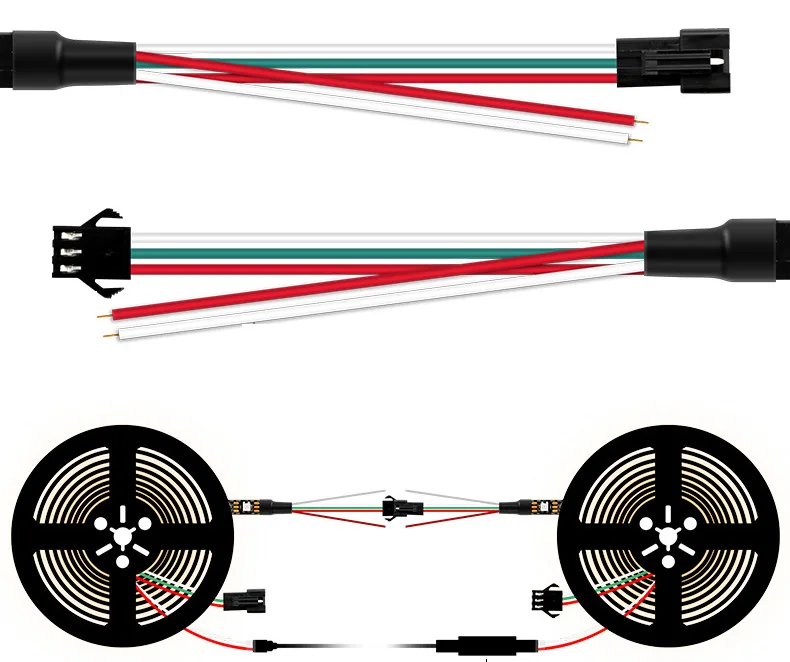

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)
Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

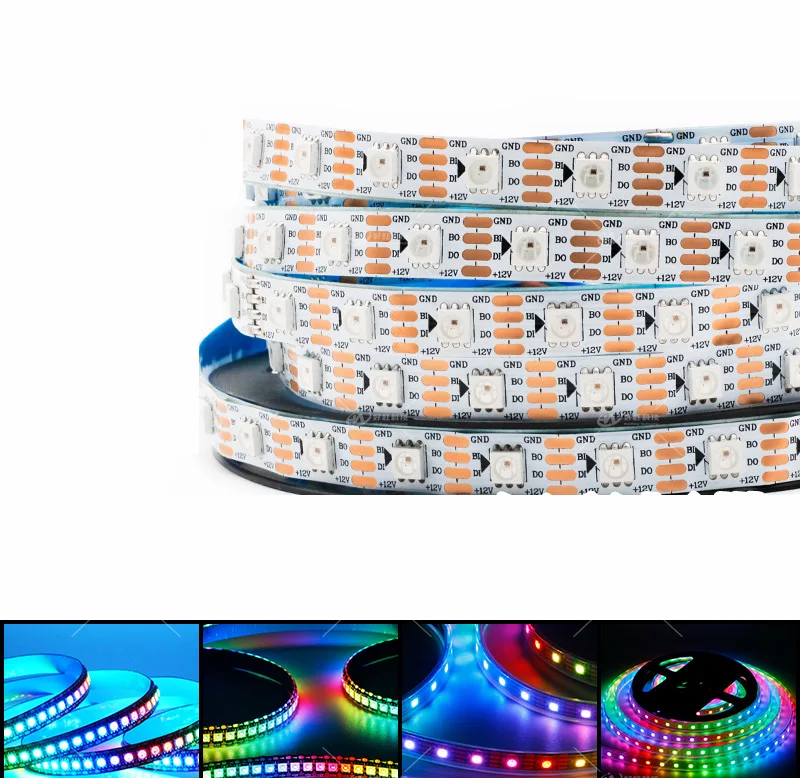

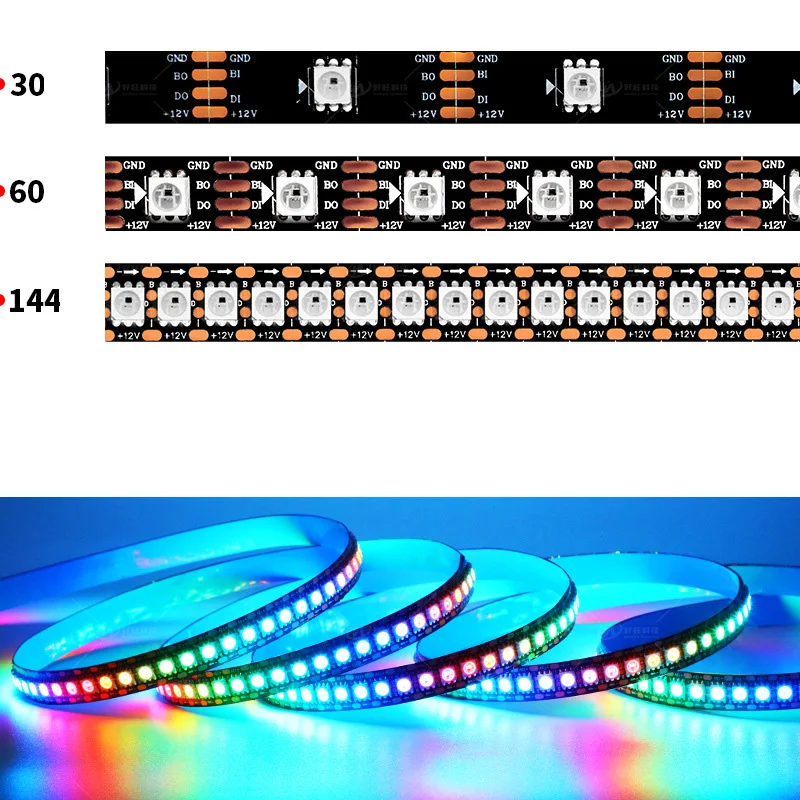

WS2815 LED Strip:
Input voltage:.............DC12V;
Power:.......................30leds/m----9watt/meter
.......................60leds/m----18watt/meter
.......................144leds/m----34watt/meter
LED resource:...........WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: ...............Each LED is separately controlled
IC Type: ....................Improved Version WS2815 IC(built inside the 5050 smd rgb led) of IC: ..................(1 IC drives 1 led chip);
Pixels: .........30/60/144/meter;
Pitch: ........................16.6mm(1000/64);
Grey scale: ...............256;
Bits/color: .................8-bits/color;
FPC Width: :..............30leds/m----10mm
.......................60leds/m----10mm
......................144leds/m----12mm
FPC color: .........White/Black PCB
Protection rate ......IP30/ IP65 /IP67
Colors: .......................Full color RGB, dream color changing;
Cuttable:.....................every LED is cuttable;
Package: ...................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)
Working temperature...............-40 ~ 70 °C
Storage temperature...............-50 ~ 80 °C
Source life ...............50,000 hours
Connector ...............4PIN Connector terminal pair
(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)

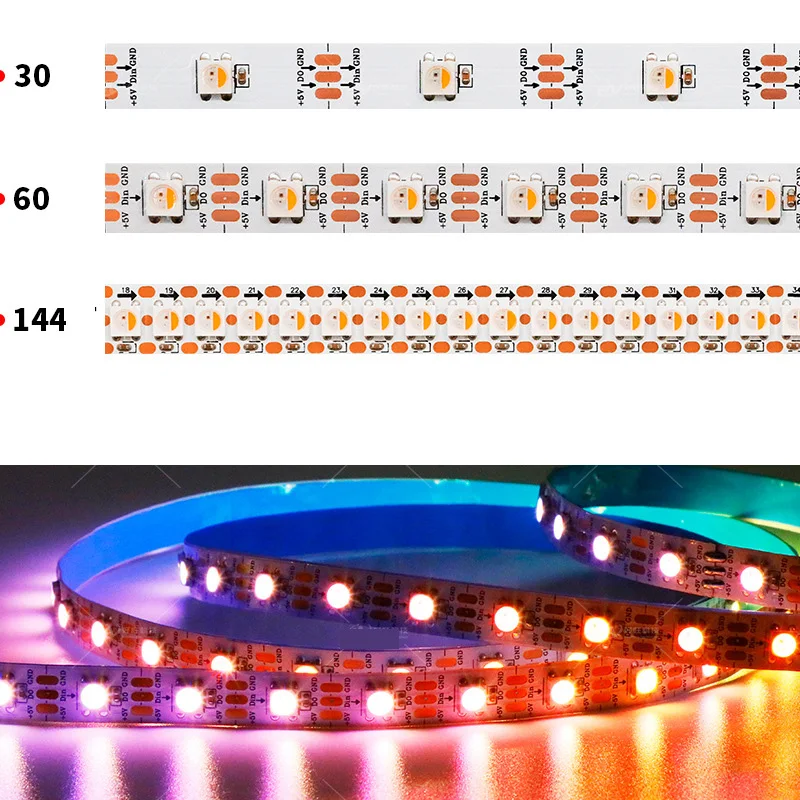

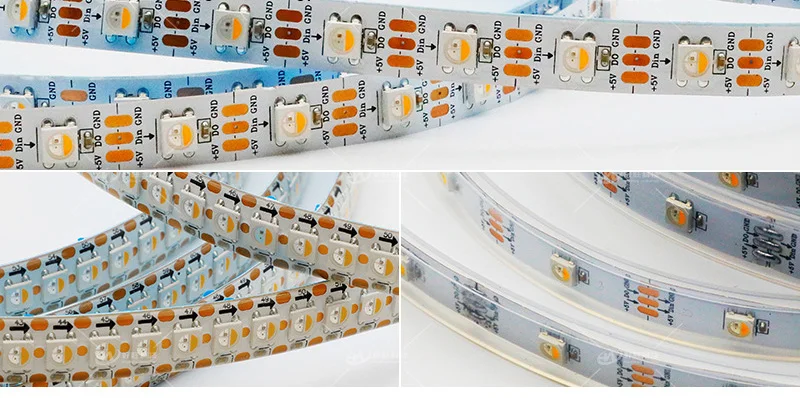

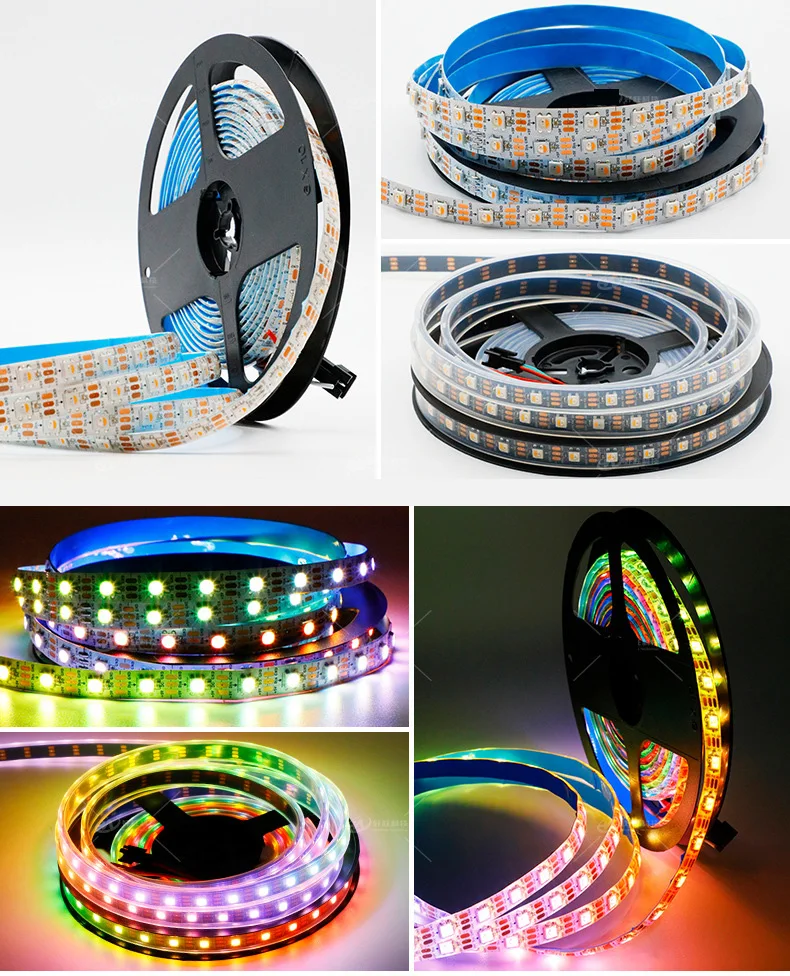

SK6812LED Strip:
SK6812 RGBW Must Use DC5V Power Supply AND Led Controller to Control! every 0.5meter with solder joints, please note!
(RGBCW 6000-6500K ;RGBWW 2700-3000K ) the length as you choose LED source :5050SMD RGBW built-in SK6812 chipset
Voltage(DC):5V
Power: 144LEDs/meter -------43.2W / Meter
60LEDs/meter ---------18W / Meter
30LEDs/meter ---------9W / Meter
LED type :SMD5050
IC type :SK6812
LED/per meter:30, 60,144leds/Meter (each LED is separately controlled)
IC/per meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)
Pixel /per meter :30, 60,144Pixels/Meter
Grey Grade: 256
Color:RGBW (WW 2700-3000K ; CW 6000-6500K)
PCB color:White / Black available
IP30,IP65 ,There is a self-adhesive tape at the back side. You can install easily

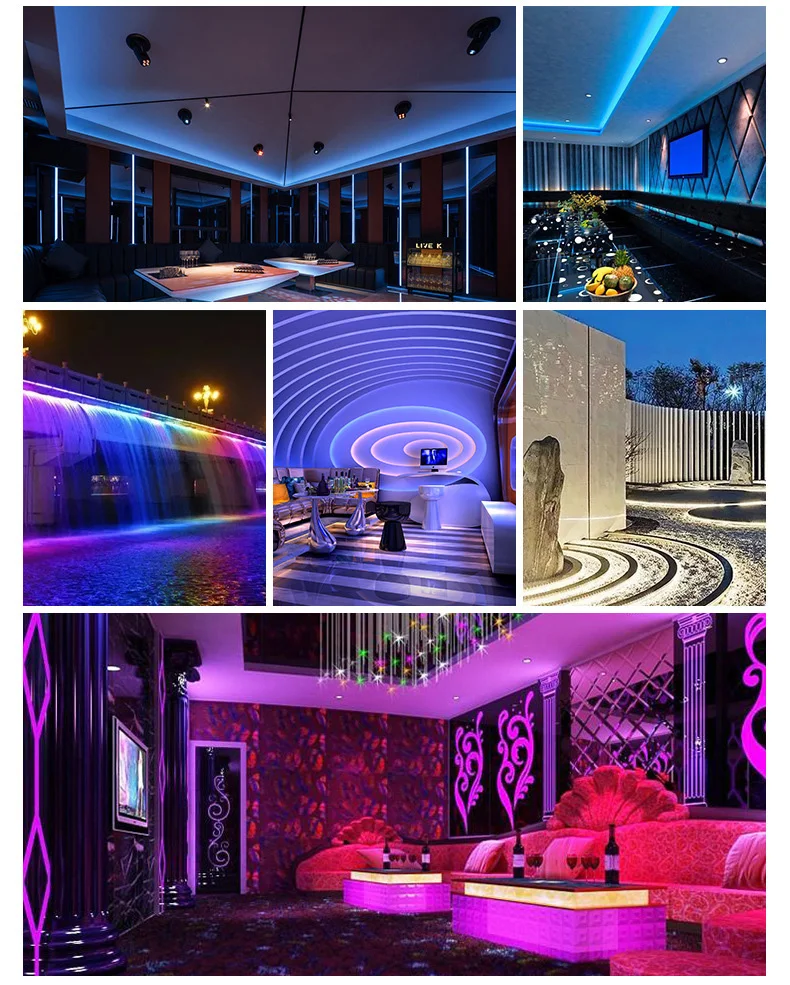

Application:
Applicable for automobile and bicycle decoration, border or contour lighting Widely used for home decoration use, hotels, clubs, shopping malls Architectural decorative lighting, boutique atmosphere lighting Extensively applied in Backlighting, concealed lighting, channel letter lighting Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Package:
1*1M/2M/5M/4*5M/10*5M LED Pixel Strips (power supply or controller not included)
Note:Soldered is very common in led strips ,not a quality problem.The led strip may soldered by pcs to 5m length,if you can't accept it ,please avoid !
