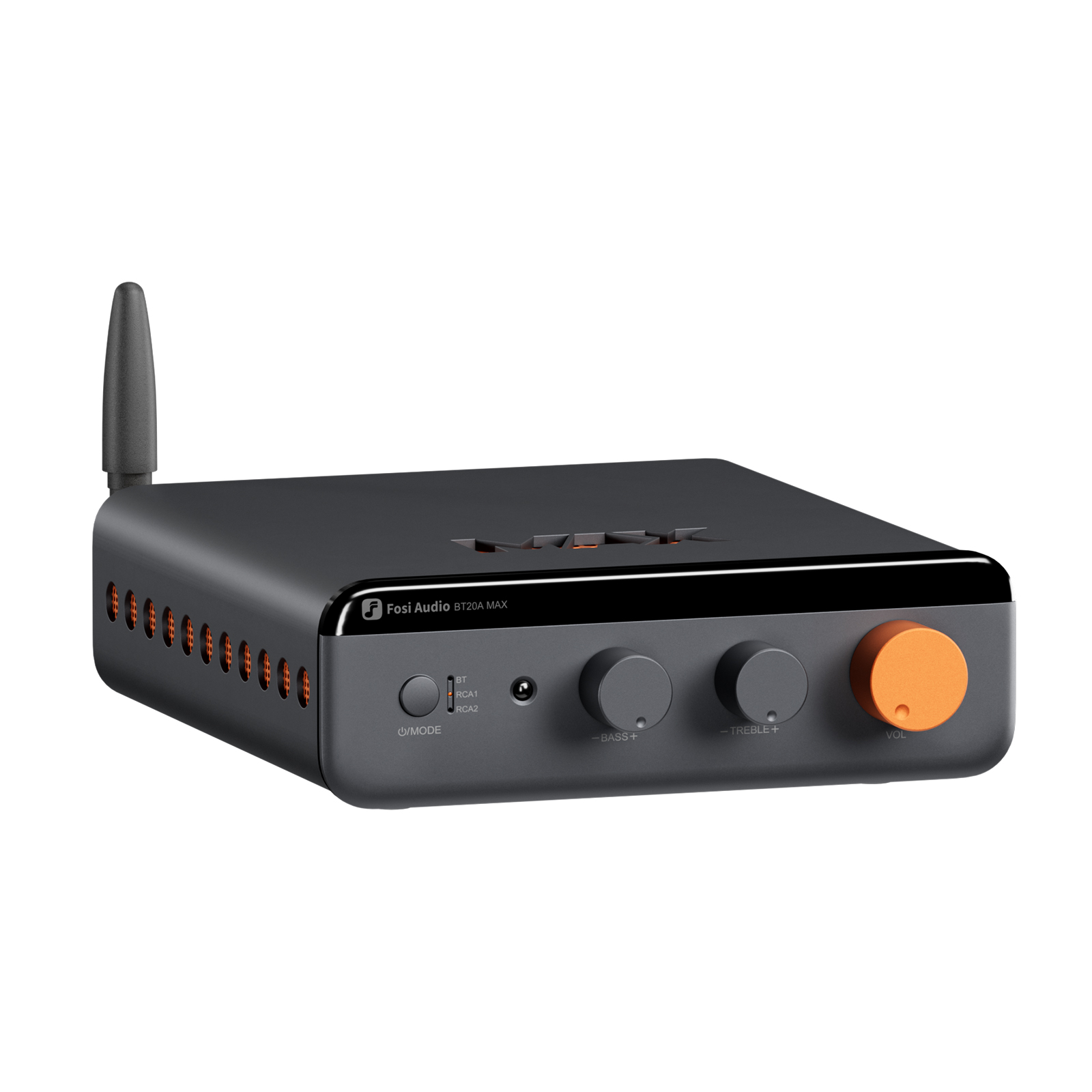

Fosi Audio BT20A MAX TPA3255 Class D Stereo Integrated Amplifier with Bluetooth aptX HD, Subwoofer Output, Remote Control, Including 32V/5A Power Supply Adapter
Features:

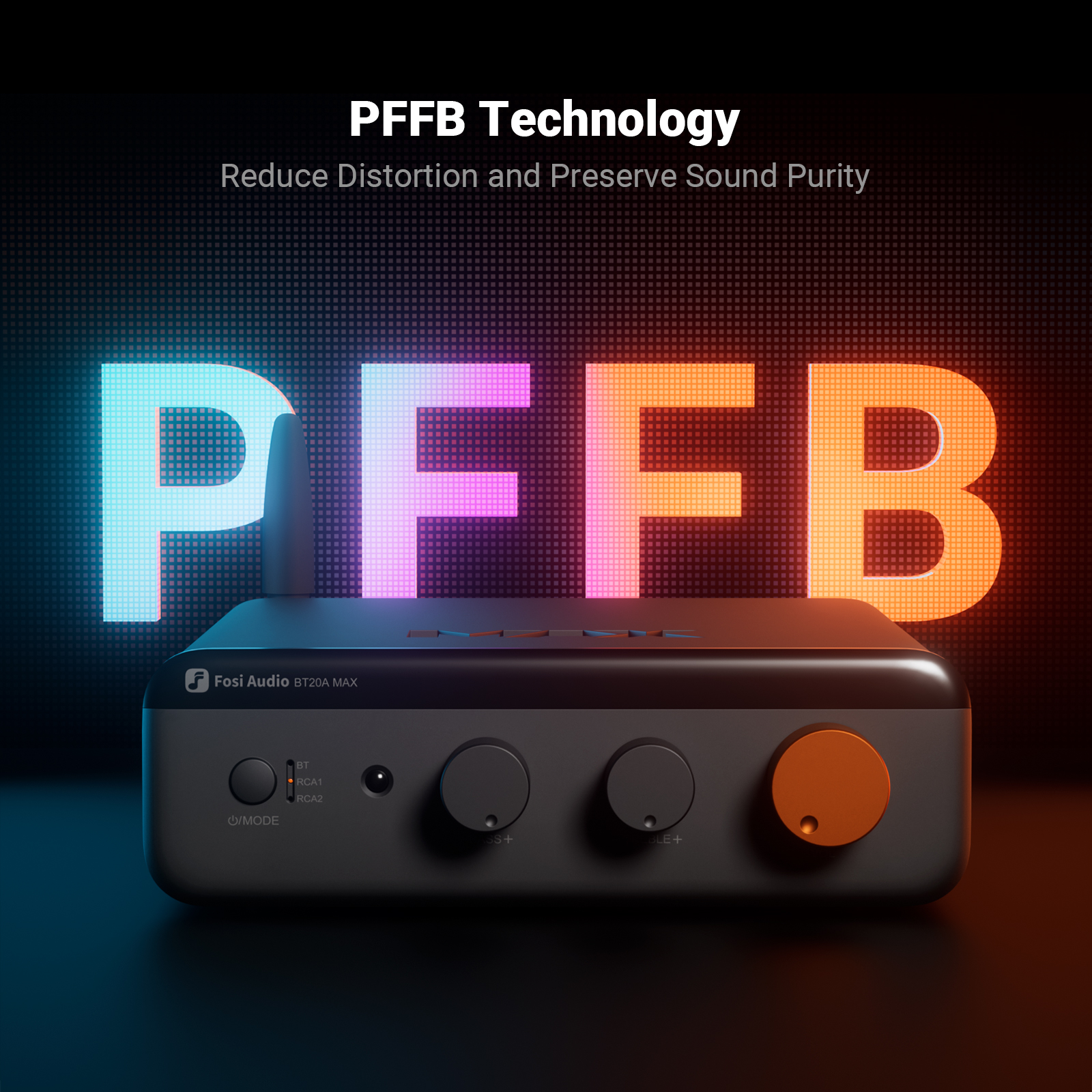

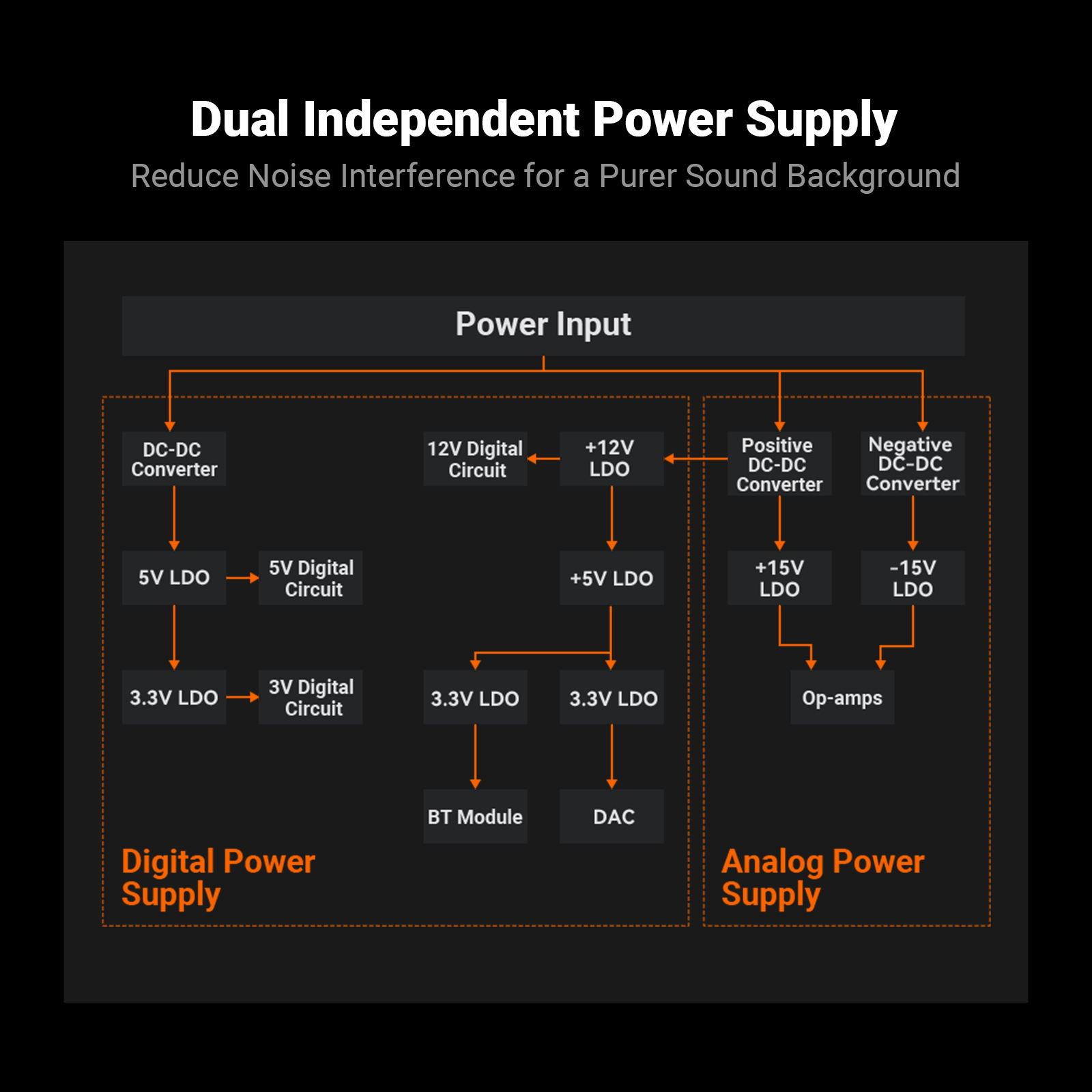

- Thanks to PFFB technology and dual independent power supplies, this stereo amplifier delivers ultra-low distortion (≤0.003%) and a high signal-to-noise ratio (≥112 dB). It effectively reduces noise and interference, providing clean and detailed audio reproduction.

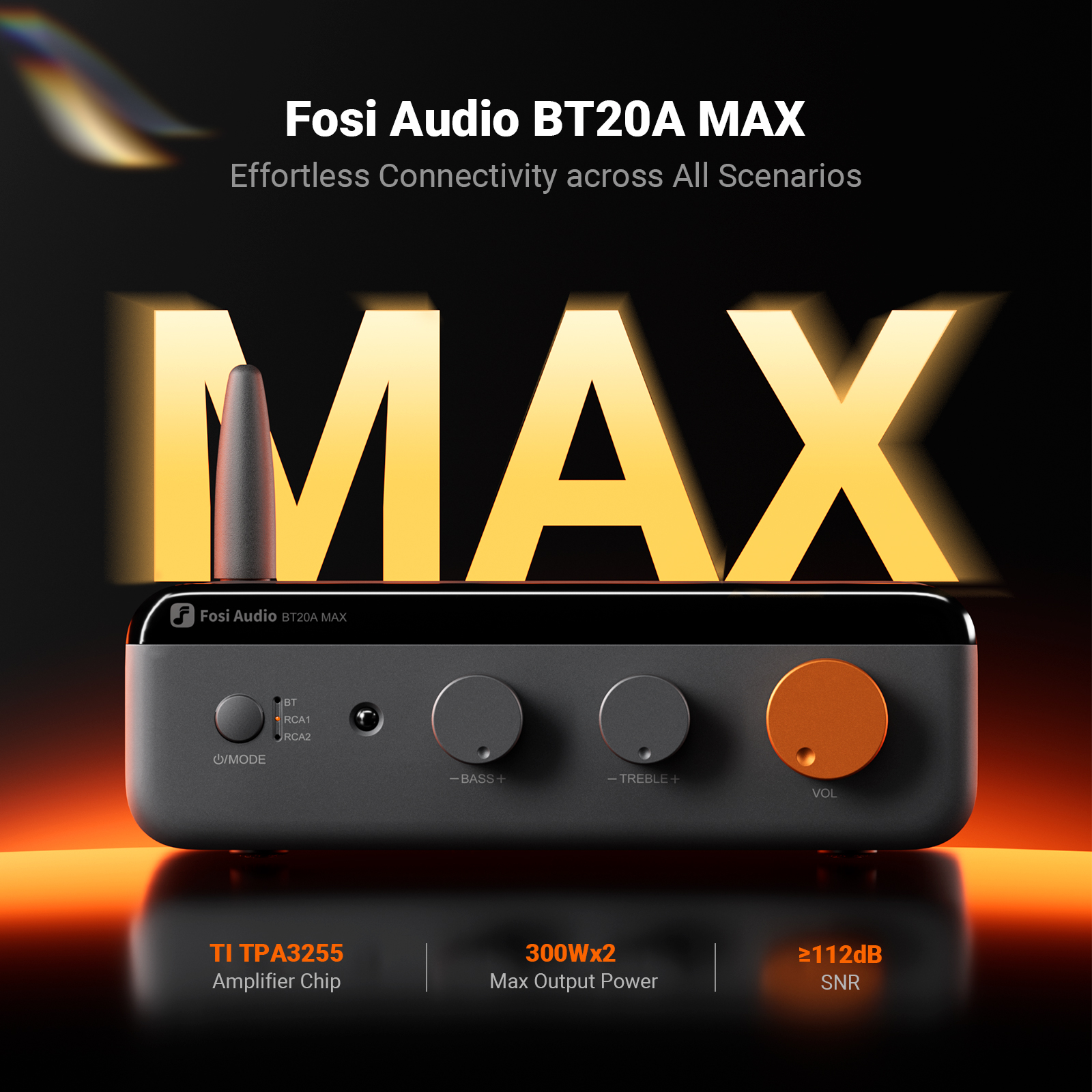

- Powered by the TPA3255 and NE5532 chips, the BT20A MAX delivers up to 300W per channel. Its optimized design features a built-in ultra-quiet cooling fan, improving cooling efficiency by 30% compared to the PRO version, ensuring stable performance even under heavy load.

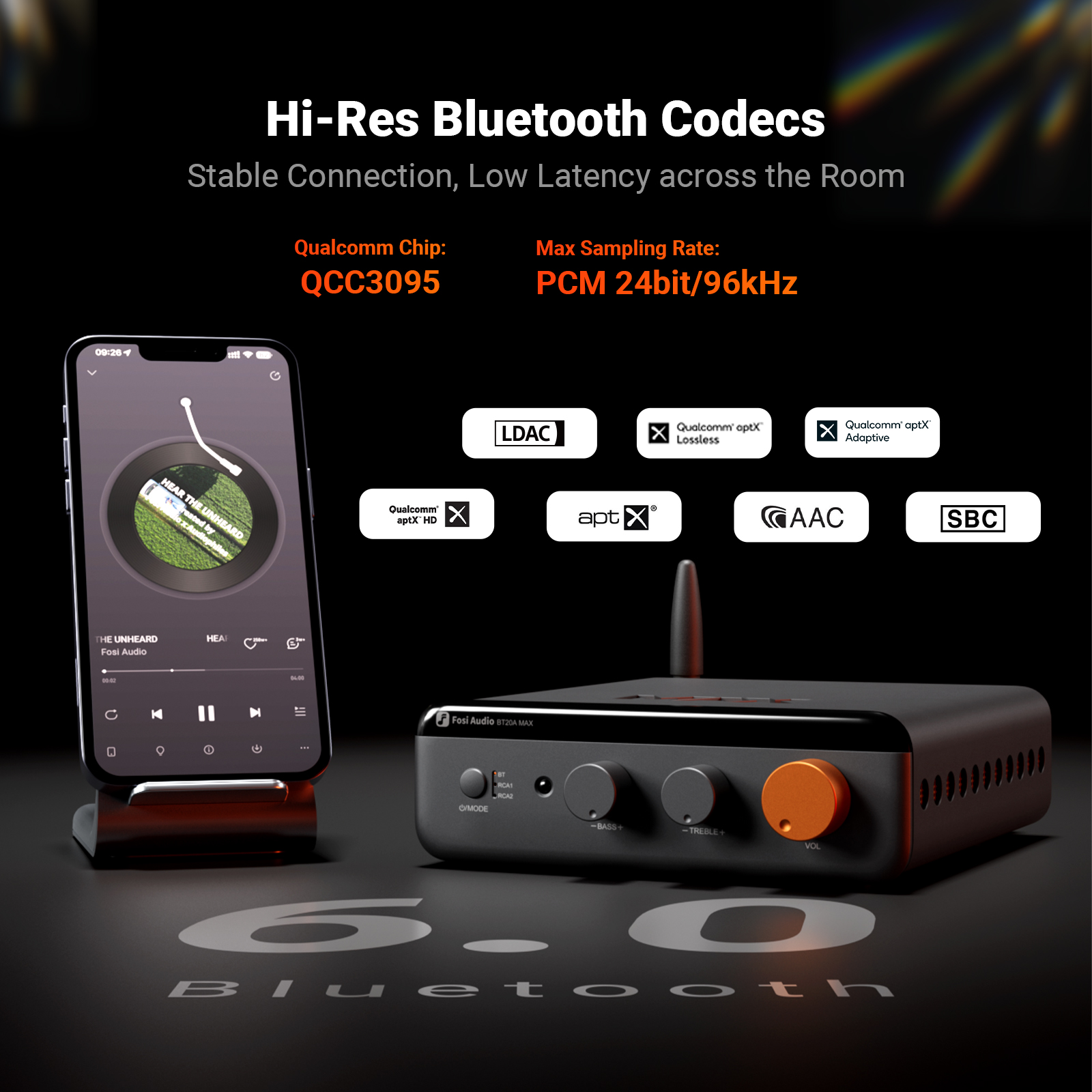

- Equipped with the Qualcomm QCC3095 chip and Bluetooth 6.0, supporting LDAC, aptX Lossless, aptX HD, aptX Adaptive, aptX, SBC, and AAC codecs, with a maximum sampling rate of PCM 24-bit/96kHz. Provides a stable, low-latency wireless connection.

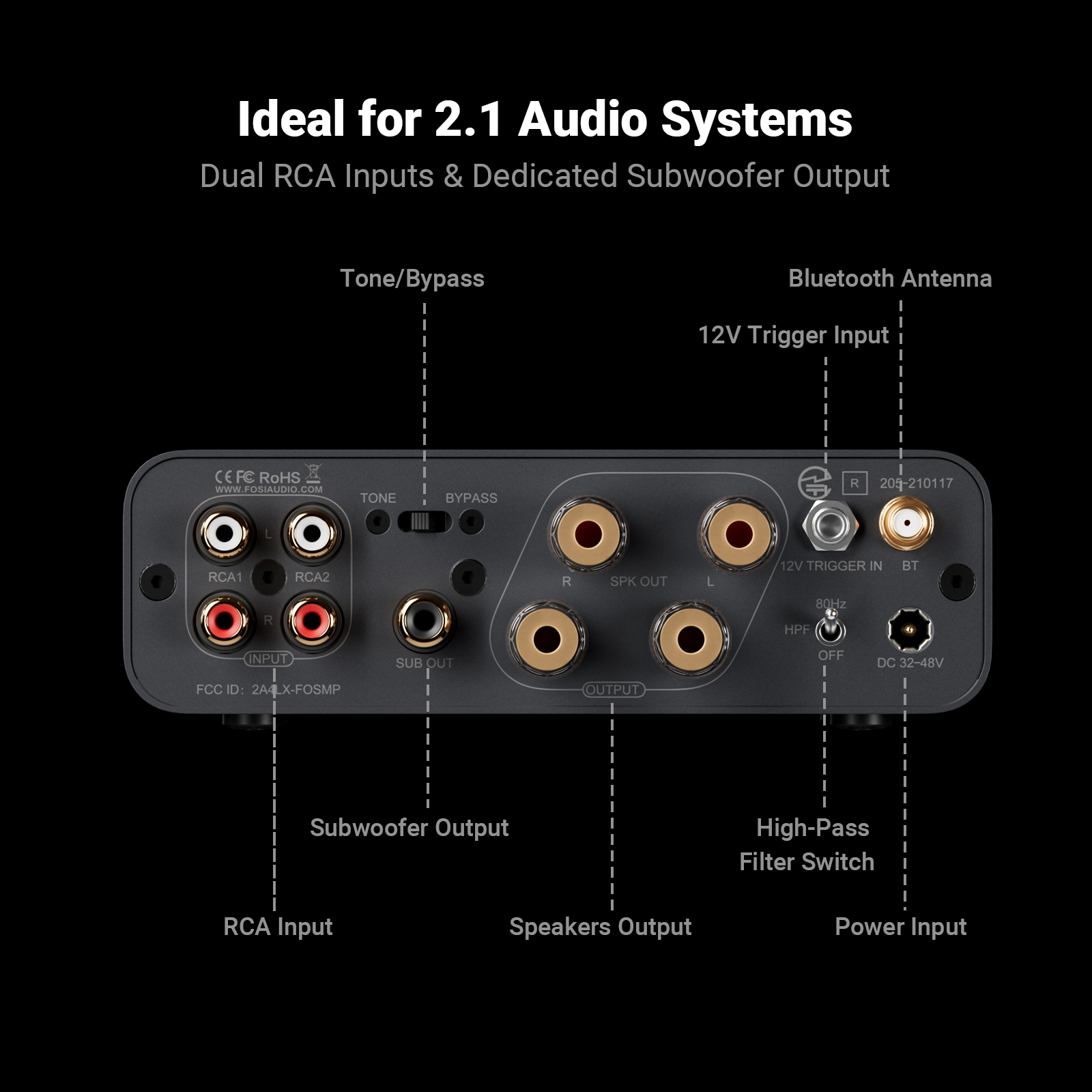

- Features dual RCA inputs, a dedicated subwoofer output, and a motorized analog potentiometer for precise adjustments via the included remote control—ideal for a 2.1 home theater audio system.
- Enjoy pure sound in Bypass mode or customize bass and treble in Tone mode. The 12V trigger input enables synchronized power on/off, and the HPF setting optimizes speaker performance.

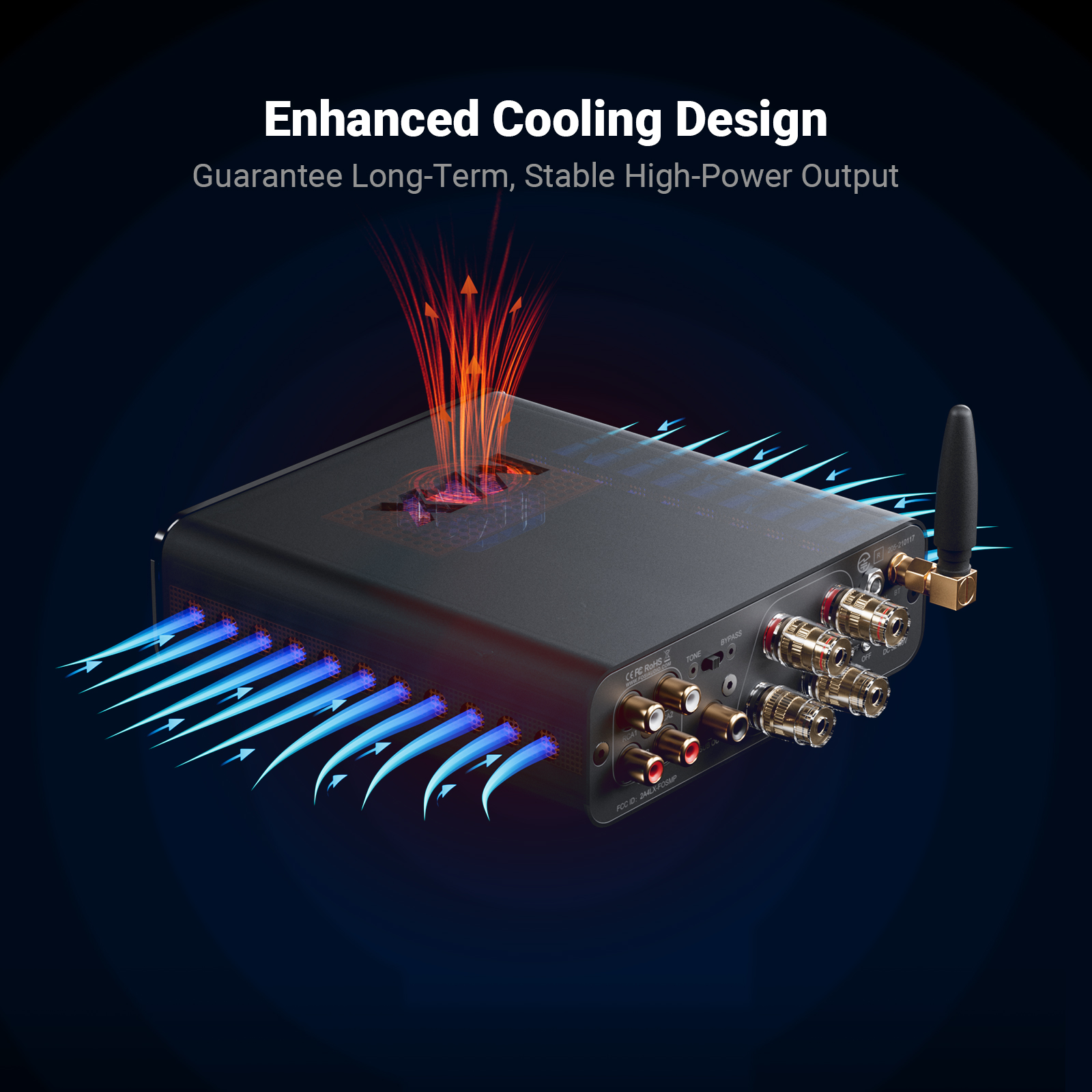

- Compared to the PRO version, the BT20A MAX features an improved circuit design and a newly integrated ultra-quiet fan that boosts cooling performance by 30%. Specially designed ventilation openings on the top and sides maximize airflow for optimal heat dissipation.
Versatile Functions: Includes bass/treble control and EQ bypass for personalized sound tuning.
• Bypass: The bypass disables the internal equalizer (bass/treble), outputting the original audio signal without modification.
• 12-V-Trigger: The BT20A MAX can be powered on and off using any device with a 12V trigger output.

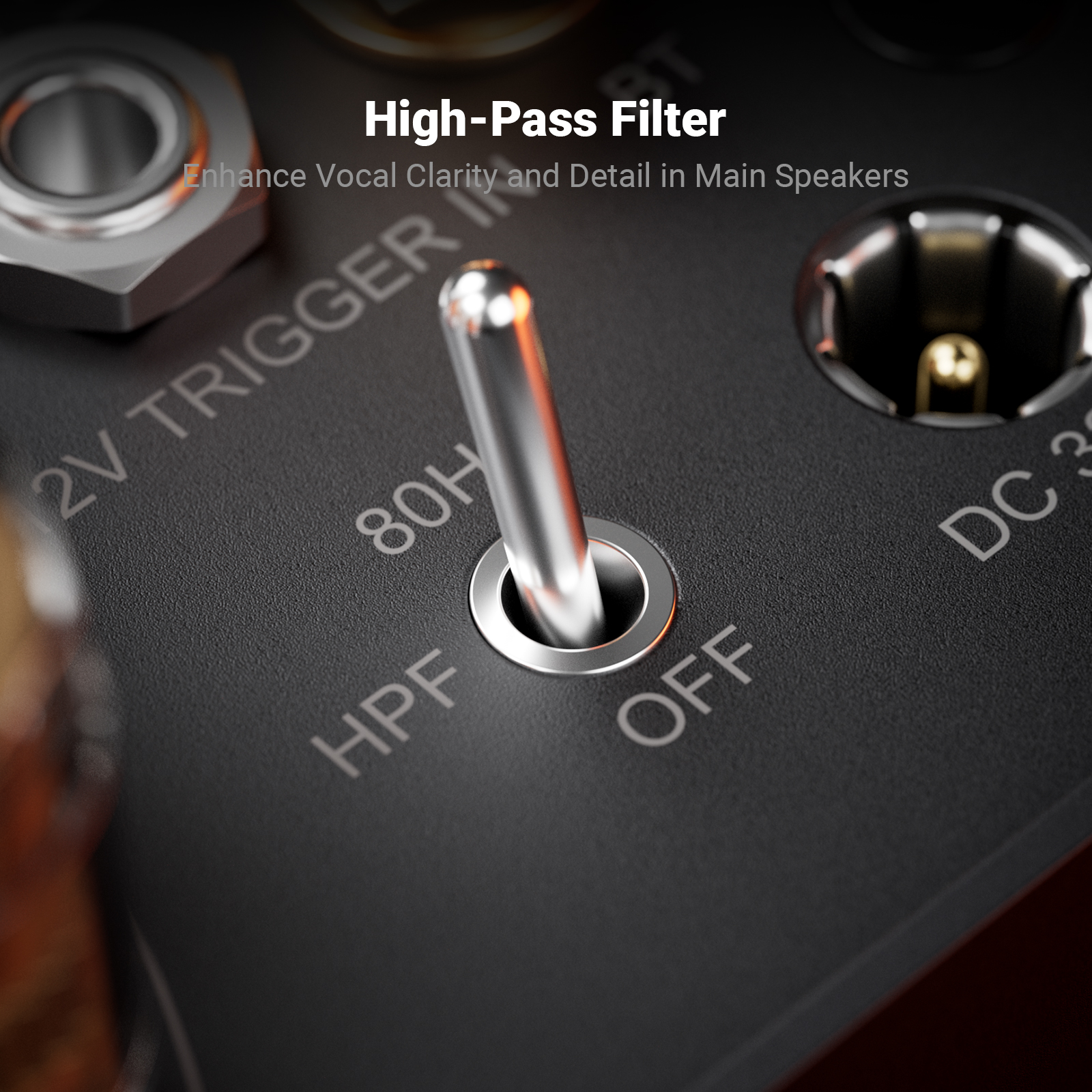

• HPF:Filters out frequencies below 80 Hz to enhance vocal clarity and detail reproduction on the main speakers.
• Bypass: The bypass disables the internal equalizer (bass/treble), outputting the original audio signal without modification.
• 12-V-Trigger: The BT20A MAX can be powered on and off using any device with a 12V trigger output.
• HPF:Filters out frequencies below 80 Hz to enhance vocal clarity and detail reproduction on the main speakers.
Channels: 2.1
Amplifier Chip: TI TPA3255
Op-Amp: NE5532
Maximum Output Power: 300W × 2 @ 4Ω
RMS Output Power: 180W × 2 @ 4Ω
Inputs: RCA1 / RCA2 / Bluetooth
Outputs: Speaker Output / Subwoofer Output
Signal-to-Noise Ratio (SNR): >112 dB
Total Harmonic Distortion (THD+N): ≤0.003%
Load Impedance: 2–8 Ω
Bluetooth Chip: Qualcomm QCC3095
Bluetooth Device Name: Fosi Audio BT20A MAX
Bluetooth Version: 6.0
Bluetooth Range: Up to 15 m
Bluetooth Audio Codecs: SBC / AAC / aptX / aptX HD / aptX Adaptive / aptX Lossless / LDAC
Frequency Response: 20 Hz–20 kHz (+0.5 dB)
Power Supply Range: DC 32V–48V

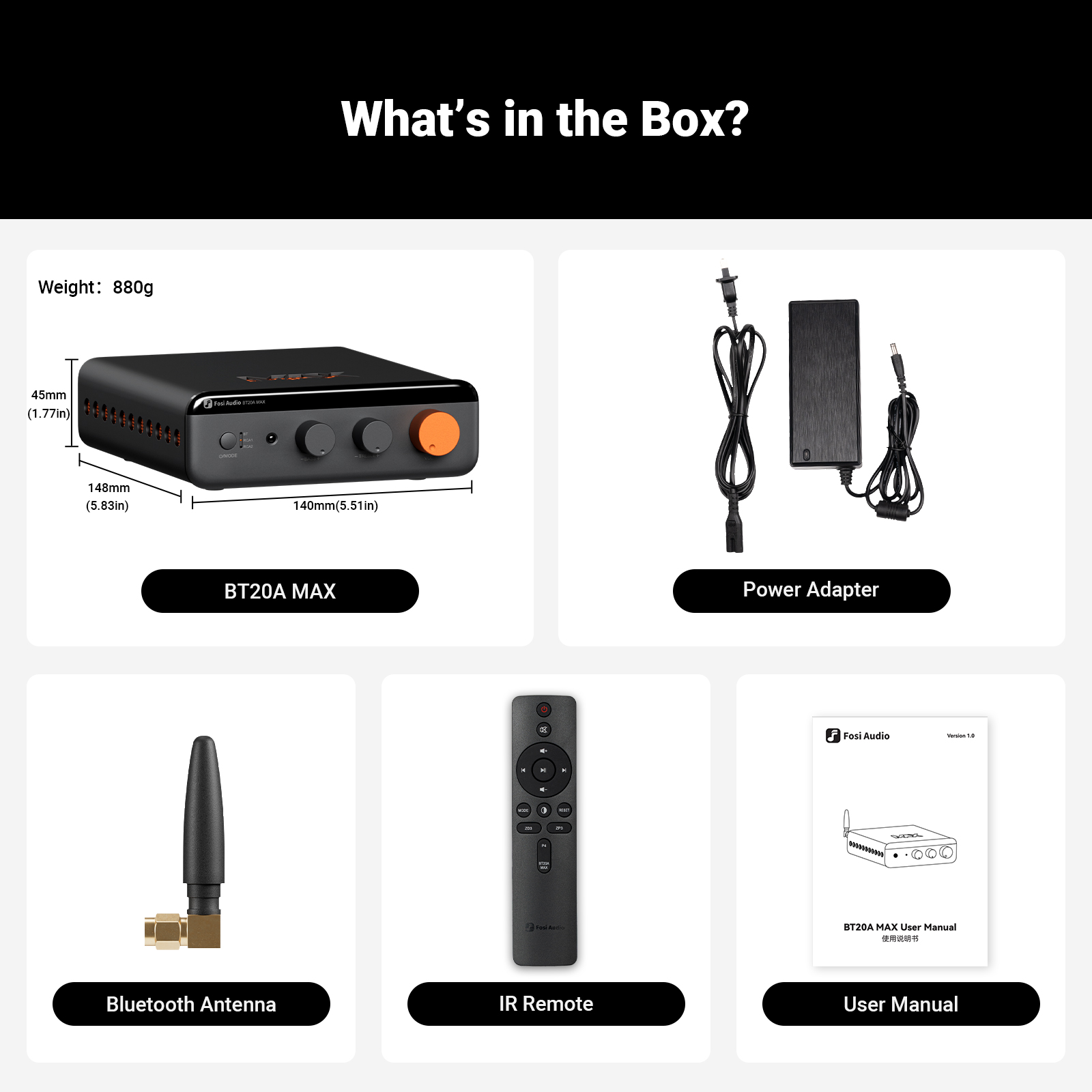

Package Include:
1 × BT20A MAX Amplifier
1 × 32V/5A Power Adapter
1 × Bluetooth Antenna
1 × Infrared Remote Control
1 × User Manual
