Features:
 - Pipe welding machine set is used for welding plastic pipes as PP/PPR/PE/ pipe, etc. Includes 3 different sizes of welding heads: 20mm, 25mm, 32mm.
 - The welding plate is adopted high quality aluminum alloy, durable for use, and heat can be stored for a long time
 - The round aluminum alloy heat dissipation hole can prevent the heat to the shell, more safe to use.

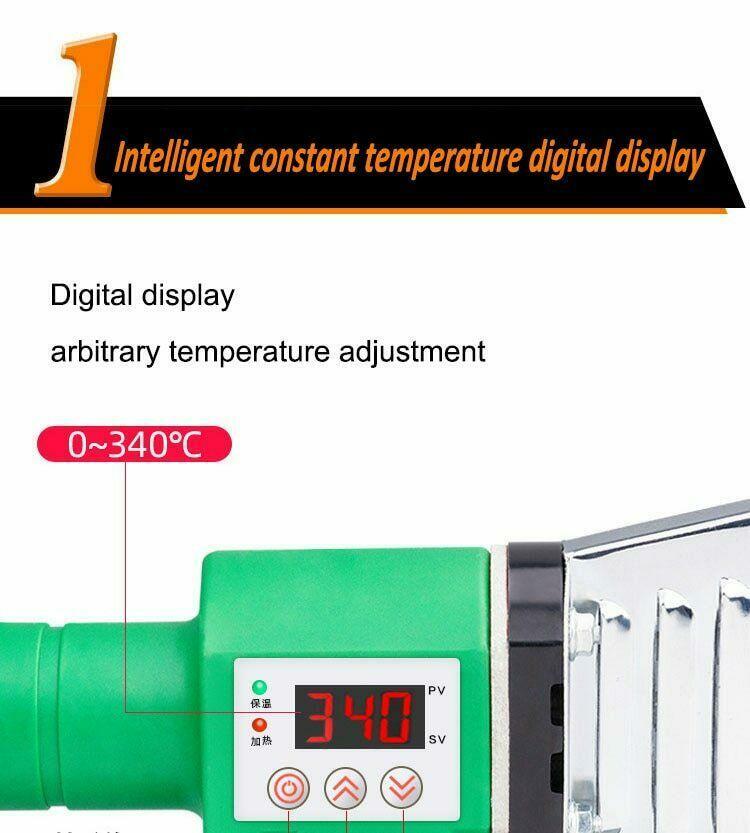

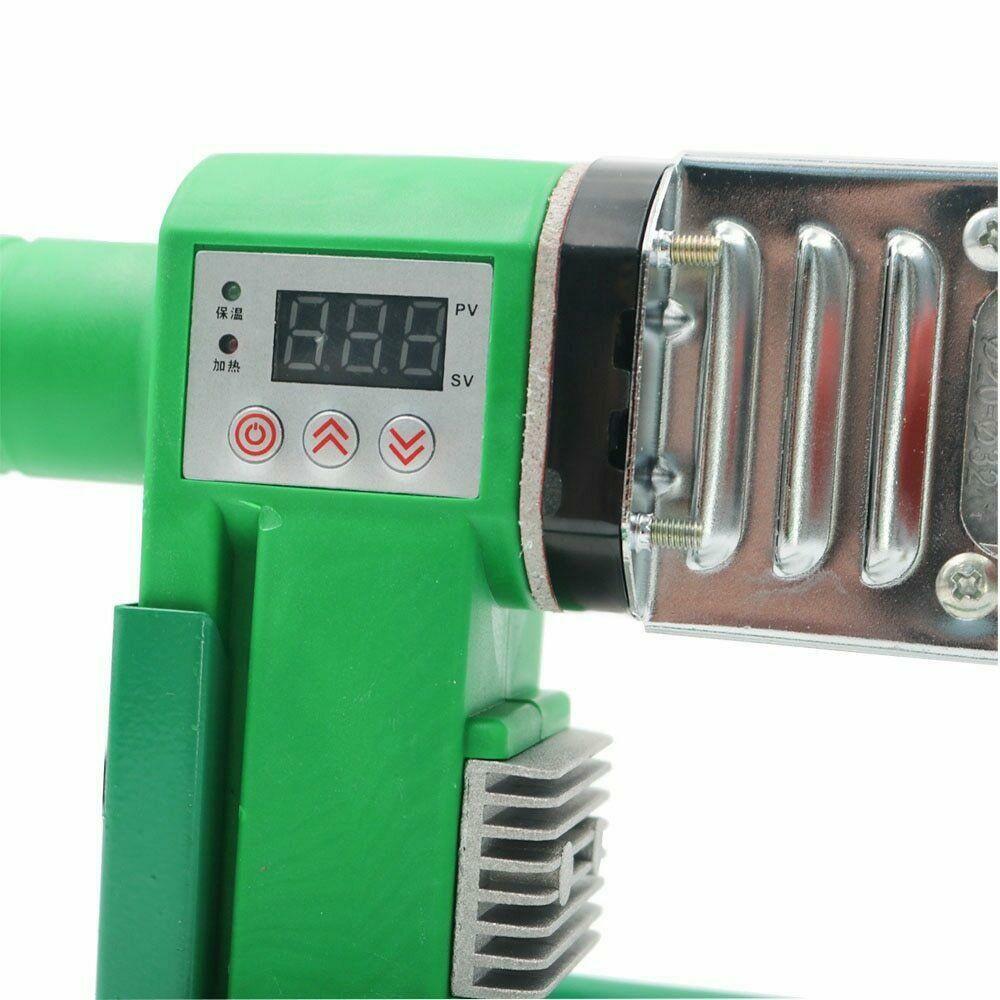

 - PPR pipe welding machine is equipped with a digital display screen, Adjustable heating plate temperature, , easy to view the temperature.
 - Thickened and anti-scald power cable can reduce the safety problem. - The power cord will not melt when the touched by the panel accidentally.
 - The welding connector design for the corner is convenient to welding the pipe on the corner.

 Specifications:
 Item Condition:100% Brand New
 Material: Metal
 Color: Green (As Pictures Show)
 Machine total length:32cm/12.6’’(Approx.)
 Plug type: EU Plug (Please kindly make a note if you need any adapter.)
 Input voltage:220V
 Power: 800W
 Temperature adjustment: 260-270℃(PPR tube); 220-240℃(PE tube)
 Heating head temperature: 260 ± 5 ℃
 Working temperature: -20 ℃ ~ 50 ℃
 Size: Approx. 33*5*12cm / 13.0*2.0*4.7inch
 Leakage current: ≤5mA (AC rms)
 Weight: 1600g

 Package Included:
 1 x Pipe Welding Machine
 3 x Welding Heads Set(20mm, 25mm, 32mm)

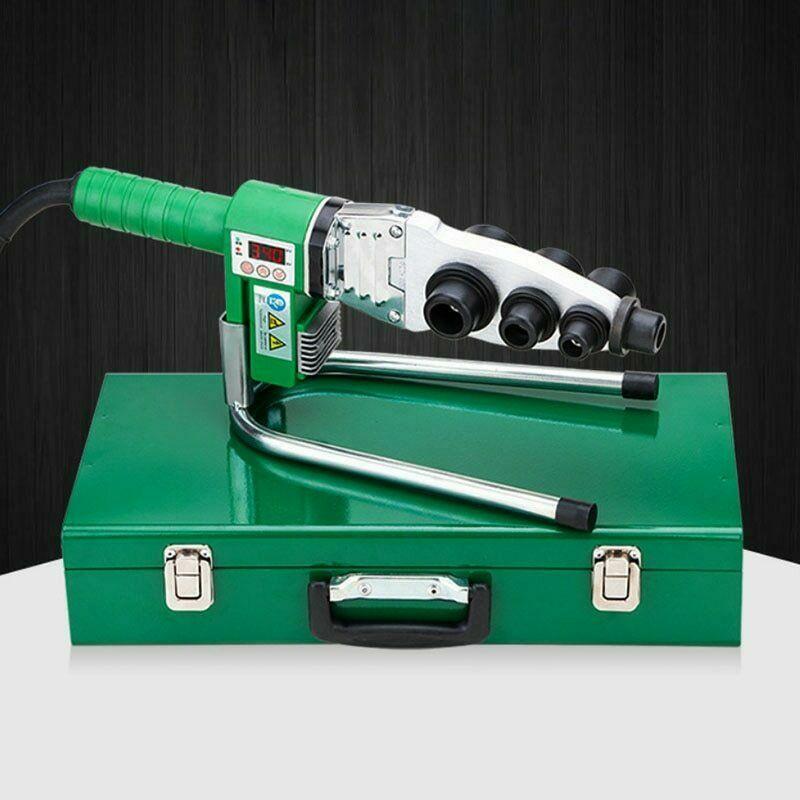

 1 x Iron Box
 1 x Wrench
 3 x Set Screws
 1 x Stand

  Instruction:
 1. Install the heatsink on the fixed welding device, place the welding device on the rack, install the corresponding heating die according to the required pipe specifications, and use the hexagon to tighten, usually small in the front end in the back.
 2. Power on: power on (pay attention to the power must be with a ground protection line), the green indicator light, until the green light is off, the red light is on, indicating that the fuse into the automatic temperature control state, you can start operation. Note: In the automatic temperature control state, red light, green light will be alternately lit, indicating that the fuse is in a controlled state, does not affect the operation.
 3. Welded pipe: pipe cutter with a straight cut off the pipe, the pipe and pipe at the same time without rotating into the fuse die, and in accordance with the requirements of the table to operate, to reach the heating time immediately after the pipe and pipe removed from the die at the same time , Quickly and without rotation directly into the required depth of uniform, so that the joints open into uniform flange.

 Note:
 The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
