Humidifier Water Solenoid Valve 4040 Exact For Aprilaire Valve 400 500 600 700
Description
| UPC | 705353922114 |
| Brand | Does not apply |
| Item model number | 4040 |
| Part Number | 4040 BLUE |
| Item dimensions L x W x H | 2.9 x 2.1 x 2.2 inches |
| Inlet Connection Type | threaded |
| Maximum Operating Pressure | 125 Pound per Square Inch |
| Item Package Quantity | 1 |
| Color | Yellow |
| Material | Brass |
| Batteries Required? | No |
| Item Weight | 6.7 ounces |
| Number of Ports | 2 |
| Batteries Included? | No |
| Voltage | 24 Volts |
| Usage | Humidifier Solenoid Valve，controls the amount of water entering your for Aprilaire whole house humidifier |
| Exterior Finish | Brass |
| Product Dimensions | 2.9 x 2.1 x 2.2 inches |
| Size | 2.1 inches (W) x 2.9 inches (L) x 2.2 inches (H) |
- Brass body and stainless steel valve seat
- Humidifier Solenoid Valve 4040: It controls the amount of water entering your for Aprilaire whole house humidifier, which can help you maintain an optimal humidity of 35% - 45%, thereby reducing the occurrence of respiratory infections and symptoms related to asthma
- PACKAGE INCLUDE: 1 x compression nut, washer and strainer. 24 volts; 2.3 Watts; 60 Hz
- FITS MODELS: The 4040 solenoid valve B2015-S85 B2017-S85 is fit for April.aire 220, 224, 400, 400A, 400M, 440, 500, 500A, 500M, 550, 550A, 558, 560, 560A, 600, 600A, 600M, 700, 700A, 700M, 760 and 768. Does not fit 330 445 110 112 350 360
- DURABLE MATERIA: The solenoid is made of solid brass material, solid and sturdy, well-tested by the manufacturer.Non original aftermarket part. Fits OEM standards
- FIX PROBLEMS: The 4040 solenoid valve could fix the issue with the old valve not shutting off and allowing water to run continuously
- EASY TO INSTALL: This humidifier solenoid valve is easy to install,You only need a screwdriver and wrench to perform repairs
- BUY WITH CONFIDENCE: For any reason you're not completely satisfied or you are not sure whether this correctly fit your appliance, please feel free to contact us or ask a question through Amazon
Product description

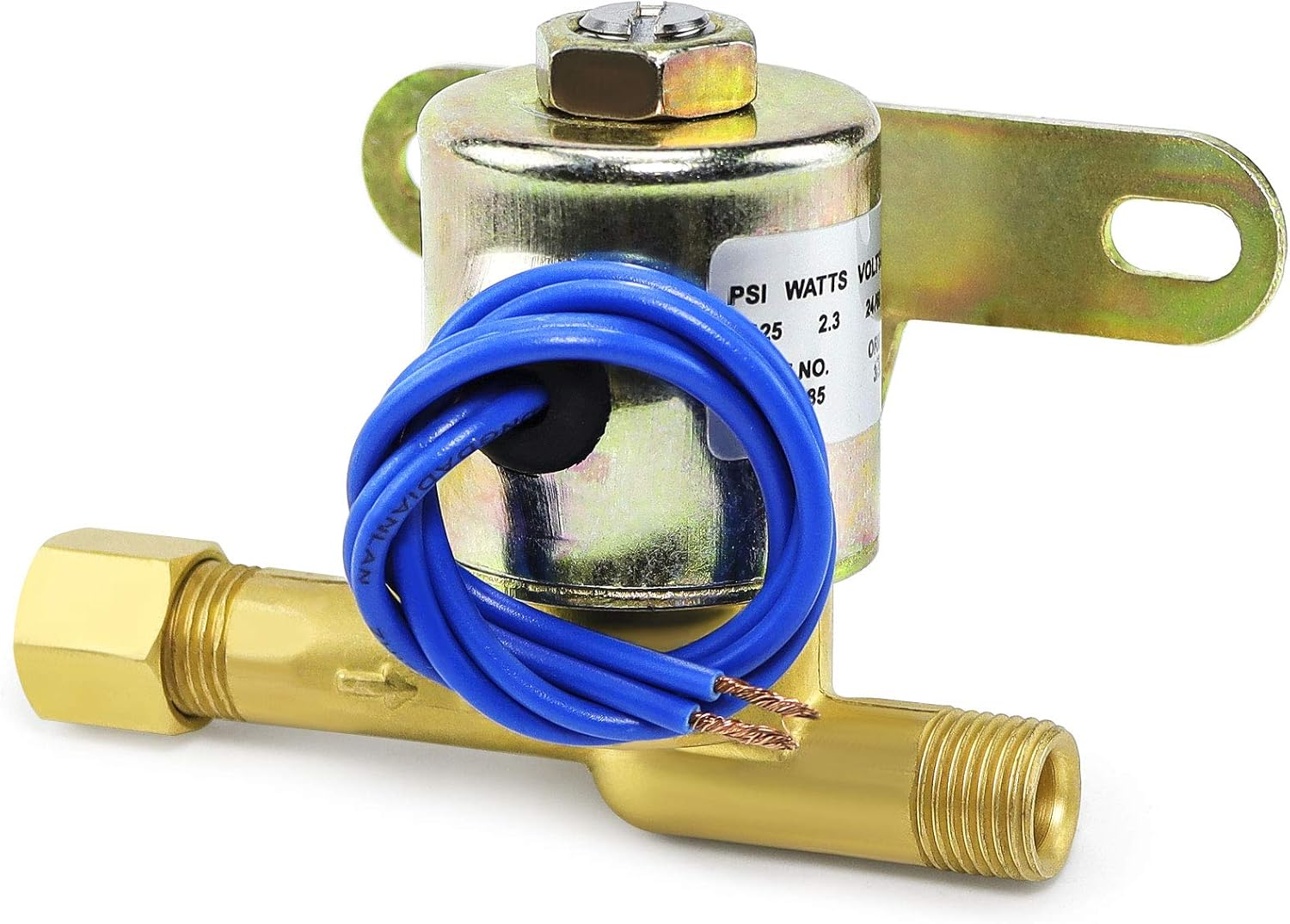

TOMOON Humidifier Water Solenoid Valve
The 4040 by TOMOON is a replacement humidifier solenoid valve manufactured for all humidifiers except residential models 110, 112, 330, 350, 360, 445, 800, and commercial models. The solenoid valve turns water on and off to your humidifier but does not regulate volume which is done by a different part called an orifice. Contains pre-installed strainer in the inlet side of the valve for capturing clogging elements in the water such as dirt and sand. Uses pre-existing compression fitting on the outlet side. Electrically operated and uses 24 volts and 2.3 watts
Specifications:
Watts: 2.3 watts
PSI: 125
Volt: 24 V
Orifice: 3/32 inch, 1/4 inch
Model No: B2015-S85/ B2017-S85
-Both the inlet and outlet are threaded 7/16"-24 UNS for accepting a compression fitting for ¼" tubing.
-Includes compression nut, washer and inline strainer.
-The inlet includes the compression fitting & ferrule.
-For the outlet, your existing compression fitting is reused.
Material: Brass body and stainless steel valve seat
the solenoid is made of solid brass material, durable and sturdy, well-tested by the manufacturer.Non original aftermarket part. Fits OEM Standards!
Installation steps:
►Firstly, disconnect the humidifier and shut off the water supply to the unit.
►Secondly, remove the solenoid. Unclip the wires from the solenoid. Using the adjustable wrench to unscrew the compression nut and then remove the distributor and tubeLet remaining water drain into the plastic container. Disconnect the water supply. Use a screwdriver to unscrew the screws and discard the old
►Thirdly, install the solenoid. Alian the new solenoid and then tiahten the screws. Connect the water supply line. Replace the distributor tube and tighten the compression nut
►Finally, connect the wires to the solenoid and reconnect the humidifier.
Tools needed for installation：Adjustable wrench，Phillips head screwdriver
Correct Models
Fits models 220, 224, 400, 400A, 400M, 440, 500, 500A, 500M, 550, 550A, 558, 560, 560A, 600, 600A, 600M, 700, 700A, 700M, 760 and 768
Incorrect Models
Does not work on models 330, 445, 110, 112, 350 and 360
