HT-A16 Infrared Thermal Camera for Hunting Night Vision Monocular Telescope WIFI Outdoor Observation Thermal Imager Scope

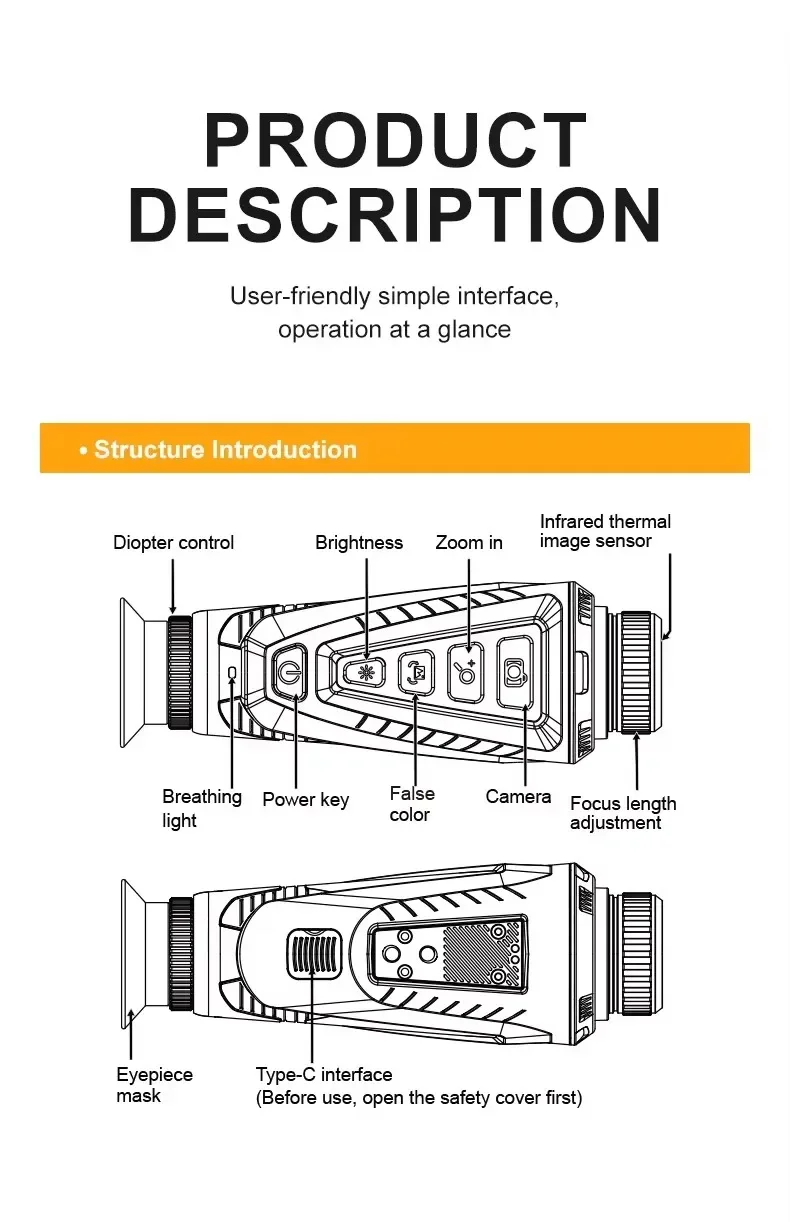

Product Description

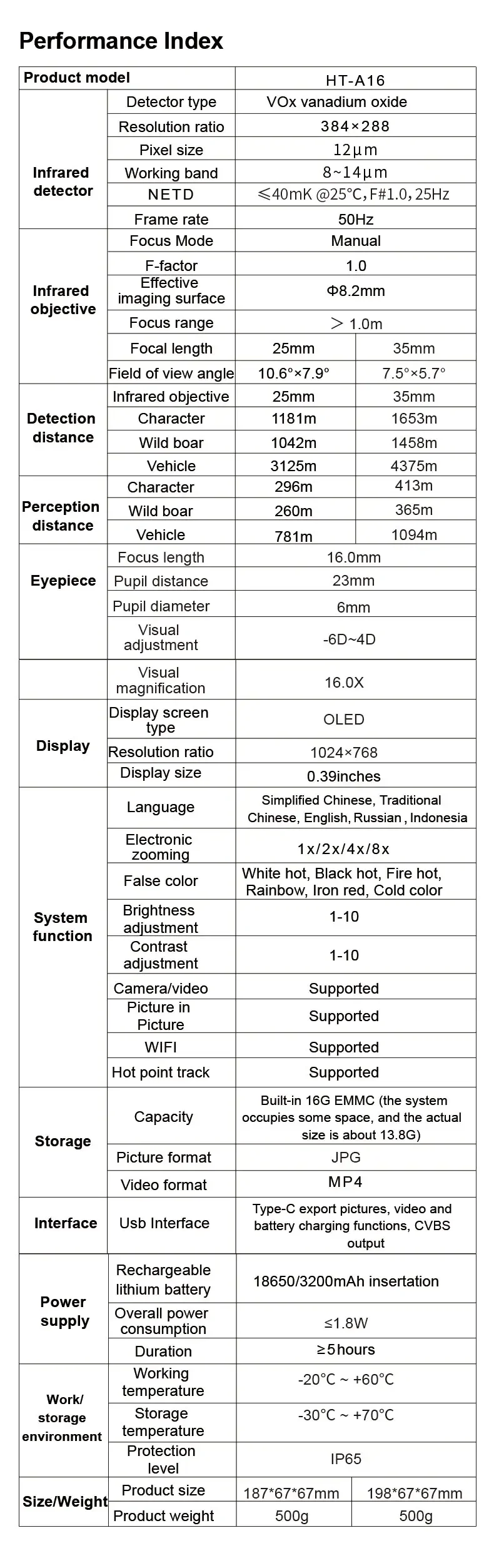

Product Parameter
|
Product model
|
HT-A16
|
||
|
Infrared detector
|
Detector type
|
VOx vanadium oxide
|
|
|
Resolution ratio
|
384×288
|
||
|
Pixel size
|
12μm
|
||
|

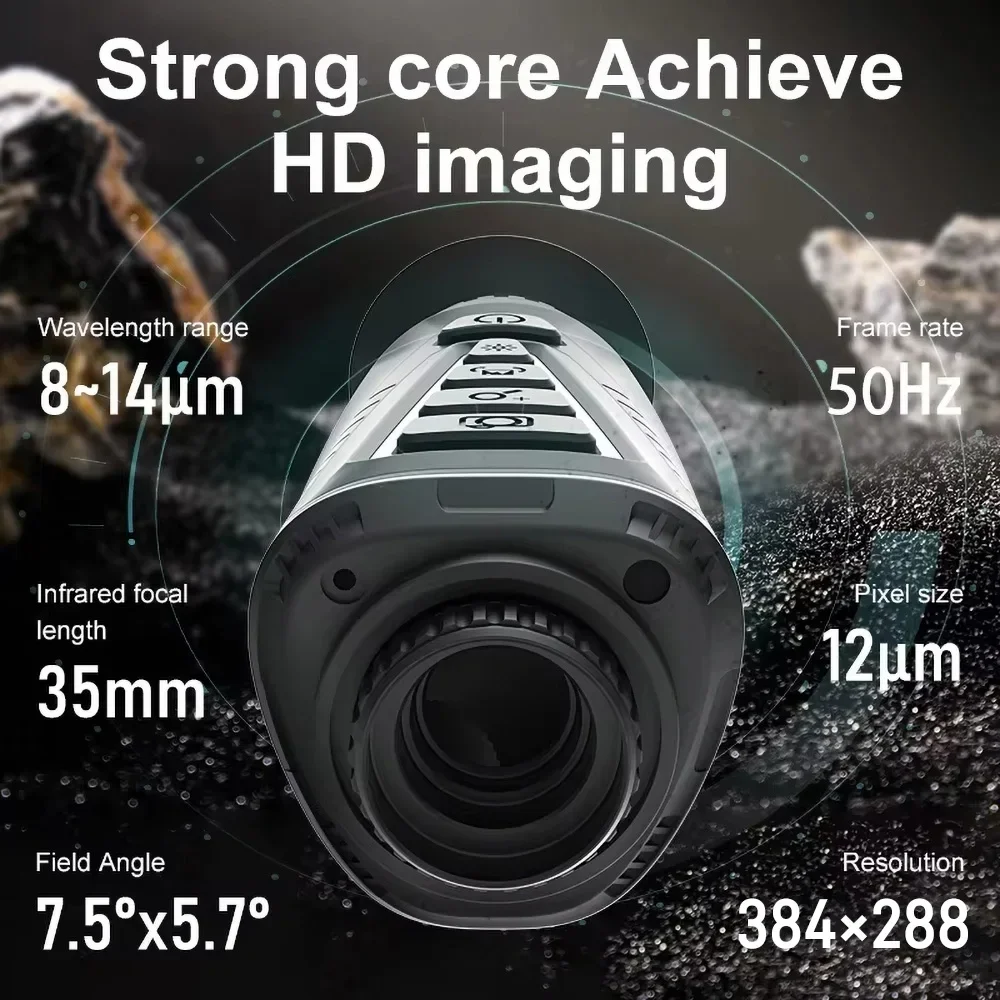

Working band
|
8~14μm
|
||
|
NETD
|
≤40mK @25℃，F#1.0，25Hz
|
||
|
Frame rate
|
50Hz
|
||
|
Infrared objective
|
Focus Mode
|
Manual
|
|
|
F-factor
|
1.0
|
||
|
Effective imaging surface |
Φ8.2mm
|
||
|
Focus range
|
＞ 1.0m
|
||
|
Focal length
|
25mm
|
35mm
|
|
|
Field of view angle
|
10.6°×7.9°
|
7.5°×5.7°
|
|
|
Detection distance
|
Infrared objective
|
25mm
|
35mm
|
|
Character
|
1181m
|
1653m
|
|
|
Wild boar
|
1042m
|
1458m
|
|
|
Vehicle
|
3125m
|
4375m
|
|
|
Perception distance
|
Character
|
296m
|
413m
|
|
Wild boar
|
260m
|
365m
|
|
|
Vehicle
|
781m
|
1094m
|
|
|
Eyepiece
|
Focus length
|
16.0mm
|
|
|
Pupil distance
|
23mm
|
||
|
Pupil diameter
|
6mm
|
||
|

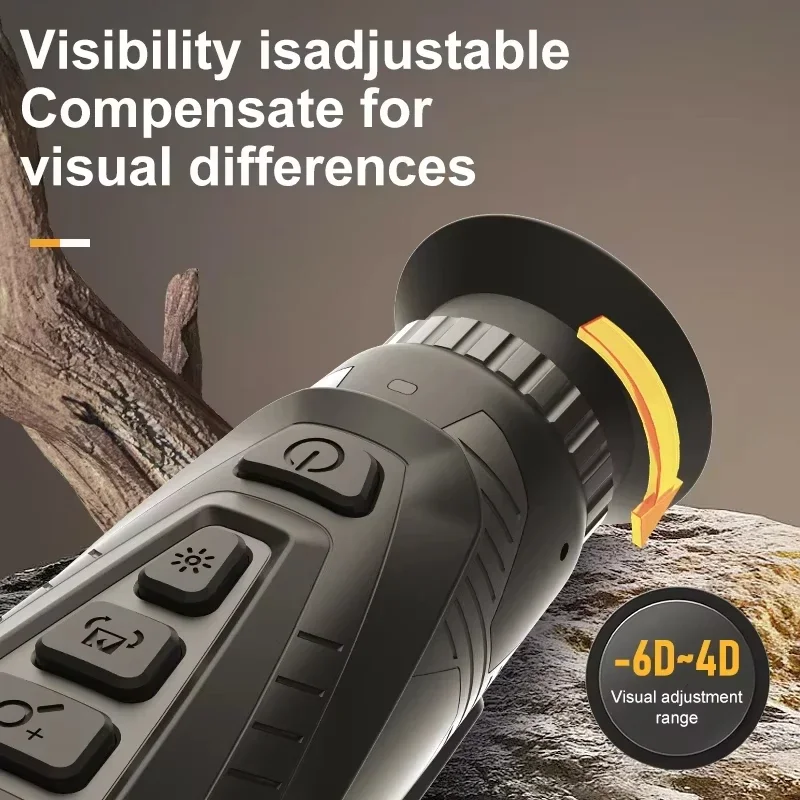

Visual adjustment
|
-6D~4D
|
||
|
Visual magnification
|
16.0X
|
||
|
Display
|
Display screen type
|
OLED
|
|
|
Resolution ratio
|
1024×768
|
||
|
Display size
|
0.39inches
|
||
|
System function
|
Language
|
Simplified Chinese, Traditional Chinese, English, Russian , Indonesia
|
|
|
Electronic zooming
|
1x/2x/4x/8x
|
||
|

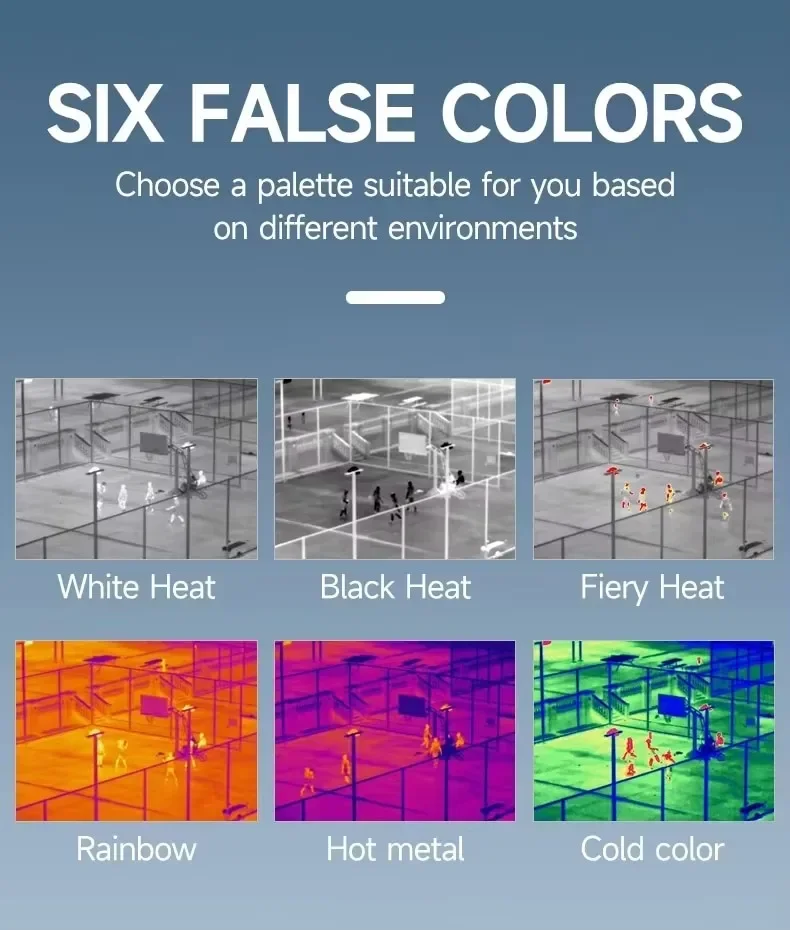

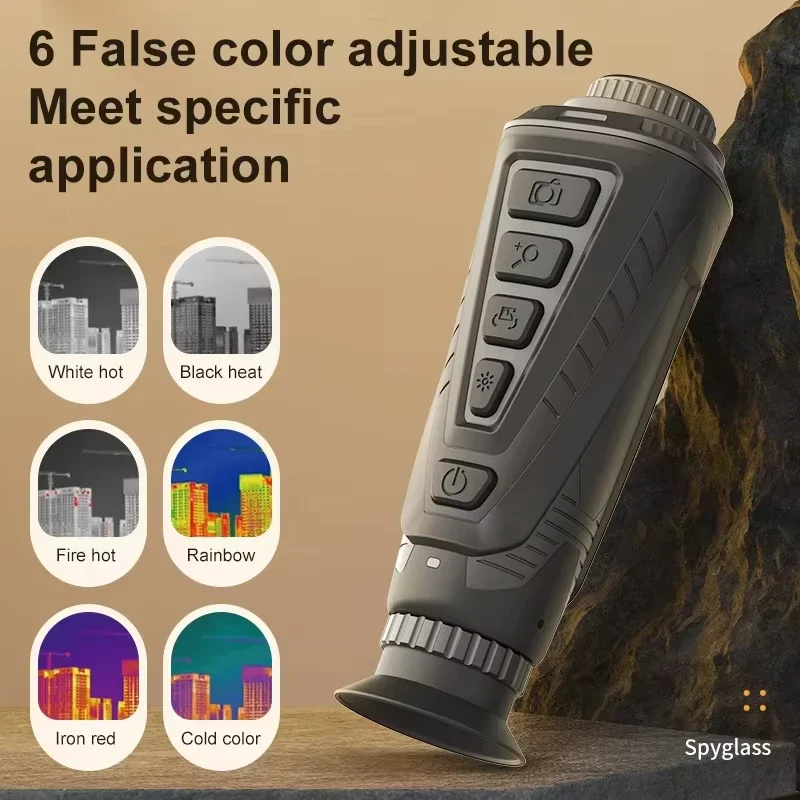

False color
|
White hot, Black hot, Fire hot, Rainbow, Iron red, Cold color
|
||
|
Brightness adjustment
|
1-10
|
||
|
Contrast adjustment
|
1-10
|
||
|
Camera/video
|
Supported
|
||
|
Picture in Picture
|
Supported
|
||
|
WIFI
|
Supported
|
||
|
Hot point track
|
Supported
|
||
|

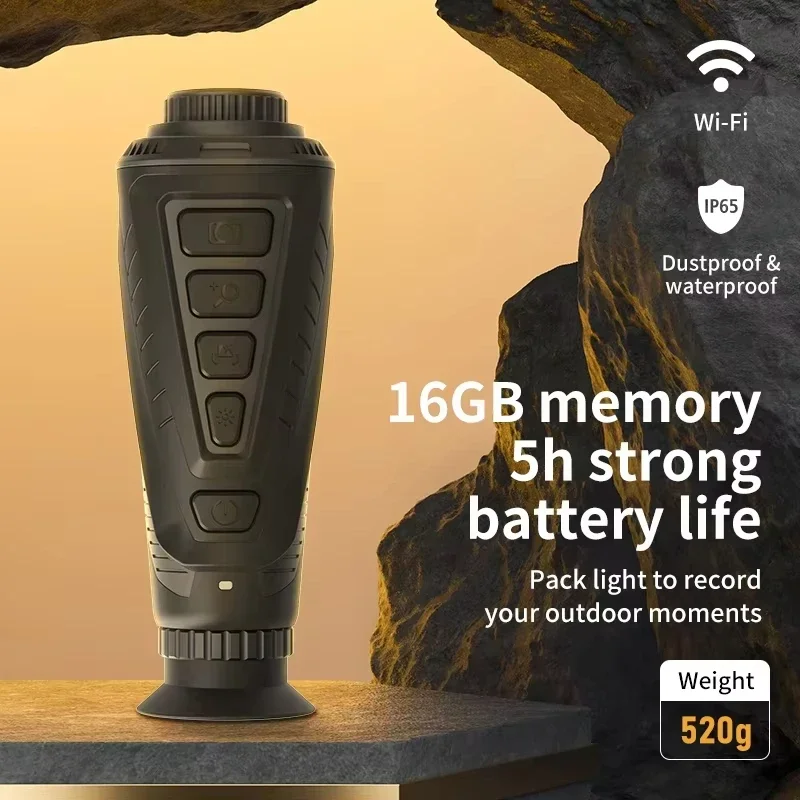

Storage
|
Capacity
|
Built-in 16G EMMC (the system occupies some space, and the actual size is about 13.8G)
|
|
|
Picture format
|
JPG
|
||
|
Video format
|
MP4
|
||
|
Interface
|
Usb Interface
|
Type-C export pictures, video and battery charging functions, CVBS output
|
|
|
Power supply
|
Rechargeable lithium battery |
18650/3200mAh insertation
|
|
|
Overall power consumption |
≤1.8W
|
||
|
Duration
|
≥5hours
|
||
|
Work/storage environment
|
Working temperature
|
-20℃ ~ +60℃
|
|
|
Storage temperature
|
-30℃ ~ +70℃
|
||
|
Protection level
|
IP65
|
||
|
Size/Weight
|
Product size
|
187*67*67mm
|
198*67*67mm
|
|

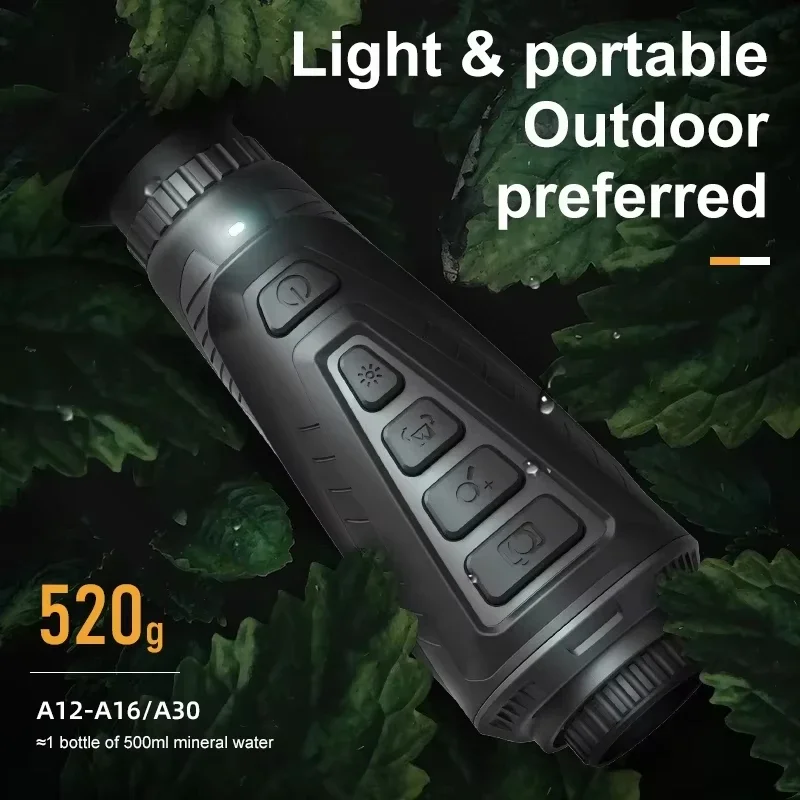

Product weight
|
500g
|
500g
|
|
