Features:
Wireless Remote Control: Control Your Electrical Applications With The Wall Panel Transmitter Within The Range Required
No Wifi/Battery To Control: With The Self Power Generation Feature Of The Wall Panel Remote Transmitter Switch, You Are Able To Remotely Control The Devices Connected To The RF433.92 Relay Receivers Without Wifi Or Battery, As Long As Match The Switch To The Receiver In Advance
Attention: The RF433.92 Relay Receiver And The Wall Panel Remote Transmitter Switch Must Be Used Together With The Same Type, So You Can't Buy One Receiver Or One Switch Alone, Or Use The Self Generating Wall Panel Transmitter To Connect With Other Type Of Receive

Specifications:
Technical Data Of Wall Panel Transmitter:
Operating Frequency: 433.92mhz

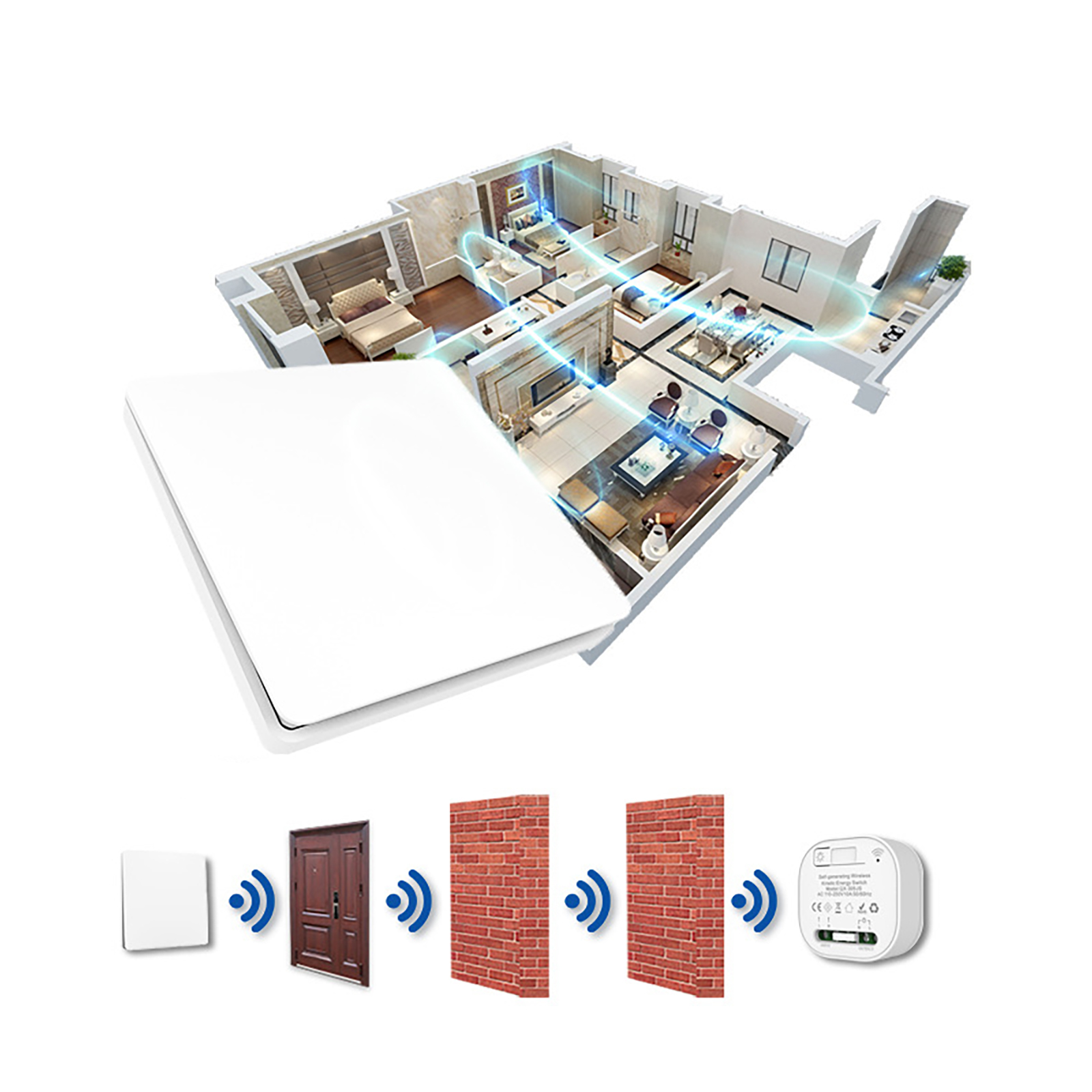

Distance: Indoor (30 Meters) , Outdoor (100 Meters)
Color: White

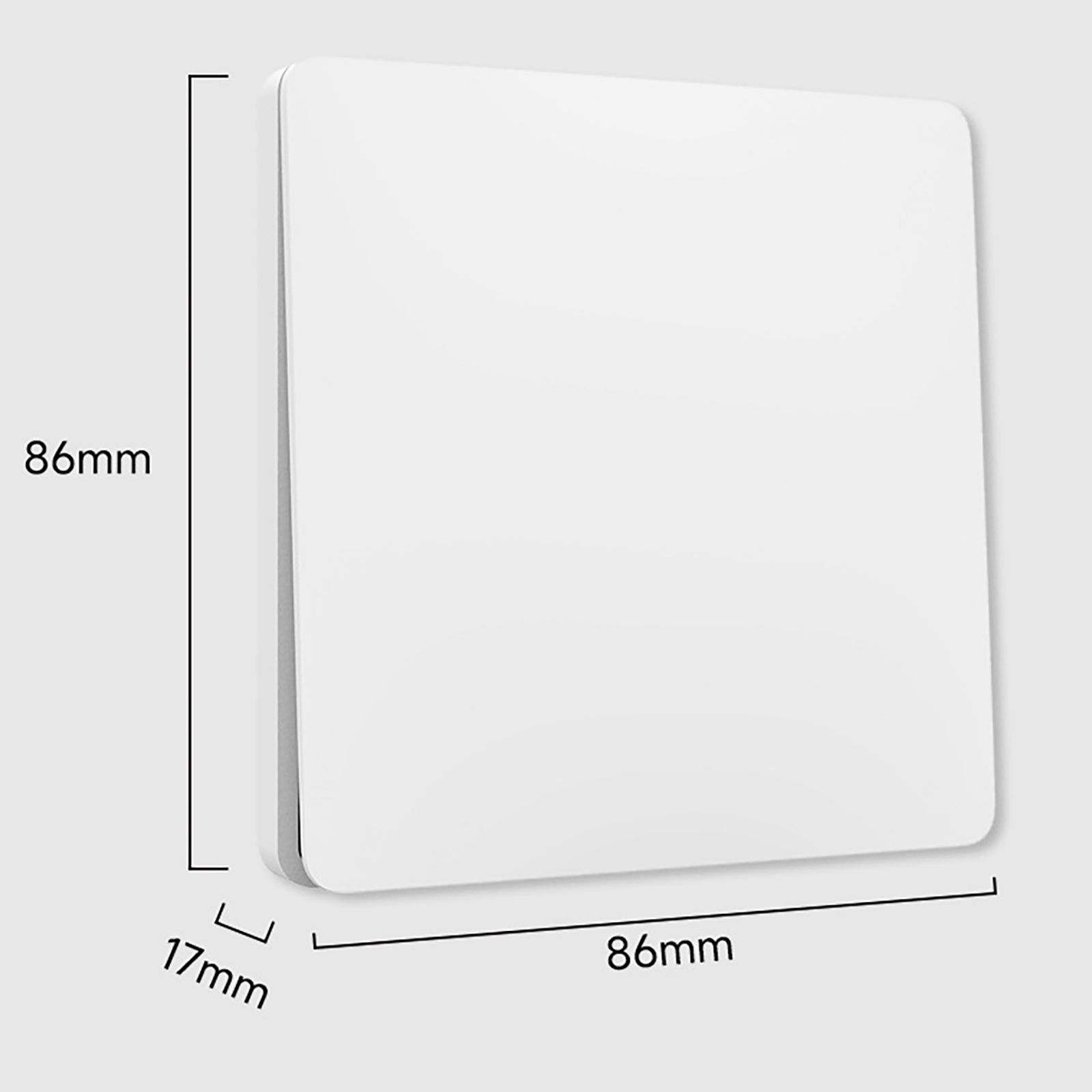

Size(L/W/H): 86mm X 86mm X 17mm

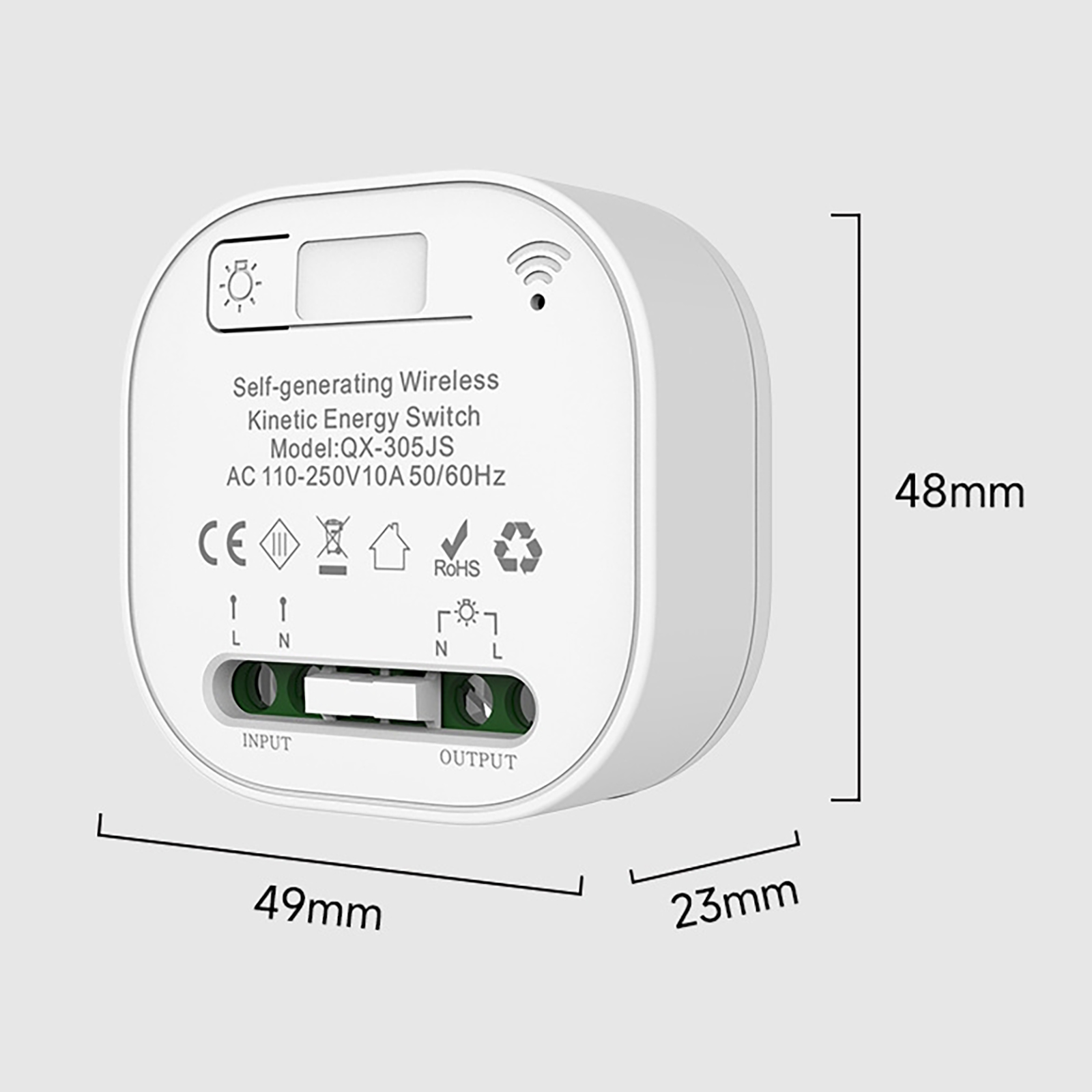

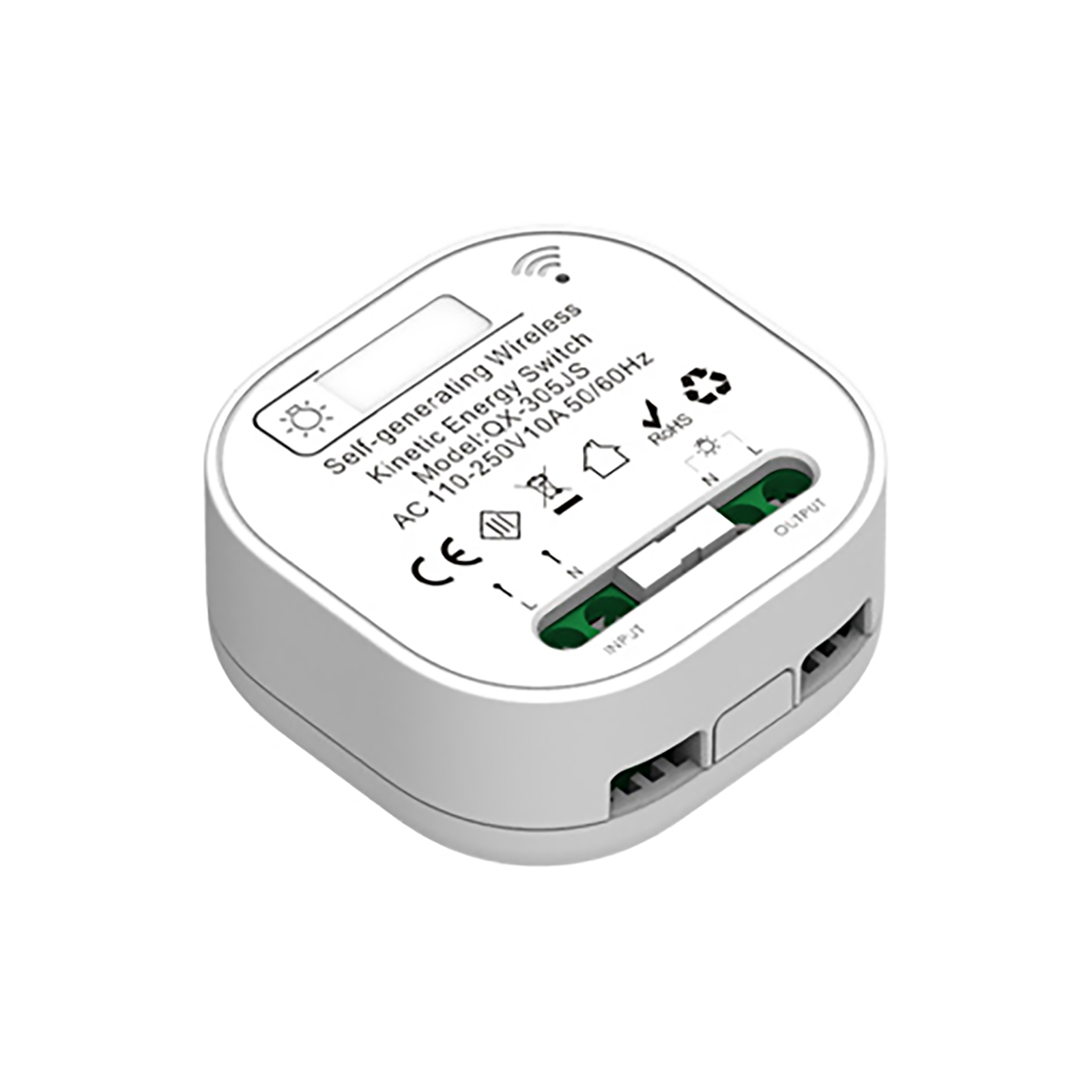

Technical Data Of Receiver:
Encoding Type: Intelligent Learning Code
Rf Frequency: 433.92mhz
Operating Voltage: AC 110V-250V
Remote Control Range: Indoor (30 Meters) , Outdoor (100 Meters)
Wired Connection Way: In Series Live and Neutral 2 In And 2 Out
Color: White

Operating Instructions:
If The Receiver Is In The Just Powered On State And The Indicator Light Is Constantly On, It Is In Pairing Mode (Without Any Switches Stored). Press The Switch 2 Times And The Indicator Light Flashes Once To Successfully Match The Code
Attention: As Long As The Power Is On, Pressing And Holding The Button For 3 Seconds At Any Time Will Enter The Pairing Mode. If There Is No Pairing Switch Within 10 Seconds, The Pairing Mode Will Automatically End. You Can Also Press The Button On The Receiver To End The Coding Process. Pressing The Button Briefly Usually Turns It On Or Off
(Clear Pairing Code) Long Press And Hold The Button On The Receiver Until The Indicator Light Stays On And Flashes 3 Times To Clear The Pairing Code
(Default On/Off) After Normal Use Of This Product, If There Is A Sudden Power Outage At Home, The Receiver Can Be Turned On Or Off According To Personal Preference. If There Is No Other Operation After Short Pressing The Button On The Receiver For 10 Seconds While The Power Is On, The Current State Will Be The State Of Power Outage And Incoming Call. If It Is Currently Turned On, It Will Be Turned On When There Is A Power Outage, Otherwise It Will Be Turned Off When There Is An Incoming Call

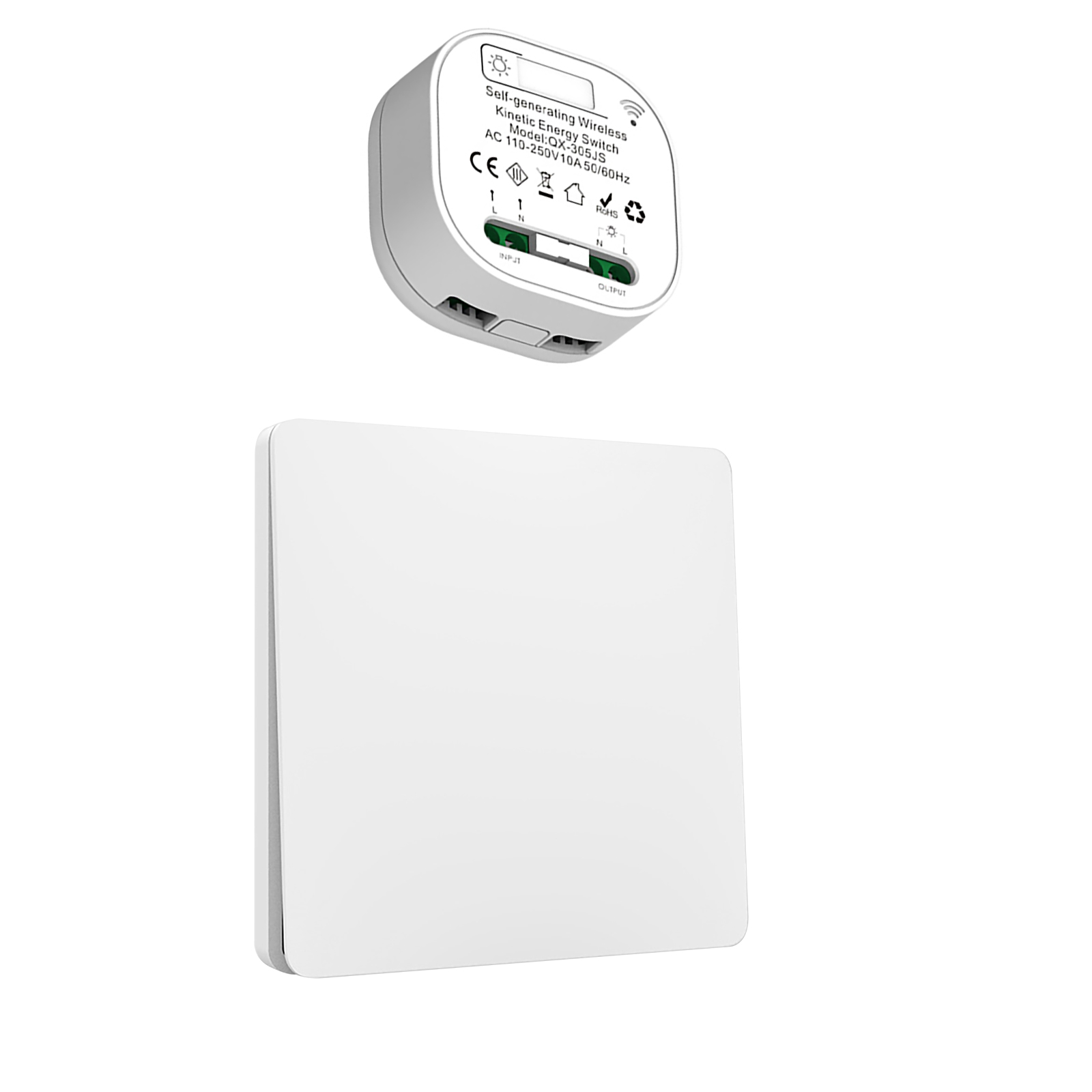

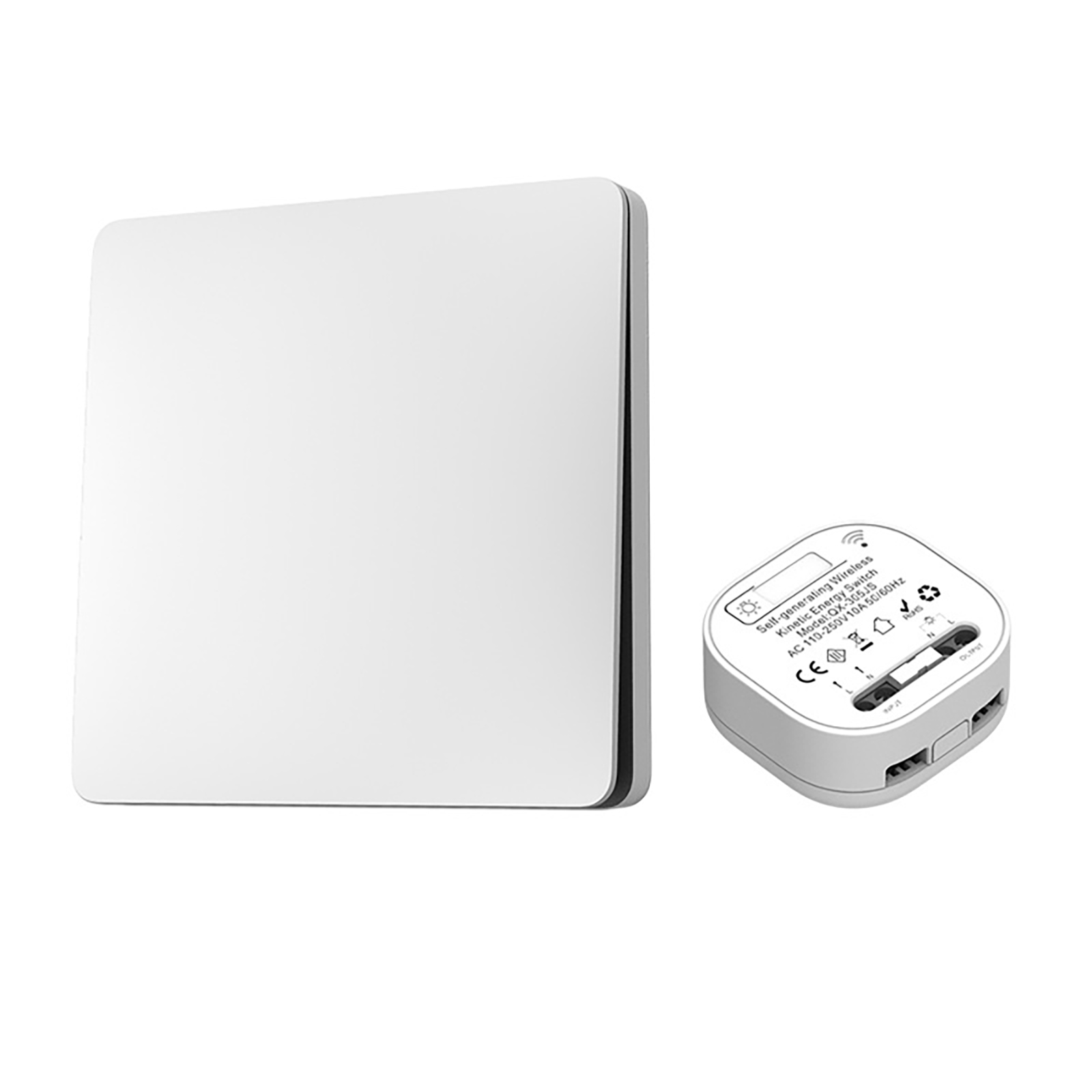

Packing Included:

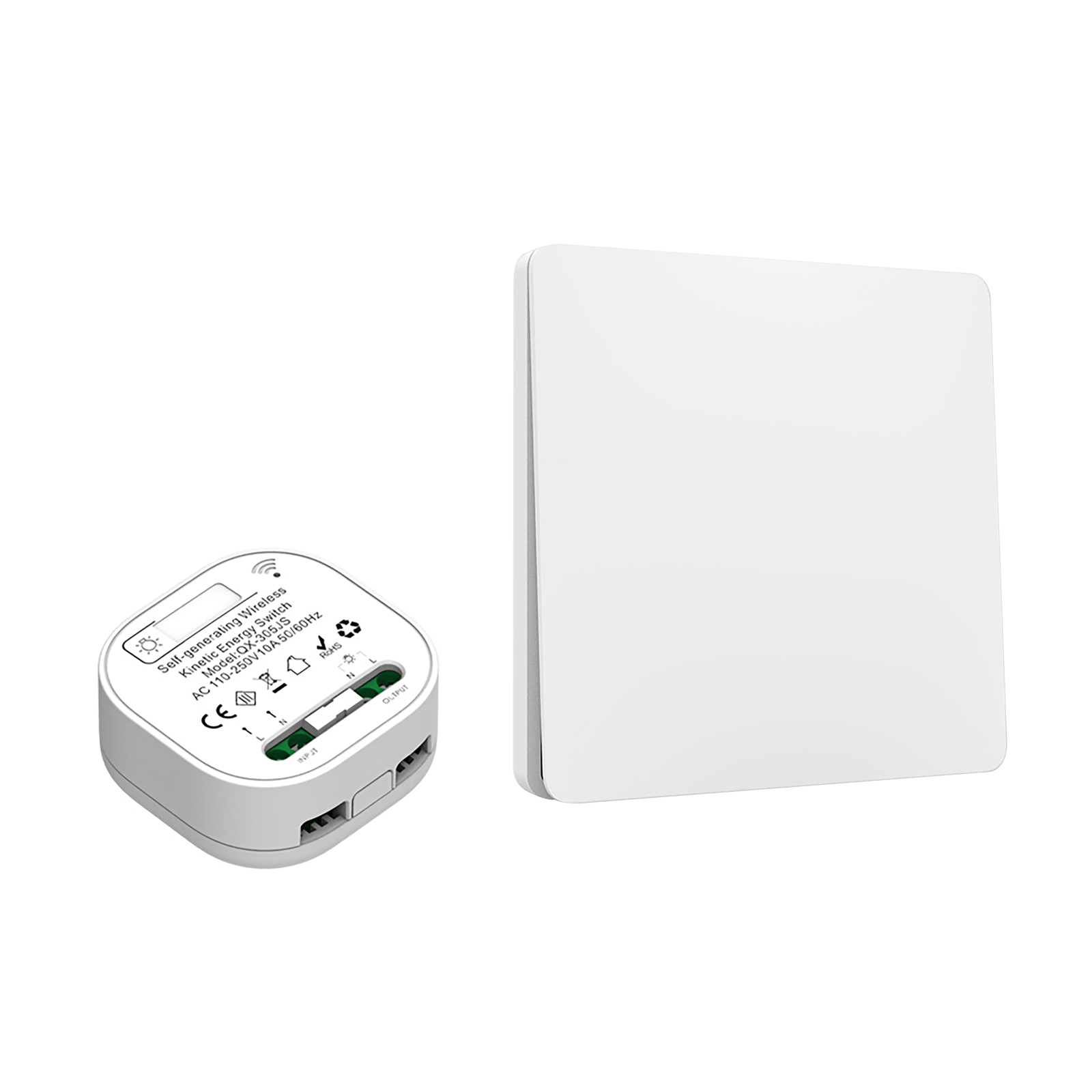

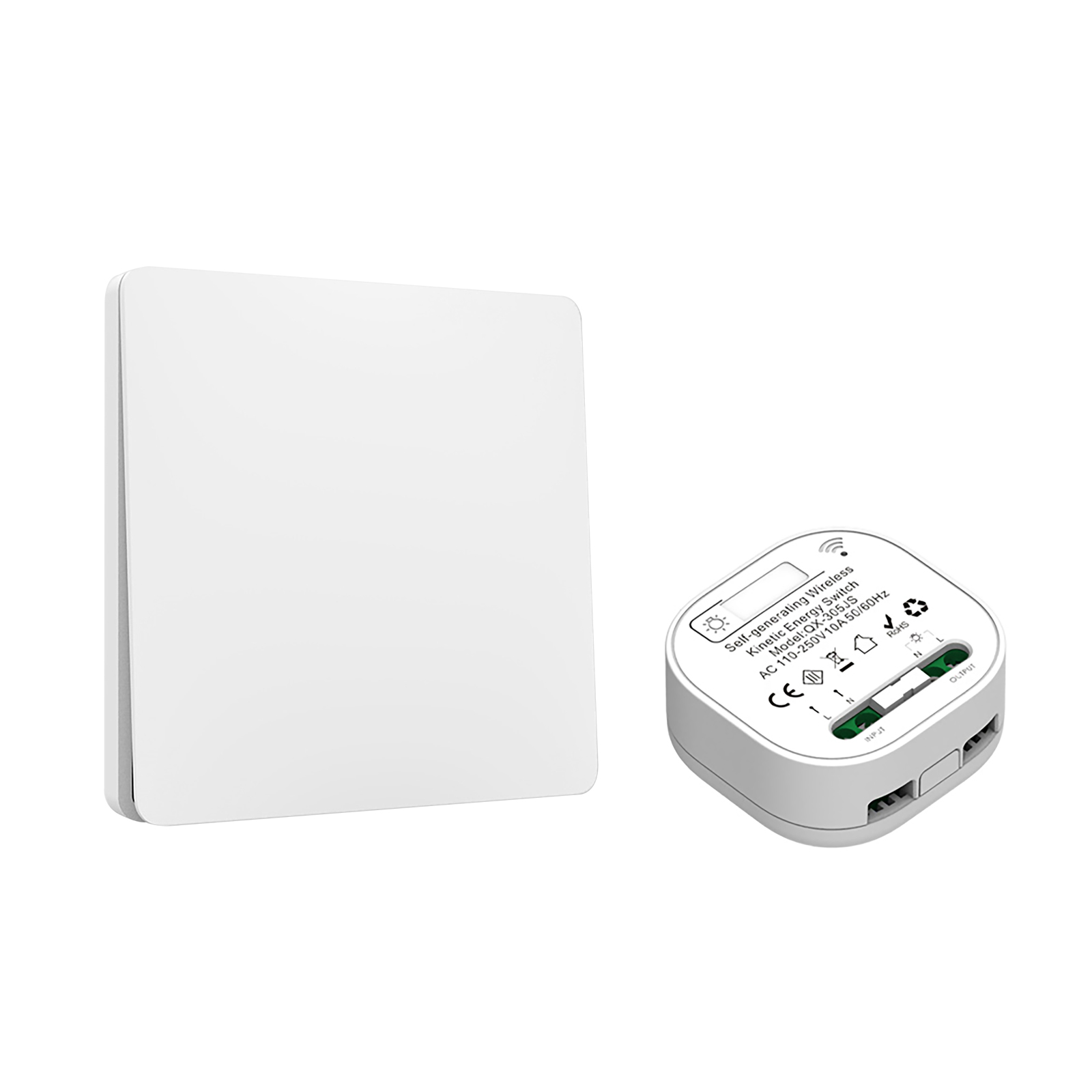

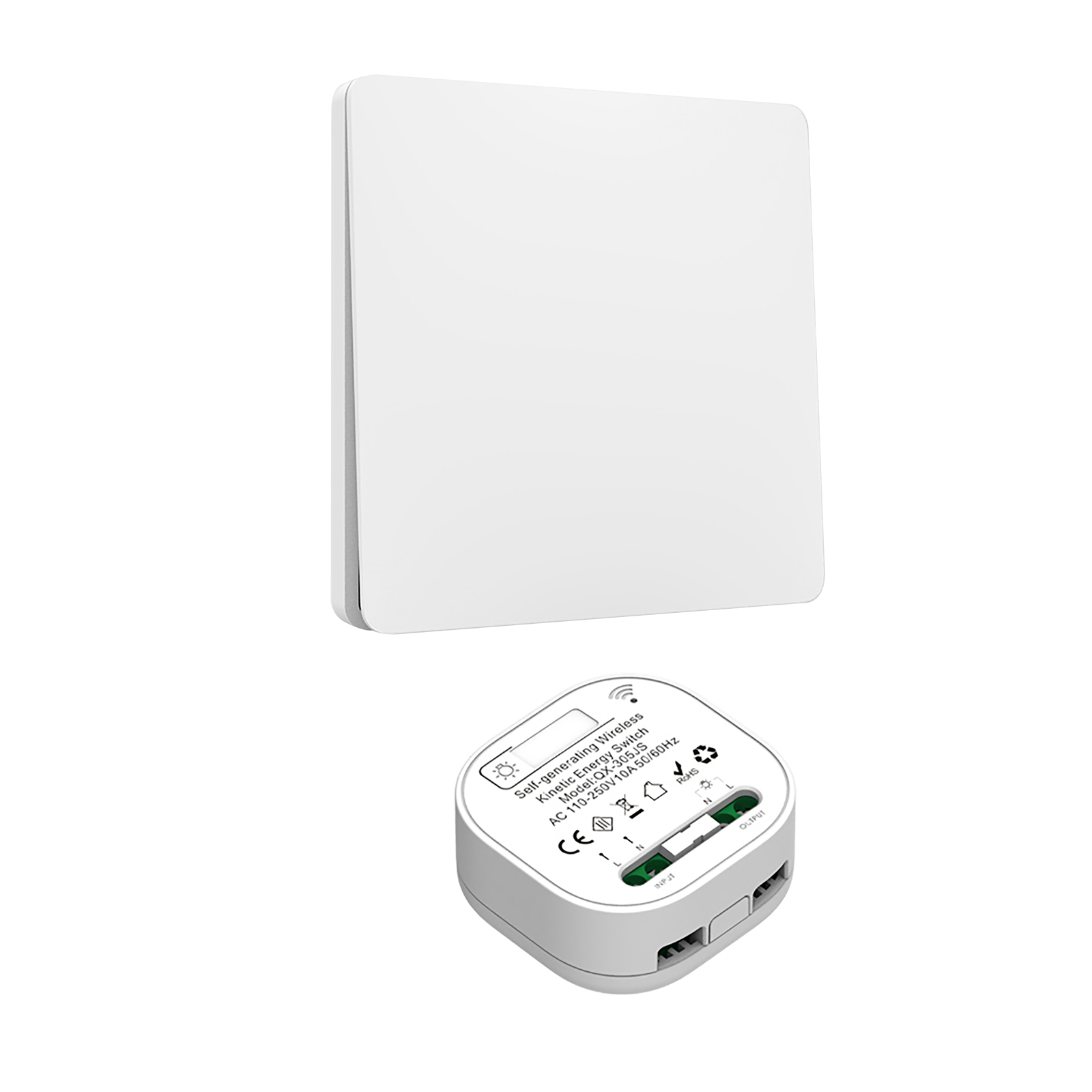

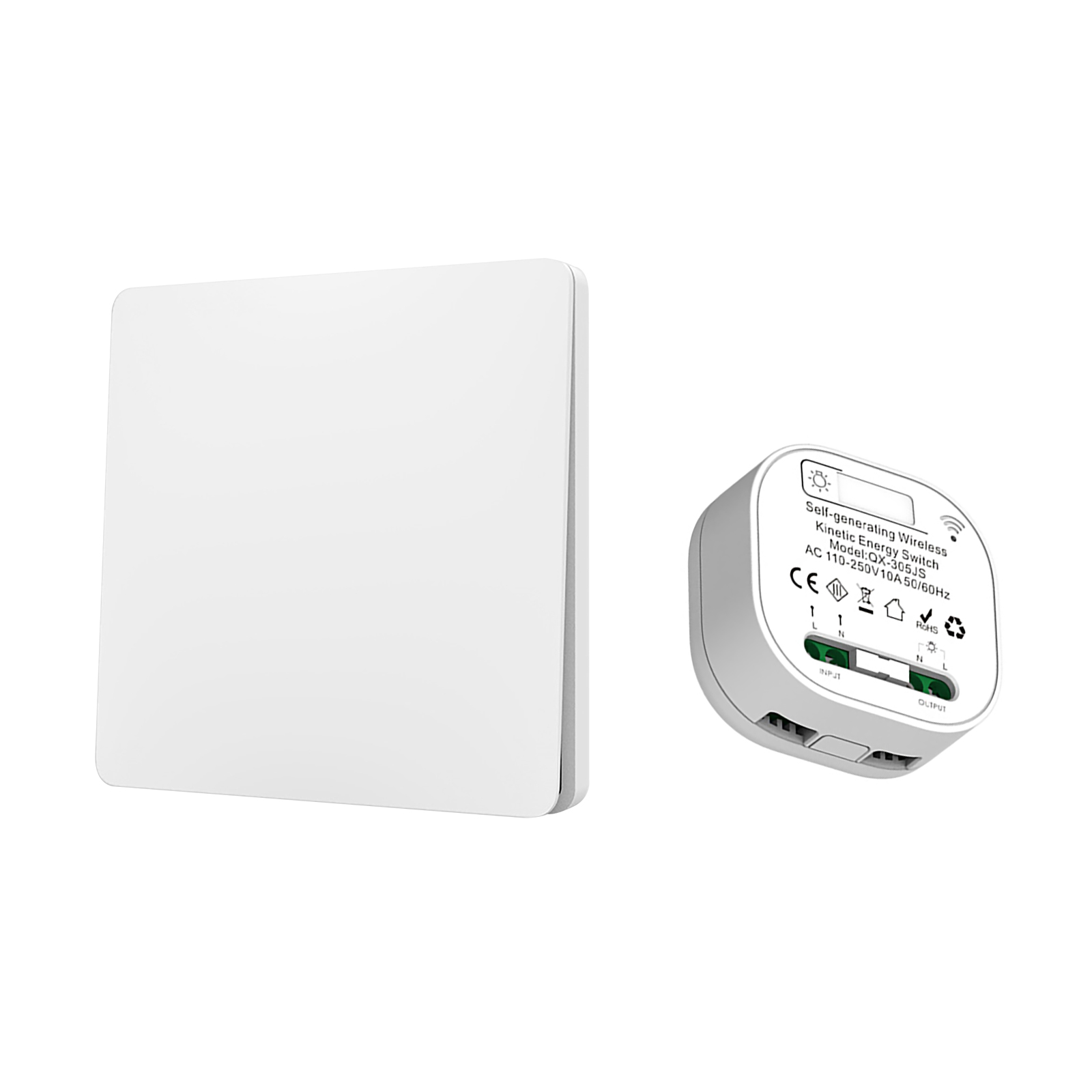

1pcs Switch
1pcs Receiver
