Hammond Power Solutions C1FC50WE - 500VA Transformer 120/240V Output

{description}

Hammond Power Solutions C1FC50WE - 500VA Transformer 120/240V Output



C1FC50WE

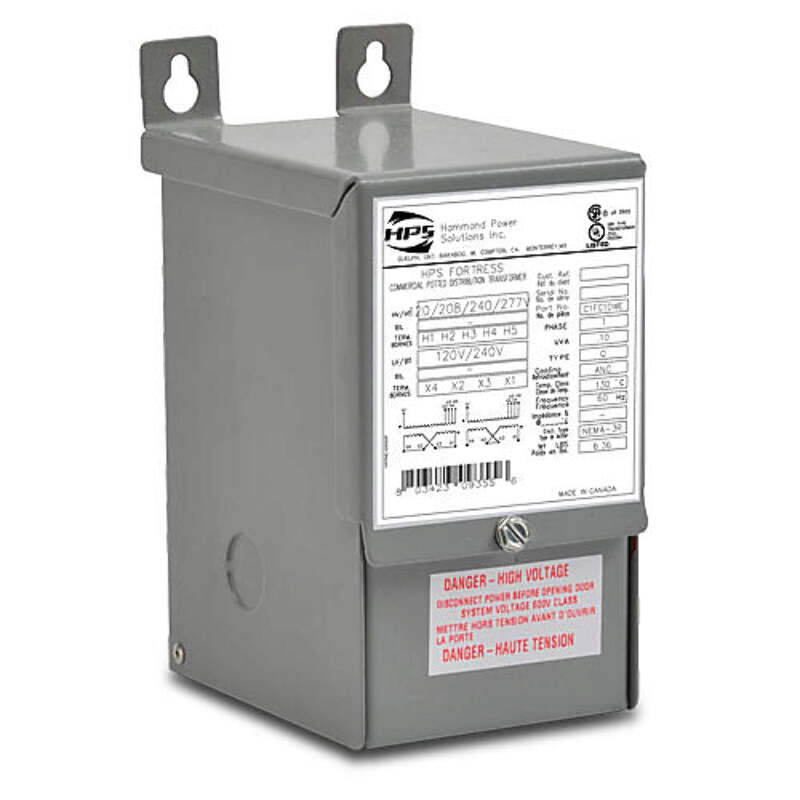

Hammond Power Solutions C1FC50WE is a general duty transformer designed for industrial power distribution applications. This single-phase 500VA unit features versatile primary voltage compatibility (277V, 240V, 208V, 120V) with a secondary output of 120/240V, constructed with copper windings for reliable performance. The transformer is houséd in a compact Type 3R/IP24 enclosure measuring 9.3" x 5.06" x 4.56" with ANSI 61 grey finish, providing outdoor protection against rain and sleet. It complies with IBC 2018 seismic standards (Sds=2.0, z/h=1, lp=1.5) and operates at a quiet 45dBA sound level per NEMA ST-20. Typical applications include industrial control systems, machinery power supplies, and commercial electrical distribution where reliable voltage transformation is required. Key Features & Specifications
  • Type: Single Phase General Duty Transformer
  • Voltage: Primary 277/240/208/120V, Secondary 120/240V
  • Current: 500VA Capacity
  • Frequency: 60Hz
  • Material: Copper Windings
  • Temperature Rise: 95°C
  • Insulation Class: 130°C
  • Enclosure: Type 3R/IP24, ANSI 61 Grey
  • Dimensions: 9.3" H x 5.06" W x 4.56" D
  • Impedance: 1% - 5%
  • Sound Level: 45dBA
  • Seismic Compliance: IBC 2018

Specifications

  • Part Number: C1FC50WE
  • Manufacturer : Hammond Power Solutions
  • Brand : Hammond Power Solutions
  • Category : Transformer
  • Phase : 1
  • Enclosure Grade : Standard
  • Fortress : 1ph 500VA 277,240,208,120V-120/240V 60Hz CU
  • Duty : General Duty
  • Frequency : 60Hz
  • Primary Voltage : 277, 240, 208, 120
  • Primary Connection : Series (V)
  • Primary FCAN (NPL) : None
  • Primary FCBN (NPL) : None
  • Secondary Voltage : 120/240
  • Secondary Connection : Parallel/Series-N (V/2V)
  • Material : Copper
  • Temperature Rise : 95°C
  • Insulation Class : 130°C
  • EKVA : 0.5
  • Efficiency Regulation : No Efficiency Specification
  • Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
  • Sound Level : 45dBA (NEMA ST-20)
  • Impedance (Std) : 1% - 5%
  • Secondary Termination (NPL) : Wire Leads
  • Enclosure Type : Type 3R / IP24
  • Enclosure Finish : ANSI 61 Grey, UL50
  • Enclosure PN (NPL) : NQ2-N3R
  • Enclosure Dimensions : 9.3in/237mm(H), 5.06in/129mm(W), 4.56in/116mm(D)
  • Nameplate : Standard
  • Standard kVA : 0.5
  • Vector Configuration : 0°
  • Seismic Standard Value : IBC 2018
  • OSHPD : No
  • Seismic IP : lp=1.5
  • Seismic ZH : z/h=1
  • Seismic SDS Value : Sds=2.0
  • Enclosure IR Window : No

Product Data

  • UPC : 803423092498
  • Weight : 14
  • Certification : CSA, UL
