C1FC25XE - Hammond Power Solutions 250VA 1-Phase General Purpose Transformer 190-480VAC Primary 120/240VAC Secondary NEMA 3R Wall Mount

{description}

C1FC25XE - Hammond Power Solutions 250VA 1-Phase General Purpose Transformer 190-480VAC Primary 120/240VAC Secondary NEMA 3R Wall Mount



C1FC25XE

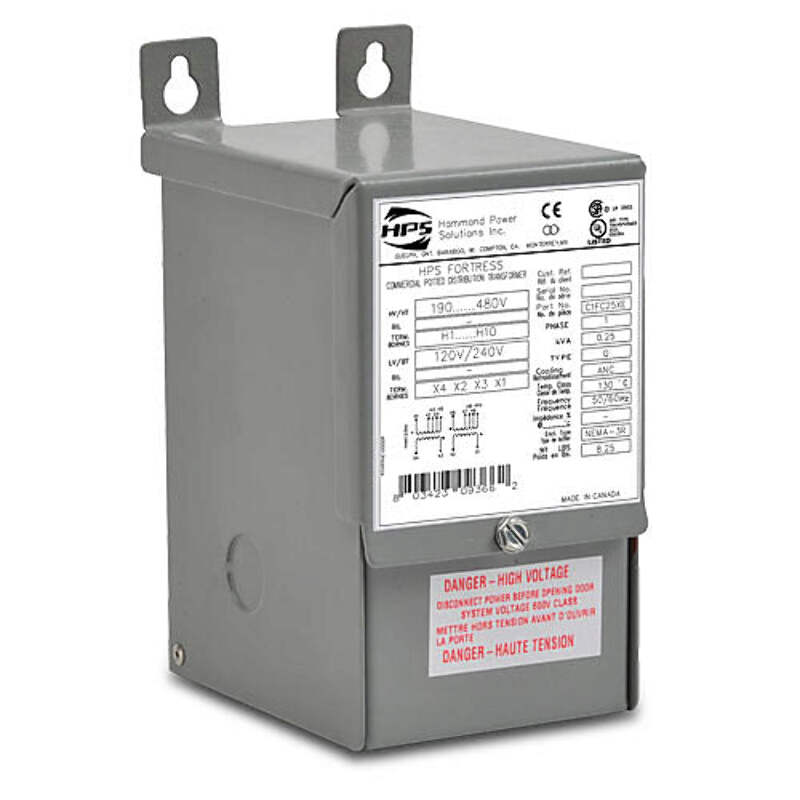

C1FC25XE is a Hammond Power Solutions general purpose transformer designed for versatile voltage applications with a compact, NEMA 3R rated enclosure.

This encapsulated core transformer delivers 250 VA power capacity with single-phase operation. It supports a wide primary voltage range selectable from 190 to 480 VAC and provides 120/240 VAC secondary output at 50/60 Hz frequency. The unit features a NEMA 3R rated enclosure suitable for wall mounting, offering protection for indoor and outdoor use. Its compact design and robust construction make it ideal for general distribution and control panel applications.

  • Power Rating: 250 VA
  • Phase: Single-Phase
  • Primary Voltage: 190-480 VAC selectable
  • Secondary Voltage: 120/240 VAC
  • Frequency: 50/60 Hz
  • Enclosure: NEMA 3R
  • Mounting Type: Wall Mount
  • Core Type: Encapsulated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: C1FC25XE
  • Manufacturer : Hammond Power Solutions
  • Brand : Hammond Power Solutions
  • Category : Transformer
  • Phase : 1
  • Enclosure Grade : Standard
  • Fortress : 1ph 250VA 220x440,208x416,200x400,190x380V-120/240V 50/60Hz CU
  • Duty : General Duty
  • Frequency : 50/60Hz,60Hz(1)
  • Primary Voltage : 120/240,130/262(1)
  • Primary Connection : Parallel x Series (Vx2V)
  • Primary FCAN (NPL) : None
  • Primary FCBN (NPL) : None
  • Secondary Voltage : 120/240,130/262(1)
  • Secondary Connection : Parallel/Series-N (V/2V)
  • Material : Copper
  • Temperature Rise : 95°C
  • Insulation Class : 130°C
  • EKVA : 0.25
  • Efficiency Regulation : No Efficiency Specification
  • Seismic Compliance : IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
  • Sound Level : 45dBA (NEMA ST-20)
  • Impedance (Std) : 1% - 5%
  • Enclosure Type : Type 3R / IP24
  • Enclosure Finish : ANSI 61 Grey, UL50
  • Enclosure PN (NPL) : NQ0-N3R
  • Enclosure Dimensions : 7.19in/183mm(H), 3.69in/94mm(W), 5.06in/129mm(D)
  • Nameplate : Standard
  • Standard kVA : 0.25
  • Vector Configuration : 0°
  • Seismic Standard Value : IBC 2018
  • OSHPD : No
  • Seismic IP : lp=1.5
  • Seismic ZH : z/h=1
  • Seismic SDS Value : Sds=2.0
  • Enclosure IR Window : No
  • Primary Termination (Std) : Wire Leads, Wire Leads, Wire Leads, Wire Leads, Wire Leads

Product Data

  • UPC : 803423093662
  • GTIN : 00803423093662
  • Weight : 8
  • Certification : CSA, UL, CE
