Product Details
Features:
1. The product only needs to be connected in series with the positive pole of the circuit, without connecting the negative pole
2. No input voltage limit (guaranteed reverse voltage below 40V)
3.4 320A high-current MOS tube, continuous overcurrent 80A, peak 100A
4.0.9mΩ milliohm conduction resistance, voltage difference of 0.004 volts or so small loss, low heat
5.2US fast response to reverse polarity, input and output are equivalent to diodes.
6. Detect the output voltage is greater than the input immediately shut down the output, the detection value for the millivolt level, the response speed is very fast!
Product Description:

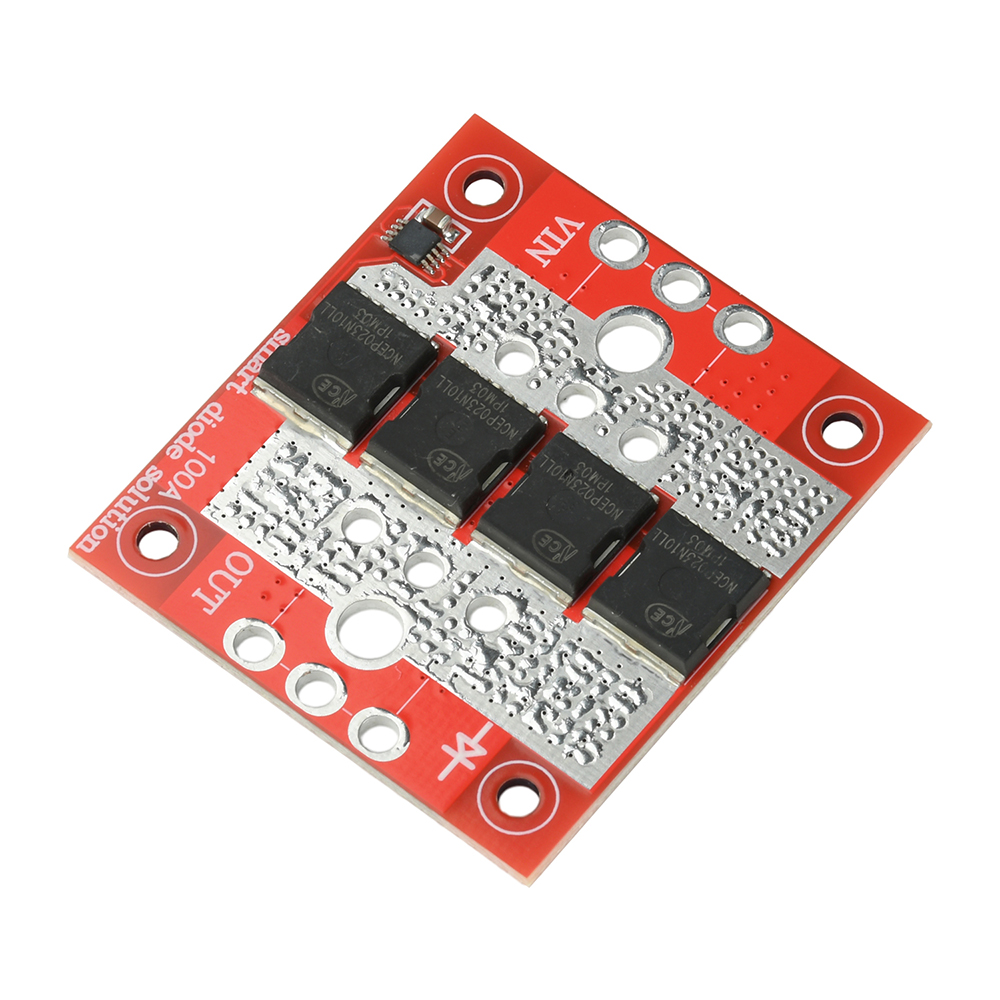

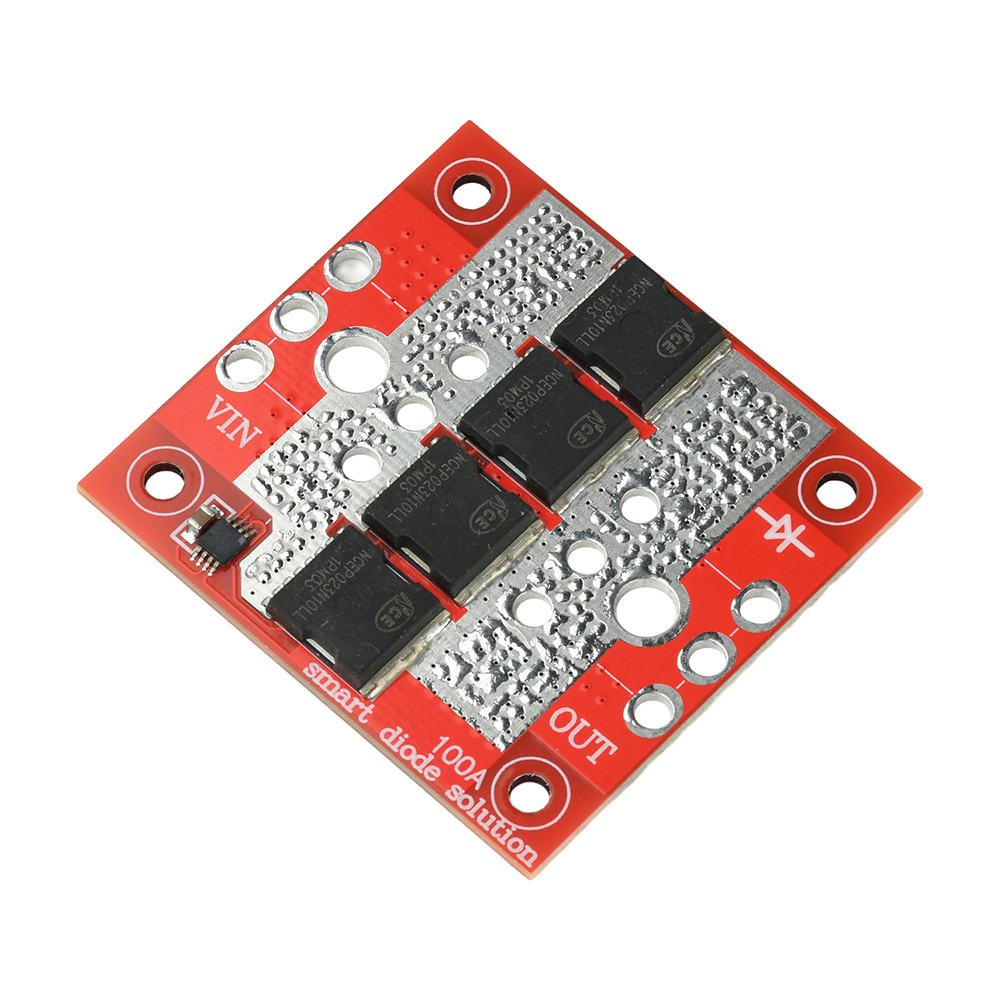

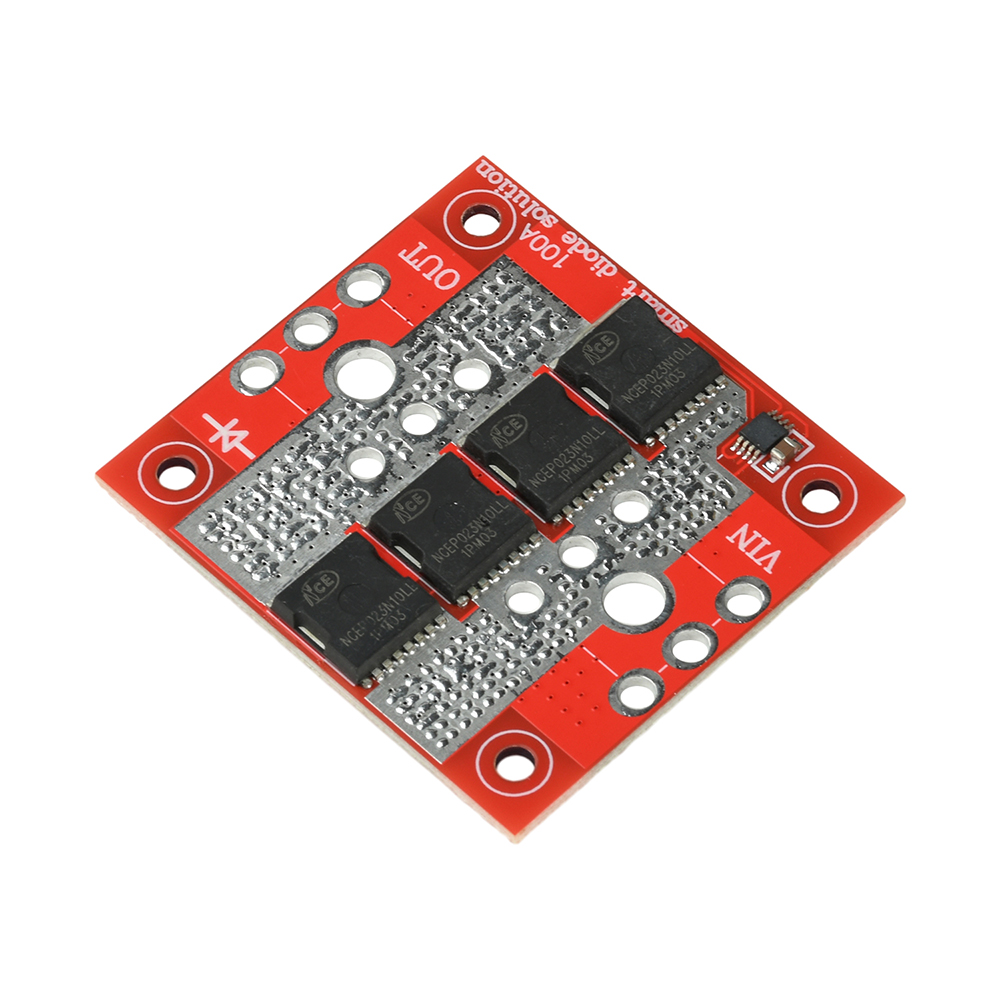

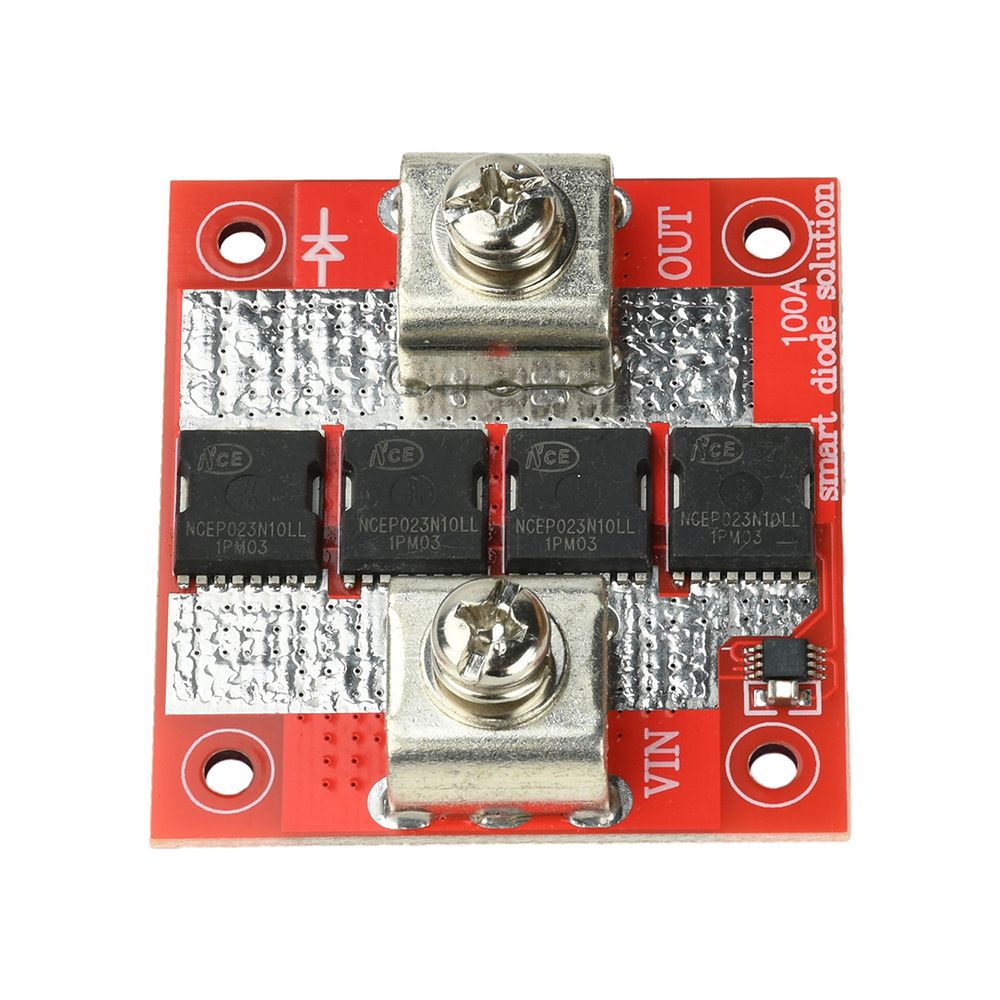

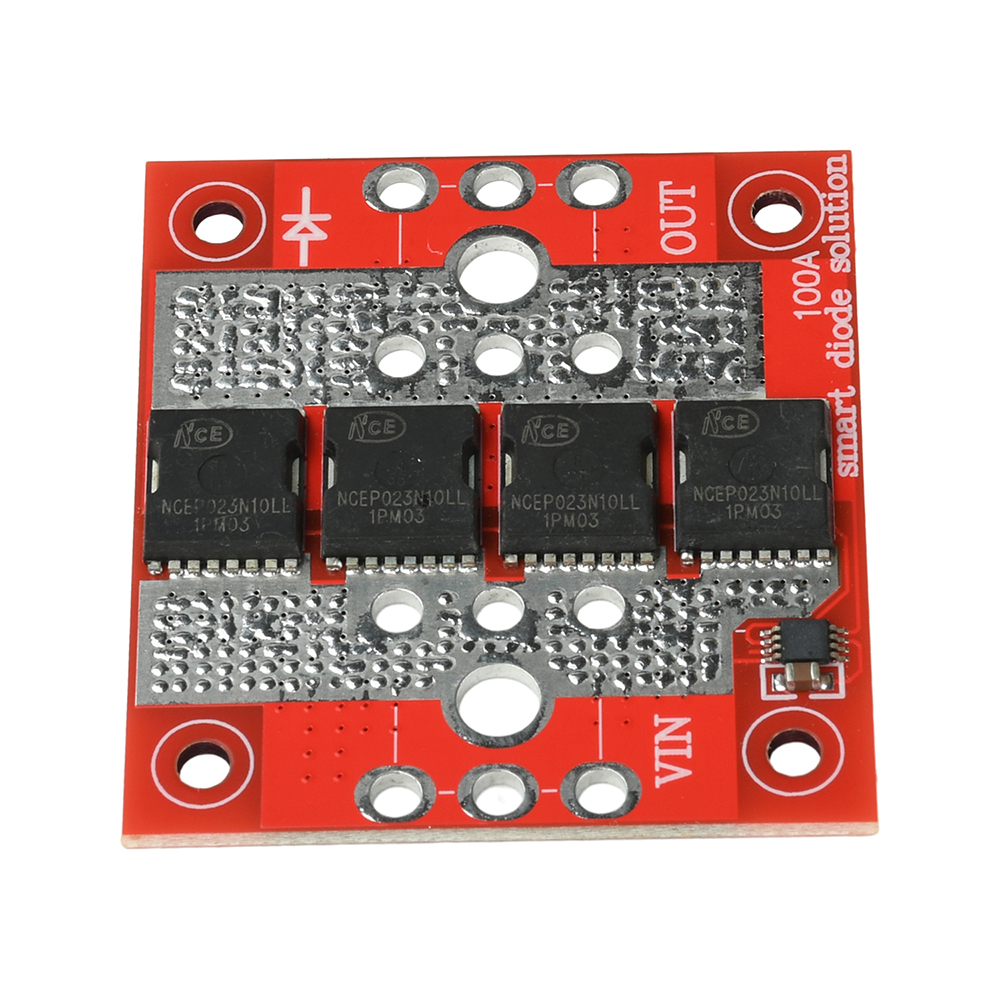

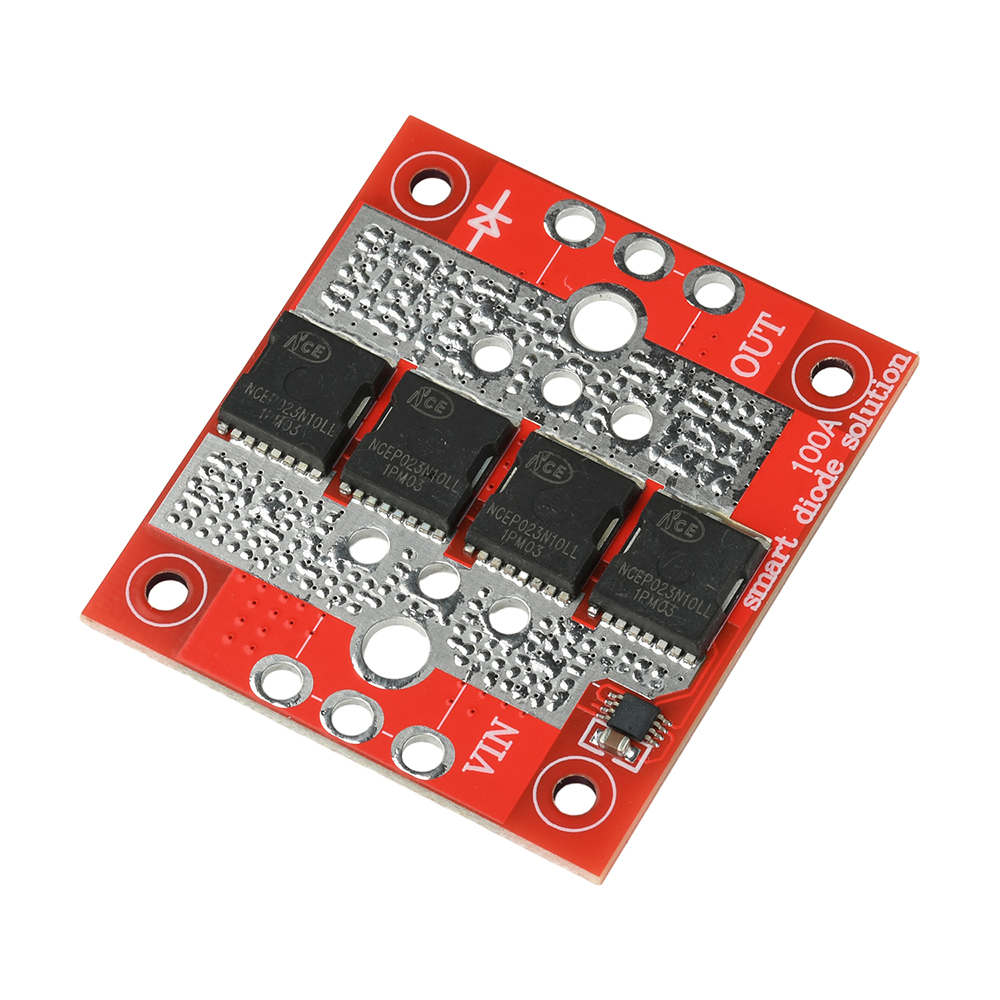

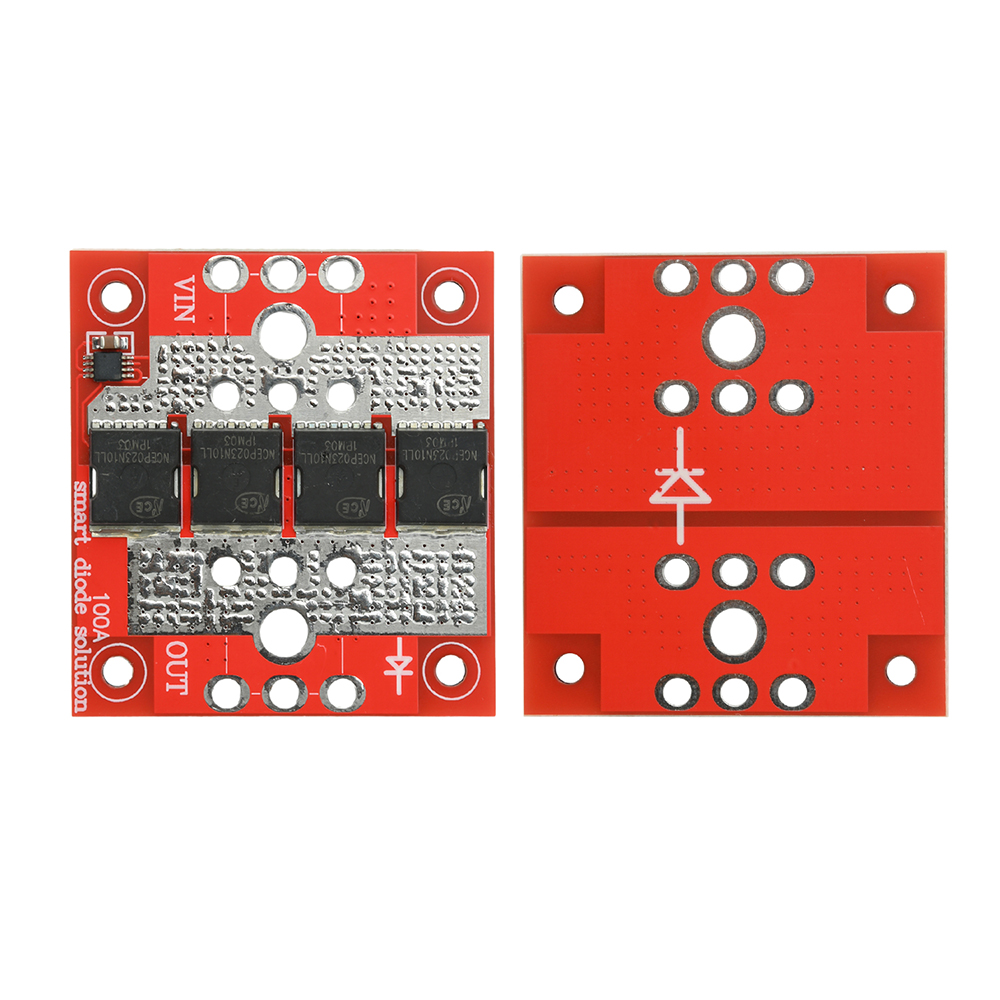

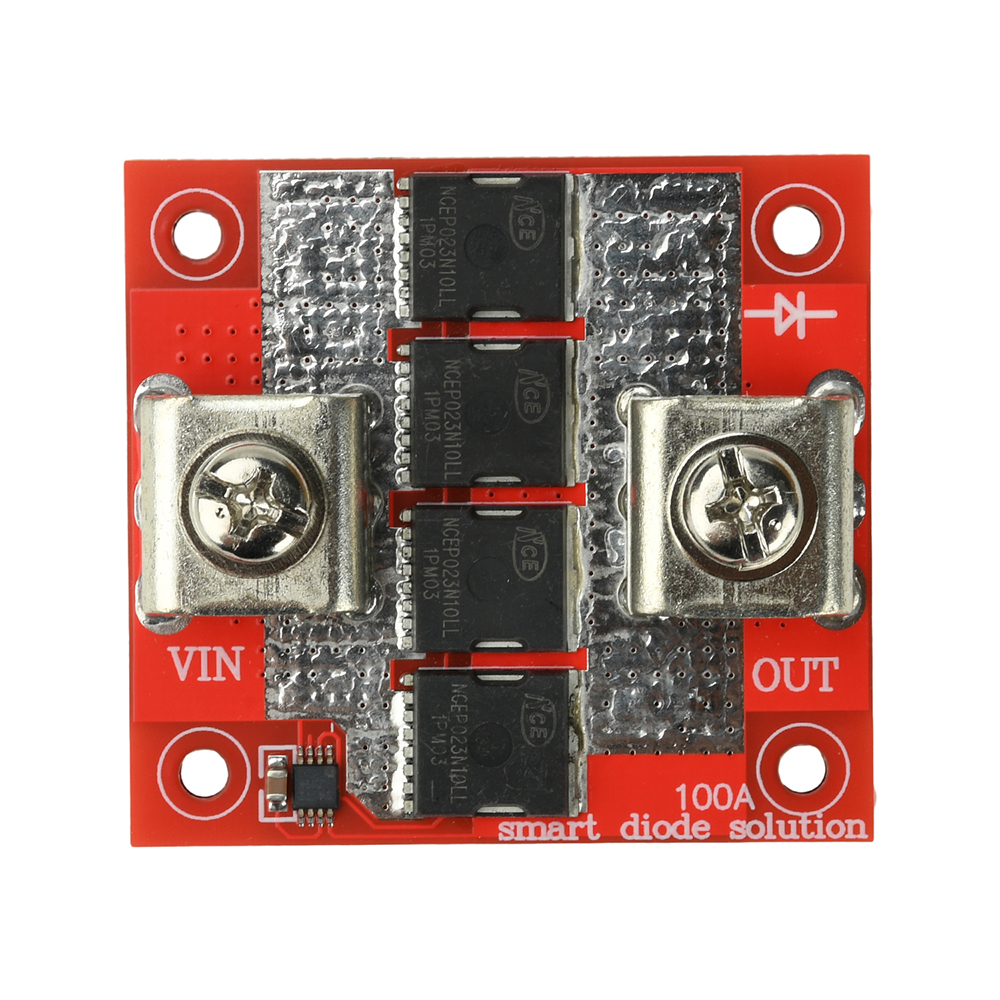

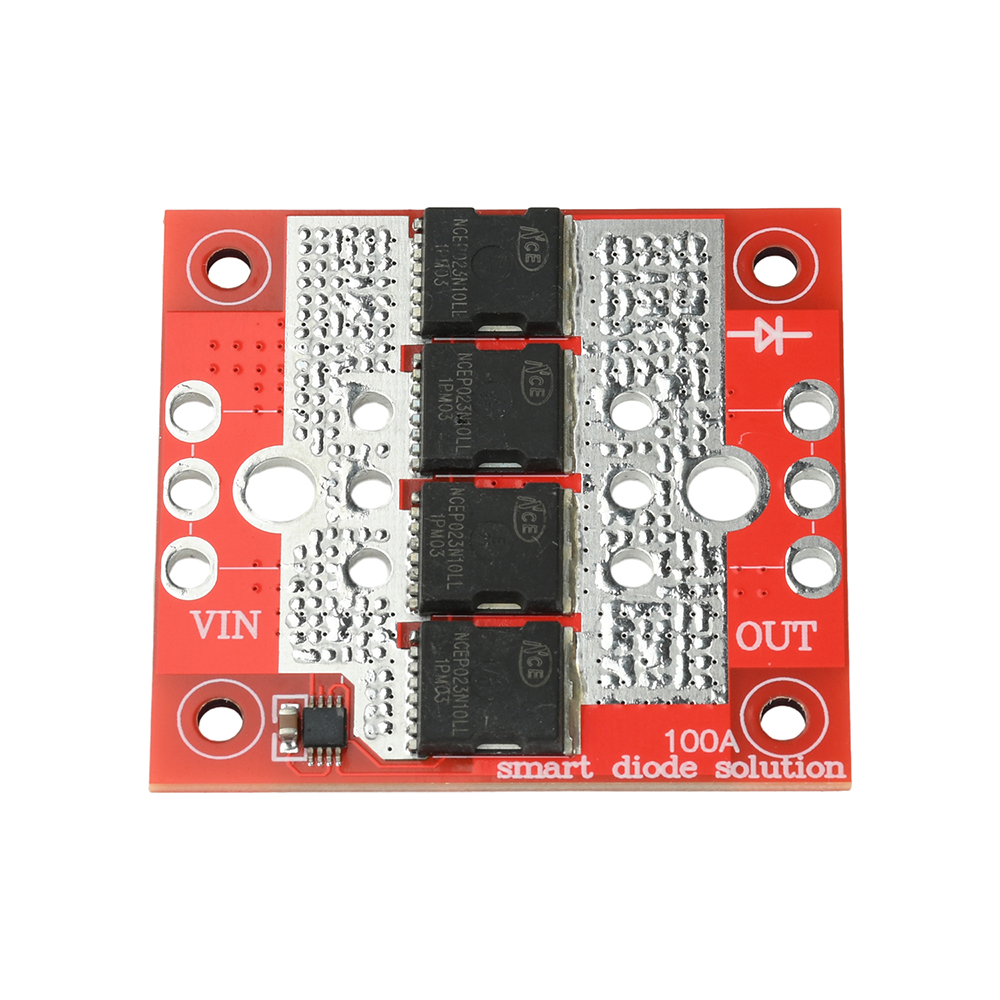

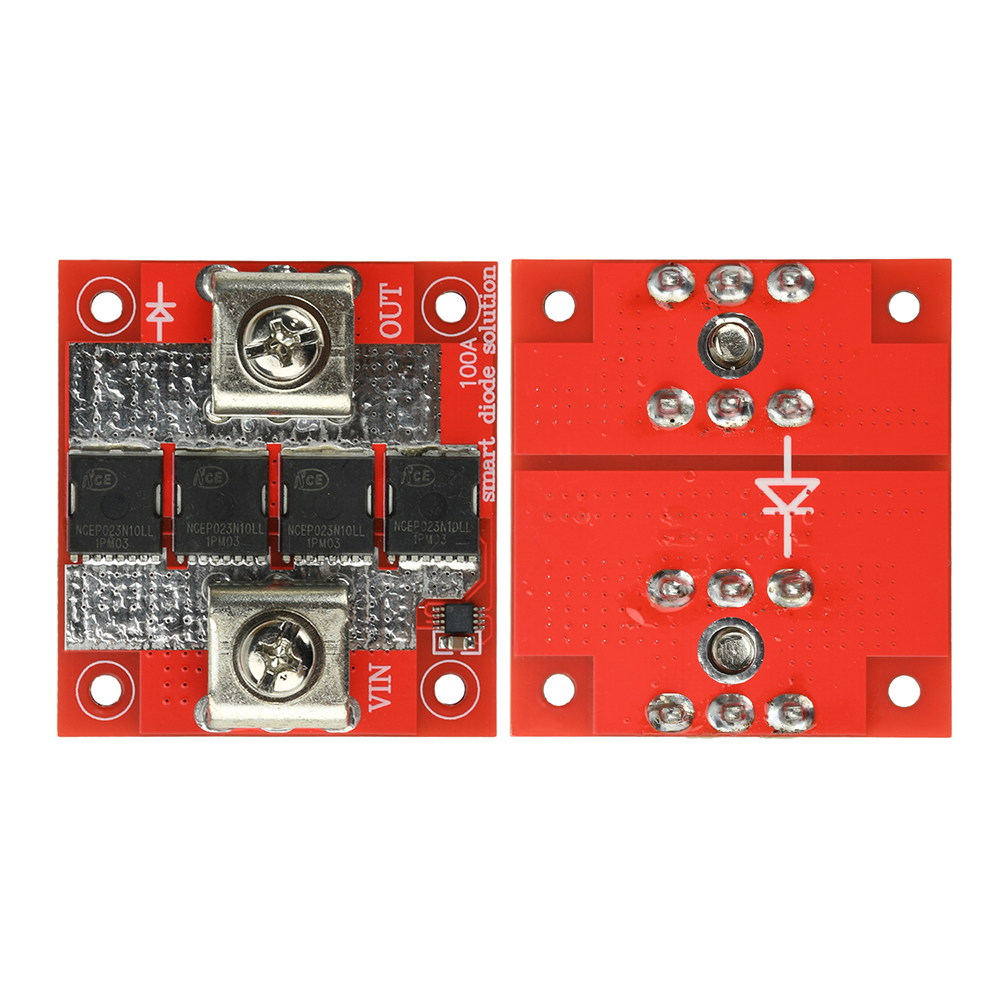

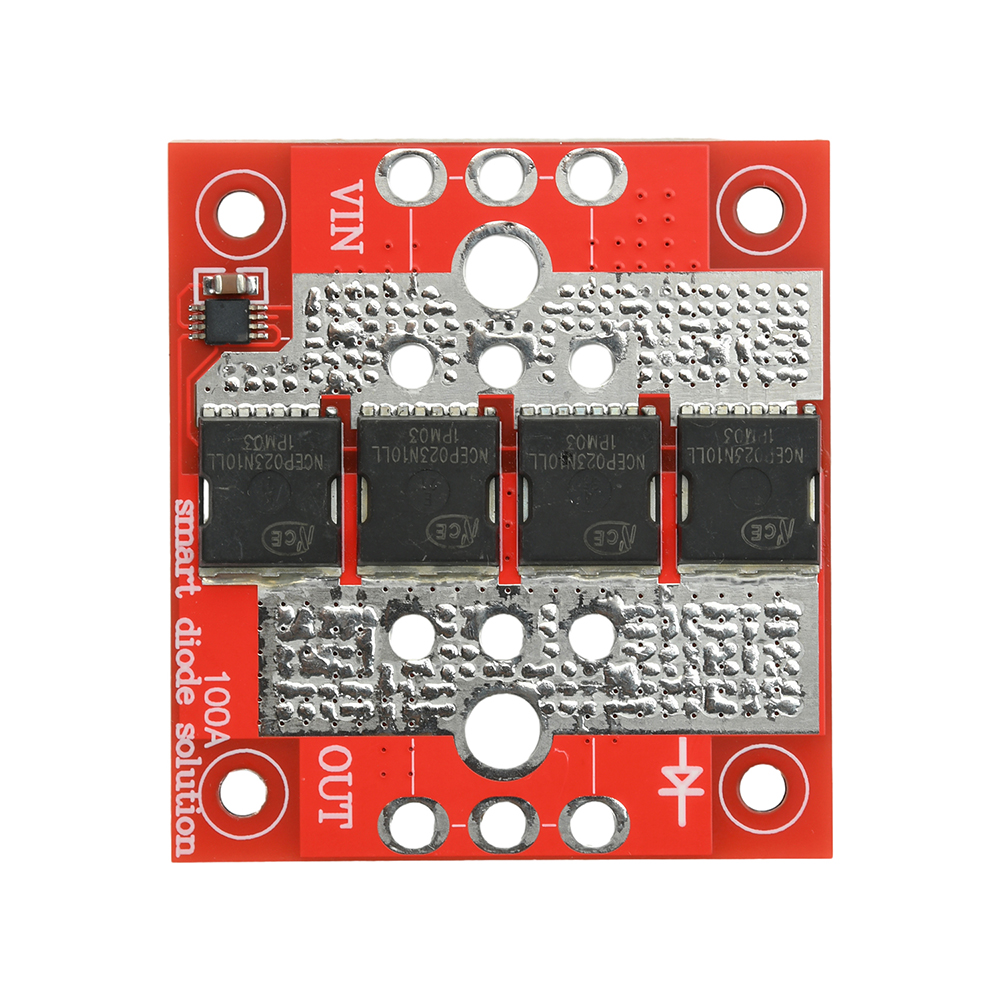

This module uses imported MOS management chip, on board 4 0.9mΩ, 320A high power MOS tube, over high current temperature rise is very low. This product is not grounded, according to the official technical information documents, after testing through the ideal diode voltage will be 0.03 ~ 0.2V or so fluctuations (current fluctuations in different voltages, all the ideal diode on the market without grounding are the same there is this problem) 98% of the time when the fluctuation of the voltage on the lowest point of heat is also the lowest, 2% of the time through the body of the diode to the chip power supply, this time the fluctuation of the voltage, the voltage of the power supply to the chip, this time the fluctuation of the voltage, the power supply to the chip. Chip power supply, this time the fluctuation of the voltage is the largest, the heat is also the largest. Suitable for replacing ordinary high-current diodes, batteries, solar panels, anti-backflooding anti-backflow. Series connection on the input side of the power supply is ideal for anti-reverse connection.
Precautions:
1. No limitation on input voltage, but reverse voltage requirement.
2. Reverse voltage is lower than 40V (the difference between the voltage at the output end and the voltage at the input end cannot be higher than the input voltage of 40V) For example: if the input is connected to a 24V power supply, the output can be connected to a 12V, 24V, 36V, 48V, 60V battery, and it cannot be connected to a battery of more than 72V, because 72V-24V input = 48V If the input is not connected to a power supply, and there is no voltage at the input end to input the output can be connected to a voltage of less than 40V. If the input is not connected to the power supply, there is no voltage input at the input, the output can be connected to a voltage below 40V, if the output is connected to a voltage above 40V, the chip will be damaged.
3. If it is used for anti-flooding, be sure to disconnect the output first.
4. Because it is not grounded, the output voltage has about 0.3V fluctuation. It is not suitable for voltage precision products.
Package include: :
Ideal diode module *1
