Parameter
| Brand |
Trifox |
| Model |
X8 |
| Product Name |
Bike Frameset X8QR |
| Type |
Road Bike Frame |
| Style |
AERO Frame |
| Available Size |
48 / 51 / 54 / 56 cm |
| Available Color |
Yellow / Red |
| Material |
T800 Carbon Fiber |
| Finish |
Glossy |
| Braking System |
V Brake |
| Fork Rake / Offset |
43mm |
| Installable |
Fit for DI2 & Mechanical |
| saddle installation method: |
Lock left and right |
| Derailleur Cables Routing |
Internal |
| Bottom Bracket |
BSA BB68 (φ 34mm, L 68mm) |
| Headset |
1 1/8'' to 1 1/2'' Tapered Integrated |
| Max Wheels & Tire Size |
700 x 25C |
| O.L.D |
Front: φ9x100mm; |
| Rear: φ10x130mm |
|
| Dropout Style |
Quick Release |

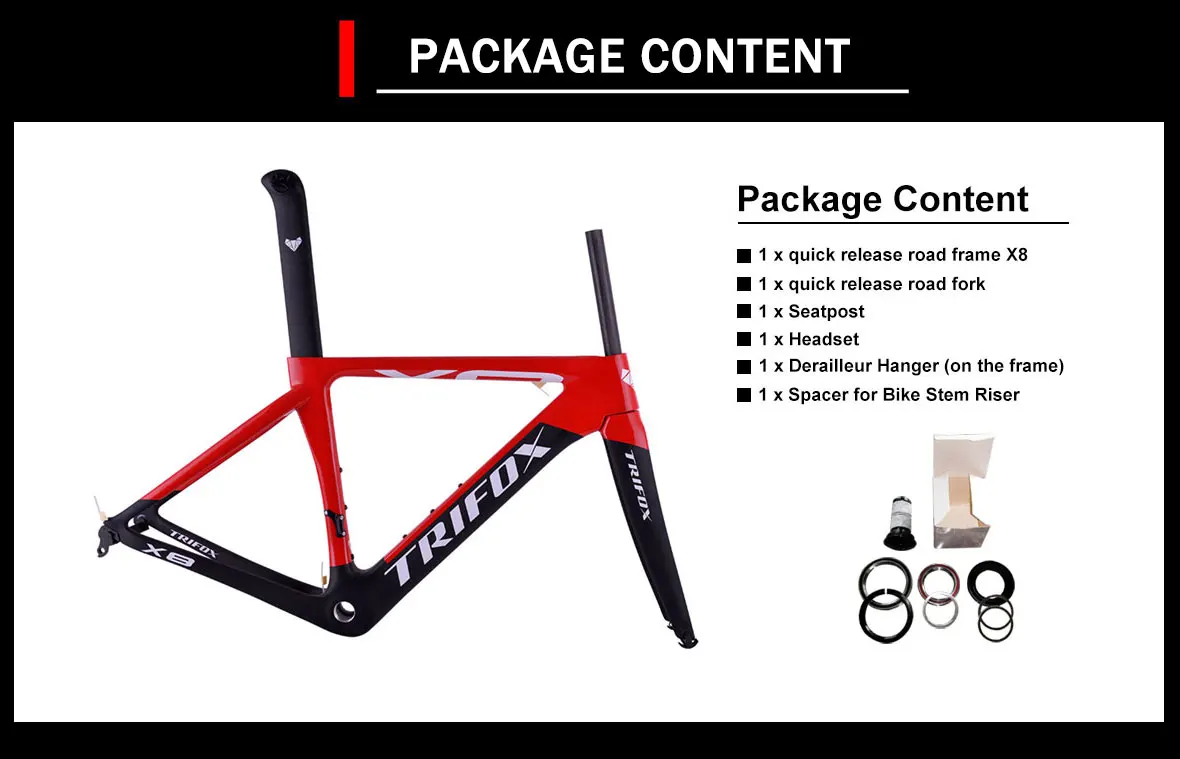

| Package Content |
1 x Road Bike Frame X8 |
| 1 x Fork |
|
| 1 x Seatpost |
|
| 1 x Hanger |
|
| 1 x Headset |
|
| Warranty |
2 years |

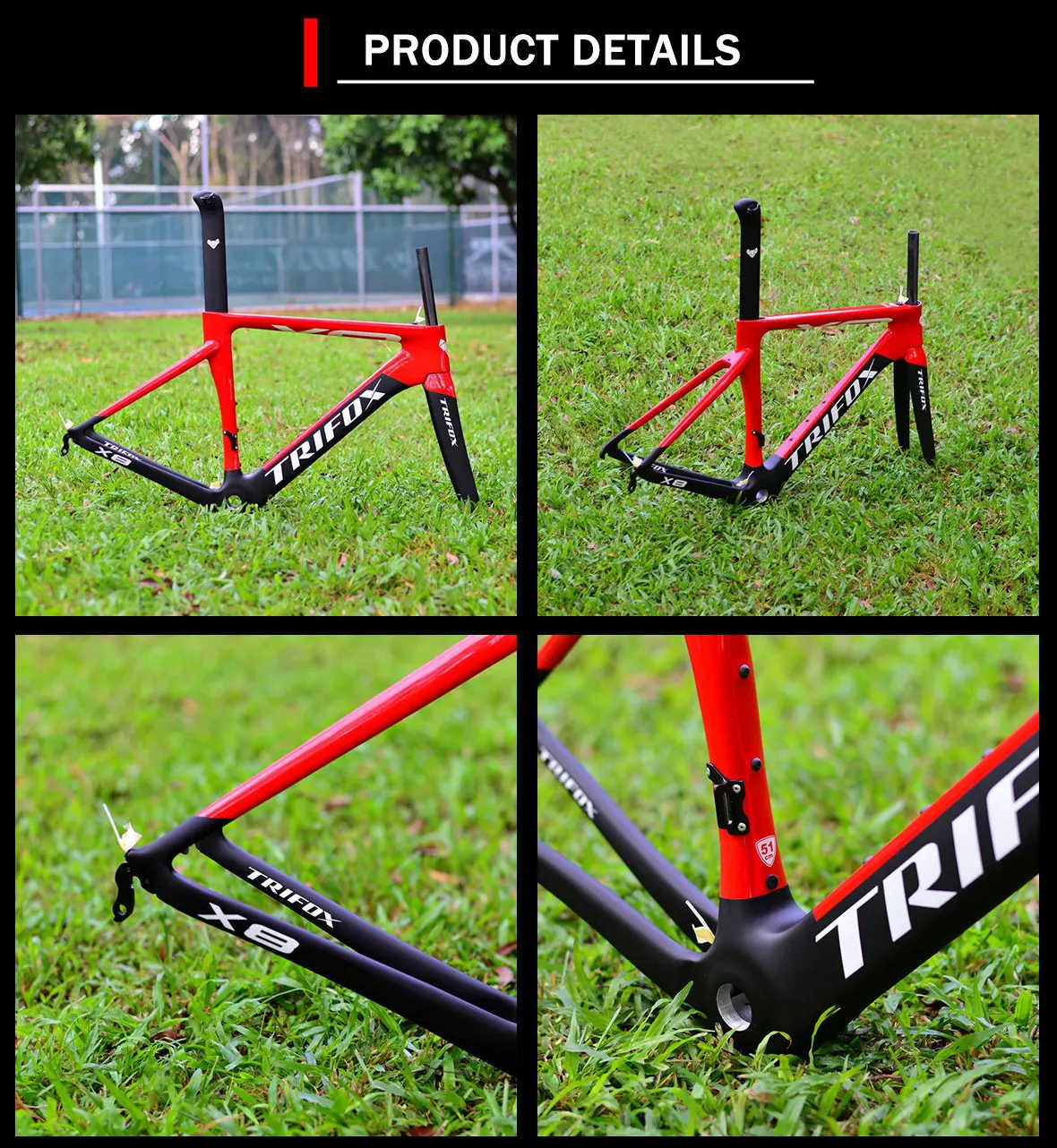

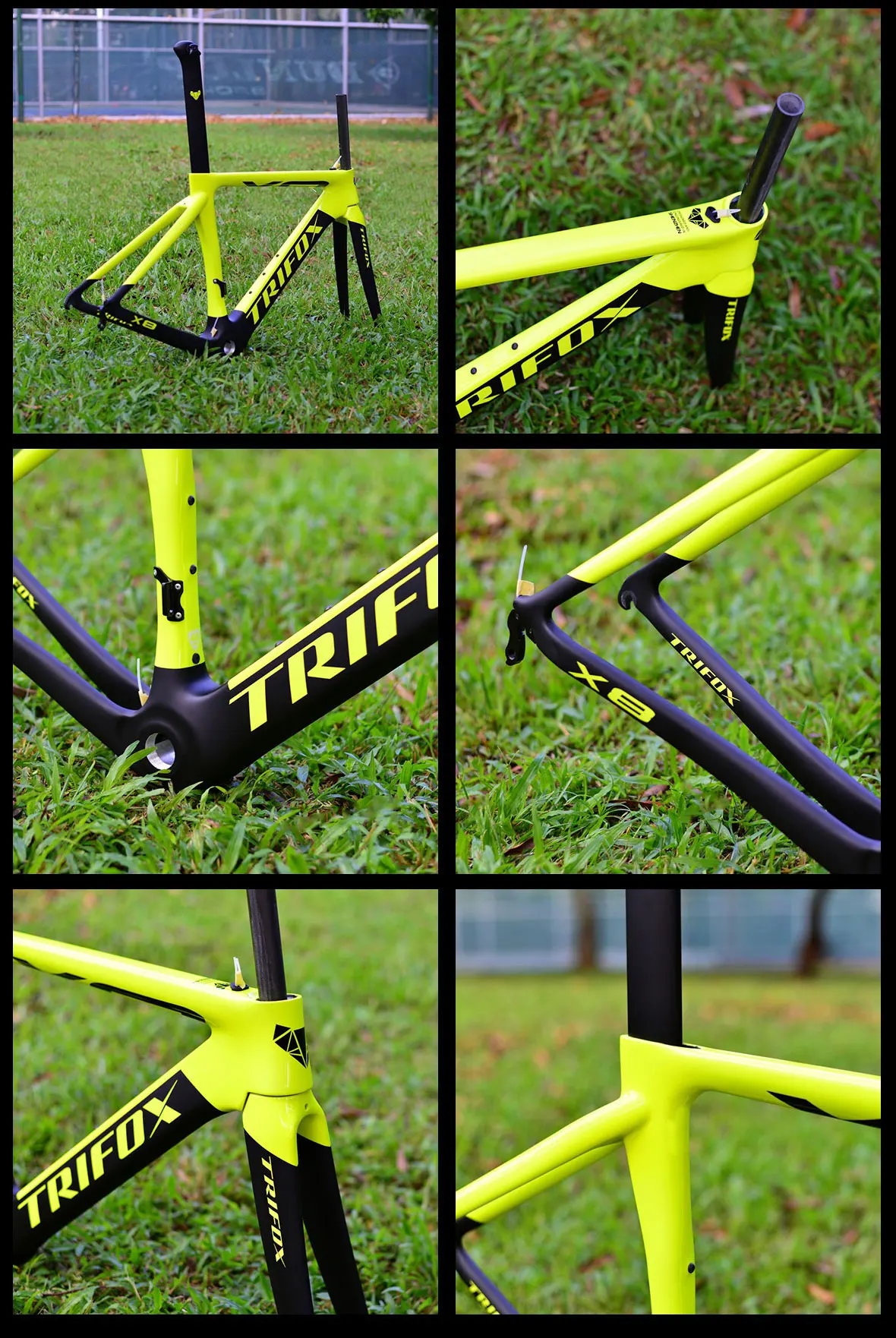

Trifox X8 adopts carbon fiber integrated molding process,
three-dimensional guide type integrated aero pipe type, internal routing
aerodynamic propel design, full sense of strength, the combination of
sports and equipment aesthetics, and the special processing method of
carbon fiber makes the frame without Joint gaps, with consistent visual
aesthetics that other frame materials don't have.
The internal routing design, the wiring from the upper tube of the frame head, is simple and beautiful.
The carbon fiber raw materials is derived from Toray T800 high-quality. The
carbon fiber is flexible on the outside and rigid on the inside. It is
lighter than aluminum alloy, but more strength than steel. It has the
characteristics of corrosion resistance, shock resistance and high
modulus. It is important materials and always used in national defense,
military and civilian applications. It not only has the inherent
characteristics of carbon materials, but also has the soft
processability of textile fibers. It is a new generation of reinforcing
fibers which has many excellent properties.
Ultra-light carbon
fiber front fork: aerodynamic design of breaking wind, taking into
account lightness and strength, riding faster and more comfortable.

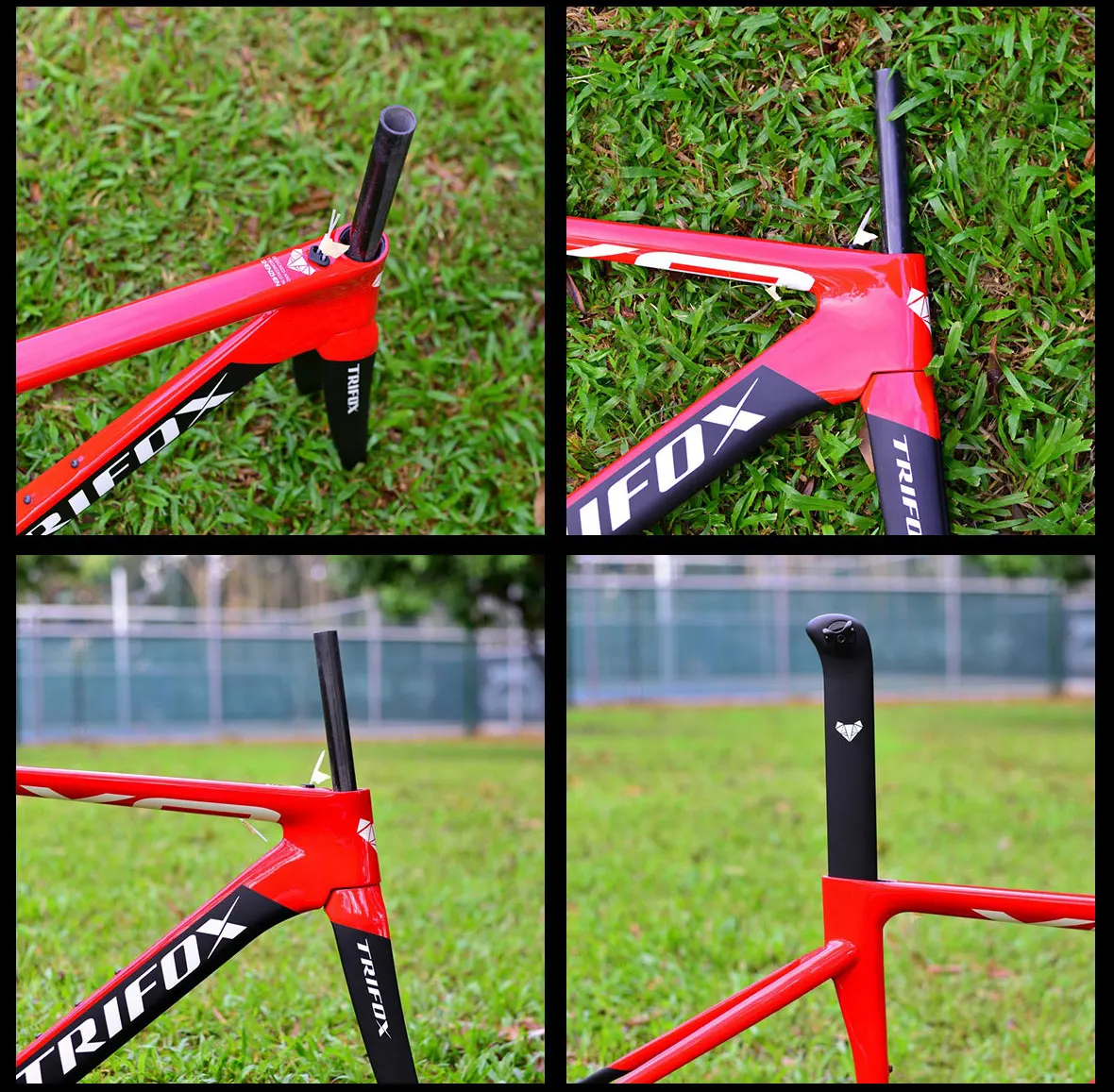

Carbon
fiber windbreaking aero seatpost: The lay-back drop-shaped tube design,
with a smaller windward surface, effectively reduces the wind
resistance of cycling, and makes riding more enjoyable.
Hidden seatpost clamp, beautiful and fashionable.
2-year warranty service.

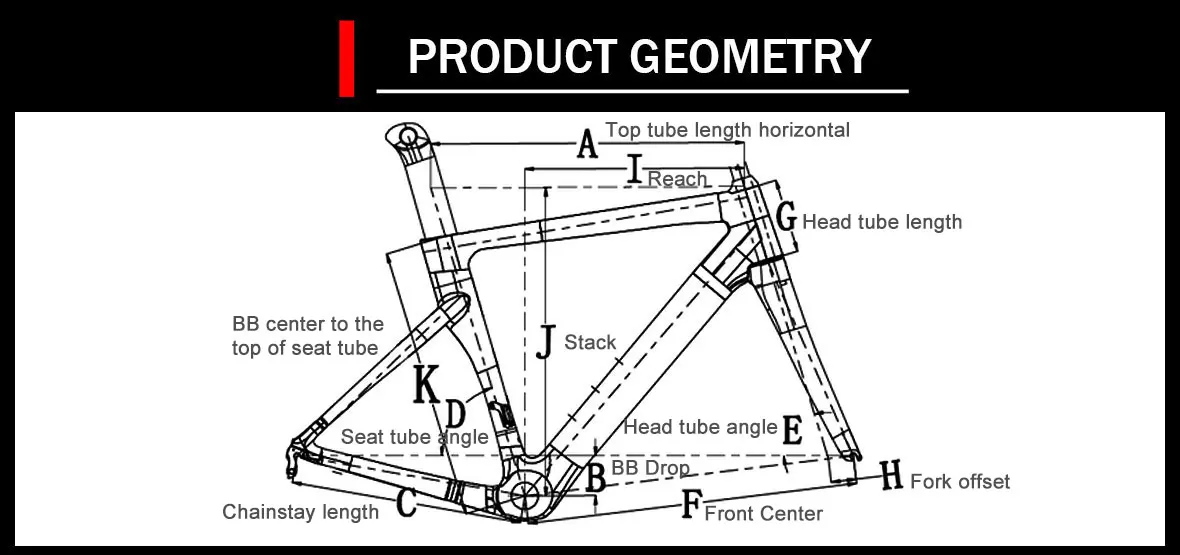

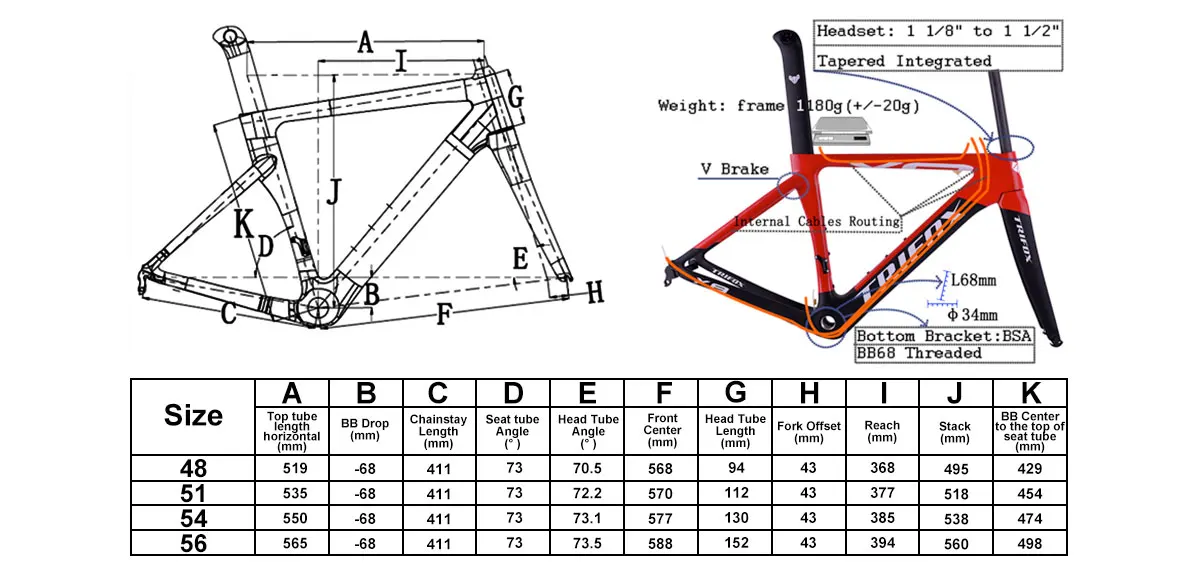

| Size |
48cm |
51cm |
54cm |
56cm |
|
| A(mm) |
Top tube length horizontal |
519 |
535 |
550 |
565 |
| B(mm) |
BB Drop |
68 |
68 |
68 |
68 |
| C(mm) |
Chainstay length |
411 |
411 |
411 |
411 |
| D(°) |
Seat tube angle |
73 |
73 |
73 |
73 |
| E(°) |
Head tube angle |
70.5 |
72.2 |
73.1 |
73.5 |
| F(mm) |
Front Center |
568 |
570 |
577 |
588 |
| G(mm) |
Head tube length |
94 |
112 |
130 |
152 |
| H(mm) |
Fork offset |
43 |
43 |
43 |
43 |
| I(mm) |
Reach |
368 |
377 |
385 |
394 |
| J(mm) |
Stack |
495 |
518 |
538 |
560 |
| K(mm) |
BB center to the top of seat tube |
429 |
454 |
474 |
498 |
