Brand	Trifox
Model	X8

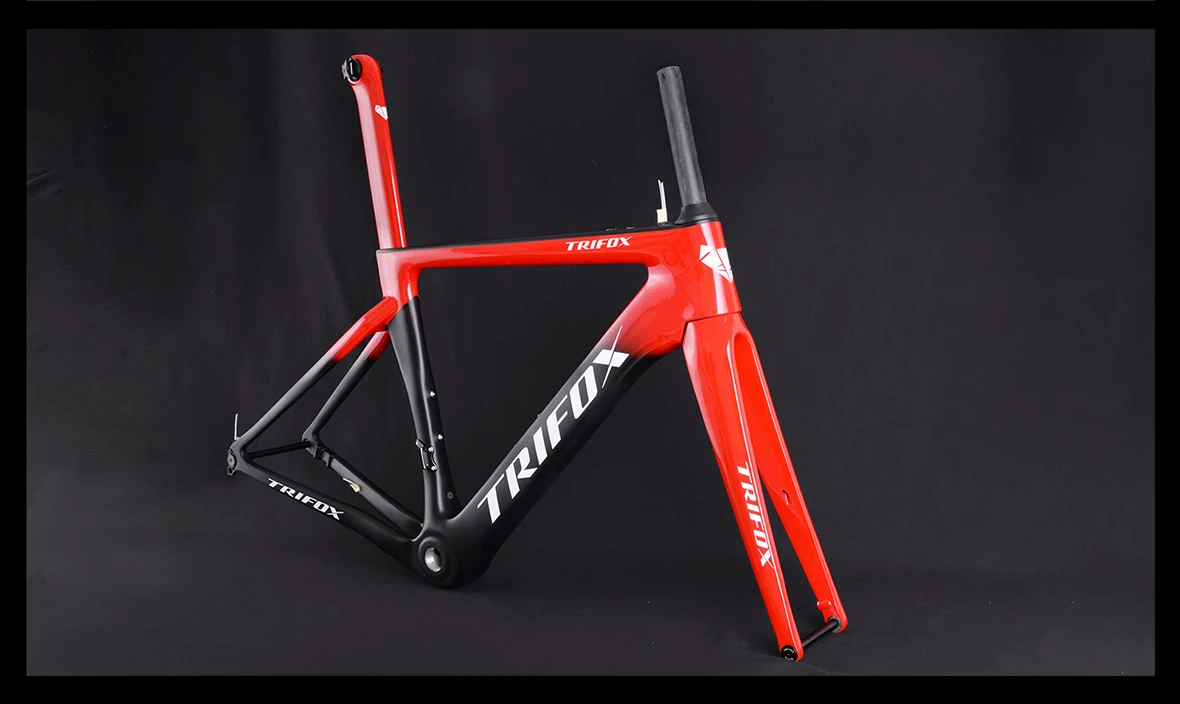

Product Name	Carbon Road Bike Frame X8
Type	Carbon Road Frame
Available Size	48 / 51 / 54 / 56 cm

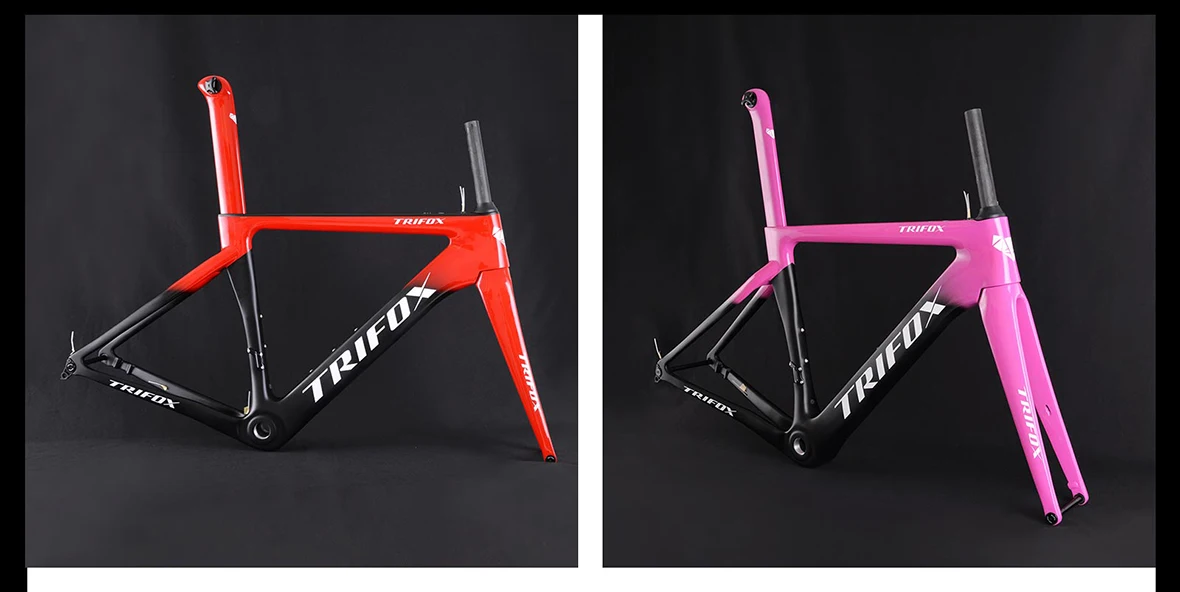

Available Color	Pink / Red
Material	T800 Carbon Fiber
Finish	Glossy
Braking System	Disc Brake
Fork Rake / Offset	43mm
Installable	Fit for DI2 & Mechanical
saddle installation method:	Lock left and right
Derailleur Cables Routing	Internal

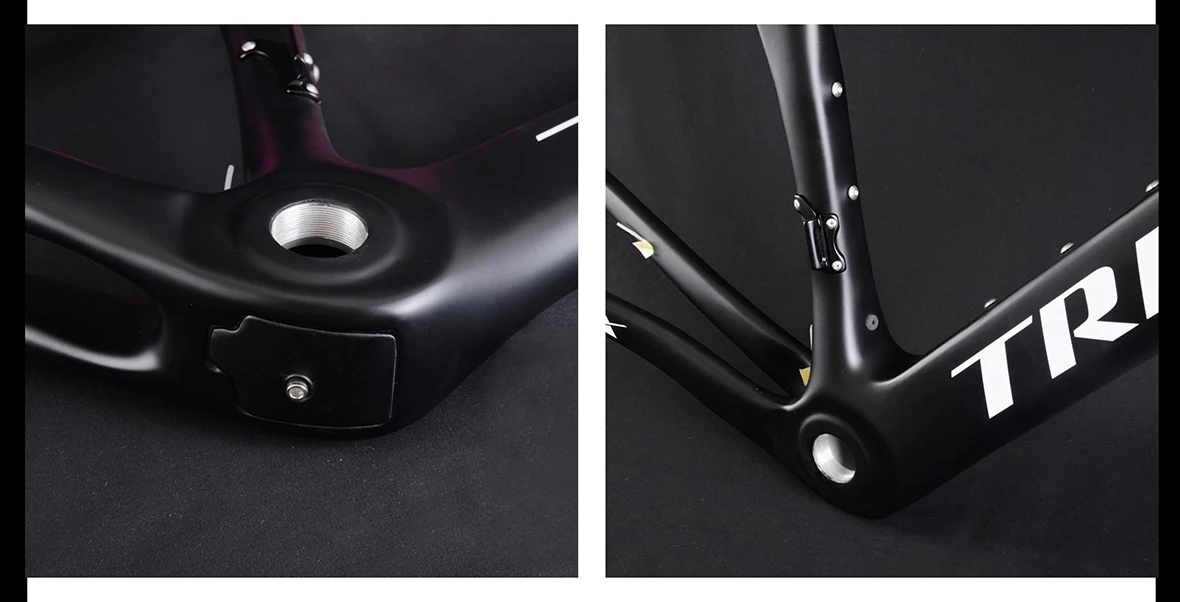

Bottom Bracket	BSA BB68 (φ 34mm, L 68mm)
Headset	1 1/8'' to 1 1/2'' Tapered Integrated
Max Wheels & Tire Size	700 x 25C
O.L.D	Front: φ12x100mm;
	Rear: φ12x142mm
Style	Thru Axle

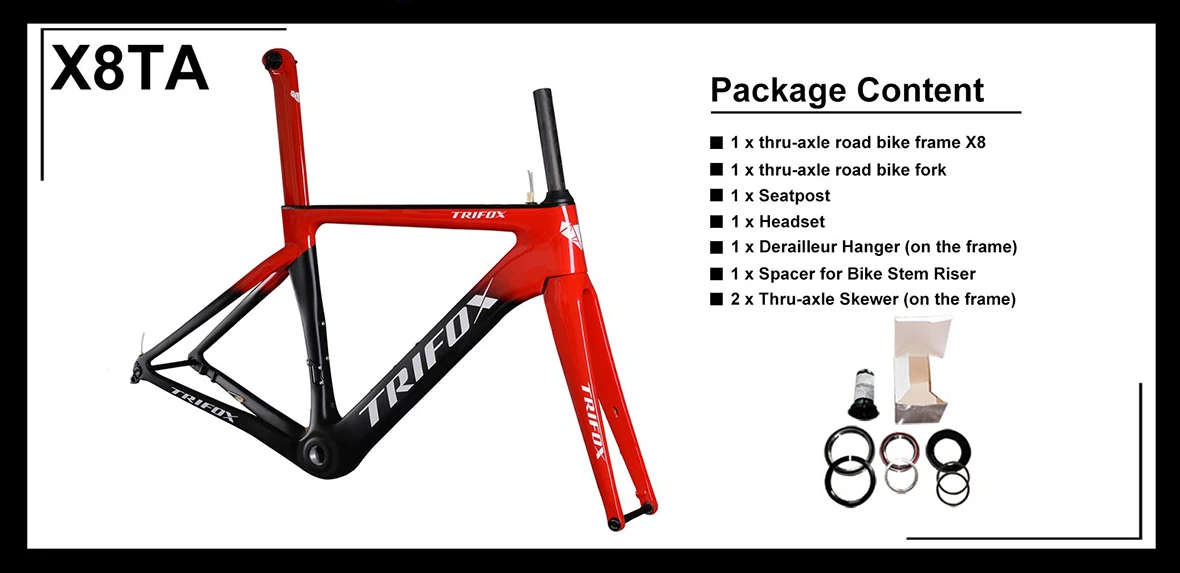

Package Content	1 x Carbon Frame X8
	1 x Fork
	1 x Seatpost
	1 x Hanger
	1 x Headset
Warranty	2 years

Trifox X8 adopts carbon fiber integrated molding process, three-dimensional
guide type integrated aero pipe type, internal routing aerodynamic
propel design, full sense of strength, the combination of sports and
equipment aesthetics, and the special processing method of carbon fiber
makes the frame without Joint gaps, with consistent visual aesthetics
that other frame materials don't have.

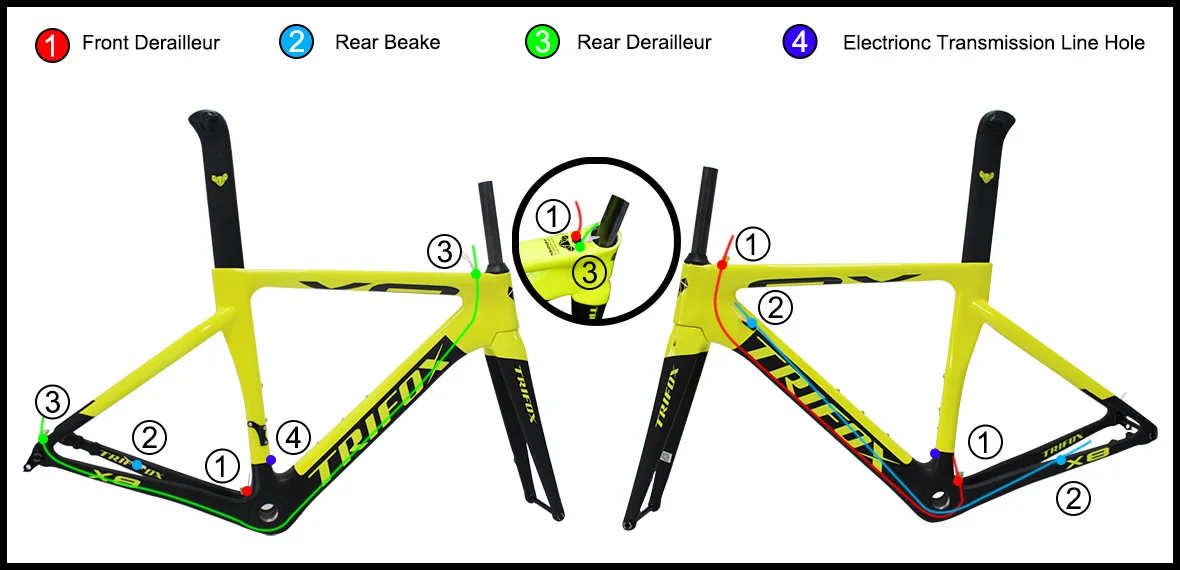

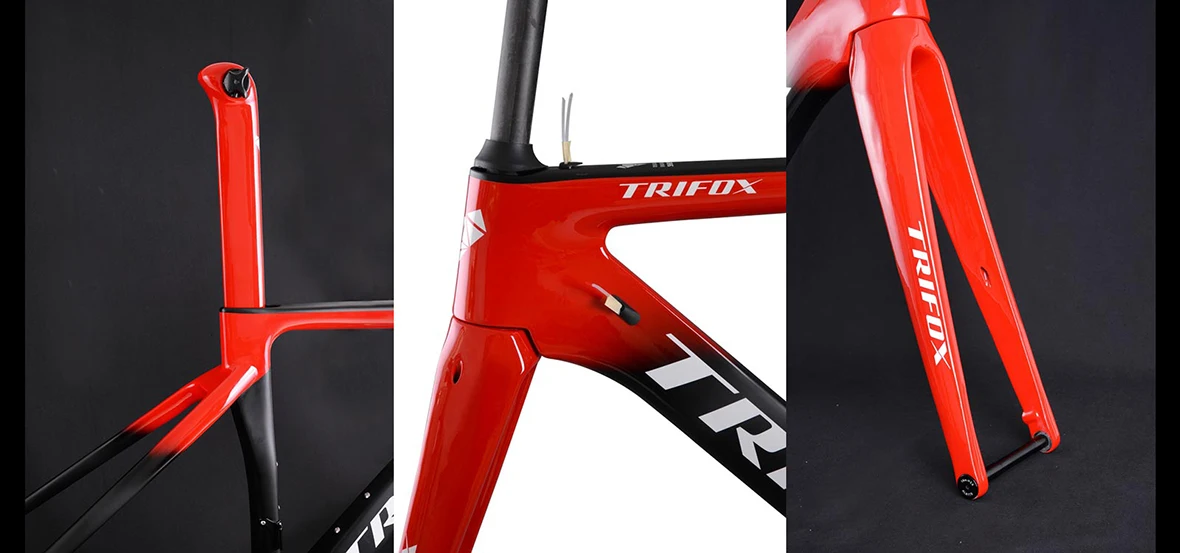

The internal routing design, the wiring from the upper tube of the frame head, is simple and beautiful.

The carbon fiber raw materials is derived from Toray T800/T1000
high-quality. The carbon fiber is flexible on the outside and rigid on
the inside. It is lighter than aluminum alloy, but more strength than
steel. It has the characteristics of corrosion resistance, shock
resistance and high modulus. It is important materials and always used
in national defense, military and civilian applications. It not only has
the inherent characteristics of carbon materials, but also has the soft
processability of textile fibers. It is a new generation of reinforcing
fibers which has many excellent properties.

Ultra-light carbon fiber front fork: aerodynamic design of breaking wind, taking
into account lightness and strength, riding faster and more comfortable.

Carbon fiber windbreaking aero seatpost: The lay-back drop-shaped tube design,
with a smaller windward surface, effectively reduces the wind
resistance of cycling, and makes riding more enjoyable.

Hidden seatpost clamp, beautiful and fashionable.

2-year warranty service.
