MEW 40A Cable Stripper, Multifunctional Cable Stripping Tool 40B Cable Stripper for 10KV Cable Stripping Diameter 20 To 40mm




Model BX-40AB
Net weight/gross weight 0.6kg/ 1.7kg
A blade use range:
It is suitable for removing the main insulation layer at the end of the φ20-40mm power cable, usually used to strip the semiconducting layer at the end of the 10KV cable
B blade usage range:
It is suitable for removing the semiconducting layer at the end of the φ20-40mm power cable, usually used to strip the semiconducting layer at the end of the 10KV cable

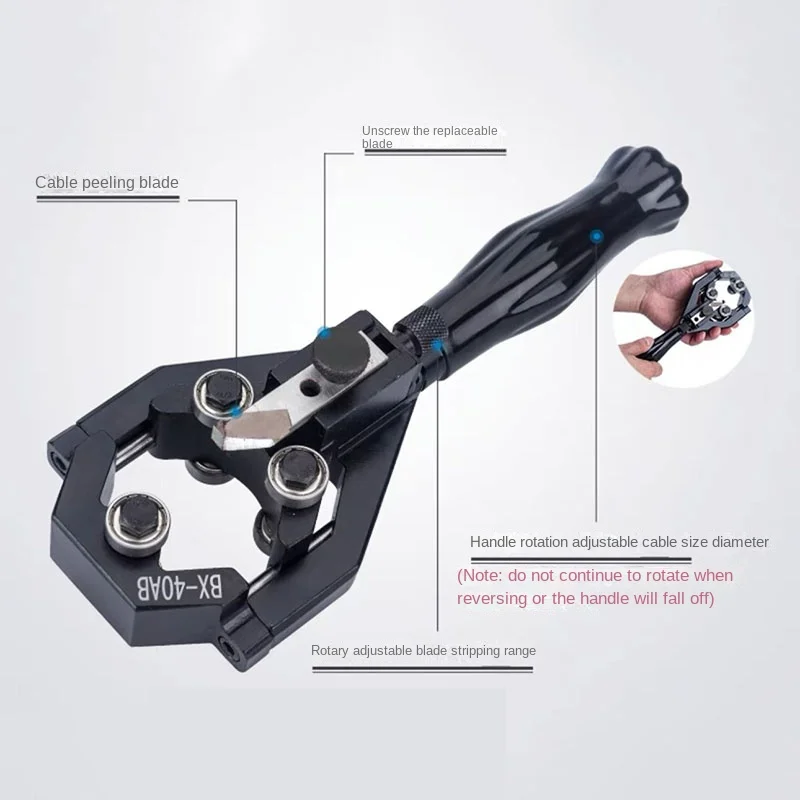

Features
●This duct strips the main insulation layer and the semiconductor layer in one, only one hand is needed;
.Specially designed for the barbed skin of oversized cables;
.High-quality alloy steel blades have better shearing performance
Instructions
First open the handle, clamp the cable to be stripped at the lower knife, press the handle to cut the blade in, then open the handle, turn the cable, and continue cutting in: after the cable is cut in one circle, put the cable into the upper Use a knife to cut in horizontally, and finally take out the cable and peel it off by hand.
