Specification
Packing size: 23*28*34cm
Weight: 6KG
Power supply: 1000W
Comes with a copy of the original laminated steel ball
USE
Braces forming, forming and making of bleaching braces
Appliance molding, orthodontic retainer, dental arch splint molding and fabrication
Tray forming, forming and fabrication of fluoride trays
Base forming, forming and production of temporary, permanent base and mouthguard

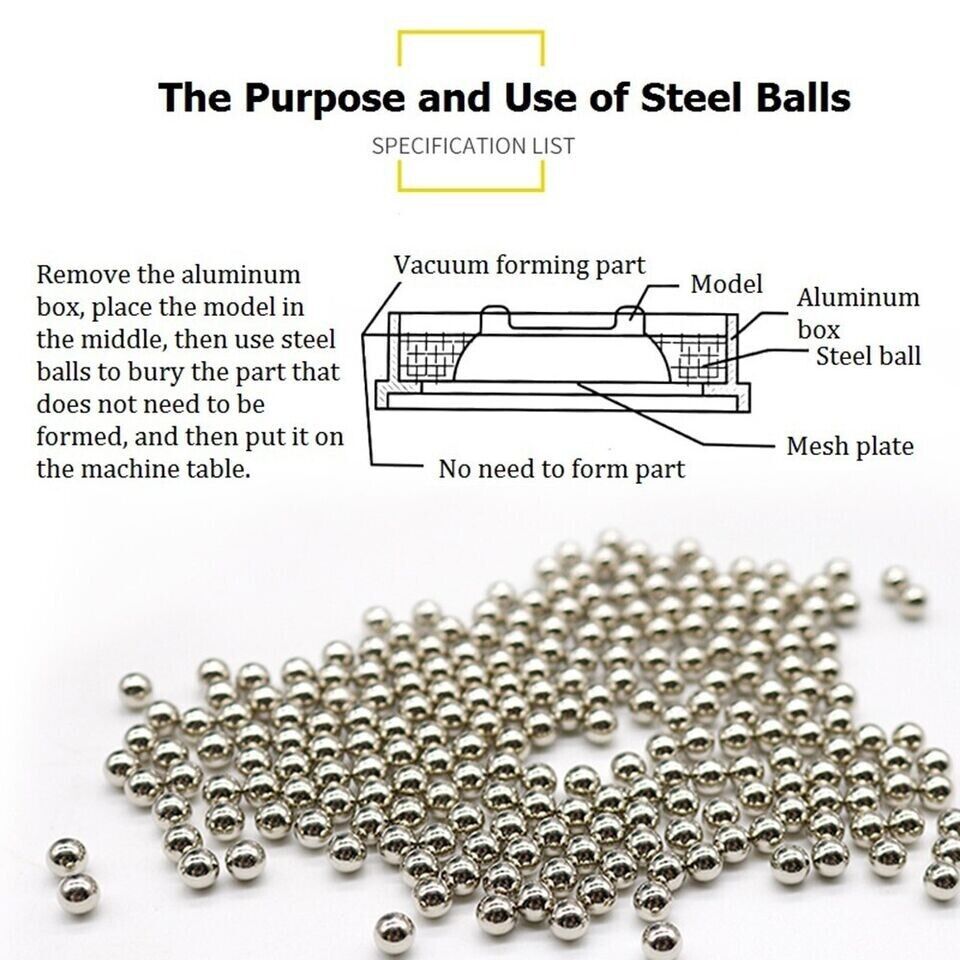

THE PURPOSE AND USE OF STEEL BALLS
Remove the aluminum box, place the model in the middle, then use steel balls to bury the part that does not need to be formed, and then put it on the machine table.

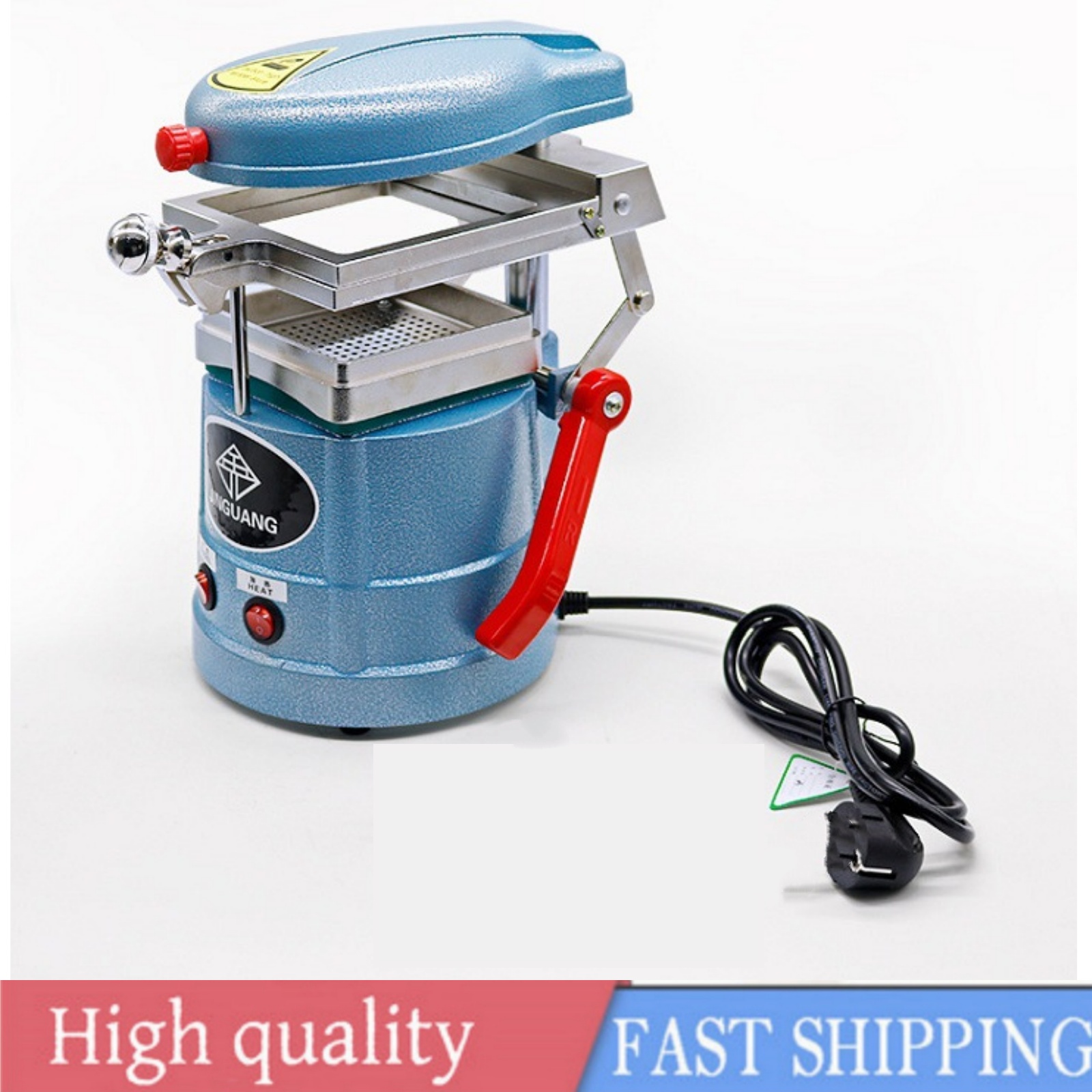

PRODUCT OPERATION

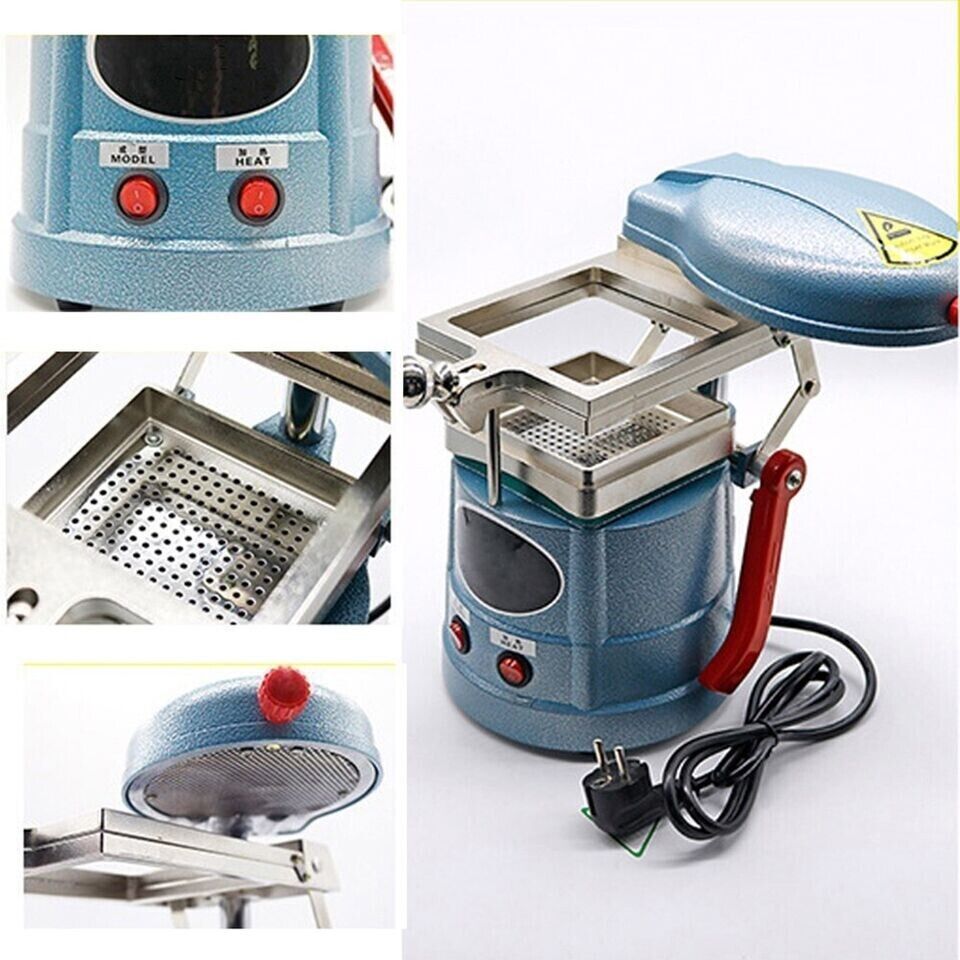

Rotate the upper cover (both left and right) 90°, put the required diaphragm
between the upper and lower casings, and pull down the ball head lever to clamp it.
Reset the upper cover, press the lifting wrench to raise the sleeve frame to the
working height, (the upper part of the main shaft is limited by the marble), and at
the same time place the packaged product in the center of the screen plate, turn on
the heating switch, heat the diaphragm, when the wax When the sheet is heated
below the lower frame plane 1CM (about two or three minutes). Turn off the heating
switch, put the frame down, and turn on the vacuum motor at the same time. After
the package is formed, it can be removed.
Features:
*Reduce blocking the jet
*Clean the surfaces of tooth fastly
*Air and powder filtration
*Water and air are separate
*The jet can be sterilized separately
Description:
1、The air prophy machine uses air and water pressure to spray polishing particles (sodium bicarbonate or glycine) to the tooth surface through a controllable sandblasting handle to improve the gloss of the teeth without damaging the gums and enamel
2、The handle, pipeline and body of the air prophy machine can be separated and easy to assemble. It can also be rotated 360 degrees and sterilized at 134°C. The sandblasting is powerful, the water is uniform, and it is not splashed or blocked
3、The air prophy machine comes with a triple anti-back-suction device and an air filter device, which can effectively prevent backflow of sand powder and water vapor and oil from entering the sandblasting pipe, and protect the cleaning and sanitation of the dental chair pipeline
4、The sand powder and water supply are rationally divided, and the same pipe does not have a path, so that the sand blasting is more uniform and the water output is more powerful; at the same time, a one-key drying and draining steam button is installed to prevent the sand powder from being damp and agglomerated when the sandblasting scaler is not activated in a short time。
Specification:
1、Connection method: 4-hole
2、Water pressure: 0.2MPa-0.5MPa
3、Air pressure: 0.25MPa-0.5MPa
4、Maximum powder load: 42g/time
5、Water spray rate of working handle (rated conditions): ≥35ml/min
6、Sandblasting amount of working handle (rated conditions): 1.5g/min-3.8g/min
Package included:
1 set machine
