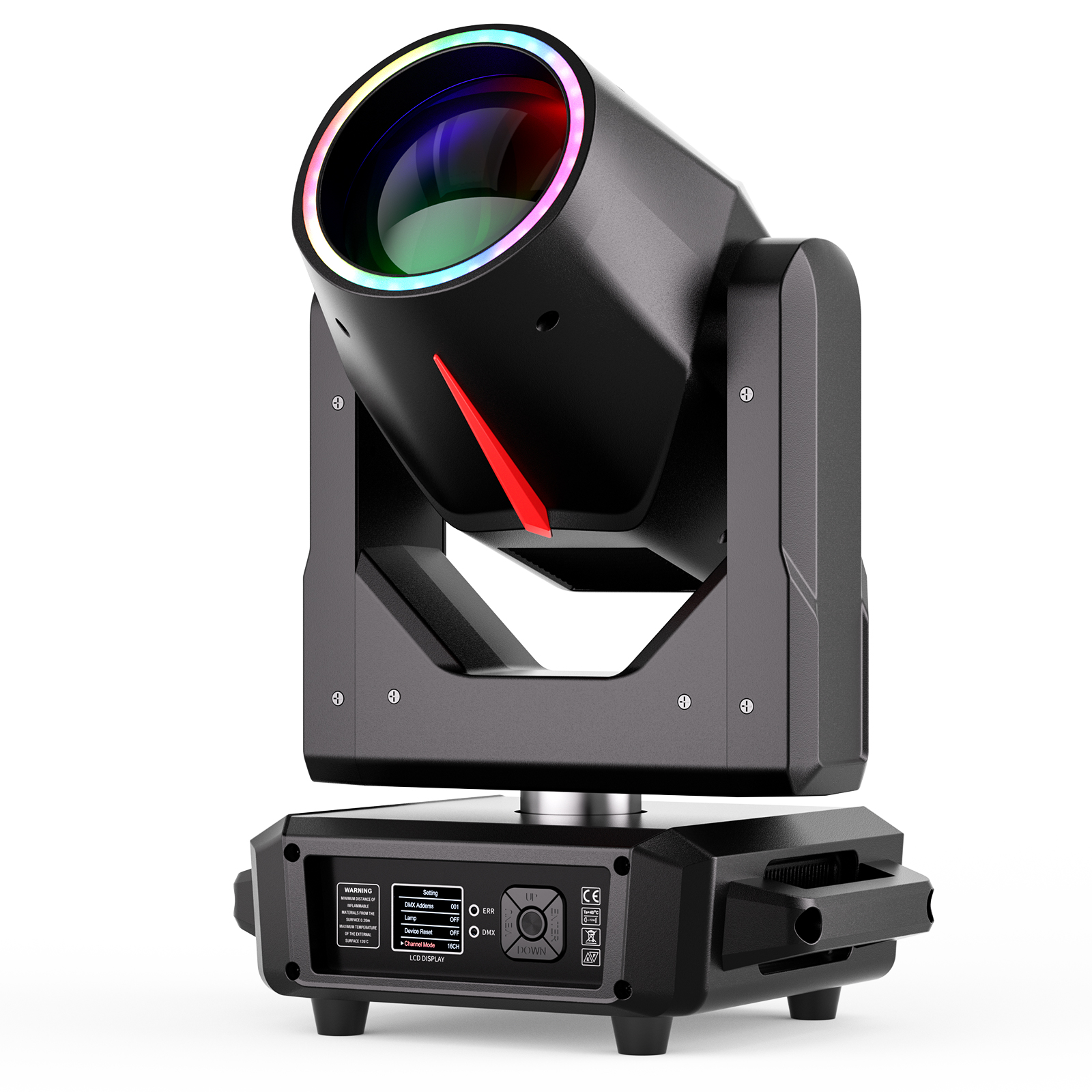

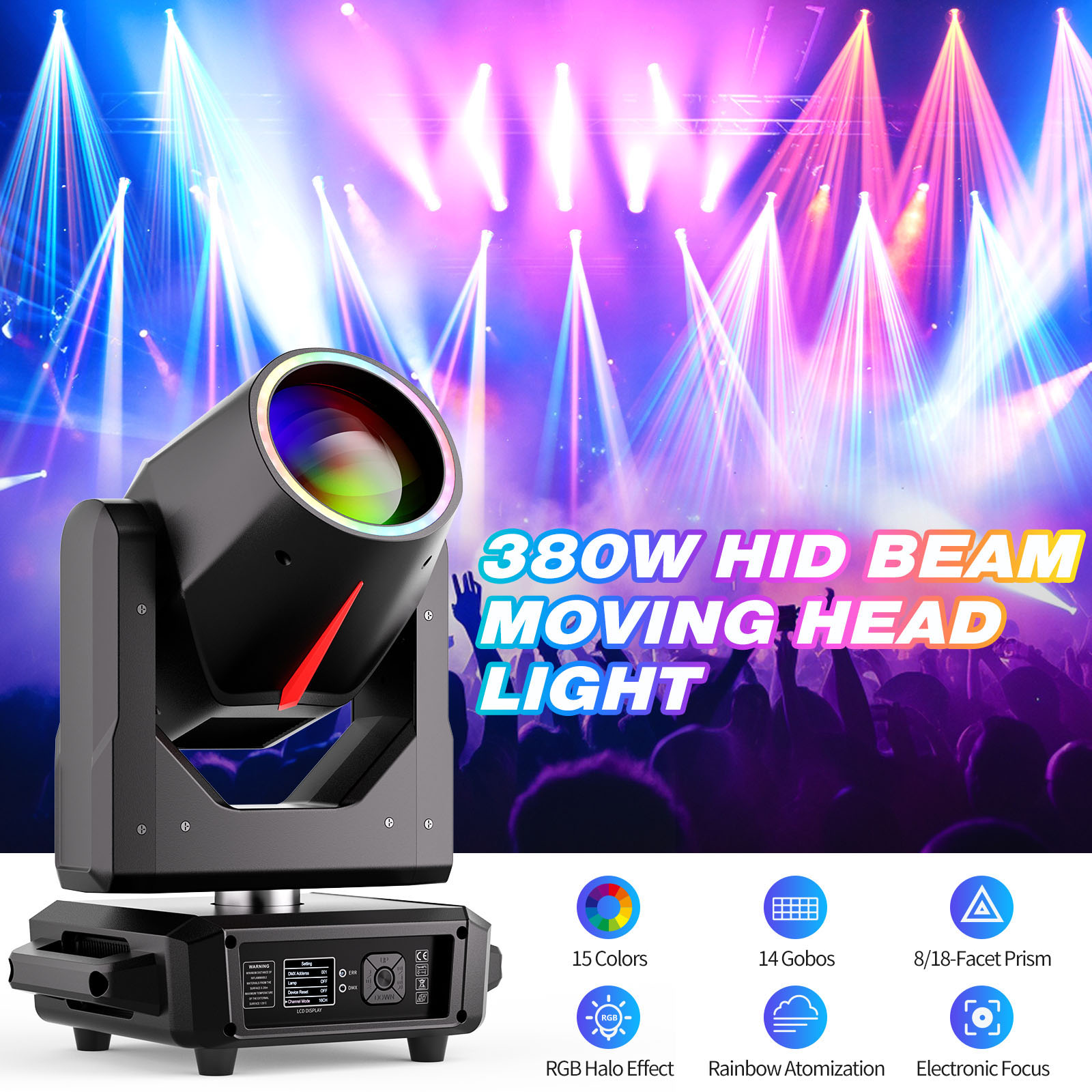

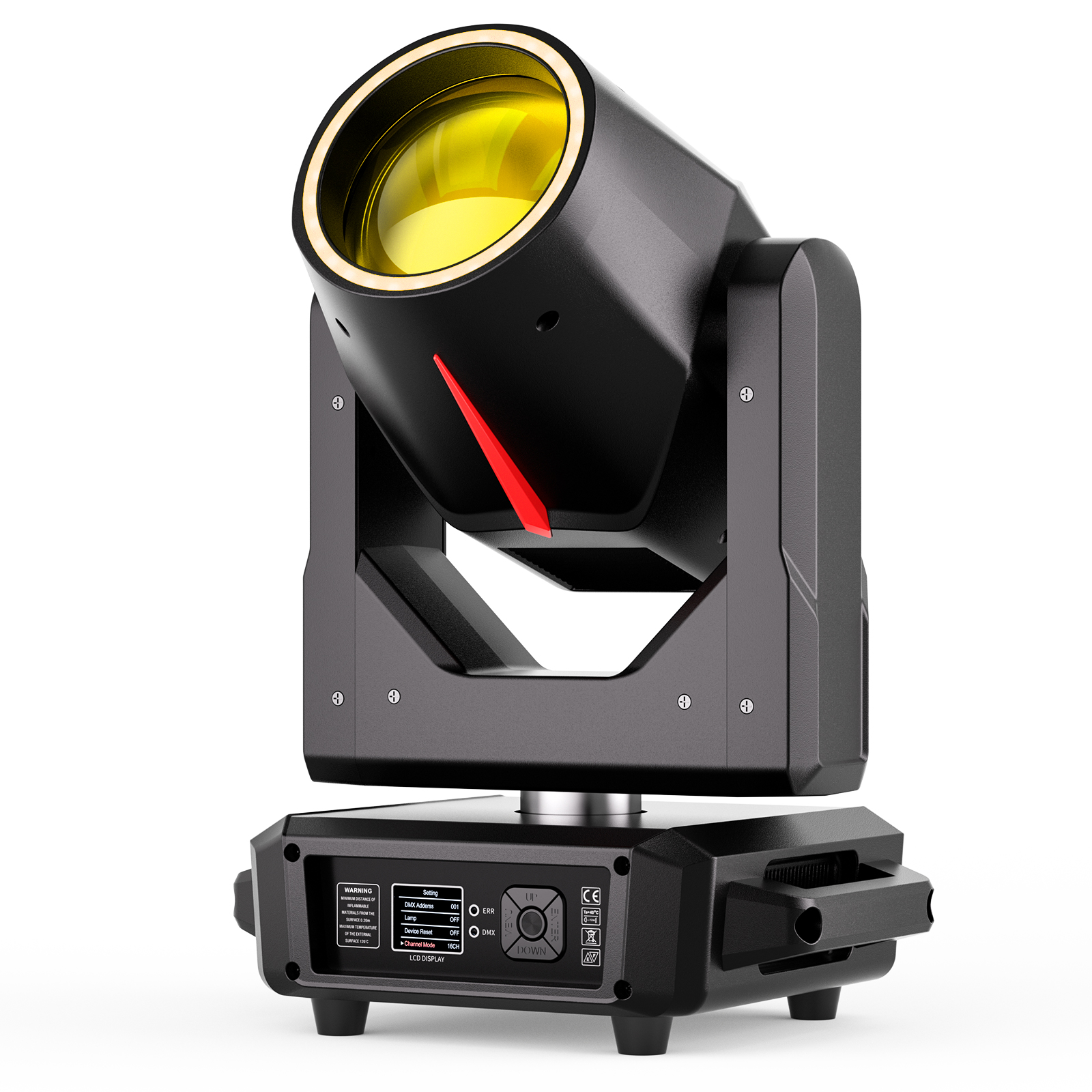

LED Beam 380W RGBW 18+8Prism GOBO Moving Head Light Stage Light DMX Effect Disco

Product Video Display

Specification

Input voltage: AC100V-240V 50/60Hz

Rated (power) power: 500W

Actual total power of the whole machine: 380W

Light source: 380W HID + 31  (RGB) LEDs

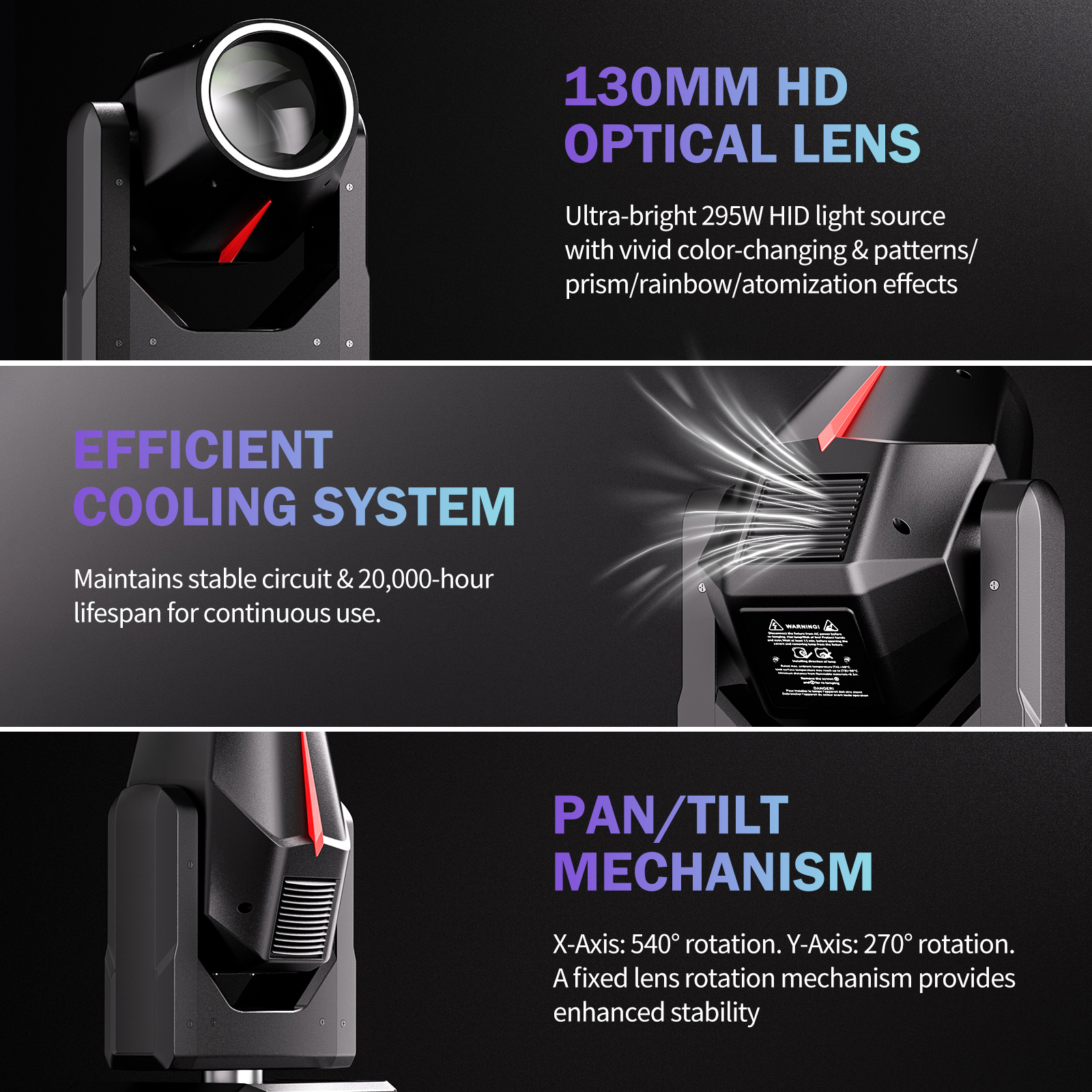

Optical aperture: 130mm

Light output angle: 4°

Color temperature: 10000K

CRI index: Ra≥80

Optimal projection distance: 3-10M

Illuminance: 630000Lux@5M

Average life of HID: 2000h

Flash: 1-20Hz

Color disk: 14+1 color disk, forward and reverse water flow

Fixed pattern disk: 13+1 pattern disk, forward and reverse water flow

Colorful atomization: rainbow + atomization

Prism: 8/18-prism, 0-360°rotatable

Focus: electronic focus

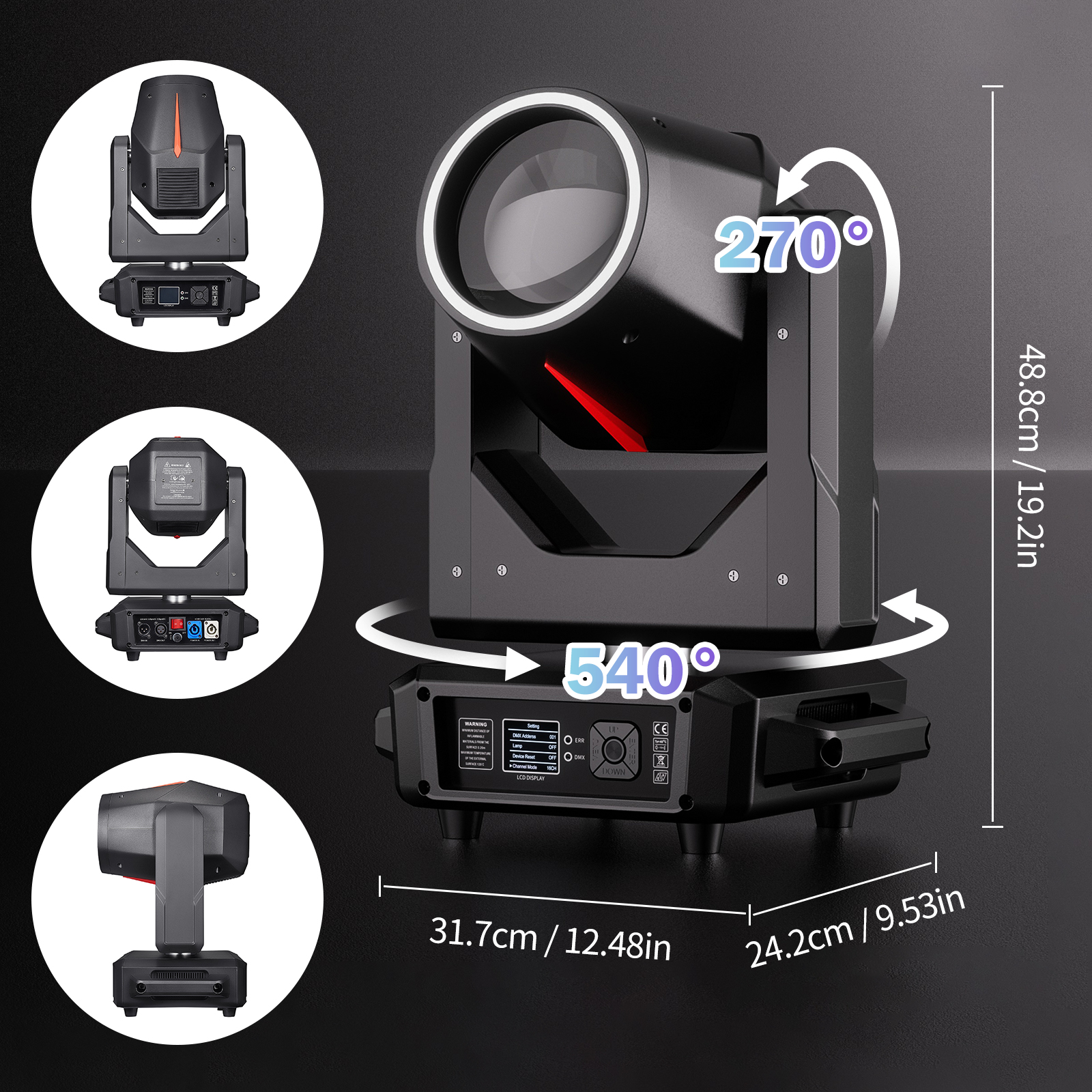

X-axis: 540° Fine-tuning accuracy: 1.2°

Y-axis: 270° Fine-tuning accuracy: 1.2°

Operation mode: automatic, voice control, master-slave, DMX

Control channel: 16/22CH

Protocol: standard DMX512 protocol, RDM protocol

Data connection: three-core XLR input/output

Display: LCD display

Protection level: IP20

Working environment: -20℃-40℃

Material：Sheet metal structure/nylon shell

Product size：31.7*24.2*48.8cm/12.48*9.53*19.2in

Net weight：11.25kg/24.8lb

Features

Ultra-Bright Long-Throw Precision:

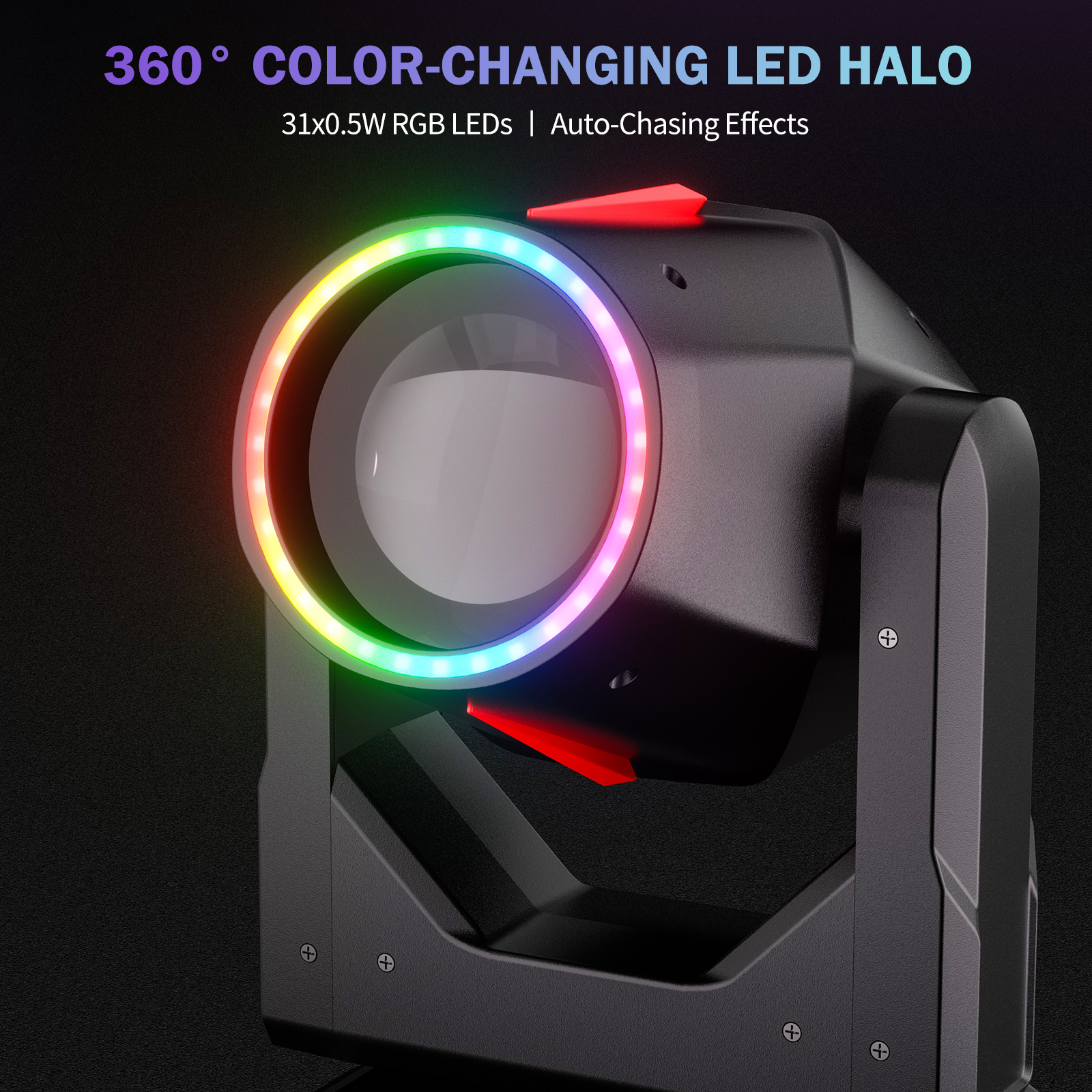

Dominates large stages with a powerful 380W HID (10,000K) + 31x RGB LED halo, delivering 630,000 Lux at 5m. Features a 4° ultra-narrow beam and electronic focus (3-10m) for pinpoint long-distance lighting accuracy.

Dynamic Multi-Layer Effects Engine:

Create complex shows effortlessly with a 14+1 color wheel, 13+1 gobo wheel, 8+18 rotating prism, plus RGB halo color/gradient effects. Add depth with rainbow, frost, and adjustable 1-20Hz strobe.

Professional Control & Wide Motion:

Features 540° pan / 270° tilt (1.2° micro-adjust) for massive coverage. Integrates seamlessly via DMX16/22 (with RDM), Auto, Sound, or Master/Slave modes using robust 3-pin XLR and LCD display.

Reliable Performance for Demanding Use:

Built tough for touring: operates on 100-240V AC, withstands -20°C to 40°C (IP20 rated), and boasts an extended 2000-hour HID lifespan – perfect for fixed installs or rigorous mobile events.

Compact & Road-Ready Design:

Engineered for easy deployment: a lightweight 11.25kg body (317x242x488mm) ensures simple rigging and transport, making it ideal for theatre beams, club trusses, and mobile setups.

Packing list：
Moving Head Light *1

Power Cord *1

Signal Cable *1

Light Hook Bracket *2

Instruction Manual *1
