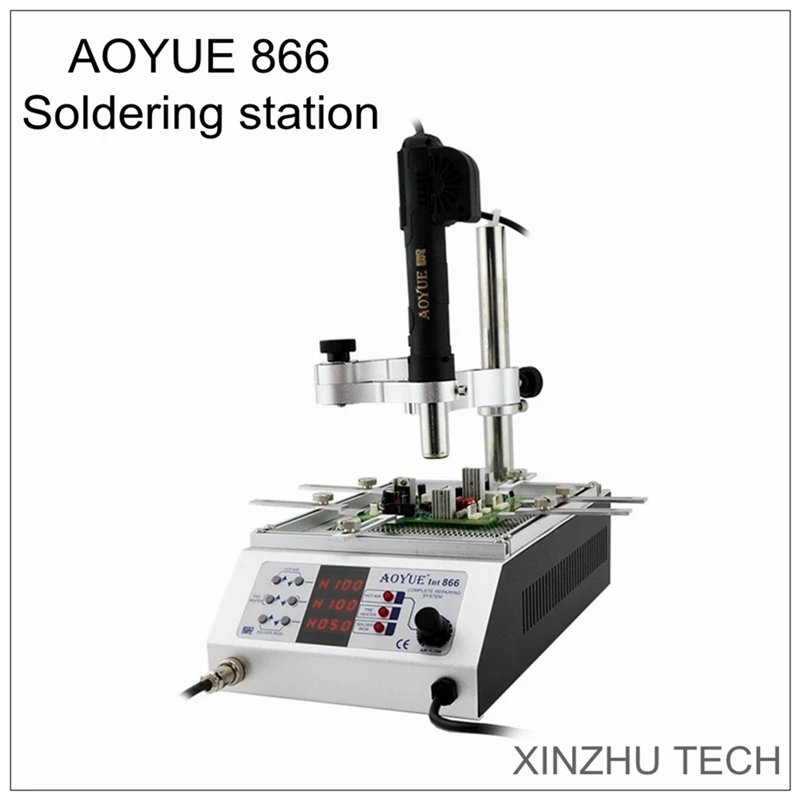

Aoyue 866 4 in 1 SMD Soldering Station Iron Station With Hot Air Gun BGA Rework 110V/220V Hot Air Rework Pre-Heater Preheater

Features:

Microprocessor-controlled ESD safe equipment.

4-in-1 repairing system combining Hot Air Gun, Soldering Iron, Pre-Heater, External Sensor, Hot Air gun stand in one sophisticated package.

Digital control and display of hot air temperature, soldering iron temperature, air pressure, pre-heater temperature with touch type panel controls for precision and ease of use.

Digital calibration for both Hot Air Gun temperature and Solder Iron temperature.

Switchable temperature readout between Fahrenheit and centigrade.

Integrated hot air gun platform.

User configurable 1 to 30 minute idle-to-auto-stand-by mode (with 30 minutes as default) for additional device protection and power saving.

Built-in auto-cooling process that protects the system and its components from excessive heat, prolonging usage life.

Compatibility with air nozzles of various types.

Wide selection of solder iron tips( T Series Soldering tips) for different soldering requirements.

Specifications:

POWER INPUT: available in 110V / 220V

WEIGHT: 7.8Kg

MAIN STATION DIMENSION: 192 x 100 x 325 mm

HOT AIR GUN

POWER CONSUMPTION: 600W

TEMPERATURE RANGE: 100°C- 480°C

HEATING ELEMENT: Metal Heating Core

PUMP TYPE: Siroccoo Fan

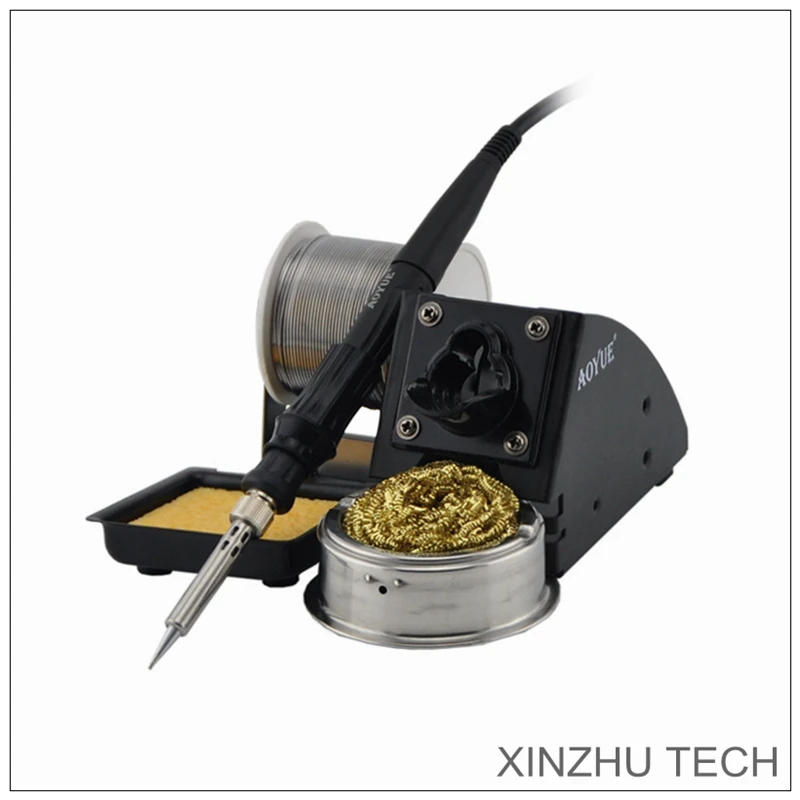

SOLDERING IRON

POWER CONSUMPTION: 75W

OUTPUT VOLTAGE: 24V

TEMPERATURE RANGE: 200°C- 480°C

HEATING ELEMENT: Ceramic heater

TIP TO GROUND RESISTANCE: Below 2 Ω

TIP TO GROUND POTENTIAL: Below 2mV

PRE-HEATER

POWER CONSUMPTION: 550W

TEMPERATURE RANGE: 100°C- 350°C

HEATING ELEMENT: Quartz Crystal

HEATING AREA: 130mm X 130mm

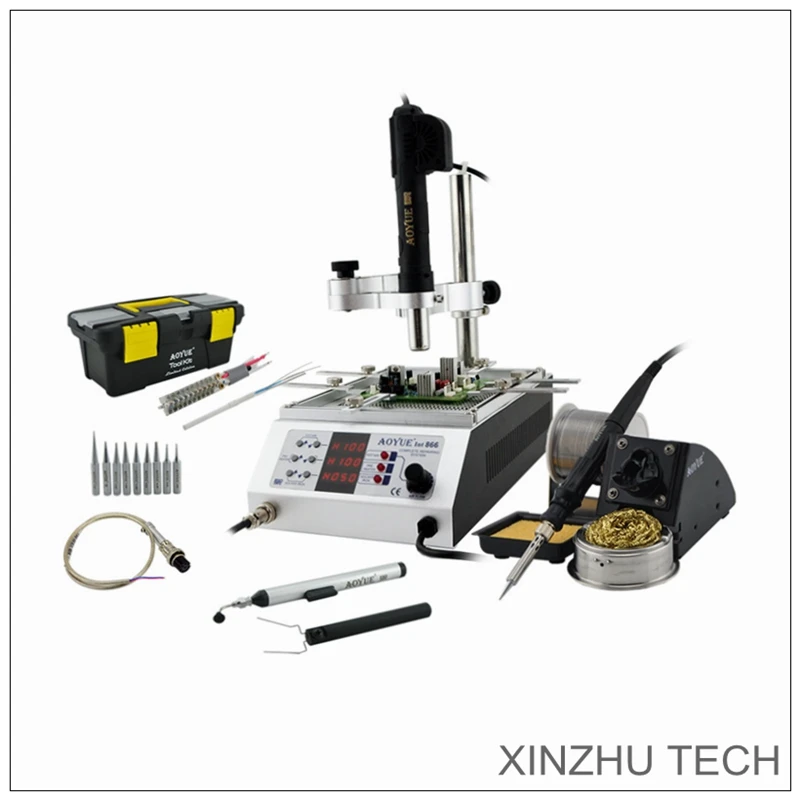

Package list:

1 unit Int866 Main Station with Pre-heater and Hot Air Gun

1 pc. Spare Hot Air Gun Heating Element

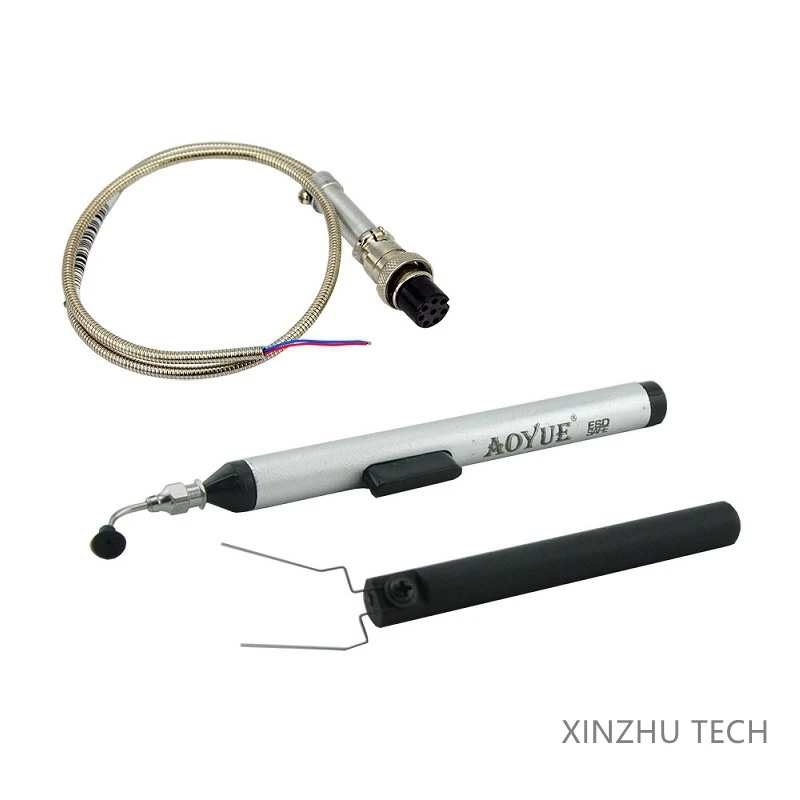

1 pc. External Sensor

1 pc. Hot Air Gun Mast with Wire Holder

1 pc.3-Segment Fully Articulating Arm Holder

1 pc. Holder Stopper with Securing Screw

6 pcs. PCB Holder

7 pcs. PCB Holder Securing Screw

1 pack. AT-9 Air Nozzle Set (T1194, T1195, T1198, BGA-S)

1 pc. B016 Soldering Iron with Tip

1 pc.Spare Soldering Iron Heating Element

1 pack. Soldering Iron Tips (10pcs) includes T-0.5C, T-0.8C, T-0.8D,T-1C, T-1.2D, T-1.6D, T-2.4D, T-B, T-LB, T-I*

1 pc. 2660 Soldering Iron Stand

1 pc. Soldering Iron Stand Assembly guide

1 pc.Vacuum Pen with 3 vacuum caps

1 pc.Tool Box

1 pc.G001 IC Popper

1 pc. Power Cord

1 pc. Instruction Manual
