Product Details
2: 128X160 resolution, clear display
3: Using the SPI serial bus, it only takes a few IOs to light up the display

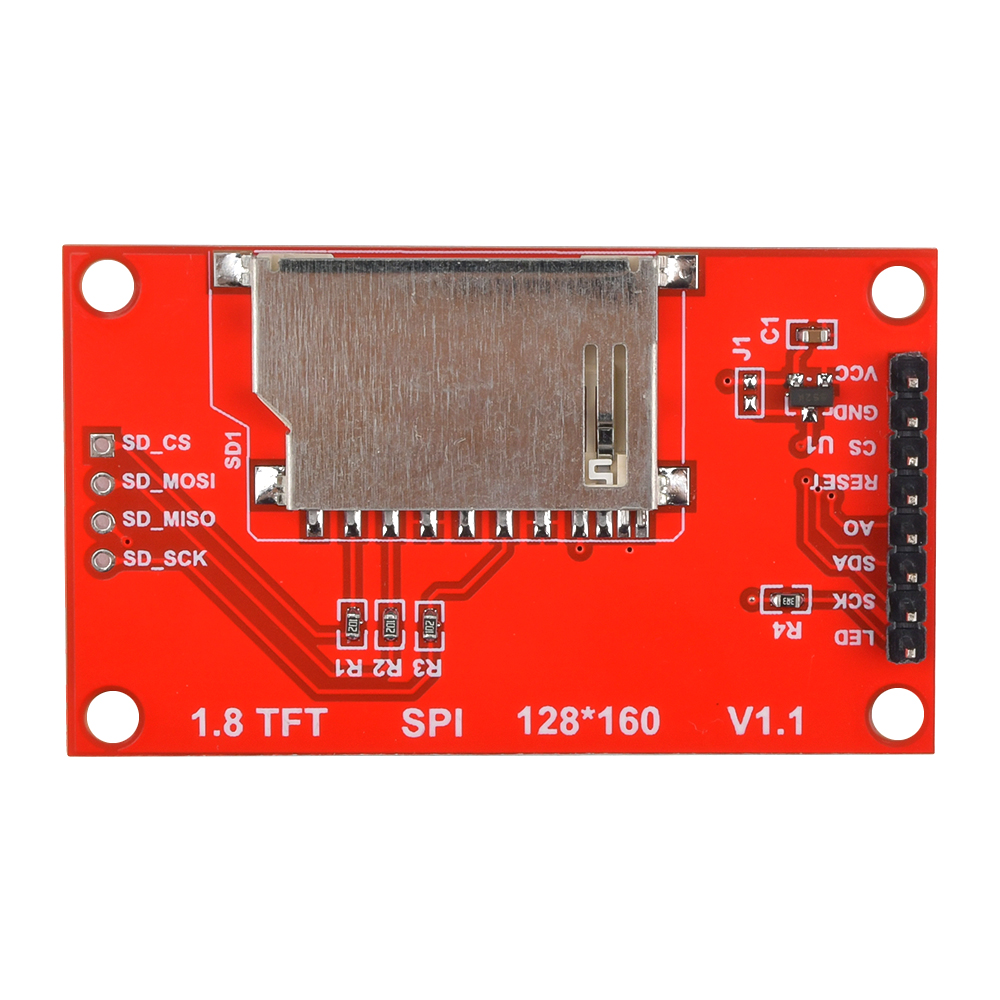

4: With SD card slot, convenient function expansion
5: Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms
6: Military-grade process standards, long-term stable work
Display color: 16BIT RGB 65K color
Screen Size: 1.8 (inches)
Type: TFT
Driver IC: ST7735S
Resolution: 128*160 (pixels)
Module interface: 4-wire SPI interface
Backlight: 2 white LEDs
Effective area: 28.03x35.04 (mm)

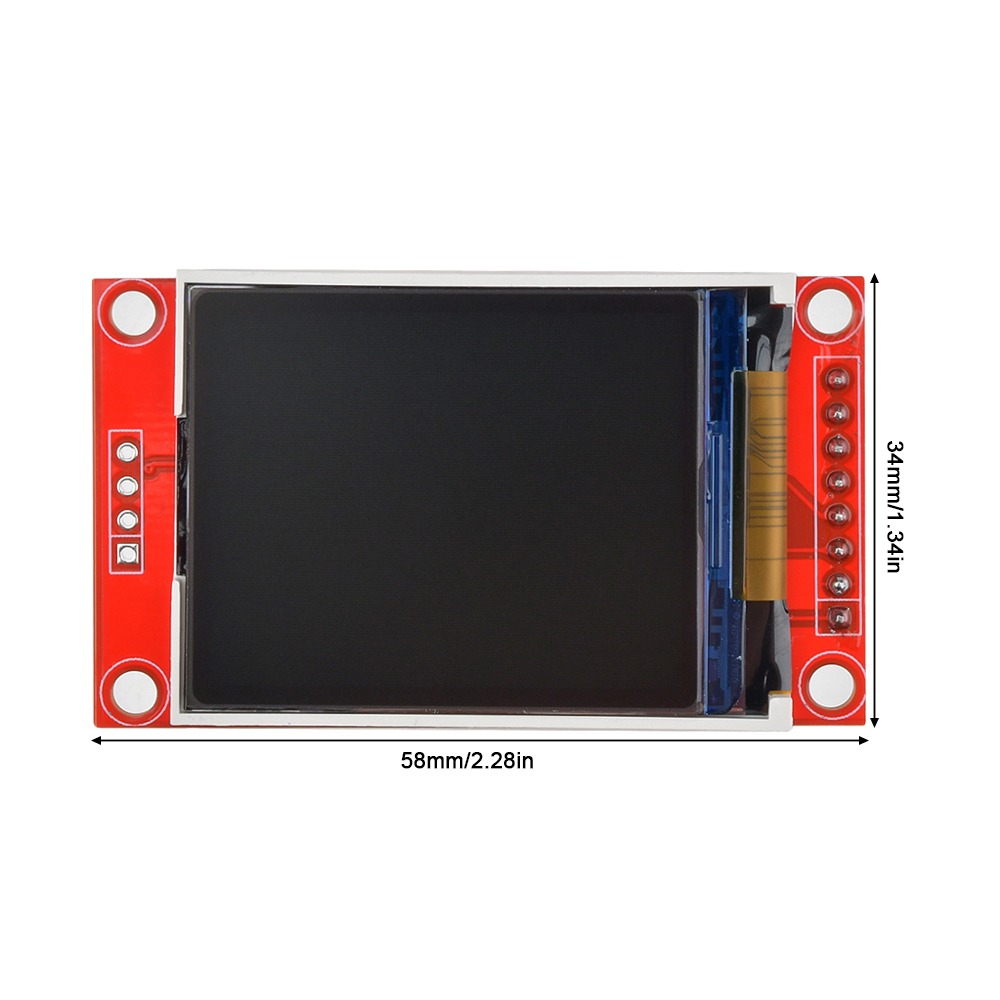

Module PCB Dimensions: 38.30x62.48 (mm)
Working temperature: -20℃~60℃
Storage temperature: -30℃~70℃
Working voltage: 5V/3.3V
Weight: 16g

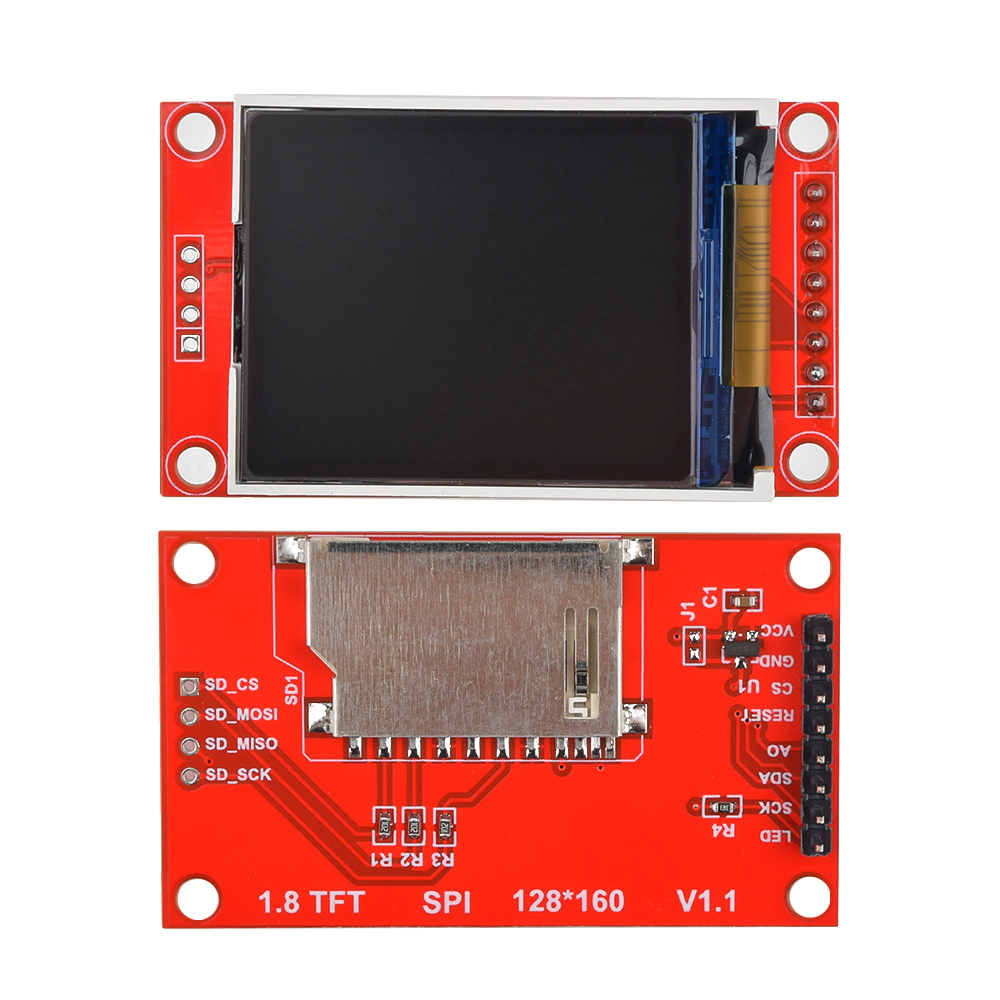

1*1.8 inch SPI LCD screen module
