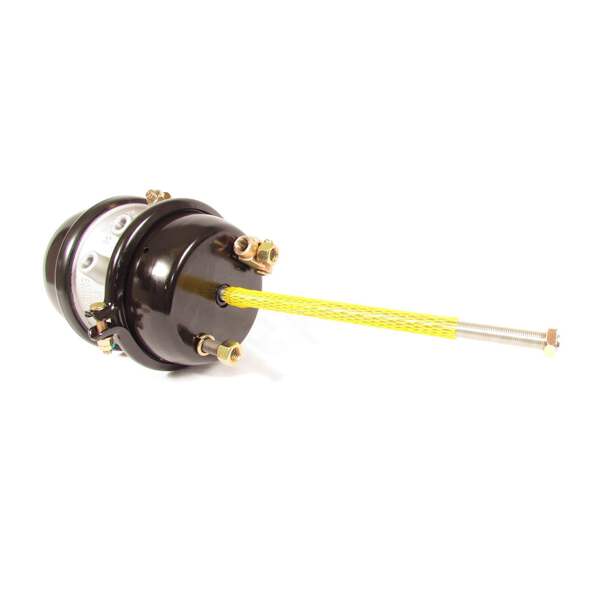

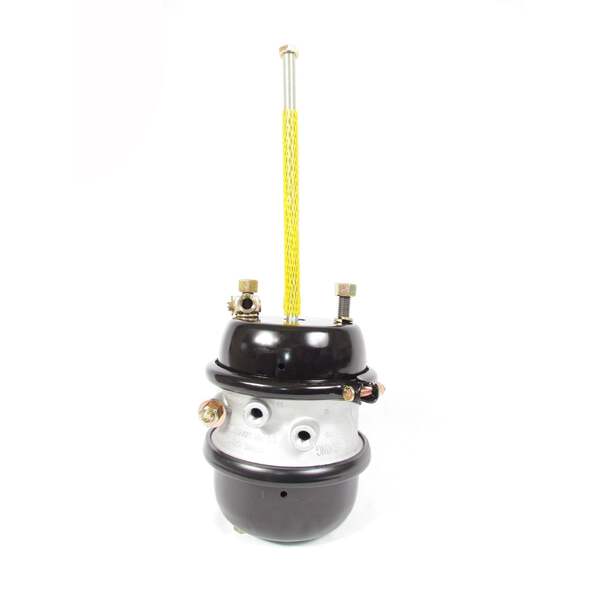

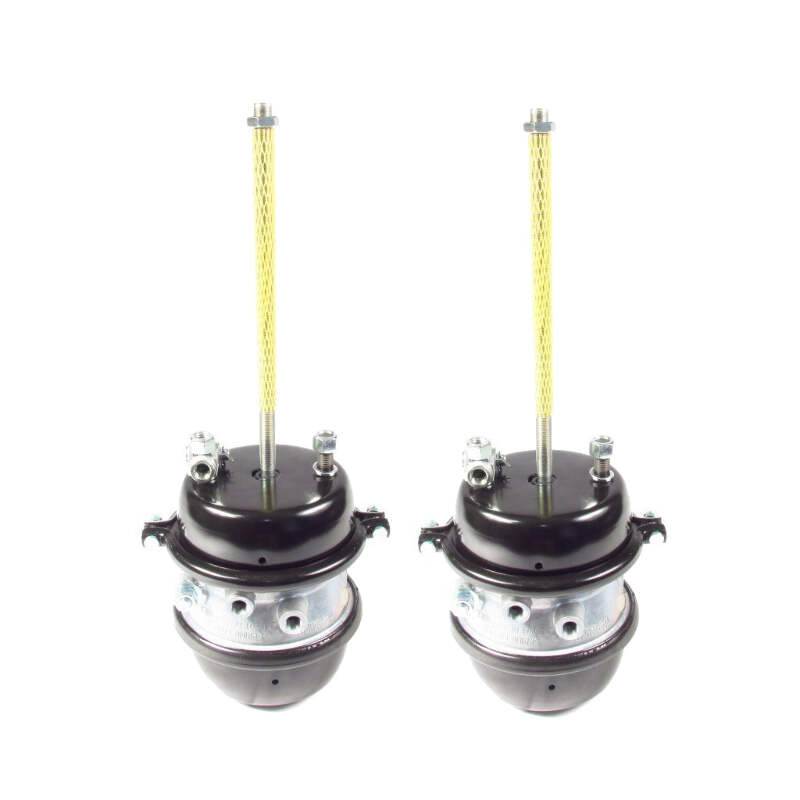

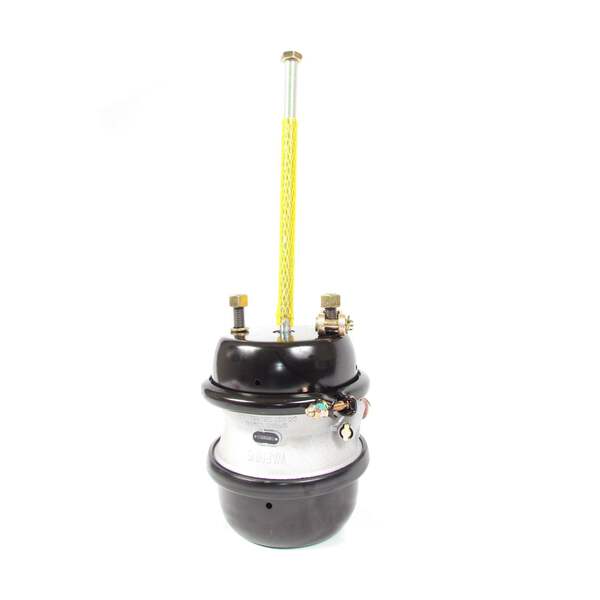

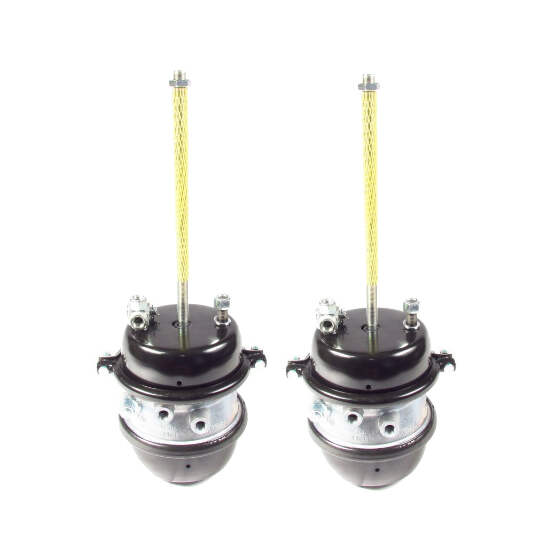

Fortpro 20-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded - Premium | F224746

Highlights:

Rugged Service Housing. 9 Gauge Steel and Powder-coated Finish for High Resistance to Fatigue and Corrosion
Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards.
Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
Standard Stroke with Length: 2 1/2"

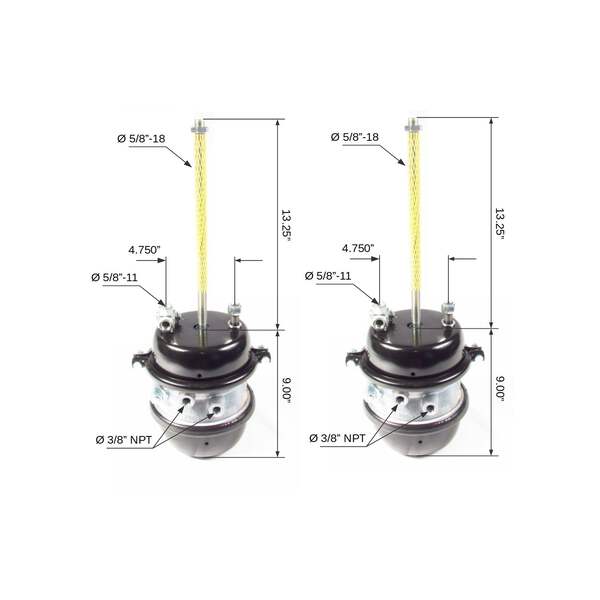

Type 30/30 - Push Rod Length: 13 1/4"

Specifications:

Brand: Fortpro
Vehicle Type: Semi-Trucks / Heavy Trucks
Product Department: Brakes
Product category : Brake Chambers
Part Type: Air Brake Chamber
Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
Chamber Type: Spring Brake Chamber
Model: Type 3030, T30/30, 3030, 30 30
Stroke: Standard Stroke / Short Stroke
Stroke Lenght: 2.50 in. (63.5 MM)
Outside Diameter (O.D.): 8.30 in.
Brake Type Support: Drum
Serviceability: Sealed
Push Rod Thread: 5/8-18 UNF-2A
Push Rod Length: 12.00 in
Service Port: 3/8-18 NPTF
Emergency/Release Port: 3/8-18 NPTF
Port Angle: 90Â°
Clevis Included: Yes
Clevis Mounting: Threaded
Maximum Pressure: 150 PSI
Mounting Bolt Thread: 5/8-11 UNC-2A
Mounting Bolt Length: 1.50 in. (38.1 MM)
Brake System Compatibility: S-Cam
Chamber Style: Double Diaphragm
Service Chamber Joint Type: Single Clamp Band
